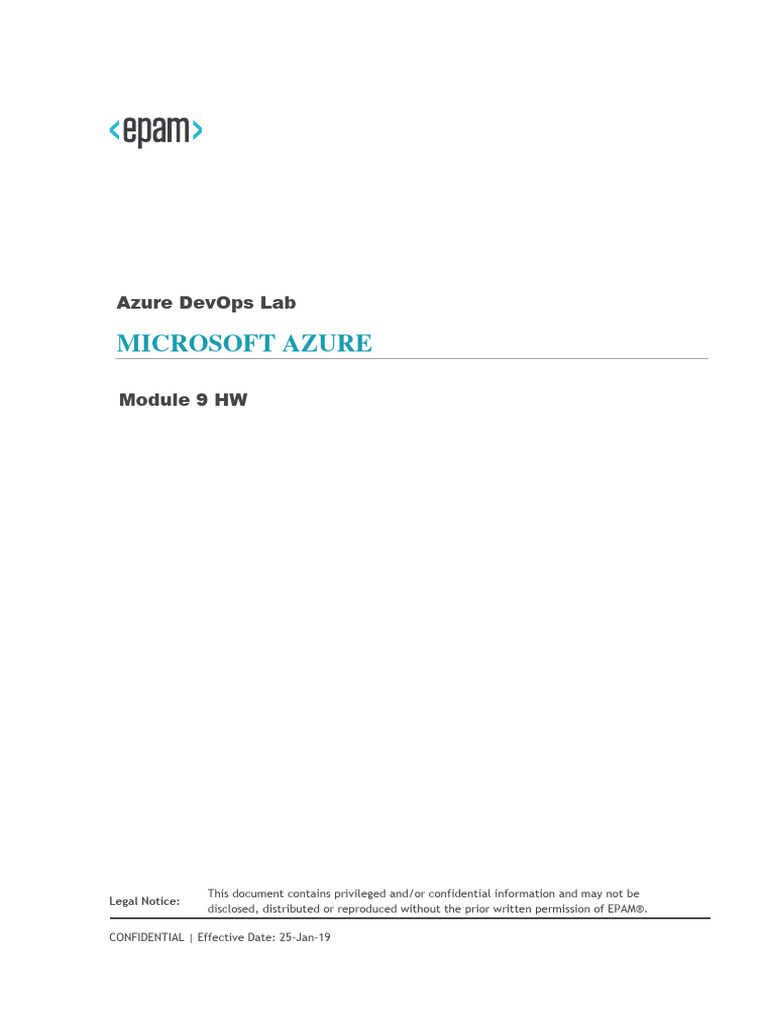

Azure DevOps Lab

MICROSOFT AZURE

Module 9 HW

This document contains privileged and/or confidential information and may not be
Legal Notice:
disclosed, distributed or reproduced without the prior written permission of EPAM®.

CONFIDENTIAL | Effective Date: 25-Jan-19

 CONTENTS
1. AGENDA .......................................................................................................... 3
2. TASK .............................................................................................................. 3
3. TASK DETAILS ................................................................................................... 3
4. TASK RESULT .................................................................................................... 4
5. USEFUL LINKS ................................................................................................... 5

CONFIDENTIAL | Effective Date:25-Jan-19 2

1. AGENDA
Azure Kubernetes Service (AKS) offers a managed Kubernetes cluster on Azure. For more
information, see Azure Kubernetes Service.
AKS clusters are deployed on a virtual network. This network can be managed (created by AKS) or
custom (pre-configured by the user beforehand). In either case, the cluster has outbound
dependencies on services outside of that virtual network (the service has no inbound
dependencies). For management and operational purposes, nodes in an AKS cluster need to access
certain ports and fully qualified domain names (FQDNs) describing these outbound dependencies.
This is required for various functions including, but not limited to, the nodes that communicate
with the Kubernetes API server. They download and install core Kubernetes cluster components and
node security updates, or pull base system container images from Microsoft Container Registry
(MCR), and so on. These outbound dependencies are almost entirely defined with FQDNs, which
don't have static addresses behind them. The lack of static addresses means that Network Security
Groups can't be used to lock down outbound traffic from an AKS cluster. For this reason, by
default, AKS clusters have unrestricted outbound (egress) Internet access. This level of network
access allows nodes and services you run to access external resources as needed.
However, in a production environment, communications with a Kubernetes cluster should be
protected to prevent against data exfiltration along with other vulnerabilities. All incoming and
outgoing network traffic must be monitored and controlled based on a set of security rules. If you
want to do this, you'll have to restrict egress traffic, but a limited number of ports and addresses
must remain accessible to maintain healthy cluster maintenance tasks and satisfy those outbound
dependencies previously mentioned.

2. TASK

• Create Azure Kubernetes cluster with simple app inside it.

• Create Azure Firewall service and configure all inbound and outbound traffic to k8s run trough
it.
• The final infra should use best practices from module 5-8
• Infrastructure can be deployed in deferent environments.
• Use Terraform lifecycle for adding public address (delete old one and add new)
• (Additional) all system AKS internet traffic run through separated NSG and LB solution.

3. TASK DETAILS

• Minimal Terraform version is 1.5.0.

• All resource names should use a common name pattern and be aligned with Azure abbreviation
examples. No resource names are hardcoded, so TF configuration is reusable.
• TF configuration has usable outputs, that are used to access to resources, such as storage
account name, vault name, cdn endpoint, etc.
• No resource names are hardcoded, so TF templates are reusable.
• All k8s traffic should run through the Firewall.
• Firewall should have minimum three inbound and outbound custom rules.
• Application deployed to k8s shall de accessible from the internet

CONFIDENTIAL | Effective Date:25-Jan-19 3

4. TASK RESULT
• TF configuration for an initial deployment
• Firewall controlling inbound and outbound k8s traffic.
• AKS exposing any application to the internet.
• Solution should be based on modules structure.
• In task you need to use dynamic blocks, locals, variables, outputs.
• Archive .zip with your source code named: <name-surname>-<module number> uploaded to
learn portal

Example architecture of the deployment:

CONFIDENTIAL | Effective Date:25-Jan-19 4

5. USEFUL LINKS
https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-overview
https://docs.microsoft.com/en-us/azure/aks/intro-kubernetes
https://kubernetes.io/docs/tasks/run-application/run-stateless-application-deployment/
https://learn.microsoft.com/en-us/azure/aks/limit-egress-traffic
Terraform import command
Terraform import block
Terraform templatefile function
