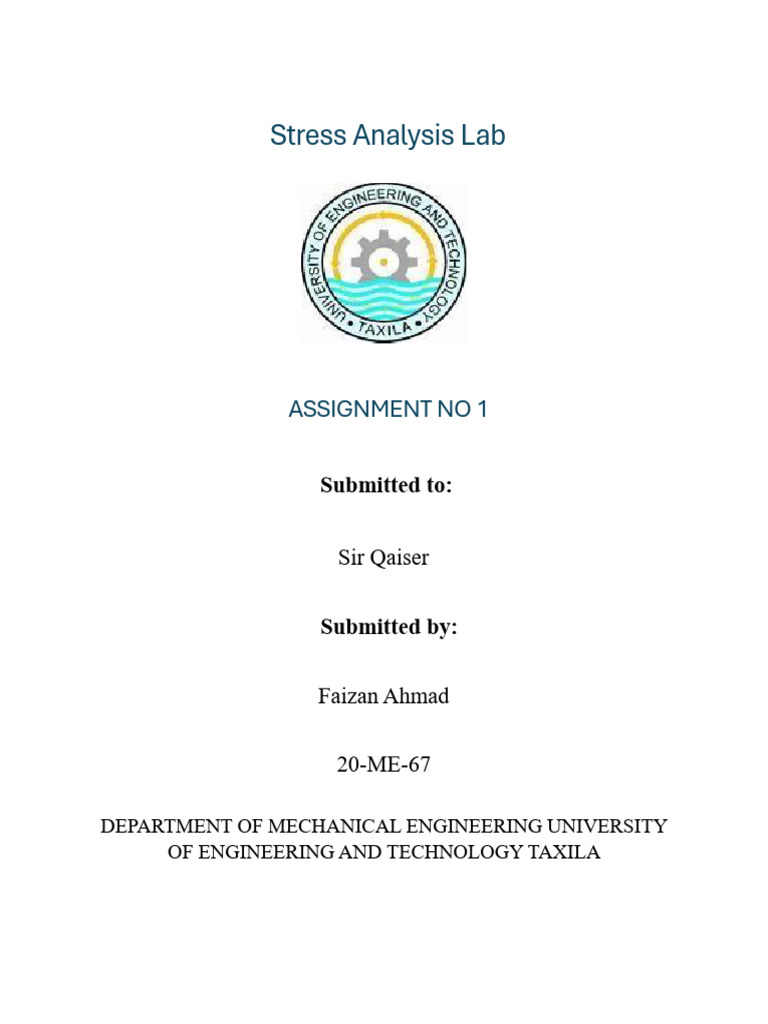

Stress Analysis Lab

ASSIGNMENT NO 1

Submitted to:

Sir Qaiser

Submitted by:

Faizan Ahmad

20-ME-67

DEPARTMENT OF MECHANICAL ENGINEERING UNIVERSITY

OF ENGINEERING AND TECHNOLOGY TAXILA
 Comprehensive Investigation of Wheatstone Bridge: Analyzing Sensitivity,
Gauge Factor, Construction, and Demonstration for Strain Measurement
Applications

Introduction:

The Wheatstone Bridge, a pivotal instrument in the domain of electrical measurements, has
transcended its initial purpose to become a cornerstone in the field of mechanical engineering,
particularly in the specialized area of stress analysis. This circuit, through its ingenious design,
offers a reliable method for detecting minute changes in resistance that occur when materials are
subjected to strain. The ability to measure these changes accurately is crucial for assessing the
structural integrity and performance of materials under various loads. As the demand for materials
capable of withstanding greater stresses without failure increases, so does the significance of
precise strain measurement techniques.

Background:

Originally developed by Sir Charles Wheatstone in 1843, the Wheatstone Bridge was intended for
the precise measurement of electrical resistances. However, its application quickly expanded
beyond its original scope. In the realm of mechanical engineering, it has been ingeniously adapted
to measure strain, a critical parameter that indicates how much an object deforms under a given
load. This deformation is often too subtle to be detected by conventional means, necessitating the
use of sensitive instrumentation like the Wheatstone Bridge. The bridge operates on a simple
principle: it compares the unknown resistance change caused by strain in a material to be known
resistances, allowing for the accurate determination of the strain induced by stress.

Objective:

The primary objective of this comprehensive investigation is to delve into the operational
principles, construction, sensitivity, and gauge factor of the Wheatstone Bridge, with a particular
focus on its application in strain measurement for stress analysis purposes in mechanical
engineering.
By exploring these areas, the assignment aims to:

• Illustrate the underlying principles that enable the Wheatstone Bridge to measure strain
with high precision.
• Examine the factors that affect the sensitivity and accuracy of strain measurements,
including the gauge factor of strain gauges used in conjunction with the bridge.
• Provide guidelines for constructing and calibrating a Wheatstone Bridge circuit tailored for
strain measurement applications.
• Demonstrate the practical application of the Wheatstone Bridge in real-world stress
analysis scenarios, thereby highlighting its value and versatility in mechanical engineering.

Scope:

The scope of this assignment extends beyond a mere theoretical examination of the Wheatstone
Bridge. It encompasses a series of practical experiments designed to illustrate the bridge's
capabilities in measuring strain, an analysis of the factors that influence its sensitivity and accuracy,
and a demonstration of its application in the field of mechanical engineering stress analysis.
Specifically, the assignment will cover:

• A detailed theoretical overview of the Wheatstone Bridge and its operation, focusing on its
application in strain measurements.
• The construction and calibration of a Wheatstone Bridge circuit, including a discussion on
the selection of appropriate components and calibration techniques.
• Practical experimentation to determine the sensitivity of the Wheatstone Bridge and to
measure the gauge factor of various strain gauges.
 • An analysis of experimental data to evaluate the performance and accuracy of the
Wheatstone Bridge in strain measurement applications.
• A case study or demonstration highlighting the application of the Wheatstone Bridge in a
real-world engineering scenario, underscoring its importance and utility in stress analysis.

Theoretical Framework:

Principles of Strain Measurement:

Strain is a dimensionless measure of deformation representing the displacement between particles

in the body relative to a reference length. Strain (ε) is given by the formula:

∆𝑳
𝜺=
𝑳

where

ΔL is the change in length, and Lo is the original length. Strain can be either tensile (positive) or
compressive (negative), indicating elongation or contraction, respectively.

Strain measurement is crucial in mechanical engineering for assessing materials' behavior under
various loading conditions. The most common method for measuring strain is by using strain
gauges, which are devices that change their electrical resistance in proportion to the strain
experienced.

Overview of Wheatstone Bridge:

The Wheatstone Bridge is an electrical circuit used to measure unknown electrical resistances by
balancing two legs of a bridge circuit. The basic configuration of a Wheatstone Bridge includes
four resistors, arranged in a diamond shape. These resistors are known as R1, R2, R3 (known
resistances), and Rx (unknown resistance). A power source is connected across the bridge, and a
voltmeter is connected across the bridge's diagonal to measure the voltage difference.

The bridge is considered "balanced" when the voltage between the two midpoints (B and D) is
zero. At this point, the ratio of their resistances in both branches is equal, which can be described
by the equation:
 𝑹𝟏 𝑹𝟑
=
𝑹𝟐 𝑹𝒙

Solving for Rx gives us:

𝑹𝟏
𝑹𝒙 = 𝑹𝟑 ( )
𝑹𝟐

This principle allows for the precise measurement of an unknown resistance when the bridge is
balanced.

Sensitivity of Wheatstone Bridge:

The sensitivity of the Wheatstone Bridge is a measure of its ability to detect small changes in
resistance. The sensitivity (S) can be defined as the change in output voltage (∆Vo) per unit change
in resistance (∆R):

∆𝐕𝒐
𝑺=
∆𝐑

For a Wheatstone Bridge, the sensitivity is influenced by the configuration of the resistances in the
bridge and the supply voltage (∆Vs)). The sensitivity is higher when the bridge is balanced or near
balance and the resistances are of similar magnitude. The mathematical relationship for a small
change in resistance ΔR in one of the arms can be complex due to the nonlinear relationship
between resistance change and output voltage. However, in practical applications, the change in
voltage for a small change in resistance can be approximated and maximized by choosing an
appropriate configuration and operating point.
Gauge Factor: Definition and Significance:

The gauge factor (GF) is a dimensionless quantity that describes the sensitivity of a strain gauge,
which is the ratio of fractional change in electrical resistance (ΔR/R) to the mechanical strain (ε):
𝚫𝐑
𝑮𝑭 = 𝑹
𝛆

where

ΔR is the change in resistance caused by strain, R is the original resistance, and ε is the strain.

The gauge factor is significant for two main reasons:

• Sensitivity Enhancement: It quantifies how sensitive a strain gauge is to strain, allowing

for the selection of appropriate gauges for specific applications based on the required
sensitivity.
• Direct Strain Measurement: By incorporating the gauge factor, engineers can directly
relate the change in resistance of the strain gauge to the amount of strain experienced by
the material, enabling precise measurement of mechanical deformation.

Using the gauge factor, the strain (ε) experienced by the gauge (and hence the material to which it
is attached) can be calculated from the measured change in resistance:

𝚫𝐑
𝑮𝑭 = 𝑹
𝛆

This relationship is fundamental in strain measurement applications, enabling the direct calculation
of strain from electrical resistance measurements.

Materials and Methods:

Experimental Setup:

Components Required are given below:

• Strain Gauges (Rg): These are the primary sensing elements used to measure strain. Strain
gauges are bonded to the surface of the test specimen, and their resistance changes in
 response to applied strain (ε). The resistance change (ΔR) of the strain gauge is proportional
to the strain applied.
• Resistors (R1, R2, R3, and R4): Precision resistors are used to construct the Wheatstone
Bridge circuit. R1, R2, R3, and R4 represent the resistances in the bridge arms. These
resistors should have known and stable resistance values.
• Voltage Source (Vs): A stable DC voltage source is required to energize the Wheatstone
Bridge circuit. The voltage source should provide a constant voltage within the operating
range of the strain gauges and other components.
• Measuring Instrument: A voltmeter or Wheatstone Bridge meter is used to measure the
output voltage (Vout) of the Wheatstone Bridge circuit. The measuring instrument should
have sufficient sensitivity to detect small changes in voltage.

• Connection Cables: High-quality cables are necessary to connect the various components
of the Wheatstone Bridge circuit.

Calibration of Instruments:

Calibration Steps are as follows:

• Zero Adjustment: Ensure that the measuring instrument reads zero when no input is
applied. This adjustment compensates for any offset or bias in the measurement system.
• Sensitivity Calibration: Adjust the sensitivity of the measuring instrument to match the
expected range of measured values. This adjustment ensures that the instrument can
accurately detect and measure small changes in voltage.
• Verification with Standards: Compare the readings of the measuring instrument against
known standards or reference values to verify accuracy. Calibration standards may include
precision resistors or voltage sources with known values.
• Temperature Compensation: Apply temperature compensation techniques if necessary
to account for variations in ambient temperature that may affect measurements.
Temperature compensation helps maintain measurement accuracy over a range of
operating conditions.
Procedure:

Experimental Procedure is as follows:

• Circuit Assembly: Construct the Wheatstone Bridge circuit according to the schematic
diagram provided. Ensure that all components are connected correctly and securely. The
Wheatstone Bridge configuration consists of four resistors connected in a diamond shape
with a voltage source applied across one diagonal and a measuring instrument connected
across the other diagonal. The output voltage (Vout) across the measuring instrument is
given by the formula:
(𝑹𝟑 ∗ 𝑹𝟒 ) − (𝑹𝟏 ∗ 𝑹𝟐 )
𝑽𝒐𝒖𝒕 = 𝑽𝒔 ∗ ( )
(𝑹𝟑 ∗ 𝑹𝟒 ) + (𝑹𝟏 ∗ 𝑹𝟐 )
• Strain Gauge Installation: Bond the strain gauges to the test specimen using an
appropriate adhesive. Ensure that the strain gauges are oriented according to the direction
of expected strain. Strain gauges should be bonded to areas of the test specimen where
strain is to be measured accurately.
• Calibration: Apply known strains (Ɛapplied)to the test specimen using a calibrated loading
device. Measure the output voltage (Vout) of the Wheatstone Bridge circuit for each applied
strain. Calculate the change in resistance (∆R) of the strain gauge corresponding to each
applied strain. The sensitivity of the Wheatstone Bridge (S) is given by:
∆𝐕𝒐𝒖𝒕
𝑺=
∆Ɛ
Where ∆Vout is the change in output voltage and ∆ Ɛ is the corresponding change in strain.
• Data Collection: Record the output voltage readings (Vout) corresponding to each applied
strain. Repeat the measurements multiple times to ensure consistency and accuracy.

Safety Considerations:

Safety Precautions are as follows:

• Electrical Safety: Ensure that all electrical connections are made securely, and that
appropriate insulation is used to prevent electric shock hazards. Avoid working with
exposed conductors when the circuit is energized.
 • Adhesive Handling: Handle adhesives and bonding agents according to manufacturer
instructions to avoid skin contact or inhalation of fumes. Work in a well-ventilated area
when applying adhesives to the test specimen.
• Equipment Handling: Use caution when handling delicate equipment such as strain
gauges to prevent damage or injury. Avoid applying excessive force or pressure to the strain
gauges during installation.
• Proper Ventilation: Ensure adequate ventilation in the laboratory to prevent the
accumulation of fumes from adhesives or other chemicals used in the experiment. Work in
a well-ventilated area or use a fume hood when handling volatile substances.
• Emergency Procedures: Familiarize yourself with the location of emergency exits, fire
extinguishers, and other safety equipment in case of an emergency. Follow established
procedures for reporting accidents or injuries and seek medical attention if necessary.

Construction of Wheatstone Bridge:

The construction of a Wheatstone Bridge involves assembling a circuit consisting of four resistors
arranged in a diamond shape, with a voltage source connected across one diagonal and a measuring
instrument connected across the other diagonal. This configuration allows for precise measurement
of unknown resistances or changes in resistance, such as those caused by strain in strain gauges.

Components and Configuration:

The Wheatstone Bridge circuit comprises the following components:

• Resistors (R1, R2, R3, and R4): Four precision resistors are arranged in a diamond shape,
forming the arms of the bridge. The resistances of these components should be known and
stable.
• Voltage Source (Vs): A stable DC voltage source is connected across one diagonal of the
bridge. This voltage source provides the necessary energy to power the circuit.
• Measuring Instrument (Vout): A voltmeter or Wheatstone Bridge meter is connected
across the other diagonal of the bridge. This measuring instrument detects the voltage
difference between the two points and provides an output voltage reading.
Circuit Assembly Guidelines:

To assemble the Wheatstone Bridge circuit, we adopt the following steps:

• Connect Resistors: Connect the four resistors (R1, R2, R3, and R4) in a diamond
configuration, with one resistor between each pair of adjacent corners.
• Connect Voltage Source: Connect the voltage source (Vs) across one diagonal of the
bridge, with one terminal connected to one corner of the diamond and the other terminal
connected to the opposite corner.
• Connect Measuring Instrument: Connect the measuring instrument (Vout) across the
other diagonal of the bridge, with one terminal connected to one corner of the diamond and
the other terminal connected to the opposite corner.
• Ensure Secure Connections: Ensure that all connections are made securely and that there
are no loose or faulty connections that could affect the accuracy of the measurements.
• Verify Circuit Integrity: Before applying power, double-check the circuit to ensure that
all components are properly connected and that there are no short circuits or open circuits.

Experimentation:

1. Experiment: Determining Sensitivity

Objective:

The objective of this experiment is to determine the sensitivity of the Wheatstone Bridge
circuit, which represents the change in output voltage (Vout) per unit change in resistance
or strain.

Procedure:

• Apply Known Resistance Changes: Introduce known changes in resistance to the

bridge circuit by adjusting the resistance of one of the resistors (R1, R2, R3, and R4).
• Measure Output Voltage: Measure the output voltage (Vout) across the measuring
instrument for each applied resistance change.
• Calculate Sensitivity: Calculate the sensitivity (S) of the Wheatstone Bridge using
the formula:
 ∆𝐕𝒐𝒖𝒕
𝑺=
∆𝐑

Where ∆V is the change in output voltage and ∆R is the corresponding change in

resistance.

• Repeat Measurements: Repeat the measurements multiple times to ensure

accuracy and consistency.
2. Experiment: Measuring Gauge Factor

Objective:

The objective of this experiment is to measure the gauge factor of strain gauges used in
conjunction with the Wheatstone Bridge circuit. The gauge factor represents the sensitivity
of the strain gauge to changes in strain.

Procedure:

Apply Known Strain: Apply known strains to the test specimen using a calibrated loading
device. Ensure that the strains are within the linear range of the strain gauges.

Measure Output Voltage: Measure the output voltage (Vout) across the Wheatstone Bridge
circuit for each applied strain.

Calculate Gauge Factor: Calculate the gauge factor (GF) of the strain gauges using the
formula:
∆𝑹
𝑮𝑭 =
𝑹𝒐 ∗ 𝛆

Where ∆R is the change in resistance, Ro is the nominal resistance of the strain gauge, and
is the applied strain.

Repeat Measurements: Repeat the measurements for different levels of applied strain to
obtain a range of gauge factor values.

Data Recording and Analysis:

After conducting the experiments, it is essential to record the data collected and perform analysis
to draw meaningful conclusions. This may include:
• Recording Data: Record the output voltage (Vout) readings obtained during each
experiment, along with the corresponding changes in resistance or strain.
• Analysis: Analyze the recorded data to determine the sensitivity of the Wheatstone Bridge
circuit and the gauge factor of the strain gauges. Compare the experimental results with
theoretical expectations and assess the accuracy and precision of the measurements.
 • Error Analysis: Identify any sources of error or uncertainty in the measurements and
evaluate their impact on the results. Consider factors such as instrument calibration,
environmental conditions, and experimental procedures.
• Interpretation: Interpret the experimental results in the context of the objectives of the
experiments and the broader principles of strain measurement and Wheatstone Bridge
operation. Discuss any insights gained and implications for future experimentation or
practical applications.

Results and Discussion:

Analysis of Sensitivity:

The sensitivity of the Wheatstone Bridge (S) is determined by the change in output voltage (∆Vout)
per unit change in resistance (∆R). Mathematically, it is expressed as:

∆𝐕𝒐𝒖𝒕
𝑺=
∆𝐑

In this section, the sensitivity of the Wheatstone Bridge circuit is analyzed based on the
experimental data obtained. The sensitivity value indicates how effectively the bridge circuit can
detect changes in resistance or strain. A higher sensitivity value implies that the bridge can detect
smaller changes in resistance, leading to more precise strain measurements. The analysis involves
comparing the experimental sensitivity values with theoretical expectations and assessing the
factors that may affect sensitivity, such as component quality, circuit configuration, and
measurement accuracy.

Evaluation of Gauge Factor:

The gauge factor (GF) of a strain gauge represents the sensitivity of the gauge to changes in strain.
It is calculated using the formula:

∆𝑹
𝑮𝑭 =
𝑹𝒐 ∗ 𝛆
In this section, the gauge factor of the strain gauges used in conjunction with the Wheatstone
Bridge circuit is evaluated based on experimental data. The gauge factor indicates how much the
resistance of the strain gauge changes per unit strain. A higher gauge factor implies that the strain
gauge is more sensitive to strain changes, making it suitable for accurate strain measurements. The
evaluation involves comparing the experimental gauge factor values with theoretical expectations
and discussing factors that may influence the gauge factor, such as material properties, strain gauge
orientation, and adhesive bonding quality.

Comparative Analysis:

This section involves a comparative analysis of the sensitivity and gauge factor values obtained
from different experimental setups or conditions. The aim is to identify any significant differences
or trends in sensitivity and gauge factor measurements and to understand the factors that contribute
to these variations. The analysis may involve comparing results from different strain gauge
configurations, Wheatstone Bridge circuit designs, or experimental procedures. By comparing the
results, researchers can gain insights into the factors that affect the performance of strain
measurement systems and identify areas for improvement or optimization.

Demonstration:

Application in Stress Analysis:

The Wheatstone Bridge circuit has widespread applications in stress analysis, particularly in
mechanical engineering. In this section, the practical application of the Wheatstone Bridge in stress
analysis is demonstrated using real-world examples or case studies. The demonstration may
involve applying the principles of strain measurement and Wheatstone Bridge operation to analyze
the behavior of materials under load, detect structural defects or weaknesses, or optimize material
design for specific applications. By showcasing the practical relevance of the Wheatstone Bridge
in stress analysis, this section highlights its importance in engineering practice and research.

Case Study: Real-world Application:

This section presents a detailed case study or real-world application of the Wheatstone Bridge in
mechanical engineering. The case study may involve a specific engineering problem or challenge
where strain measurement and stress analysis are critical for solving the problem. Examples of
real-world applications may include structural health monitoring, fatigue analysis, material testing,
or quality control in manufacturing processes. By examining a practical application of the
Wheatstone Bridge, researchers can gain insights into its effectiveness, limitations, and potential
for innovation in various engineering fields.

Conclusion:

Summary of Findings:

In the conclusion section, the key findings and insights from the experiments and discussions are
summarized. This includes a recap of the sensitivity and gauge factor analysis, comparative
analysis results, and the demonstration of Wheatstone Bridge applications. The summary
highlights the main contributions of the study and provides a concise overview of the results
obtained.

Implications for Mechanical Engineering:

The conclusion also discusses the broader implications of the study for mechanical engineering
practice and research. This includes discussing how the findings contribute to existing knowledge
in the field, addressing practical challenges or problems in engineering applications, and
suggesting potential areas for future research or development. By discussing the implications of
the study, researchers can contextualize their findings within the broader scope of mechanical
engineering and highlight the significance of their work for advancing the field.
