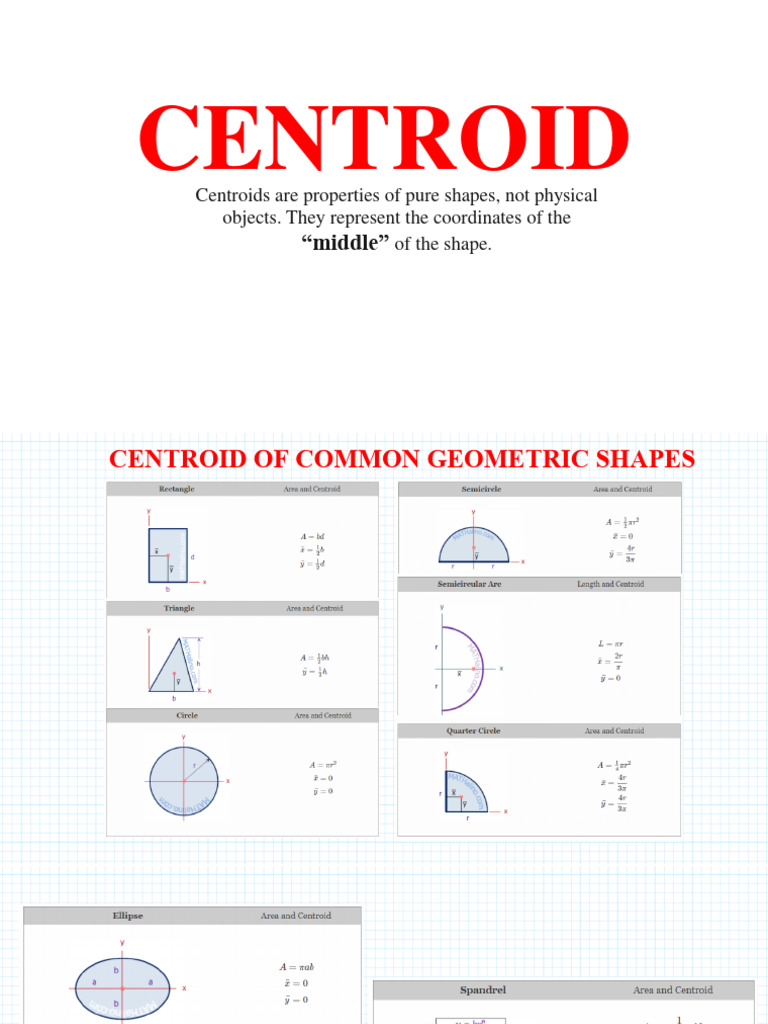

CENTROID

Centroids are properties of pure shapes, not physical


objects. They represent the coordinates of the
“middle” of the shape.
CENTROID OF COMMON GEOMETRIC SHAPES
VARIGNON’S THEOREM:
- states that the moment of any force is equal to the algebraic sum
of the moments of the
∑∑
components of that force.

∑𝑨𝑹𝑬𝑨𝒕𝒐𝒕𝒂𝒍 x̄ = ∑ AREA(x)

∑𝑨𝑹𝑬𝑨𝒕𝒐𝒕𝒂𝒍 ȳ = ∑ AREA(y)
CENTROID OF A COMPOSITE AREAS
Using the method of composite areas, determine the location of the centroid from x and y axis of the shaded area
shown.

∑𝑨𝑹𝑬𝑨𝒕𝒐𝒕𝒂𝒍 x̄ = ∑ AREA(x)

∑𝑨𝑹𝑬𝑨𝒕𝒐𝒕𝒂𝒍 ȳ = ∑ AREA(y)
CENTROID OF STRUCTURAL SECTIONS
- Structural sections are sections used for light to heavy construction purposes. Example of
these are angles, channels, wide flanges, squares, I or S shapes, etc.
CENTROID OF STRUCTURAL SECTIONS
Determine the location y of the centroid C of the beam having the cross-sectional area shown.
MOMENT OF
INERTIA
Geometric property of the cross-section of a beam.
“The bendiness of the beam”
MOMENT OF INERTIA OF A COMMON GEOMETRIC SHAPES
MOMENT OF INERTIA OF A STRUCTURAL SECTIONS
A simple beam has a span of 10 m and supports a total uniformly distributed load of 12 kN/m.
Determine the moment of inertia with respect to its centroidal x-axis.

Properties of W 480 x 86:


A = 10800 mm²
bf =180 mm
tf = 15 mm
tw = 12 mm
d = 480 mm
Determine the moment of inertia of the cross-sectional area of the T-beam with respect to its
centroidal x-axis.
MOMENT OF INERTIA OF A STRUCTURAL SECTIONS
A wide flange and a channel have the following properties. They are attached as
shown. Find the moment of inertia of the section.
MOMENT OF INERTIA OF A STRUCTURAL SECTIONS
A wide flange and a channel have the following properties. They are attached as
shown. Find the moment of inertia of the section.
SEATWORK
Determine the moment of inertia with respect to its centroidal x-axis.
