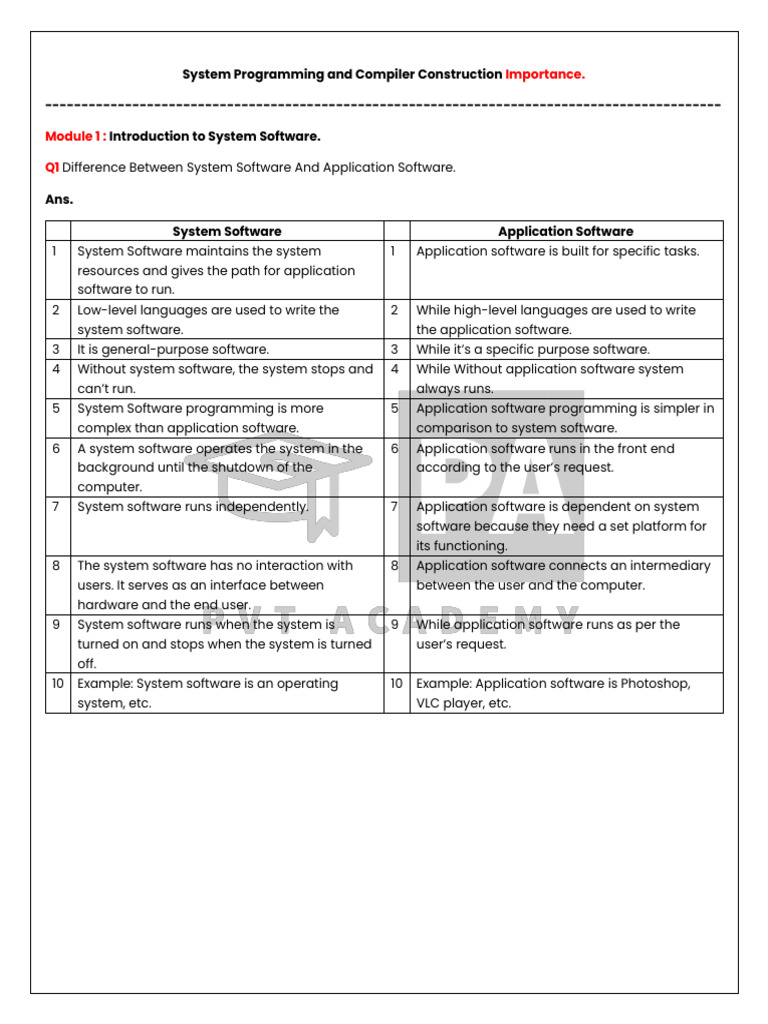

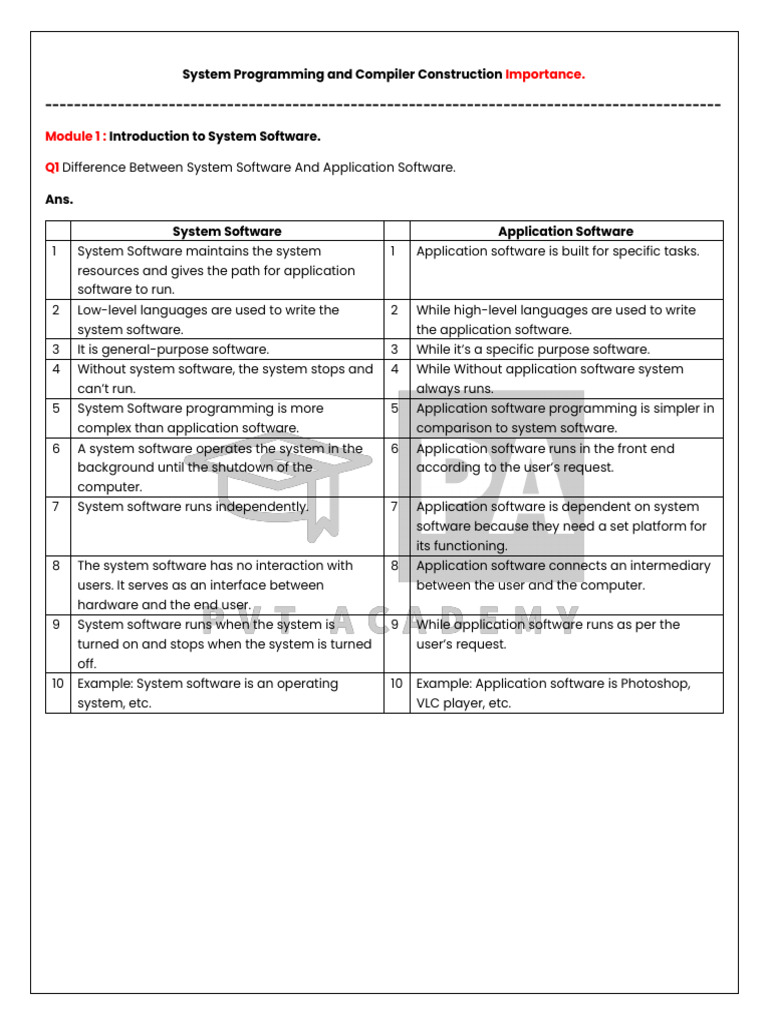

System Programming and Compiler Construction Importance.
---------------------------------------------------------------------------------------------
Module 1 : Introduction to System Software.
Q1 Difference Between System Software And Application Software.
Ans.
System Software
1 System Software maintains the system
resources and gives the path for application
software to run.
2 Low-level languages are used to write the
system software.
3 It is general-purpose software.
4 Without system software, the system stops and
can’t run.
5 System Software programming is more
complex than application software.
6 A system software operates the system in the
background until the shutdown of the
computer.
7 System software runs independently.
8 The system software has no interaction with
users. It serves as an interface between
hardware and the end user.
9 System software runs when the system is
turned on and stops when the system is turned
off.
10 Example: System software is an operating
system, etc.
Application Software
1 Application software is built for specific tasks.
2 While high-level languages are used to write
the application software.
3 While it’s a specific purpose software.
4 While Without application software system
always runs.
5 Application software programming is simpler in
comparison to system software.
6 Application software runs in the front end
according to the user’s request.
7 Application software is dependent on system
software because they need a set platform for
its functioning.
8 Application software connects an intermediary
between the user and the computer.
9 While application software runs as per the
user’s request.
10 Example: Application software is Photoshop,
VLC player, etc.
Module 2 : Assemblers.

Q1 Draw Flowchart Of A Pass-I Of Two Pass Assembler Design And Explain In Detail.

Ans.

Designing a two-pass assembler involves breaking down the assembly process into two distinct phases:
Pass I and Pass II. In Pass I, the assembler scans the source code once, building a symbol table and
generating intermediate code or data structures that are needed for Pass II. Here's a detailed explanation
along with a flowchart for Pass I of a two-pass assembler.

Pass I Flowchart : (this flowchart is created by ai, check before use by authorized person.)

Start

|
|--- Read First Line of Source Code
| |
| |---> Check for Comments or Empty Lines
| | |
| | |----> If Comment or Empty Line, Skip
| |
| |---> Parse Label (if any)
| | |
| | |---> If Label Exists, Add to Symbol Table
| | |
| | |---> Move to Next Field (Opcode/Operation)
| |
| |---> Parse Opcode/Operation
| | |
| | |---> If Operation is Assembler Directive (like ORG, EQU), Handle Accordingly
| | | |
| | | |---> Update Location Counter/Address if Necessary
| | | |
| | | |---> Update Symbol Table with EQU Values
| | |
| | |---> If Operation is Instruction, Increment Location Counter/Address
| |
| |---> Parse Operands (if any)
| |
| |---> If Operand is Symbol, Add to Symbol Table (if not already present)
|
|--- Repeat for Next Line Until End of Source Code
|
|--- End of Pass I
Explanation of Pass I:

1. Start: The assembler begins the Pass I process.

2. Read First Line of Source Code: The assembler reads the first line of the source code file.
3. Check for Comments or Empty Lines: It checks if the line is a comment or empty. If so, it skips to the next
line.
4. Parse Label: If there is a label present in the line, it is parsed and added to the symbol table along with
its corresponding address or location counter value.
5. Parse Opcode/Operation: The assembler parses the opcode or operation mnemonic. If it's an
assembler directive (like ORG or EQU), it handles it accordingly, updating the location counter or symbol
table entries as necessary. If it's an instruction, the location counter is incremented.
6. Parse Operands: If there are operands present, they are parsed. If an operand is a symbol, it is added to
the symbol table if it's not already present.
7. Repeat for Next Line: Steps 2-6 are repeated for each subsequent line of the source code until the end
of the file is reached.
8. End of Pass I: Pass I concludes after scanning the entire source code, building the symbol table, and
handling assembler directives.

Explanation in Detail:

1. Symbol Table: Pass I constructs a symbol table that maps labels to their corresponding addresses or
values. This symbol table is used in Pass II for resolving symbols and generating the final machine code.
2. Location Counter: Pass I maintains a location counter that keeps track of the address or memory
location of the current instruction or data being processed. This counter is incremented as instructions
are encountered.
3. Handling Assembler Directives: Assembler directives such as ORG (origin) and EQU (equation) affect
the assembly process by specifying addresses or defining constants. Pass I handles these directives by
updating the location counter or symbol table entries accordingly.
4. Parsing Labels, Opcodes, and Operands: Pass I parses each line of the source code to identify labels,
opcodes, and operands. Labels are added to the symbol table, opcodes are processed to update the
location counter, and operands are handled as necessary.
5. Skipping Comments and Empty Lines: Pass I ignores comments and empty lines to focus on processing
meaningful instructions and data.
6. Error Handling: Pass I may also perform basic error checking, such as detecting invalid syntax or
duplicate labels, and issue warnings or errors as appropriate.

Q2 Explain Forward Reference Problem And How It Is Handled In Assembler Design.

Ans.

The forward reference problem occurs in the context of assembling source code when an instruction or
data declaration references a symbol (such as a label) that has not been defined yet in the source code. In
other words, the assembler encounters a reference to a symbol before it has seen its definition. This poses a
challenge because the assembler needs to resolve the symbol to its corresponding address or value during
the assembly process.

Forward Reference Problem Can Be Explained :

1. Example:

Consider the following assembly code:

JMP Label

...

...

Label: NOP

Here, the ‘JMP’ instruction references a label ‘Label’, but ‘Label’ is defined later in the source code. This
creates a forward reference problem.

2. Handling Forward References:

To address the forward reference problem, assemblers typically employ one of the following techniques:

• Two-Pass Assembler: One common solution is to use a two-pass assembler, where Pass I scans the
entire source code, building a symbol table and handling forward references by marking symbols as
undefined. In Pass II, the assembler revisits the source code, resolving the previously undefined
symbols using the symbol table generated in Pass I.
• Use of Placeholder Values: During Pass I, when a forward reference is encountered, the assembler
assigns a placeholder value (such as 0 or an undefined marker) to the symbol. In Pass II, after all
symbols have been defined, the assembler revisits the source code and substitutes the actual
addresses or values for the previously assigned placeholders.
• Delayed Processing: Some assemblers delay the processing of certain instructions or data
declarations until all symbols have been defined. This allows them to resolve forward references at a
later stage in the assembly process.
• Multiple Passes or Iterations: In some cases, especially with complex forward references, the
assembler may require multiple passes or iterations over the source code to resolve all references.
3. Example Handling in Two-Pass Assembler:

In the two-pass assembler approach, during Pass I:

• The assembler encounters the JMP Label instruction and records Label as an undefined symbol in
the symbol table.
• It proceeds to the next lines of code, recording other symbols and their addresses.
• In Pass II:
o The assembler revisits the instruction JMP Label and looks up Label in the symbol table.
o Since Label is now defined, the assembler replaces it with the actual address of Label.
Q3 Explain With Flowchart Design Of Two Pass Assembler.

Ans.

Designing a flowchart for a two-pass assembler involves illustrating the steps taken in each pass to process
the source code and generate the corresponding machine code. Here's a simplified flowchart for a two-
pass assembler:

Two-Pass Assembler Flowchart:

Start
|
|--- Pass I
| |
| |---> Read First Line of Source Code
| | |
| | |---> Parse Label (if any)
| | | |
| | | |---> If Label Exists, Add to Symbol Table
| | | |
| | | |---> Move to Next Field (Opcode/Operation)
| | |
| | |---> Parse Opcode/Operation
| | | |
| | | |---> Handle Assembler Directives
| | | |
| | | |---> Increment Location Counter/Address
| | |
| | |---> Parse Operands (if any)
| | |
| | |---> If Operand is Symbol, Add to Symbol Table
| |
| |---> Repeat for Next Line Until End of Source Code
|
|--- Pass II
| |
| |---> Read First Line of Source Code
| | |
| | |---> Parse Label (if any)
| | |
| | |---> Parse Opcode/Operation
| | | |
| | | |---> Resolve Symbolic Addresses using Symbol Table
| | |
| | |---> Parse Operands (if any)
| |
| |---> Repeat for Next Line Until End of Source Code
|
|--- End of Pass II
|
End

Explanation of Two-Pass Assembler Flowchart:

1. Start: The assembler begins the two-pass process.

2. Pass I:
• In Pass I, the assembler scans the entire source code, building a symbol table and generating
necessary information for Pass II.
• It parses each line of code, extracting labels, opcodes, and operands.
• Labels are added to the symbol table along with their corresponding addresses.
• Assembler directives are handled, and the location counter is incremented accordingly.
• Operands are processed, and symbols encountered are added to the symbol table.
3. Pass II:
• In Pass II, the assembler re-scans the source code, generating the final machine code using the
symbol table built in Pass I.
• It parses each line of code, resolving symbolic addresses using the symbol table.
• Labels, opcodes, and operands are processed similarly to Pass I, but with the addition of address
resolution for symbols.
4. End of Pass II: Pass II concludes after processing the entire source code and generating the final
machine code.

Q4 Explain Following Tables - POT, MOT, ST, BT, LT.

Ans.

1. POT (Pseudo-operation Table):

• The POT (Pseudo-operation Table) is a table used by the assembler to map pseudo-operations or
assembler directives to their corresponding actions or behaviors during the assembly process.
• Pseudo-operations are instructions that do not directly translate into machine code but rather
provide instructions or directives to the assembler itself. Examples include START, END, ORG, EQU, etc.
• The POT contains entries for each pseudo-operation along with information on how the assembler
should handle them. This information typically includes the action to be taken, such as updating the
location counter, modifying the symbol table, or generating additional machine code.
2. MOT (Machine Operation Table):
• The MOT (Machine Operation Table) is a table used by the assembler to map mnemonic instructions
(e.g., ADD, SUB, JMP) to their corresponding machine language opcodes.
 • For each mnemonic instruction recognized by the assembler, the MOT contains entries specifying
the opcode or machine language representation of the instruction.
• During the assembly process, the assembler references the MOT to translate mnemonic instructions
from the source code into their corresponding machine code representations.
3. ST (Symbol Table):
• The ST (Symbol Table) is a data structure used by the assembler to manage symbols encountered
in the source code.
• Symbols include labels, variable names, constants, and other identifiers defined by the programmer.
• For each symbol encountered during the assembly process, the ST contains entries storing
information such as the symbol name, its address or value, and any additional attributes.
• The symbol table is used for various purposes, including resolving symbols, generating machine
code, and facilitating the linking process.
4. BT (Literal Table):
• The BT (Literal Table) is a table used by the assembler to manage literals or constants defined in the
source code.
• Literals are fixed values (e.g., numerical constants, character strings) that are directly used within the
program.
• For each literal encountered in the source code, the BT contains entries storing information such as
the literal value, its address or storage location, and any associated attributes.
• The literal table is primarily used to allocate storage space for literals and manage their usage
within the program.
5. LT (Location Counter Table):
• The LT (Location Counter Table) is a table used by the assembler to keep track of the current
location or address within the generated machine code.
• It maintains the location counter, which represents the memory address or offset where the next
instruction or data item should be placed in memory.
• During the assembly process, the LT is updated as instructions and data are processed, ensuring
that each item is assigned a unique and sequential address.
• The LT is closely related to the symbol table and is used in conjunction with it to calculate addresses
and manage memory allocation.

Q5 Explain Different Assembler Directives With Example.

Ans.

In the context of Systems Programming and Compiler Construction (SPCC), assembler directives are
commands or instructions embedded within assembly language code that provide guidance to the
assembler on how to process the source code. These directives are not translated into machine code but
rather instruct the assembler on various aspects of the assembly process, such as defining symbols,
allocating memory, or controlling program flow. Here are some common assembler directives along with
examples:
1. ORG (Origin):
• The ORG directive specifies the origin or starting address for the subsequent instructions or data in
memory.
• Syntax: ORG address
• Example: ORG 1000
• This directive instructs the assembler to start placing instructions or data at memory address 1000.
2. EQU (Equation):
• The EQU directive assigns a constant value to a symbol or label.
• Syntax: symbol EQU value
• Example: MAX_LENGTH EQU 100
• This directive defines the symbol MAX_LENGTH to represent the constant value 100.
3. DS (Data Storage):
• The DS directive reserves memory space for data storage.
• Syntax: label DS size
• Example: BUFFER DS 50
• This directive reserves 50 bytes of memory space for the buffer named BUFFER.
4. DC (Data Constant):
• The DC directive initializes memory with constant data values.
• Syntax: label DC value
• Example: NUMBERS DC 10, 20, 30, 40
• This directive initializes memory locations with the values 10, 20, 30, and 40 sequentially starting from
the address labeled NUMBERS.
5. START:
• The START directive indicates the starting point of the program.
• Syntax: START label
• Example: START MAIN
• This directive specifies that the program execution should begin at the label MAIN.
6. END:
• The END directive marks the end of the program.
• Syntax: END
• Example: END
• This directive indicates the end of the assembly language source file.
7. INCLUDE:
• The INCLUDE directive includes the contents of another file into the current source file.
• Syntax: INCLUDE filename
• Example: INCLUDE constants.asm
• This directive includes the contents of the file named constants.asm at the point of declaration.

Q6 Enlist The Different Types Of Errors That Are Handled By Pass I and Pass II Of Assembler.

Ans.
Errors handled by Pass I:

1. Syntax Errors:
• Pass I detects syntax errors such as invalid mnemonics, missing operands, or incorrect usage of
assembler directives.
• Example: ADD AX, BX, CX (Invalid syntax due to too many operands for the ADD instruction).
2. Undefined Symbols:
• Pass I detects references to symbols (labels, variables, constants) that are not defined in the source
code.
• Example: MOV AX, VAR (Where VAR is not defined anywhere in the source code).
3. Duplicate Labels:
• Pass I detects duplicate label definitions within the same scope.
• Example:
o LABEL: ; First occurrence of LABEL
o LABEL: ; Second occurrence of LABEL
4. Incorrect Usage of Assembler Directives:
• Pass I verifies the correct usage of assembler directives and flags errors if they are used incorrectly.
• Example: ORG A (Where A is not a valid memory address).
5. Address Calculation Errors:
• Pass I calculates addresses and updates the location counter. It may detect errors related to
incorrect address calculations.
• Example: Miscalculating the memory address while processing ORG or EQU directives

Errors handled by Pass II:

1. Undefined Symbols:
• Pass II revisits the source code and attempts to resolve previously undefined symbols using the
symbol table generated in Pass I.
• Example: MOV AX, VAR (Where VAR was not defined in Pass I but may be defined later in the source
code).
2. Literal Errors:
• Pass II handles errors related to the processing of literals, such as undefined or incorrectly formatted
literals.
• Example: Undefined literals referenced in the source code.
3. Address Resolution Errors:
• Pass II resolves symbolic addresses using the symbol table. It may detect errors related to incorrect
address resolution.
• Example: Inaccurate address resolution resulting in incorrect machine code generation.
4. External Symbol Errors:
• Pass II handles errors related to unresolved external symbols, typically encountered in programs
using external libraries or modules.
• Example: References to symbols defined in external modules without proper linkage.
Module 3 : Macros and Macro Processor.

Q1 Explain Macro And Micro Expansion.

Ans.

Macro Expansion :

Macro expansion refers to the process by which macro definitions are expanded into actual code. A macro
is essentially a block of code that gets substituted or expanded wherever the macro is invoked in the
program. Macros are defined to simplify repetitive tasks or to make code more readable and maintainable.

• Definition: The macro is defined with a name and a body. The body can include any number of
instructions or even other macros. Parameters can be passed to macros to make them more flexible.
• Expansion: During the preprocessing or assembly phase, whenever the macro is called (invoked), the
macro processor or assembler replaces the macro invocation with the macro's body. If the macro
includes parameters, the actual parameters in the macro call are substituted for the formal parameters
in the macro definition.
• For Example:
MACRO AddTwo, X, Y
MOV AX, X
ADD AX, Y
ENDM

; Macro Invocation
AddTwo 5, 10
In this case, the macro AddTwo would be expanded into the MOV and ADD instructions with the values 5
and 10 substituted for X and Y, respectively.

Micro Expansion :

Micro expansion is a term less commonly used but can be related to microcode or the detailed low-level
instructions or operations within a processor or microprocessor. Microcode implements complex machine
instructions or operations in terms of simpler, lower-level operations that the processor can perform
directly.

• Microcode: This is a layer of hardware-level instructions or control signals that translate high-level
machine instructions into the fundamental operations that the processor can execute. It is essentially a
set of microinstructions that define how a CPU operates on a low level.
• Expansion: In this context, "expansion" might refer to the translation or breaking down of complex
instructions into simpler micro-operations that can be directly executed by the hardware. This process is
typically fixed and hardwired into the CPU architecture and not visible to the programmer or the
assembly process.
Q2 Draw A Neat Flowchart Of Two Pass Micro Processor. Explain With The Help Of Example.

Ans.

The concept of a "two-pass assembler" for a microprocessor involves assembling a program in two distinct
phases or passes. This process is crucial for resolving symbols and addresses correctly before generating
the final machine code. Let's delve into an explanation supplemented by a simple example to elucidate how
a two-pass assembler operates.

Pass 1: Building the Symbol Table

The primary objective of the first pass is to scan the entire source code to build a symbol table. The symbol
table contains all the labels (symbols) used in the program along with their addresses. This pass does not
generate any machine code. Instead, it prepares the assembler by resolving all the labels and calculating
their addresses, which are essential for the second pass.

Tasks Performed in Pass 1:

• Read each line of the source code.

• Identify and record labels with their corresponding addresses.
• Process directives that might affect addresses (e.g., `ORG` to set the starting address).
• Calculate the address of the next instruction or data element by taking into account the size of the
current instruction or data directive.

Pass 2: Generating Machine Code

During the second pass, the assembler reads the source code again, this time using the symbol table
constructed in Pass 1 to generate the final machine code. It resolves all symbol references to their
corresponding addresses and translates assembly instructions into machine code.

Tasks Performed in Pass 2:

• Read each line of the source code again.

• Translate instructions into machine code, using the symbol table to resolve addresses of labels.
• Handle assembler directives that influence the generation of machine code (e.g., `BYTE`, `WORD`, `RESB`,
`RESW` for data storage).
• Generate data definitions according to the directives encountered.
• Output the machine code, along with any necessary relocation information.

Example

Consider a simple assembly program that loads a value into a register and then jumps to a label based on
a condition:
 ORG 100H ; Start at address 100H

START: MOV AL, 5 ; Load AL with the value 5

CMP AL, 10 ; Compare AL with 10

JL LABEL ; Jump if less to LABEL

MOV AL, 7 ; Otherwise, load AL with 7

LABEL: HLT ; Halt the processor

Pass 1 (Building the Symbol Table):

• The assembler scans the program.

• It identifies `START` and `LABEL` as labels and assigns them addresses based on the current location
counter, which starts at `100H`.
• After Pass 1, the symbol table might look like this:

Label Address
START 100H
LABEL 106H

Pass 2 (Generating Machine Code):

• The assembler scans the program again.

• For each instruction, it generates the corresponding machine code. For example, `MOV AL, 5` is translated
into its opcode and operand.
• When it encounters `JL LABEL`, it uses the symbol table to resolve `LABEL` to its address `106H` and
generates the appropriate jump instruction with this address.

Q3 Explain Different Features Of Macro With Example.

Ans.

Macros are a powerful feature in programming languages that enable code abstraction and reusability.
They allow you to define a block of code or expressions and then reuse it multiple times throughout your
program. Here are some common features of macros.

1. Parameterized Macros:

Parameterized macros allow you to define macros with parameters, making them more flexible and
reusable.

Example:

#define MAX(x, y) ((x) > (y) ? (x) : (y))

In this example, `MAX` is a parameterized macro that takes two parameters `x` and `y`. It returns the
maximum of the two values.

2. Argument Substitution:

Macro parameters can be substituted directly into the macro body, enabling you to create generic code.

Example:

#define SQUARE(x) ((x) * (x))

In this example, the parameter `x` is substituted into the macro body to calculate the square of the value.

3. Code Expansion:

When you use a macro in your code, the preprocessor replaces the macro with its corresponding code
body.

Example:

int a = 5;

int b = 7;

int max_value = MAX(a, b);

After macro expansion, the code becomes:

int max_value = ((a) > (b) ? (a) : (b));

4. Conditional Compilation:

Macros can be used to conditionally include or exclude code during compilation based on certain
conditions.

Example:

#ifdef DEBUG

#define DEBUG_PRINT(x) printf(x)

#else

#define DEBUG_PRINT(x)

#endif

In this example, the `DEBUG_PRINT` macro will only expand to `printf(x)` if the `DEBUG` symbol is defined
during compilation.
5. Stringification:

The `#` operator allows you to convert macro parameters into string literals.

Example:

#define STRINGIFY(x) #x

printf("Value of x: %s\n", STRINGIFY(42));

After macro expansion, the code becomes:

printf("Value of x: %s\n", "42");

6. Concatenation:

The `##` operator allows you to concatenate tokens within a macro.

Example:

#define CONCAT(x, y) x ## y

int xy = CONCAT(10, 20); // This will be equivalent to int xy = 1020;

These are some common features of macros in SPCC, each providing a powerful mechanism for code
abstraction, reuse, and conditional compilation. However, it's important to use macros judiciously to avoid
code readability issues and potential pitfalls.

Q4 Explain With Example Conditional Macro Expansion.

Ans.

Conditional macro expansion refers to the capability of macros to expand differently based on certain
conditions. This feature allows you to selectively include or exclude code during preprocessing, depending
on whether specific conditions are met. Conditional macro expansion is commonly used for conditional
compilation, where different parts of the code are compiled based on compile-time conditions or flags.

There are two primary ways to achieve conditional macro expansion in C and similar languages: using
`#ifdef` and `#ifndef` directives, and using the ternary operator (`?:`) within the macro definition.

1. Using `#ifdef` and `#ifndef` Directives:

• The `#ifdef` (if defined) and `#ifndef` (if not defined) directives are used to check if a macro is
defined. They allow you to conditionally include or exclude code based on whether a specific macro
is defined.
• Example:

#ifdef DEBUG

#define DEBUG_PRINT(msg) printf("Debug: %s\n", msg)

 #else

#define DEBUG_PRINT(msg)

#endif

• If the macro `DEBUG` is defined (`#define DEBUG`), the macro `DEBUG_PRINT` will expand to
`printf("Debug: %s\n", msg)`.
• If `DEBUG` is not defined, the macro `DEBUG_PRINT` will expand to nothing.

2. Using Ternary Operator within the Macro Definition:

• Another approach to achieve conditional macro expansion is by using the ternary operator (`?:`)
within the macro definition. This technique allows you to conditionally select between two
expressions based on a condition.
• Example:
#define MAX(a, b) ((a) > (b) ? (a) : (b))
• The macro `MAX` returns the maximum of two values `a` and `b`.
• It uses the ternary operator to select `a` if `a > b`, and `b` otherwise.

Example Usage:

#ifdef DEBUG

DEBUG_PRINT("This is a debug message");

#endif

int max_value = MAX(x, y);

• The `DEBUG_PRINT` macro is expanded only if the `DEBUG` macro is defined.

• The `MAX` macro expands to the appropriate expression based on the values of `x` and `y`.

Q5 Explain The Working Of A Single Pass Macro Processor.

Ans.

A single pass macro processor is a simple tool used in the preprocessing stage of compilation. It reads a
source file containing macro definitions and macro invocations, expands the macros inline, and generates
the output. Unlike a two-pass macro processor, which makes multiple passes over the source file to handle
all macro expansions, a single pass macro processor does it all in a single pass.

Working of a Single Pass Macro Processor:

1. Read Source File:

 The single pass macro processor starts by reading the source file containing macro definitions and macro
invocations line by line.

2. Process Macro Definitions:

As it encounters macro definitions, it stores them in a symbol table or macro table. Each macro definition
consists of a macro name and its corresponding body.

3. Process Macro Invocations:

When the processor encounters a macro invocation (a call to a macro), it expands the macro inline by
replacing the invocation with the corresponding macro body.

The processor substitutes any arguments passed to the macro into the macro body if the macro is
parameterized.

4. Continue Reading:

After processing each line, the processor continues reading the source file until it reaches the end.

5. Output:

As it processes each line, the processor outputs the expanded code or modified code with macros replaced
inline.

6. End of Source File:

Once the processor reaches the end of the source file, it stops processing and outputs the final result.

Q6 Short Note On Macro Facilities.

Ans.

Macro facilities in programming languages provide a mechanism for code abstraction and reuse. They
enable programmers to define reusable code snippets, known as macros, which can be expanded inline
wherever they are invoked in the source code. Macro facilities offer several advantages, including enhanced
code readability, reduced redundancy, and increased flexibility. Here's a short note highlighting the key
aspects of macro facilities:

Key Aspects of Macro Facilities:

1. Code Abstraction and Reuse:

• Macro facilities allow programmers to encapsulate commonly used code patterns or computations into
macros, making the code more concise and easier to maintain.
• Macros serve as reusable building blocks that can be invoked multiple times throughout the program.
2. Parameterization:
• Macros can be parameterized, allowing them to accept arguments when they are invoked. This
enhances their flexibility and enables the creation of generic code templates.
 • Parameterized macros facilitate code customization by allowing different values to be passed as
arguments, resulting in varied behavior.
3. Conditional Compilation:
• Macro facilities support conditional compilation, enabling certain parts of the code to be included or
excluded based on compile-time conditions or preprocessor directives.
• Conditional compilation directives, such as `#ifdef`, `#ifndef`, and `#if`, enable programmers to
create platform-specific code or enable/disable debugging features.
4. Stringification and Concatenation:
• Macro facilities provide stringification and token concatenation operators (`#` and `##` respectively)
that enable manipulation of macro arguments.
• Stringification (`#`) allows macro arguments to be converted into string literals, while token
concatenation (`##`) allows tokens to be combined to form new tokens.
5. Debugging and Logging:
• Macros are commonly used for debugging and logging purposes, allowing programmers to insert
diagnostic messages or trace points into the code.
• Debugging macros can be conditionally included in the code to enable or disable debug output
based on compile-time flags.
6. Performance Optimization:
• Macro facilities can be utilized for performance optimization by replacing repetitive computations or
function calls with inline macro expansions.
• Inline expansion of macros reduces function call overhead and can result in faster execution of the
program.
7. Preprocessor Directives:
• Macro facilities are typically provided by the preprocessor of the programming language, which
preprocesses the source code before compilation.
• Preprocessor directives, such as `#define`, `#ifdef`, `#endif`, etc., are used to define macros and
control their expansion during preprocessing.

In summary, macro facilities play a crucial role in software development by enabling code abstraction,
parameterization, conditional compilation, and performance optimization. They provide programmers with
powerful tools to enhance code readability, reduce redundancy, and improve code maintainability.
However, it's essential to use macros judiciously and adhere to best practices to avoid potential pitfalls such
as code obfuscation and macro abuse.
Module 4 : Loaders and Linkers.

Q1 Define Loader. Explain Different Functions Of Loaders.

Ans.

A loader is a program or system utility responsible for loading and executing programs or executable files
into memory for execution. It is an essential component of an operating system, particularly in systems that
support dynamic loading and execution of programs. Loaders perform several functions to ensure that
programs are properly loaded into memory and executed efficiently.

Functions of Loaders:

1. Allocation of Memory:

One of the primary functions of a loader is to allocate memory space for the program in the main memory
(RAM). It determines the starting address in memory where the program will be loaded and ensures that
sufficient contiguous memory is available for the program's code, data, and stack segments.

2. Loading Program into Memory:

The loader reads the executable file from secondary storage (e.g., disk) and loads it into the allocated
memory space in the main memory. It copies the program's instructions, data, and other necessary
information from the executable file into the appropriate memory locations.

3. Relocation:

Many modern programming languages and operating systems support dynamic memory allocation and
loading. The loader performs relocation, which involves adjusting the program's internal references (e.g.,
addresses of variables, function calls) to reflect the actual memory locations where the program has been
loaded. This ensures that the program can execute correctly regardless of its memory location.

4. Linking and Binding:

Loaders may perform linking and binding tasks, especially in systems that support dynamic linking.
Dynamic linking allows multiple programs to share and reuse common libraries or modules. The loader
resolves references to external symbols (functions or variables) by locating and binding them to their
respective addresses in memory.

Q2 Explain Different Types Of Loaders.

Ans.

Loaders are programs or system utilities responsible for loading executable files into memory for execution.
Depending on the loading mechanism and the features they support, loaders can be classified into
different types. Here are the main types of loaders:

1. Absolute Loader:
An absolute loader is the simplest type of loader. It loads an executable program into memory starting from
a fixed memory location, regardless of the program's actual size or memory requirements. Absolute loaders
assume that the program will be loaded into a specific predefined memory location.

2. Relocating Loader:

A relocating loader is more flexible than an absolute loader. It loads an executable program into memory
and performs relocation, adjusting memory addresses within the program to match the actual memory
location where the program is loaded. Relocating loaders allow programs to be loaded at different memory
addresses without modification to the program's code.

3. Direct Linkage Loader:

A direct linkage loader is a type of relocating loader that resolves and links external symbols (functions or
variables) at load time. It searches external symbol definitions in separate object files or libraries and binds
them directly to their respective memory addresses in the loaded program. This enables modular
programming and dynamic linking of libraries.

4. Dynamic Linking Loader:

A dynamic linking loader loads executable programs into memory and performs dynamic linking of external
symbols at runtime, rather than at load time. It resolves external symbol references by locating and binding
them to their respective memory addresses during program execution. Dynamic linking loaders enable
shared libraries or modules to be loaded and linked on demand, reducing memory usage and improving
system flexibility.

5. Bootstrap Loader:

A bootstrap loader is a special type of loader responsible for bootstrapping or initializing the operating
system during system startup. It is typically stored in read-only memory (ROM) or firmware and is the first
program executed by the computer when powered on. The bootstrap loader loads the operating system
kernel or bootloader from disk into memory and transfers control to it to continue the boot process.

Q3 Explain Dynamic Linking Loader In Details.

Ans.

Dynamic linking loader is a component of an operating system responsible for loading executable
programs into memory and performing dynamic linking of external symbols at runtime. Unlike static linking,
where external symbols are resolved and linked at compile time, dynamic linking defers the linking process
until the program is loaded into memory and executed. Dynamic linking loaders provide several
advantages, including reduced memory usage, improved system flexibility, and easier software
maintenance.

Benefits of Dynamic Linking:

1. Reduced memory usage: Multiple programs can share a single instance of a shared library in memory.
2. Simplified maintenance: Updates or bug fixes to shared libraries are automatically propagated to all
programs that use them.
3. Faster program startup: Lazy loading and shared library caching mechanisms improve program startup
times by loading only the required libraries into memory.

Advantages of Dynamic Linking:

1. Reduced Memory Usage: Dynamic linking allows multiple programs to share and reuse common
libraries, reducing memory usage by avoiding redundant copies of code and data.
2. Improved System Flexibility: Dynamic linking enables shared libraries to be loaded and linked on
demand, providing flexibility in managing dependencies and updating libraries without recompiling the
entire program.
3. Easier Software Maintenance: With dynamic linking, updates or patches to shared libraries can be
applied without recompiling or relinking the entire program, simplifying software maintenance and
deployment.

Q4 Explain Direct Linking Loader.

Ans.

A direct linking loader is a type of loader responsible for loading executable programs into memory and
performing the linking of external symbols (functions or variables) at load time. Unlike dynamic linking
loaders, which defer the linking process until runtime, direct linking loaders resolve and link external symbols
directly during the loading phase. Direct linking loaders are commonly used in systems where dynamic
linking is not supported or not required, such as embedded systems or statically linked executables.

Advantages of Direct Linking Loader:

1. Simplicity: Direct linking loaders are relatively simple and efficient since they do not involve additional
relocation or dynamic linking steps.
2. Efficiency: Direct linking loaders generate executable programs with fixed memory addresses, reducing
runtime overhead and improving execution speed.
3. Predictability: Since the memory addresses of symbols are fixed and absolute, direct linking loaders
provide predictable program behavior and facilitate debugging and analysis.

Limitations of Direct Linking Loader:

1. Lack of Flexibility: Direct linking loaders do not support dynamic linking or relocation, limiting the
flexibility of programs to adapt to different memory configurations or runtime environments.
2. Dependency Management: Programs linked with direct linking loaders may have larger executable
sizes and increased memory usage since they include all required code and data statically.

Q5 What Is Relocation And Linking Concept In Loaders.

Ans.
1. Relocation:

Relocation is the process of adjusting memory addresses or references within a program to reflect the
actual memory location where the program is loaded. It is necessary because the memory location where
a program is loaded into memory may vary depending on the execution environment, system
configuration, or other factors.

During relocation, the loader identifies memory references or addresses within the program that are
expressed as offsets or relative addresses. It then calculates the correct absolute memory addresses based
on the starting address where the program is loaded into memory.

Relocation is particularly important in systems that support dynamic loading and execution of programs,
where the memory location of a program may change each time it is loaded. By performing relocation, the
loader ensures that the program's instructions and data can be accessed correctly regardless of its
memory location.

2. Linking:

Linking is the process of combining multiple object files or modules into a single executable program. It
involves resolving references to external symbols (functions or variables) and combining the code and data
segments of individual modules into a unified program.

There are two main types of linking:

• Static Linking: In static linking, the linking process occurs at compile time. External symbols are
resolved and linked by the linker to produce a single executable file that contains all necessary code
and data. Static linking results in a standalone executable that can be executed independently
without relying on external libraries or modules.
• Dynamic Linking: In dynamic linking, the linking process is deferred until runtime. External symbols
are resolved and linked dynamically by the loader when the program is loaded into memory. Shared
libraries or modules containing reusable code and data are loaded and linked on demand, reducing
memory usage and allowing multiple programs to share common code.

Q6 Explain Absolute Loader. State It's Advantage And Disadvantages.

Ans.

An absolute loader is a type of loader used in systems programming to load and execute programs. It is
one of the simplest forms of loaders and is primarily used in systems where the memory addresses of
programs are fixed and predetermined. Let's delve into its explanation, advantages, and disadvantages:

Explanation of Absolute Loader:

1. Loading Process:

The absolute loader loads the entire program into memory starting from a fixed memory location,
regardless of the program's size or memory requirements.
It assumes that the program will always be loaded into the same predetermined memory location, typically
specified by the programmer or system designer.

2. Memory Addressing:

In an absolute loader, the memory addresses used by the program are fixed and absolute.

Any references to memory locations within the program are based on these predetermined addresses.

3. No Relocation:

Since the memory addresses are fixed, absolute loaders do not perform relocation. There is no need to
adjust memory addresses or references within the program.

Advantages of Absolute Loader:

1. Simplicity:

Absolute loaders are simple and straightforward to implement. They have minimal complexity compared to
other types of loaders.

The absence of relocation and dynamic linking mechanisms simplifies the loading process.

2. Efficiency:

Absolute loaders are efficient in terms of loading time and runtime performance.

Since memory addresses are fixed, there is no overhead associated with relocation or dynamic linking
operations.

Disadvantages of Absolute Loader:

1. Lack of Flexibility:

Absolute loaders lack flexibility, as they require programs to be loaded into specific predetermined memory
locations.

This lack of flexibility limits the portability of programs and makes it challenging to accommodate changes
in memory configuration or system setup.

2. Memory Fragmentation:

Absolute loaders may lead to memory fragmentation, especially in systems with limited memory resources.

Since programs are loaded into fixed memory locations, fragmentation may occur if the available memory
is not contiguous or if there are gaps between loaded programs.

3. Difficulty in Debugging:

Debugging programs loaded with absolute loaders can be challenging, especially if memory addresses
conflict or if there are errors in the loading process.

The absence of relocation mechanisms makes it harder to diagnose and fix memory-related issues.
Module 5 : Compilers: Analysis Phase.

Q1 Explain Different Phrases Of Compiler With Example.

Ans.

In the context of compilers, various phases or stages are involved in the process of converting source code
written in a high-level programming language into machine code or executable form. Each phase performs
specific tasks to transform the source code through a series of intermediate representations. Let's explore
the different phases of a compiler along with examples:

1. Lexical Analysis:
• Task: The lexical analysis phase, also known as scanning, involves breaking the source code into a
sequence of tokens or lexemes. It removes white spaces, comments, and other irrelevant characters
from the source code.
• Example:

int main() {

int a = 10;

return a;

• The lexical analysis phase would produce the following tokens:

[INT] [main] [(] [)] [{] [INT] [a] [=] [10] [;] [RETURN] [a] [;] [}]

2. Syntax Analysis (Parsing):

• Task: The syntax analysis phase, or parsing, involves analyzing the structure of the source code
according to the grammar of the programming language. It verifies that the sequence of tokens
conforms to the syntactic rules of the language.
• Example:

Using the same C code snippet, the syntax analysis phase checks whether the sequence of tokens
forms valid constructs according to the C language grammar. For example, it checks that there is a
function definition for `main`, proper use of variables, and correct syntax for control flow statements.

3. Semantic Analysis:
• Task: The semantic analysis phase checks the meaning and validity of the source code in the
context of the programming language semantics. It ensures that the code adheres to language
rules regarding type compatibility, variable declarations, function calls, etc.
• Example:

int main() {

int a = "hello";

return a;
 }

• The semantic analysis phase would detect the type mismatch error where a string literal is assigned
to an integer variable `a`.
4. Intermediate Code Generation:
• Task: The intermediate code generation phase produces an intermediate representation (IR) of the
source code. This intermediate code is simpler than the source code but retains the essential
semantics. It provides a platform-independent representation for subsequent optimization and
code generation phases.
• Example:

1. a = 10

2. return a

5. Optimization:
• Task: The optimization phase optimizes the intermediate code to improve its efficiency in terms of
execution time, memory usage, or other performance metrics. It applies various optimization
techniques such as constant folding, loop optimization, and dead code elimination.
• Example:

1. return 10

6. Code Generation:
• Task: The code generation phase generates the target machine code or executable form from the
optimized intermediate representation. It translates the intermediate code into assembly language
or directly into machine code for a specific target architecture.
• Example:

mov eax, 10

ret

Q2 Compare Bottom Up And Top Down Parser.

Ans.

Top Down Parsing Bottom Up Parsing

1 It is a parsing strategy that first looks at the
highest level of the parse tree and works down
the parse tree by using the rules of grammar.
2 Top-down parsing attempts to find the left
most derivations for an input string.
3 In this parsing technique we start parsing from
the top (start symbol of parse tree) to down
(the leaf node of parse tree) in a top-down
manner.
1 It is a parsing strategy that first looks at the
lowest level of the parse tree and works up the
parse tree by using the rules of grammar.
2 Top-down parsing attempts to find the left
most derivations for an input string.
3 In this parsing technique we start parsing from
the bottom (leaf node of the parse tree) to up
(the start symbol of the parse tree) in a
bottom-up manner.
 4 This parsing technique uses Left Most
Derivation.
5 The main leftmost decision is to select what
production rule to use in order to construct the
string.
6 Example: Recursive Descent parser.
4 This parsing technique uses Right Most
Derivation.
5 The main decision is to select when to use a
production rule to reduce the string to get the
starting symbol.
6 Example: ItsShift Reduce parser.

Q3 Short Note On Syntax Directed Translation.

Ans.

Syntax-directed translation is a technique used in compiler design to associate semantic actions with the
production rules of a grammar. It integrates syntax analysis and semantic processing by embedding
translation rules directly into the grammar definition. These translation rules specify how to generate
intermediate representations or perform computations while parsing the input.

Key Aspects of Syntax-Directed Translation:

1. Integration of Syntax and Semantics:

• Syntax-directed translation tightly couples syntax analysis with semantic actions. Each production
rule of the grammar is associated with semantic actions that specify the computations or
transformations to be performed.
2. Translation Schemes:
• Translation schemes are extended context-free grammars (CFGs) augmented with semantic
actions. They define the translation process by associating actions with grammar productions.
3. Attributes:
• Attributes are variables associated with non-terminal symbols in the grammar. They represent
properties or values computed during parsing and used in semantic actions.
• Attributes can be synthesized attributes, which are computed bottom-up during parsing, or inherited
attributes, which are passed down from parent to child nodes in the parse tree.
4. Syntax-Directed Definition:
• A syntax-directed definition (SDD) specifies the translation process using a set of translation rules
associated with grammar productions.
• Each translation rule consists of a semantic action and may reference attributes of symbols in the
grammar.

Advantages of Syntax-Directed Translation:

1. Modularity: Syntax-directed translation promotes modularity by separating semantic actions from the
parsing logic. Each production rule encapsulates a specific translation rule, facilitating code
organization and maintenance.
2. Flexibility: Semantic actions in syntax-directed translation provide flexibility to perform various
transformations or computations during parsing. This enables the integration of optimization techniques
and the generation of intermediate representations.
3. Ease of Implementation: Syntax-directed translation simplifies the implementation of compilers by
integrating syntax analysis and semantic processing into a unified framework. It provides a clear and
structured approach to specifying translation rules.

Q4 Explain Compiler With Interpreter.

Ans.

A compiler and an interpreter are both tools used to translate high-level programming languages into
machine code or execute programs written in these languages. However, they operate in different ways and
have distinct characteristics. Let's explore the differences between compilers and interpreters:

Compiler:

1. Translation Process:
• A compiler translates the entire source code of a program into machine code or an intermediate
representation before execution.
• It performs lexical analysis, syntax analysis, semantic analysis, optimization, and code generation as
distinct phases.
2. Output:
• The output of a compiler is typically an executable file containing machine code or bytecode that
can be directly executed by the target machine's hardware or a virtual machine.
3. Execution Model:
• Compiled programs execute directly on the target machine's hardware without requiring the
presence of the compiler.
• Compilation is performed once before execution, and the resulting executable can be run repeatedly
without further translation.
4. Performance:
• Compiled programs tend to have better performance as the translation process allows for extensive
optimization.
• Since the entire program is translated before execution, there is minimal runtime overhead.
5. Examples:
• Examples of compiled languages include C, C++, Java (when compiled to bytecode), and Swift.

Interpreter:

1. Translation Process:
• An interpreter translates and executes the source code of a program line-by-line or statement-by-
statement during runtime.
• It performs lexical analysis, syntax analysis, and semantic analysis on each line or statement just
before execution.
2. Output:
• The output of an interpreter is the result of executing each line or statement of the source code
directly.
3. Execution Model:
• Interpreted programs require the presence of the interpreter during execution. The interpreter reads
and executes each line or statement of the source code sequentially.
• There is no separate compilation step, and the source code is translated and executed on-the-fly.
4. Performance:
• Interpreted programs may have slower execution compared to compiled programs due to the
overhead of interpretation.
• However, interpreters offer advantages such as ease of debugging, flexibility, and platform
independence.
5. Examples:
• Examples of interpreted languages include Python, JavaScript, Ruby, and Perl.

Q5 Compare Between Compiler And Interpreter.

Ans.

Compiler
1 The compiler saves the Machine Language in
form of Machine Code on disks.
2 Compiled codes run faster than Interpreter.
3 Linking-Loading Model is the basic working
model of the Compiler.
4 The compiler generates an output in the form
of (.exe).
5 Any change in the source program after the
compilation requires recompiling the entire
code.
6 Errors are displayed in Compiler after
Compiling together at the current time.
7 It does not require source code for later
execution.
8 CPU utilization is more in the case of a
Compiler.
9 Object code is permanently saved for future
use.
10 C, C++, C#, etc are programming languages
that are compiler-based.
Interpreter
1 The Interpreter does not save the Machine
Language.
2 Interpreted codes run slower than Compiler.
3 The Interpretation Model is the basic working
model of the Interpreter.
4 The interpreter does not generate any output.
5 Any change in the source program during the
translation does not require retranslation of the
entire code.
6 Errors are displayed in every single line.
7 It requires source code for later execution.
8 CPU utilization is less in the case of a Interpreter.
9 No object code is saved for future use.
10 Python, Ruby, Perl, SNOBOL, MATLAB, etc are
programming languages that are interpreter-
based.

Q6 Short Note On Operator Precedence Parsing.

Ans.
Operator precedence parsing is a method used in syntax analysis phase of compilers to parse expressions
and construct parse trees according to the precedence and associativity of operators. It is particularly
useful for languages with operators of varying precedence levels, such as arithmetic expressions in
programming languages.

Key Aspects of Operator Precedence Parsing:

1. Precedence Levels:
• Operators in the language are assigned precedence levels, indicating their relative priority in
expression evaluation.
• Higher precedence operators are evaluated before lower precedence operators.
2. Associativity:
• Operators may also have associativity, which determines the order of evaluation when operators of
the same precedence level appear in an expression.
• Common associativities include left-associative (evaluated left-to-right) and right-associative
(evaluated right-to-left).
3. Operator Precedence Table:
• Operator precedence parsing uses an operator precedence table to define the precedence and
associativity of operators in the language.
• The table specifies which operators have higher precedence than others and how they associate
with neighboring operators.
4. Parsing Algorithm:
• Operator precedence parsing uses a stack-based parsing algorithm to parse expressions efficiently.
• It scans the input expression from left to right, pushing operands onto the stack and performing
operations based on the precedence and associativity of operators.
• When encountering an operator, it compares its precedence with the top of the stack. If the
precedence of the current operator is higher, it performs the operation. Otherwise, it continues
parsing until a lower-precedence operator is encountered.
5. Error Handling:
• Operator precedence parsing may encounter syntax errors if the input expression violates the
precedence and associativity rules defined in the operator precedence table.
• Proper error handling mechanisms should be implemented to detect and report syntax errors to the
user.

Advantages of Operator Precedence Parsing:

1. Efficiency: Operator precedence parsing is efficient and requires only a single scan of the input
expression, making it suitable for real-time parsing applications.
2. Ease of Implementation: The parsing algorithm is relatively simple and straightforward to implement
compared to other parsing techniques.
3. No Ambiguity: Operator precedence parsing resolves ambiguities in expressions automatically based
on the precedence and associativity rules defined in the operator precedence table.
Q7 Compare Pattern, Lexeme And Token With Example.

Ans.

Aspect Pattern Lexeme Token

Definition A rule or template used to A sequence of characters in A category of lexemes
define valid sequences of the source code that identified by the compiler,
characters in a matches a specific pattern representing a meaningful
programming language. defined by a token. unit of the source code.
Example digit = [0-9] 123 Integer Literal
Purpose Defines the structure of Represents the actual Represents a distinct
valid tokens in the characters in the source category of language
language grammar. code that form a valid token. elements for further
processing by the compiler.
Form Typically expressed using A continuous sequence of An abstract entity
regular expressions or characters in the source representing a specific
context-free grammar code, such as alphanumeric category of lexemes, often
rules. characters, operators, or identified by a unique name
punctuation. or identifier.
Usage Used by the lexer to Generated by the lexer Identified by the lexer and
recognize and generate based on matching the input passed to the parser for
lexemes from the source source code against syntactic analysis and
code. patterns defined by tokens. further processing.
Processing Used to define Generated by the lexer as Processed by the parser to
tokenization rules and output during lexical analysis construct parse trees or
determine valid tokens in phase of the compiler. abstract syntax trees during
the language. syntactic analysis.

Module 6 : Compilers: Synthesis phase.

Q1 What Are The Different Ways Of Representing Intermediate Code, Explain With Example.

Ans.

Intermediate code serves as an intermediate representation (IR) of a program during the compilation
process. It is a platform-independent representation that facilitates optimization and code generation.
There are several ways of representing intermediate code, each with its own advantages and use cases.
Here are some common methods:

1. Three-Address Code (TAC):

• Description: Three-address code represents each operation with at most three operands. It is a
linear representation of code with explicit instructions for each operation.
• Example:

t1 = a + b

t2 = c * t1
 • Advantages:
o Simple and easy to understand.
o Supports common optimization techniques.
2. Quadruples:
• Description: Quadruples are similar to TAC but use a tuple-like representation with four fields:
operator, operand1, operand2, and result.
• Example:

('+', 'a', 'b', 't1')

('*', 'c', 't1', 't2')

• Advantages:
o Compact representation.
o Enables easy manipulation during optimization.
3. Static Single Assignment (SSA) Form:
• Description: SSA form assigns a unique version number to each variable assignment. It ensures that
each variable is assigned only once per scope.
• Example:

t1 = a + b

t2 = c * t1

• Advantages:
o Facilitates certain optimization techniques like common subexpression elimination and constant
propagation.
o Simplifies data-flow analysis.
4. Abstract Syntax Tree (AST):
• Description: AST represents the hierarchical structure of a program's syntax. Each node in the tree
corresponds to a syntactic construct, and the edges represent the relationships between them.
• Advantages:
o Preserves the hierarchical structure of the program.
o Supports semantic analysis and code generation.
• Example:

/\

a *

/\

c +

/\

b d
5. Control Flow Graph (CFG):
• Description: CFG represents the control flow of a program using nodes to represent basic blocks
and edges to represent control flow between them.
• Example:

+---+ +---+

| B1 |---->| B2 |

+---+ +---+

| |

v v

+---+ +---+

| B3 |<----| B4 |

+---+ +---+

• Advantages:
o Enables analysis and optimization of control flow structures.
o Supports loop optimizations and dead code elimination.
6. Directed Acyclic Graph (DAG):
• Description: DAG represents common subexpressions and their dependencies using a directed
acyclic graph structure.
• Example:

/ \

a *

/ \

b c

• Advantages:
o Reduces redundancy by identifying and eliminating common subexpressions.
o Facilitates optimization techniques like constant folding and strength reduction.

Q2 Explain Different Issues In Code Generation.

Ans.

Code generation is a crucial phase in the compilation process where the intermediate representation of a
program is translated into machine code or another target language. During code generation, various
issues arise that need to be addressed to produce efficient and correct executable code. Here are some of
the key issues in code generation:

1. Register Allocation:
• Description: Register allocation involves assigning variables and intermediate values to processor
registers efficiently.
• Issues:
o Limited number of registers: Modern processors have a limited number of registers available for
allocation, leading to register scarcity.
o Register pressure: As the number of live variables exceeds the available registers, spill code may
be needed to spill variables to memory.
o Interference: Variables with overlapping lifetimes cannot be assigned to the same register
simultaneously, leading to interference.
2. Instruction Selection:
• Description: Instruction selection involves choosing the appropriate machine instructions to
implement high-level operations efficiently.
• Issues:
o Complexity of instruction set: Target architectures may have complex instruction sets with
multiple addressing modes and operation variations, making instruction selection challenging.
o Performance considerations: Different instructions may have different execution times or
resource usage, requiring careful selection to optimize performance.
3. Addressing Modes:
• Description: Addressing modes determine how operands are accessed in machine instructions.
• Issues:
o Limited addressing modes: Some architectures may have limited addressing modes, limiting the
flexibility of addressing operations.
o Efficiency: Choosing the most efficient addressing mode for each operand can impact
performance.
4. Code Size Optimization:
• Description: Code size optimization aims to reduce the size of generated code to improve memory
usage and execution speed.
• Issues:
o Redundancy: Generated code may contain redundant or unnecessary instructions, leading to
larger code size.
o Instruction encoding: The choice of instructions and their encoding can affect the size of
generated code.
5. Control Flow Optimization:
• Description: Control flow optimization focuses on improving the efficiency of control flow structures
such as loops, conditionals, and function calls.
• Issues:
o Loop optimization: Techniques like loop unrolling, loop fusion, and loop inversion can improve
loop performance but may increase code size.
 o Branch prediction: Branches and conditional jumps can impact pipeline efficiency, and
optimizing branch predictions can improve performance.
6. Data Flow Optimization:
• Description: Data flow optimization aims to minimize data dependencies and improve data access
patterns.
• Issues:
o Data locality: Accessing data from memory can be slow, and optimizing data access patterns
can improve cache utilization and memory bandwidth.
o Data dependencies: Identifying and minimizing data dependencies can enable parallel
execution and improve performance.
7. Platform-specific Optimization:
• Description: Platform-specific optimization involves tailoring code generation to target a specific
hardware platform or architecture.
• Issues:
o Target architecture features: Different architectures have different features and performance
characteristics that need to be considered during code generation.
o Cross-platform compatibility: Balancing optimization for specific architectures with the need for
cross-platform compatibility can be challenging.

Q3 Explain Different Code Optimization Techniques.

Ans.

Code optimization techniques aim to improve the performance, efficiency, and quality of generated code
without changing its functional behavior. These techniques target various aspects of the code, such as
reducing execution time, minimizing memory usage, and enhancing overall program performance. Here are
some common code optimization techniques:

1. Constant Folding:
• Evaluate constant expressions at compile-time rather than runtime to reduce computation
overhead.
2. Dead Code Elimination:
• Remove unreachable or redundant code that does not contribute to the program's output, reducing
code size and improving readability.
3. Common Subexpression Elimination (CSE):
• Identify and eliminate redundant computations by reusing previously computed results, reducing
computational overhead.
4. Copy Propagation:
• Replace uses of a variable with its known value to minimize memory accesses and improve code
efficiency.
5. Loop Optimization:
• Improve the efficiency of loops by applying techniques such as loop unrolling, loop fusion, loop
interchange, and loop-invariant code motion.
6. Strength Reduction:
• Replace expensive operations with cheaper equivalents, such as replacing multiplication with shifts
or addition, to reduce computational overhead.
7. Inline Expansion:
• Replace function calls with the actual function code to reduce call overhead and improve execution
speed.
8. Code Motion:
• Move computations or memory accesses outside loops when possible to minimize redundant work
and improve loop efficiency.

Q4 Write Short Note On Peephole Optimization.

Ans.

Peephole optimization is a local optimization technique used in compilers to improve the efficiency and
quality of generated code by analyzing and optimizing small sections of assembly or machine code known
as "peepholes." These peepholes typically consist of a small number of contiguous instructions within a
program's control flow.

Key Aspects of Peephole Optimization:

1. Local Optimization:
• Peephole optimization operates on a small window or "peephole" of instructions, typically a few
consecutive instructions, rather than analyzing the entire program.
• It focuses on identifying and eliminating redundant or inefficient code patterns within this limited
scope.
2. Pattern Matching:
• Peephole optimization relies on pattern matching techniques to identify specific sequences of
instructions that can be replaced or optimized.
• Common patterns targeted by peephole optimization include redundant load-store pairs,
unnecessary branches, and inefficient arithmetic operations.
3. Optimization Rules:
• Peephole optimization applies a set of predefined optimization rules or patterns that describe
transformations that can be applied to the instruction sequence.
• These rules are designed to improve code efficiency, reduce execution time, and eliminate
unnecessary operations.
4. Iterative Process:
• Peephole optimization is typically applied iteratively, with each optimization pass scanning the code
for specific patterns and applying relevant transformations.
• Multiple passes may be performed until no further optimizations can be applied, or until a predefined
optimization threshold is reached.
5. Compiler Pass:
 • Peephole optimization is often implemented as a compiler optimization pass that runs after the
code generation phase and before the final code emission.
• It complements other optimization techniques such as loop optimization, register allocation, and
function inlining.
6. Targeted Improvements:
• Peephole optimization aims to improve specific aspects of generated code, such as reducing code
size, eliminating unnecessary instructions, or improving instruction scheduling.
• It may not result in significant overall performance gains but can lead to incremental improvements
in code efficiency.

Q5 What Is The Need Of Intermediate Code Generation.

Ans.

Intermediate code generation is a crucial phase in the compilation process that serves several important
purposes. Here are some key reasons why intermediate code generation is needed:

1. Platform Independence:

Intermediate code provides a platform-independent representation of the source program. It abstracts

away the details of the target hardware architecture, allowing the compiler to generate code for different
platforms from the same intermediate representation.

2. Facilitates Optimization:

Intermediate code serves as a convenient target for optimization techniques. By optimizing the
intermediate code representation, the compiler can improve the efficiency, performance, and quality of the
generated executable code.

3. Simplifies Analysis:

Intermediate code simplifies the analysis of the source program. It provides a structured and uniform
representation that is easier to analyze and manipulate compared to the original source code. This
facilitates various analysis tasks such as data-flow analysis, control-flow analysis, and optimization.

4. Separation of Concerns:

Intermediate code generation separates the concerns of syntax analysis and code generation. By
generating an intermediate representation after syntax analysis, the compiler can focus on generating
efficient target code without being burdened by the complexities of parsing and semantic analysis.

5. Enables Front-End and Back-End Modularity:

Intermediate code serves as an interface between the front-end and back-end components of the
compiler. The front-end generates intermediate code from the source program, while the back-end
generates target code from the intermediate representation. This modularity allows for easier maintenance
and extensibility of the compiler.
6. Supports Multiple Source Languages:

Intermediate code generation enables the compilation of programs written in different source languages to
a common intermediate representation. This allows the compiler to support multiple programming
languages while reusing the same optimization and code generation techniques.

7. Eases Debugging and Error Reporting:

Intermediate code can be designed to retain important semantic and syntactic information from the
source program. This information can be used for debugging purposes and to provide meaningful error
messages and diagnostics to the programmer.

Q6 Explain Machine Independent Code Optimization Techniques.

Ans.

Machine-independent code optimization techniques focus on improving the efficiency, performance, and
quality of generated code without being specific to any particular target machine architecture. These
techniques operate at a higher level of abstraction and are applied during intermediate code generation or
transformation stages of the compilation process. Here are some common machine-independent code
optimization techniques:

1. Constant Folding:

Evaluate constant expressions at compile-time rather than runtime to reduce computation overhead.

2. Dead Code Elimination:

Remove unreachable or redundant code that does not contribute to the program's output, reducing code
size and improving readability.

3. Common Subexpression Elimination (CSE):

Identify and eliminate redundant computations by reusing previously computed results, reducing
computational overhead.

4. Copy Propagation:

Replace uses of a variable with its known value to minimize memory accesses and improve code efficiency.

5. Loop Optimization:

Improve the efficiency of loops by applying techniques such as loop unrolling, loop fusion, loop interchange,
and loop-invariant code motion.

6. Strength Reduction:

Replace expensive operations with cheaper equivalents, such as replacing multiplication with shifts or
addition, to reduce computational overhead.

7. Inline Expansion:
Replace function calls with the actual function code to reduce call overhead and improve execution speed.

8. Code Motion:

Move computations or memory accesses outside loops when possible to minimize redundant work and
improve loop efficiency.

Q7 Explain The Concept Of Basic Blocks And Flow Graph With Example The Three Address Code.

Ans.

Basic Blocks:

A basic block is a sequence of consecutive instructions in a program's control flow graph that has a single
entry point and a single exit point. Within a basic block, control flows linearly without any branching or
looping. Basic blocks are useful for analyzing and optimizing control flow structures in a program.

Properties of Basic Blocks:

1. Single Entry Point: Every basic block has exactly one entry point, where control enters the block from a
predecessor block or from the beginning of the program.
2. Single Exit Point: Every basic block has exactly one exit point, where control leaves the block to a
successor block or to the end of the program.
3. No Branching or Looping: Control flows linearly within a basic block without any branching or looping
constructs.

Flow Graph:

A flow graph, also known as a control flow graph (CFG), is a directed graph that represents the control flow
of a program. Each node in the flow graph represents a basic block, and edges between nodes represent
control flow between basic blocks. Flow graphs are used for analyzing and optimizing control flow
structures, such as loops, conditionals, and function calls.

Properties of Flow Graphs:

1. Nodes: Nodes in the flow graph represent basic blocks, where each basic block corresponds to a
sequence of consecutive instructions.
2. Edges: Directed edges between nodes represent control flow between basic blocks. An edge from node
A to node B indicates that control can flow from the end of basic block A to the beginning of basic block
B.
3. Entry and Exit Nodes: Special entry and exit nodes may be added to represent the entry and exit points
of the program.

Example Using Three-Address Code:

 1: t1 = a + b

2: t2 = c - d

3: if t1 < t2 goto 6

4: t3 = t1 * t2

5: goto 7

6: t3 = t2 * t2

7: t4 = t3 / e

Basic Blocks:

• Basic Block 1: t1 = a + b
• Basic Block 2: t2 = c - d
• Basic Block 3: if t1 < t2 goto 6
• Basic Block 4: t3 = t1 * t2
• Basic Block 5: goto 7
• Basic Block 6: t3 = t2 * t2
• Basic Block 7: t4 = t3 / e

Flow Graph:

1 2 3 4 5 6 7

| | | | | | |

V V V V V V V

+----+ +----+ +----+ +----+ +----+ +----+ +----+

| BB1 | -->| BB2| -->| BB3 | -->| BB4 | -->| BB5 | -->| BB6 | -->| BB7 |

+----+ +----+ +----+ +----+ +----+ +----+ +----+

In this example:

• Each line of three-address code represents a basic block.

• Control flows between basic blocks based on conditional and unconditional jumps.
• The flow graph illustrates the control flow between basic blocks, with directed edges representing the
flow of control from one basic block to another.
