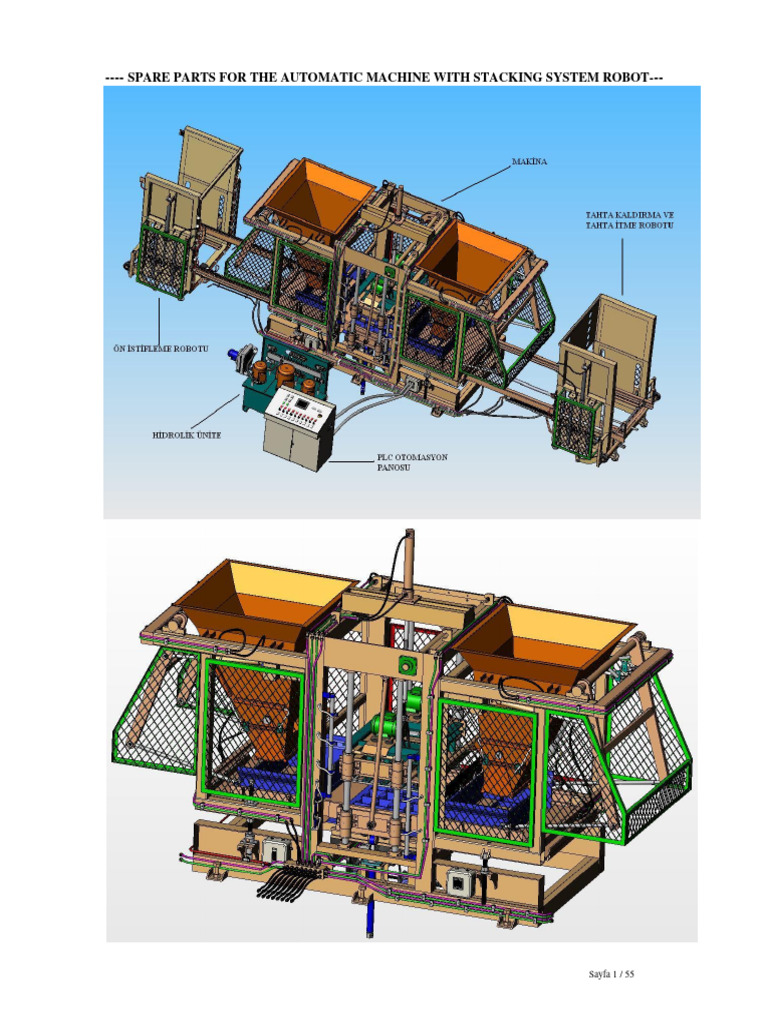

---- SPARE PARTS FOR THE AUTOMATIC MACHINE WITH STACKING SYSTEM ROBOT---

Sayfa 1 / 55
GROUP PICTURE ITEM USED LABOR
SPARE PARTS NAME
NAME NO CODE QUANTITY LEVEL
1 B.001K BUNKER COVER WASHER 2 PIECES 1
BUNKER COVER

2 30-55 BUNKER COVER SPACER 30/55 2 PIECES 2

3 B.003İ BUNKER COVER PIN 2 PIECES 1
DETAILS

4 B.004KK BUNKER COVER 1 PIECE 2

BKP.000
5 K BUNKER PİSTON 40/50*300 1 PIECE 2
6 B.006Y BEARING 30/55 2 PIECES 2
B.000B COMPLETE BUNKER 1 PIECE 3

1 C.001V C LIFTING SCREW FOR ADJUSTMENT 2*1 PIECE 1

C LIFTING
DETAIL

2 C.002AS FIXED NUT FOR ADJUSTMENT 2*2 PIECE 1

3 CP.000K C LIFTING PISTON 50/60*80 2*1 PIECE 1
4 C.004S SILENCER 2*1 PIECE 1

Sayfa 2 / 55
Sayfa 3 / 55
GROUP PICTURE ITEM USED
SPARE PARTS NAME LABOR LEVEL
NAME NO CODE QUANTITY
1 H.001Y MORTAR TROLLEY PIN ( cast iron) 2 PIECES 2
2 6209 BIG SPACER FOR TROLLEY 6209 2 PIECES 2
WASHER FOR MORTAR TROLLEY
3 H.003B 4 PIECES 2
PISTON
BUNKER AND MORTAR TROLLEY DETAILS P

4 AP.000K PISTON FOR MORTAR CART 50/60*350 2 PIECES 3

5 H.005C BOLT FOR MORTAR TROLLEY PISTON 2 PIECES 1
6 H.006K BALANCING ARM (LEVER) 2 PIECES 4
7 H.007M BALANCING PIN 1 PIECE 4
8 H.008K1 PIN OF MORTAR CART 2 PIECES 2
9 H.009KD EYEBOLT PHS25 2 PIECES 1
10 H.010KC PIN 2 PIECES 1
11 H.011KB SMALL SPACER 4 PIECES 2
12 H.012KM MORTAR TROLLEY CONNECTION 2 PIECES 2
13 H.013T MORTAR TROLLEY WHEEL 4 PIECES 1
14 30-65 MORTAR TROLLEY WHEEL BEARING 4 PIECES 1
15 H.015TS MORTAR TROLLEY WHEEL PLATE 4 PIECES 2
16 H.016KY C LIFTING ADJUSTMENT SCREW PIN 2 PIECES 1
17 H.017KS C LIFTING ADJUSTMENT SCREW NUT 4 PIECES 1
18 H.018KV C LIFTING ADJUSTMENT SCREW 2 PIECES 1
19 H.019TÜ MORTAR CART RAIL 2 PIECES 3
20 B.000B COMPLETE BUNKER 1 PIECE 3
21 H.020HT DRAWER OF MORTAR CART 1 PIECE 3
H.000HK COMPLETE MORTAR TROLLEY 1 PIECE 3

Sayfa 4 / 55
GROUP PICTURE ITEM USED LABOR
SPARE PARTS NAME
NAME NO CODE QUANTITY LEVEL
1 H.000HK COMPLETE MORTAR TROLLEY 1 PIECE 3
2 H.012KM MORTAR TROLLEY ARM CONNECTION 2 PIECES 2
TROLLEY
MORTAR

3 H.021TF MORTAR CLEANING BRUSH 1 PIECE 2

4 H.022FBL LAMA FOR BRUSH CONNECTION 3 PIECES 2
5 H.015TS MORTAR TROLLEY WHEEL CONNECTION PLATE 4 PIECES 2
6 H.013T MORTAR TROLLEY WHEEL 4 PIECES 1

Sayfa 5 / 55
GROUP PICTUR ITEM USED
SPARE PARTS NAME LABOR LEVEL
NAME E NO CODE QUANTITY
1 A.001C COUNTERSINK HEAD BOLT ( SCREW) 8*8 PIECES 1
MAIN HOLDER

2 A.002K COVER 8*2 PIECES 1

DETAILS C

3 A.003TK DUST SEAL 8*2 PIECES 2

4 A.004B BRONZ SPACER 8*2 PIECES 3
5 A.005G MAIN HOLDER BODY 8*1 PIECE 3
6 A.000Y COMPLETE MAIN HOLDER 8 PIECES 5

Sayfa 6 / 55
GROUP PICTURE ITEM USED LABOR
SPARE PARTS NAME
NAME NO CODE QUANTITY LEVEL
1 UCF 212 UCF 212 BEARING 2 PIECES 1
BALANACE ARM

SHEET METAL PLATE WELDED TO

2 T.002YS 1 PIECE 2
MAIN CHASIS
GROUP

3 T.003P CONNECTION ROAD ARM PIN 2 PIECES 1

4 T.004B BALANCE ARM TOWER 4 PIECES 2
5 T.005TK BALANCE CONNECTION ROAD ARM 2 PIECES 2
6 T.006T1 RUBBER CHOKE 2 PIECES 2

Sayfa 7 / 55
GROUP PICTURE ITEM LABOR
SPARE PARTS NAME USED QUANTITY
NAME NO CODE LEVEL
1 A.001MK MAIN HOLDER CLIP 8 PIECES 5
HOLDER
GROUP

2 A.002M MAIN HOLDER WITH CHROM 4 PIECES 5

MAIN

3 A.000Y COMPLETE MAIN HOLDER 8 PIECES 5

Sayfa 8 / 55
GROUP PICTUR ITEM LABOR
SPARE PARTS NAME USED QUANTITY
NAME E NO CODE LEVEL
1 KA.001B COMPLETE PRESSURE 1 PIECE 4
2 KA.002PV SHOE CONNECTION SCREW 4 PIECES FOR EACH 2
MOULD DETAILS

3 KA.003P MOULD SHOE 1 PIECE FOR EACH 2

4 KA.004D BOTTOM MOULD 1 PIECE 3
BOTTOM MOULD CONNECTION
2
5 KA.005KT WEDGE 8 PIECES
DOWN SCALE OF CONNECTION
1
6 KA.006TP WEDGE 8 PIECES
7 KA.007C MOULD CONNECTION SCREW 8 PIECES 1

1 K.001K1 RAIL 2 PIECES 3

2 K.002L RAIL CONNECTION LAMA 6 PIECES 2
MOULD LIFTING

K.000KK COMPLETE RAIL 2 PIECES 3

DETAILS D

3 G.003G MOULD LIFTING 2 PIECES 3

4 G.004L CONNECTION LAMA 6 PIECES 3
5 G.005P CONNECTION PIN 2 PIECES 2
6 G.006PÇ MOULD LIFTING CONNETION FORK 2 PIECES 3
G.000GK COMPLETE LIFTING 2 PIECES 3

Sayfa 9 / 55
GROUP PICTURE ITEM USED LABOR
SPARE PARTS NAME
NAME NO CODE QUANTITY LEVEL
1 V.001S VIBRATOR TABLE PLATE 2 PIECES 3
VİBRATOR

DETAILS
TABLE

2 V.002KT VIBRATOR PLATE WEDGE (SQUARE) 8 PIECES 4

Sayfa 10 / 55
GROUP PICTURE ITEM LABOR
SPARE PARTS NAME USED QUANTITY
NAME NO CODE LEVEL
1 V.001VK VIBRATOR RIM 4*1 PIECES 2
2 V.002E ECCENTRIC WEIGHT 4*2 PIECES 3
VIBRATOR

3 V.003VK1 VIBRATOR COVER 4*2 PIECES 3

DETAIL

4 6208 BEARING BALL 4*4 PIECES 4

5 V.005M VIBRATOR MILE 4*1 PIECES 4
6 V.006G VIBRATOR BODY 4*1 PIECES 4
V.000VK VIBRATOR COMPLETE 4*1 PIECES 4

Sayfa 11 / 55
GROUP PICTURE LABOR
ITEM CODE SPARE PARTS NAME USED QUANTITY
NAME NO LEVEL
MOTOR CONNECTION SHEET
VIBRATOR MOTOR

VM.001S 4
1 PLATE 4*1 PIECES
2 VM.002T MOTOR WEDGE 4*4 PIECES 3
GROUP

3 VM.003MS MOTOR CONNECTION SHEET 4*1 PIECES 3

4 VM.004M 3 kw 3000 d/d ELECTRICAL MOTOR 4*1 PIECES 2
5 VM.005K MOTOR REEL 4*1 PIECES 2
6 VM.006K1 BELT 4*1 PIECES 2

Sayfa 12 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 UB.001SP TOP CONNECTION PLATE 1 PIECE 4
2 ÜB.002T TOP PRESS WEDGE 10 PIECES 4
COMPLETE TOP PRESS

3 V.000VK COMPLETE VIBRATOR 2 PIECES 3

4 UB.003Y TOP MOTOR PRESSURE ARC 2*1 PIECES 2
5 ÜB.004MB TOP MOTOR HINGE 2*2 PIECES 2
6 UB.005MS TOP MOTOR HINGE PLATE 2*1 PIECES 3
7 VM.002T TOP MOTOR WEDGE 2*4 PIECES 2
8 ÜB.006MBS TOP MOTOR CONNECTION PLATE 2*1 PIECES 2
2,2 kw 3000 d/d ELECTRICAL
2
9 UB.007EM MOTOR 2*1 PIECES
10 UB.008K UPPER VIBRATOR BELT 2*1 PIECES 1
TOP VIBRATOR AND PRESS ELEMENT
11 UB.009 CONNECTION DISPOSITION 1 PIECE 5
Sayfa 13 / 55
Sayfa 14 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 AP.001M MORTAR TROLLEY PISTON SHAFT ( DIAMETER 28 ) 1 PIECE 3
1 TP.001M LIFTING PALLET PISTON SHAFT ( DIAMETER 28 ) 1 PIECE 3
1 CP.001M C PISTON LIFTING SHAFT ( DIAMETER 28 ) 1 PIECE 3
2 OR.001TK DUST SEAL 28/36 - 5/7 1 PIECE 3
3 OR.002KK PISTON HEAD COVER 1 PIECE 3
MORTAR TROLLEY , PALLET LIFTING AND

4 OR.003BK PISTON SEAL 28*38*10 2 PIECES 3

5 OR.004YB SUPPORT BUSHING 1 PIECE 3
6 OR.005O O-RING 20*3 1 PIECE 3
C LIFTING PISTON DETAILS

7 OR.006KP WASHER 50/60 1 PIECE 3

8 OR.007K POLYURETHANE PISTON SEAL 40*50*10 2 PIECES 3
9 OR.008KY STEPPED UP SPACER 50/60 1 PIECE 3
10 OR.009KYY POLYAMIDE COMPONENT 50/60 1 PIECE 3
11 OR.010KAP WASHER 50/60 1 PIECE 3
12 OR.011MS NUT 1 PIECE 3
13 OR.012PK PISTON HEAD 50/60 1 PIECE 3
14 OR.013O1 O-RING 55*4 1 PIECE 3
15 OR.014BS COUNTER NUT 1 PIECE 3
16 OR.015HPB MORTAR TROLLEY PISTON PIPE 50/60 1 PIECE 3
16 OR.016TPB PALLET LIFTING PISTON PIPE 50/60 1 PIECE 3
16 OR.017CPB C PISTON PIPE 50/60 1 PIECE 3
17 OR.018PBA PISTON BACK COUPLING SPACER 50/60 1 PIECE 3
AP.000K MORTAR TROLLEY COMPLETE PISTON 50/60*350 1 PIECE 3
TP.000K COMPLETE PALLET LIFTING PISTON 50/60*500 1 PIECE 3
CP.000K C LIFTING COMPLETE PISTON 50/60*80 1 PIECE 3

GROUP PICTURE USED LABOR

ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 BKP.001M BUNKER COVER PISTON MIL (DIAMETER 28 ) 1 PIECE 3
1 Tİ.001M PUSHING PALLET PISTON MIL (DIAMETER 28 ) 1 PIECE 3
2 OR.001TK DUST SEAL 28/36 - 5/7 1 PIECE 3
3 OR.002KK PISTON HEAD COVER 1 PIECE 3
BUNKER COVER AND PALLET PUSHING

4 OR.003BK PISTON SEAL 28*38*10 2 PIECES 3

5 OR.004YB SUPPORTING BUSHING 1 PIECE 3
6 OR.005O O-RING 20*3 1 PIECE 3
7 BK.006KÖ WASHER 40/50 1 PIECE 3
PİSTON DETAILS

8 BK.007K POLYURETHANE PISTON SEAL 30*40*10 2 PIECES 3

9 BK.008KY O-RING 40/50 1 PIECE 3
10 BK.009KYY O-RING PLASTIC 40/50 1 PIECE 3
11 BK.010KAP O-RING BACK STAMP40/50 1 PIECE 3
12 OR.011MS BACK NUT FOR MILE 1 PIECE 3
13 BK.012PK PISTON HEAD 40/50 1 PIECE 3
14 BK.013O1 O-RING 45*4 1 PIECE 3
15 BK.014BS PIPE FIXED NUT 1 PIECE 3
16 BK.015BPB PISTON PIPE FOR BUNKER COVER 40/50 1 PIECE 3
16 BK.016TİPB PALLET PUSHING PİSTON PIPE 40/50 1 PIECE 3
17 BK.017PBA BACK PISTON PIPE 40/50 1 PIECE 3
BKP.000K COMPLETE BUNKER COVER PISTON 40/50*300 1 PIECE 3
TİK.000K COMPLETE PALLET PUSHING PISTON 40/50*1100 1 PIECE 3

Sayfa 15 / 55
Sayfa 16 / 55
GROUP PICTURE LABOR
ITEM CODE SPARE PARTS NAME USED QUANTITY
NAME NO LEVEL
1 KP.001M PISTON SHAFT ( DIAMETER 35 ) 2*1 PIECES 3
2 KP.002T PISTON WEDGE 2*1 PIECES 3
3 KP.003TK DUST SEAL 35/43 - 5/7 2*1 PIECES 3
4 KP.004KK PISTON COVER 2*1 PIECES 3
5 KP.005BK POLYURETHANE PISTON SEAL 35/50*10 2*2 PIECES 3
MOULD LIFTING PISTON DETAILS

6 KP.006YB SUPPORT BUSHING 2*1 PIECES 3

7 KP.007PK PISTON HEAD 2*1 PIECES 3
8 KP.008BO O-RING 55*4 2*1 PIECES 3
9 KP.009S PISTON CONNECTION PLATE 2*1 PIECES 3
10 KP.010BSS COUNTER NUT 2*1 PIECES 3
11 KP.011O O-RING 20*3 2*1 PIECES 3
12 KP.012YP WASHER 2*1 PIECES 3
13 KP.013K POLYURETANE PISTON SEAL 40/50*10 2*2 PIECES 3
14 KP.014KY STEPPED WASHER 2*1 PIECES 3
15 KP.015YYP POLYAMIDE COMPONENT 2*1 PIECES 3
16 KP.016YAP WASHER 2*1 PIECES 3
17 KP.017AS SHAFT BACK NUT 2*1 PIECES 3
18 KP.018B PISTON PIPE ( DIAMETER ) 50/60 2*1 PIECES 3
19 KP.019BA PISTON REAR COUPLING SPACER 2*1 PIECES 3
COMPLETE MOULD LIFTING PISTON 2*1 PIECES
KP.000K 3
50/60*650

Sayfa 17 / 55
Sayfa 18 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 OP.001V PISTON LEFT GEAR SCREW PIN 1 PIECE 3
2 OP.002D PHS 30 EYEBOLT 1 PIECE 3
3 OP.003S SEGMENT 2 PIECES 3
4 OP.004KS LEFT NUT 1 PIECE 3
5 OP.005AB PISTON ADJESTMENT PIPE 1 PIECE 3
6 OP.006KS1 RIGHT CONTRA NUT 1 PIECE 3
7 OP.007M PISTON SHAFT ( DIAMETER 40 ) 1 PIECE 3
9 OP.008TK DUST SEAL 40/48-5/7 1 PIECE 3
MIDDLE PISTON DETAILS

10 OP.009BK POLYURETHANE SEAL 40/50*8 1 PIECE 3

11 OP.010YB SUPPORTING BUSHING 1 PIECE 3
12 OP.011PK PISTON HEAD 1 PIECE 3
13 OP.012BO O-RING THIN 80*3 1 PIECE 3
14 OP.013BO1 O-RING THICK 80*5 1 PIECE 3
15 OP.014KO1 O-RING 30*3 1 PIECE 3
16 OP.015KYB LARGE SPACER 1 PIECE 3
POLYURETHANE PİSTON SEAL
17 OP.016K 2 PIECES 3
55/70*12
18 OP.017MY SPACER 1 PIECE 3
19 OP.018KYK SMALL SPACER 1 PIECE 3
20 OP.019AS MILE BACK NUT 1 PIECE 3
21 OP.020PB PISTON PIPE 70/85 1 PIECE 3
22 OP.021PA PISTON BACK PIPE 1 PIECE 3
COMPLETE MIDDLE PISTON 1 PIECE
OP.000K 3
70/85*480

Sayfa 19 / 55
Sayfa 20 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 IME18-08 SENSOR 4 PIECES 2
SENSOR

2 IME18-08 K SENSOR CABLE 4 PIECES 2

3 IME18-08 BS SENSOR CONNECTION PLATE 2 PIECES 2
4 XUB1BPANL2 SENSOR WITH REFLECTOR 1 PIECE 2

Sayfa 21 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 6006Z C3 6006 Z C3 BEARING 2*1 PIECES 2
SUPPORTING DETAILS

2 CAK.001S SEGMENT 2*2 PIECES 3

OPENING WING

FOR C UNIT

3 CAK.002YB SUPPORTING BUSHING 2*2 PIECES 3

4 CAK.003Y BEARING 2*1 PIECES 4
5 CAK.004M SHAFT 2*1 PIECES 3
6 CAK.005MK RIGHT CLIP MILE 2*2 PIECES 2
7 CAK.006MK1 LEFT CLIP MILE 2*2 PIECES 2
8 32006 32006 CONIC BEARING BALL 2*1 PIECES 2

Sayfa 22 / 55
GROUP PICTURE LABOR
ITEM CODE SPARE PARTS NAME USED QUANTITY
NAME NO LEVEL
1 6006Z C3 6006 Z C3 BEARING BALL 2*1 PIECES 2
SUPPORTING DETAILS

2 CAK.001S SEGMENT 2*2 PIECES 3

OPENING WING

5 CAK.004M SHAFT 2*1 PIECES 3

FOR C UNIT

6 CAK.005MK RIGHT CLIP MILE 2*2 PIECES 2

7 CAK.006MK1 LEFT CLIP MILE 2*2 PIECES 2
8 32006 32006 CONIC BEARING BALL 2*1 PIECES 2
SUPPORTING BUSHING WITH
9 CAK.007YB 2*2 PIECES 3
SPLIT
10 CAK.008Y BEARING SPLIT 2*1 PIECES 4

Sayfa 23 / 55
Sayfa 24 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 TR.100K SCARECROW 2 PIECES 1
2 UCP209 UCP BEARING UCP 209 2 PIECES 2
PALLET LIFTING DETAILS

3 TR.101MP BALANCE ARM LEVER PIM 2 PIECES 1

4 TR.102DB BALANCE ARM 2 PIECES 4
5 TR.103DBK BALANCE PISTON ARM 2 PIECES 2
6 TR.104Y ROBOT MAIN SHAFT BEARING 4 PIECES 3
7 TR.105KP PISTON ARM BOLT 2 PIECES 1
8 TR.106M MAIN SHAFT 50’’ 4 PIECES 3
9 TR.107KK LIFTING HOOK 4 PIECES 2
10 TR.108S ROBOT SUPPORTING CONNECTION PLATE 2 PIECES 3
11 TP.000K PALLET LIFTING PISTON 50/60*500 2 PIECES 2
12 TR.109TM BALANCE SHAFT FOR ROBOT 1 PIECE 4

Sayfa 25 / 55
GROUP PICTURE ITEM LABOR
SPARE PARTS NAME USED QUANTITY
NAME NO CODE LEVEL
1 TS.100T PALLET PUSHING WHEEL 4 PIECES 2
PALLET PUSHING

2 30-65 WHEEL BEARING 4 PIECES 2

DETAILS

3 TS.101K PALLET PUSHING HOOK 2 PIECES 3

4 TS.102M TROLLEY SHAFT 2 PIECES 4
COMPLETE PALLET PUSHING
5 TİK.000K 1 PIECE 3
PISTON 40/50*1100
6 TS.103AK COMPLETE TROLLEY 1 PIECE 4

Sayfa 26 / 55
Sayfa 27 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 TR.100K SCARECROW 2 PIECES 1
2 UCP 209 UCP BEARING UCP 209 2 PIECES 2
FRONT STACKING ROBOT DETAILS

3 TR.102DB BALANCE ARM 2 PIECES 4

4 TR.109TM ROBOT BALANCE SHAFT 1 PIECE 4
5 TR.103DBK BALANCE PISTON ARM 2 PIECES 2
6 TR.101MP BALANCE JOINT BOLT 2 PIECES 1
7 TR.104Y MAIN SHAFT BEARING FOR ROBOT 4 PIECES 3
8 TR.106M MAIN SHAFT 50’’ FOR 50 CM 4 PIECES 3
9 TR.107KK LIFTING HOOK 4 PIECES 2
10 TR.108S ROBOT SUPPORTING CONNECTION PLATE 2 PIECES 3
11 TR.110BP TIE PIM FOR LIFTING HOOK 4 PIECES 2
12 TP.000K PALLET LIFTING PISTON 50/60*500 2 PIECES 2
13 IME18-08 SENSOR 4 PIECES 2
14 IME18-08 K SENSOR CABLE 4 PIECES 2
15 IME18-08 BS SENSOR CONNECTION PLATE 2 PIECES 2
16 XUB1BPANL2 SENSOR WITH REFLECTOR 1 PIECE 2

Sayfa 28 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 ZS.100Z1 1 FINGER CHAIN 2 PIECES 2
2 ZS.101MS SHAFT SEGMENT 2 PIECES 1
3 ZS.102RS BEARING SEGMENT 2 PIECES 1
OUT PUT CHAIN RAIL WAY DETAILS

4 6206 BEARING 6206 2 PIECES 2

5 18N1GZD TIE CHAIN GEAR 1 BAR 18 LEAF 2 PIECES 2
6 UCFL 208 UCFL 208 BEARING 4 PIECES 4
7 ZS.103GM TIE MILE 1 PIECE 3
8 18N1TZD DRIVING LEAF 1 BAR 18 LEAF 2 PIECES 3
9 ZS.104SBL REDUCING SPEED CENCOR CONNECTION LAMA 1 PIECE 3
10 ZS.104SBL STOPPING CENCOR CONNECTION LAMA 1 PIECE 3
11 ZS.105M 0,75 kw 1500 d/d ELECTRICAL MOTOR 1 PIECE 3
12 1BR118-40 BR118 40 D/D REDUCTOR 1 PIECE 3
3/8 35 EXTERNEL DUAL RAW CHAIN (TO DRIVING 1 PIECE
13 35N3/8-2TM 4
SHAFT)
3/8 35 EXTERNEL DUAL RAW CHAIN ( TO MOTOR 1 PIECE
14 35N3/8-2MM 3
SHAFT)
15 ZS.106Z3/8-2 3/8 TWO RAW CHAIN 1 PIECE 2
16 ZS.107TM DRIVING MILE 1 PIECE 4

Sayfa 29 / 55
GROUP PICTURE USED
ITEM CODE SPARE PARTS NAME LABOR LEVEL
NAME NO QUANTITY
1 HY.200BAV MIDDLE PISTON TURNING PRESSURE SETTING VALVE 1 PIECE 2
CONTROL

2 HY.201GTH MIDDLE PİSTON TURNING BACK PIPE 1 PIECE 2

VALVE

3 HDS11/2EMC 3/8" 24 VOLT DUAL CONTROL VALVE 2 PIECES 3

4 HDS15/6EMC 1/2" 24 VOLT SIXFOLT CONTROL VALVE 1 PIECE 3
5 HY.202BHH 1/2" VALF PRESSURE LINE PIPE 1 PIECE 2

Sayfa 30 / 55
Sayfa 31 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 100L4HP1500 3 kw 1500 d/d ELECTRICAL MOTOR 2*1 PIECES 3
2 100LB5 3 kw 1500 d/d ELECTRICAL MOTOR B5 FLANGE 2*1 PIECES 3
3 GR2-28/1 3 kw 1500 d/d PROCESSED GRAB FOR 28 2*1 PIECES 3
4 GR2-28/2 CAPLIN FOR 28 2*1 PIECES 3
WELDING TYPE COOLING TUBE CONNECTION
5 HY.207K1R 1 PIECE 2
RECORD
6 GR2-28/3 11 cm³/rev PROCESSED GRAB FOR POMP 28 2*1 PIECES 3
7 HY.209KS OIL STORE TOP COVER PLATE 2*1 PIECES 4
8 NO8KTR WELDED PRESSURE LINE CONNECTION 2*1 PIECES 2
WELDED TYPE TURNING BACK LINE 2*1 PIECES
9 NO8KTR 2
CONNECTION
11 cm³/rev PRESSURE LINE IN STORE 2*1 PIECES
10 3/8 12LNO8:60 3
CONNECTION PIPE
11 1K250 BELL 250’’ 2*1 PIECES 4
12 HY.210BF11 11 cm³/rev PUMP PRESSURE LINE FLANGE 2*1 PIECES 3
PUMP GROUP DETAILS

13 XV2P11CCS218 11 cm³/rev PUMP 2*1 PIECES 3

14 HY.210BF11 11 cm³/rev PUMP ABSORBTION LINE FLANGE 2*1 PIECES 3
15 HY.212FN45 FILTER CONNECTION NIPPLE FOR 45 2*1 PIECES 3
16 HY.213FR45 FILTER CONNECTION REDUCTION FOR 45 2*1 PIECES 3
17 HY.214F45 OIL FILTER 45’’ 2*1 PIECES 3
18 HY.215DSO HYDRAULIC STORE PLATE 1 PIECE 5
19 132M10HP1500 7,5 kw 1500 d/d ELECTRICAL MOTOR 1 PIECE 3
7,5 kw 1500 d/d ELECTRICAL MOTOR B5 1 PIECE
20 132MB5 3
FLANGE
21 DK42-38/1 7,5 kw 1500 d/d 38 ‘’ PROCESSED GRABBING 1 PIECE 3
22 DK42-38/2 38 ‘’ CAPLIN 1 PIECE 3
30 cm³/rev PROCESSED GRABBING FOR PUMP 1 PIECE
23 DK42-38/3 3
38
24 1K300 BELL 300 ‘’ 1 PIECE 4
25 7/8KTR 7/8 WELDED PRESSURE LINE CONNECTION 3 PIECES 2
26 HY.221BF30 30 cm³/rev PUMP PRESSURE LINE FLANGE 1 PIECE 3
30 cm³/rev PRESSURE LINE IN STORE 1 PIECE
27 1/2 16S7/8:90 3
CONNECTION PIPE
28 XV2P30CCS218 30 cm³/rev PUMP 1 PIECE 3
29 HY.223EF30 30 cm³/rev PUMP ABSORBTION LINE FLANGE 1 PIECE 3
30 HY.224FN125 FILTER CONNECTION ADAPTOR 125’’ 1 PIECE 3
31 HY225F125 FILTER 125’’ 1 PIECE 3

Sayfa 32 / 55
Sayfa 33 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 YDV3/8BS 3/8" BOBBIN TIGHTEN NUT 1 PIECE 1
2 HDS11EMC01E 3/8" 24 VOLT VALVE BOBBIN 2 PIECES 1
3 YDV3/8O 3/8" O-RING BOBBIN 2 PIECES 1
4 YDV3/8BM 3/8" BOBBIN CONNECTION MILE 2 PIECES 2
5 YDV3/8SM 3/8" SUPUL PUSHING MILE 2 PIECES 2
6 YDV3/8YP 3/8" BOW FIXING STAMP 2 PIECES 2
7 YDV3/8SGY 3/8" SUPUL BACK PUSHING BOW 2 PIECES 2
8 SPL3/8EMC 3/8" SUPUL 1 PIECE 3
9 YDV3/8EMCD 3/8" 24 VOLT CONTROL VALVE PIECE BODY 1 PIECE 3
3/8" 24 VOLT CONTROL VALVE DETAILS

10 HDS11DK 3/8" RETURN COVER 1 PIECE 3

11 HDS11VBS 3/8" VALVE CONNECTION PLATE 2 PIECES 2
12 HDS11VBG 3/8" VALVE CONNECTOR STUD 3 PIECES 3
13 HDS11GP STUD WASHER 6 PIECES 2
14 HDS11GS STUD GRIPPING BOLT 6 PIECES 1
15 HDS11BKK 3/8" COMPLETE PRESSURE COVER 1 PIECE 3
KEEPING STOPPER FOR PRESSURE 1 PIECE
15..1 HDS11BAVKT 1
CALIBRATE SCREW
15..2 HDS11BAV PRESSURE SETTING SCREW 1 PIECE 2
15..3 HDS11BAY PRESSURE SETTING ARC 1 PIECE 2
PRESSURE CALIBRATE IMPERVIOUSNESS 1 PIECE
15..4 HDS11BABP 2
COPPER WASHER
15..5 HDS11BK PRESSURE TAP 1 PIECE 3
16 3/8-12L-R 3/8--12L CONNECTOR 1 PIECE 2
17 Q63X160 MANOMETER (DOWNWARD OUTPUT) 1 PIECE 2
MANOMETER CONNECTOR RECORD 1 PIECE
18 EWSD8L 2
REVERSE BEND
19 EMASD8L1/4 MANOMETER CONNECTION NIPPLE 1 PIECE 2
20 GES8L1/4WD 1/4" MANOMETER CONNECTION RECORD 1 PIECE 2
21 3/8NO:8-R PRESSURE LINE CONNECTION RECORD 1 PIECE 2
22 3/8-12L-R LINE PIPE CONNECTION RECORD 2 PIECES 2
23 3/8NO:8-R TURNING BACK CONNECTION RECORD 1 PIECE 2
24 HDS11EMCKS BOBBIN ELECTRICAL CONNECTION SOCCET 2 PIECES 2
1 YDV1/2BS 1/2" BOBBİN TIGHTEN NUT 1 PIECE 1
2 HDS15EMC01E 1/2" 24 VOLT VALVE BOBBIN 2 PIECES 1
3 YDV1/2O 1/2" BOBBIN O-RING 2 PIECES 1
4 YDV1/2BM 1/2" BOBBIN CONNECTION MILE 2 PIECES 2
5 YDV1/2SM 1/2" SUPUL PISTON MILE 2 PIECES 2
6 YDV1/2YP 1/2" ARC FIXING WASHER 2 PIECES 2
1/2" 24 VOLT CONTROL VALVE DETAILS

7 YDV1/2SGY 1/2" SUPUL PUSHING BACK ARC 2 PIECES 2

8 SPL1/2EMC 1/2" SUPUL 1 PIECE 3
1/2" 24 VOLT CONTROL VALVE BODY 1 PIECE
9 YDV1/2EMCD 3
SEGMENT
10 HDS15DK 1/2" CYCLE COVER 1 PIECE 3
11 HDS15VBS 1/2" VALVE CONNECTION PLATE 2 PIECES 2
12 HDS15VBG 1/2" VALVE JOINDER 3 PIECES 3
13 HDS15GP STUD BOLT 6 PIECES 2
14 HDS15GS STUD GRIBBING BOLT 6 PIECES 1
15 HDS15BKK 1/2" COMPLETE PRESSURE COVER 1 PIECE 3
15..1 HDS15BAVKT PRESSURE BOLT SAFE TAP 1 PIECE 1
15..2 HDS15BAV PRESSURE SETTING NUT 1 PIECE 2
15..3 HDS15BAY PRESSURE SETTING ARC 1 PIECE 2
PRESSURE SETTING IMPERVIOUSNESS 1 PIECE
15..4 HDS15BABP 2
COPPER WASHER
15..5 HDS15BK PRESSURE COVER 1 PIECE 3
16 1/2-16S-R OVERBRIDGE CONNECTION RECORD 1 PIECE 2
21 1/2-7/8-R PRESSURE LINE CONNECTION RECORD 1 PIECE 2
22 1/2-16S-R PIPE LINE CONNECTION RECORD 2 PIECES 2
23 1/2-7/8-R CYCLE CONNECTION RECORD 1 PIECE 2
24 HDS15EMCKS BOBBIN ELECTRIC CONNECTION SOCKET 2 PIECES 2

Sayfa 34 / 55
----AUTOMATIC MACHINE PANEL----

Sayfa 35 / 55
 1* THERMIC MAGNETIC 2* EMERGENCY STOP 3* VOLTMETER 4* AMPERMETER
SWITCH

5* PLC SCREEN 6* AUTOMATIC START 7* START BUTTON

8-10* LAMP 9* MANUEL JOYSTICK

GROUP PICTURE LABOR

ITEM CODE SPARE PARTS NAME USED QUANTITY
NAME NO LEVEL
1 3VT1 125A THERMIC MAGNETIC SWITCH 1 PIECE 2
AUTOMATIC MACHINE

2 ZBE-102 EMERGENCY STOP 1 PIECE 2

CONTROL PANEL

3 EPV141 VOLTMETER 1 PIECE 2

4 EPA141 AMPERMETER 1 PIECE 2
5 MT506TV PLC SCREEN 1 PIECE 2
6 XB7-ED33 AUTOMATIC START 2 PIECES 2
3SB3202-
7 START BUTTON 4 PIECES 2
OAA41
8 XB7-EV6 LAMP 20 PIECES 2
9 ZD-PA103 MANUEL (JOYSTICK) 10 PIECES 2

Sayfa 36 / 55
----MACHINE CONTROL AND POWER CIRCUIT-----

Sayfa 37 / 55
 ---MACHINE CONTROL CIRCUIT---

1* PLC CONTACT CABLE AND SCREEN 2* PLC CPU224

3* 24 VOLT RELAY AND ITS LEG 4* POWER SUPPLY 5* FREQUENCY İNVERTÖR (SPEED
CONTROL EQUIPMENT)
Sayfa 38 / 55
 6* PLC ADDITIONAL INPUT AND 7* PLC ADDITIONAL OUTPUT AND ETHERNET MODULE
ETHERNET MODULE

GROUP PICTURE USED LABOR

ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 RC-CPU/MT506TV PLC CONTACT CABLE FOR SCREEN 1 PIECE 2
AUTOMATIC MACHINE

2 CPU224 PLC 1 PIECE 2

CONTROL CIRCUIT

3 MY4IN 24 VOLT RELAY 21 PIECES 2

PYF 14-ESN 24 VOLT RELAY SHOE 21 PIECES 2
4 DRT240-24 MEAN WELL (POWER SUPPLY) 1 PIECE 2
5 ENDAHAMSİ 0,75 kw FREQUENCY INVERTOR 1 PIECE 2
6 EM221 PLC ADDITIONAL INPUT 1 PIECE 2
CP243-1 ETHERNET MODULE 1 PIECE 2
PLC ADDITIONAL INPUT- OUTPUT 1 PIECE
7 EM223 2
MODULE

----MACHINE POWER SUPPLY---

1* THERMIC FUSE 2* CONTACTÖR

3* CONTACTOR 4* TRIPLE V AUTOMAT 5* LOOBAR

Sayfa 39 / 55
 6* THERMIC MAGNETIC SWITCH

GROUP PICTURE USED LABOR

ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 3RV1021-4BA10 7,5 kw PUMP THERMIC 14-20A FUSE 1 PIECE 2
MACHINE POWER

3RV1011-1JA10 VIBRATION THERMIC 7-10 A FUSE 9 PIECE 2

AUTOMATIC

2 3RT1026-1B…0 7,5 kw 24 VOLT CONTACTOR 1 PIECE 2

CIRCUIT

3 3RT1017-1BB41 3 kw 24 VOLT CONTACTOR 10 PIECES 2

4 C6 V AUTOMAT WITH 3 1 PIECE 2
5 LOOBAR LOOBAR 1 PIECE 2
6 3VT1 125A THERMIC MAGNETIC SWITCH 1 PIECE 2

Sayfa 40 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 MM.100T PALLET DRIVING WHEEL 4 PIECES 2
2 MM.101TR PALLET DRIVING WHEEL BEARING 4 PIECES 2
MANUEL PALLET

DRIVING GROUP
LIFTING AND

3 MM.102TM PALLET DRIVING WHEEL SHAFT 2 PIECES 3

4 MM.103AK COMPLETE PALLET DRIVING TROLLEY 1 PIECES 3
COMPLETE PALLET DRIVING PISTON
5 MM.104TIP 1 PIECE 2
40/50*1100
COMPLETE PALLET LIFTING PİSTON
6 MM.105TK 2 PIECES 2
50/60*80
7 MM.106TKM COMPLETE PALLET LIFTING MECHANISM 2 PIECES 5

Sayfa 41 / 55
GROUP PICTURE ITEM USED LABOR
SPARE PARTS NAME
NAME NO CODE QUANTITY LEVEL
TRANSPORT

1 70/23 TABLE OUPUT WHEEL 70/23 LIGHT TYPE 36 PIECES 2

2 350/8 TRANSPORT CAR WHEEL 350/8 2 PIECES 2
CAR

Sayfa 42 / 55
Sayfa 43 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 MM.001EP ELECTRICAL PANEL 1 PIECE 5
MANUEL MACHINE CONTROL UNIT WITHOUT STACKING

2 MM.002HYD HYDRAULIC OIL RESERVOIR 1 PIECE 4

3 MM.003KV8 CONTROL VALVE WITH 8 ARM 1 PIECE 3
4 MM.004DS UPPER TANK PANEL PLATE 1 PIECE 4
HYDRAULIC OIL , HEAT AND DEGRE 1 PIECE
5 SNA127 4
INDICATOR
HYDRAULIC OIL FILLING COVER 1 PIECE
6 SES2 2
(WITH WELDING)
SYSTEM ROBOT

T2 UNIT 380 VOLT COMPLETE 1 PIECE

7 T2-380V-HSK 2
HYDRAULIC OIL COLLER
7,5 kw 1500 d/d B5 ELECTRICAL 1 PIECE
8 132M10HP1500 3
MOTOR WITH FLANGE CONNECTION
9 MM.005OKK OPERATOR CONTROL TAP 1 PIECE 4
10 MM.006-1KH 1" COMPRESSOR TUBE 2 PIECES 2
MIDDLE PISTON TURNING BACK 1 PIECE
11 HY.201GTH 2
DISCHARGE TUBE
PUMP PRESSURE TUBE INSIDE 1 PIECE
12 1/2 16S7/8:90 3
TANK
MIDDLE PİSTON CYCLING 1 PIECE
13 HY.200BAV 2
PRESSURE SETTING VALVE
14 HY.202BHH CONTROL ARM PRESSURE TUBE 1 PIECE 2
15 MM.007MBH MANOMETER CONNECTION TUBE 1 PIECE 2

Sayfa 44 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 132M10HP1500 7,5 kw 1500 d/d ELECTRICAL MOTOR 1 PIECE 3
7,5 kw 1500 d/d ELECTRICAL MOTOR B5 1 PIECE
2 132MB5 3
FLANGE
7,5 kw 1500 d/d 38 MM PROCESSED 1 PIECE
3 DK42-38/1 3
CLAMP
4 DK42-38/2 38 CAPLIN 1 PIECE 3
PROCESSED CLAMP FOR 38 PUMP 30 1 PIECE
5 DK42-38/3 3
cm³/rev
6 1K300 300 MM BELL 1 PIECE 3
PUMP GROUP DETAILS

7 MM.008DPS TANK PUMP TAP PLATE 1 PIECE 4

8 XV2P30CCS218 30 cm³/rev PUMP 1 PIECE 4
30 cm³/rev PUMP PRESSURE LINE 1 PIECE
9 HY.221BF30 3
FLANGE
30 cm³/rev PUMP ABSORBTION LINE 1 PIECE
HY.223EF30 3
FLANGE
10 HY.224FN125 125 FILTER CONNECTION ADAPTOR 1 PIECE 3
11 HY225F125 125 FILTER 1 PIECE 3
PUMP PRESSURE TUBE FOR TANK 1 PIECE
12 1/2 16S7/8:90 3
INSIDE
13 63-025/3000 0,25 kw 3000 d/d ELECTRICAL MOTOR 1 PIECE 2
14 T2-380V-MBI MOTOR CONNECTION GRID 1 PIECE 2
15 T2-380V-P FAN 1 PIECE 2
16 T2-380V-MBK MOTOR GROUP CONNECTION TAP 1 PIECE 2
17 T2-380V-HS HYDRAULIC COOLER 1 PIECE 2
18 T2-380V-R INPUT-OUTPUT RECORDS FOR COOLER 2 PIECES 2
Sayfa 45 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 MM.009KMV CONTROL ARM MONTAGE SCREW 2 PIECES 1
2 MM.010KBS CONTROL ARM CONNECTOR PLATE 2 PIECES 2
3 HDS15DK RETURN CAP 1 PIECE 2
4 T2-380V-R COOLER LINE CONNECTION UNION 1 PIECE 1
5 MM.1/2KT STOPPER 1 PIECE 1
6 1/2-16S-R SYSTEM LINE CONNECTION UNION 16 PIECES 1
7 MM.011HYK MOVEMENT DIRECT PIPE 8 PIECES 1
8 HDS15/1D CONTROL ARM PIECES FULL 8 PIECES 3
9 HDS15BKK 1/2" PRESSURE CAP FULL 1 PIECE 3
CONTROL ARM DETAILS

10 1/2-7/8-R PRESSURE LINE CONNECTION UNION 1 PIECE 2

11 GES8L1/4WD 1/4" MANOMETER CONNECTION UNION 1 PIECE 1
MEDIUM PISTON RETURN PRESSURE
12 HY.200BAV 1 PIECE 2
SETTING VALVE
13 HDS15BK PRESSURE CAP 1 PIECE 3
PRESSURE CALIBRATE IMPERVIOUSNESS
14 HDS15BABP 1 PIECE 3
COPPER WASHER
15 HDS15BAY PRESSURE SETTING SPRING 1 PIECE 3
16 HDS15BAV PRESSURE SETTING SCREW 1 PIECE 3
17 HDS15BAVKT PRESSURE SETTING SCREW STOPPER 1 PIECE 3
18 MM.012YKMK DIRECTION PIPE MONTAGE CAP 8*1 PIECES 2
19 SPL1/2YP SPOOL BEARING SCREW 8*2 PIECES 3
20 SPL1/2 SPOOL 8*1 PIECES 3
21 HDS15/1DG CONTROL ARM PIECES 8*1 PIECES 3
22 MM.013SO O’RING 8*2 PIECES 3
23 SPL1/2GTY SPOOL REJECTION SPRING 8*1 PIECES 3
24 MM.014YYK SPRING MONTAGE CAP 8*1 PIECES 2
Sayfa 46 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 Q63X160 MANOMETRE (PANEL TYPE) 1 PIECE 2
OPERATOR CONTROL CAP

2 ENDAEPV141 VOLTMETRE (VOLTAGEMETER) 1 PIECE 2

3 RST380 VOLTMETRE COMMUTATOR 1 PIECE 2
4 3SB3202-0AA41 VIBRATION START BUTTON 1 PIECE 2
HYDRAULIC COOLER FAN START
5 3SB3202-0AA41 1 PIECE 2
BUTTON
6 3SB3202-0AA41 VIBRATION START BUTTON 1 PIECE 2
7 3SB3202-0AA41 VIBRATION STOP BUTTON 1 PIECE 2
8 3SB3202-0AA41 PUMP START BUTTON 1 PIECE 2
9 3SB3202-0AA41 PUMP STOP BUTTON 1 PIECE 2
10 ZBE-102 EMERGENCY STOP BUTTON 1 PIECE 2
Sayfa 47 / 55
Sayfa 48 / 55
 1* 7,5 kw PUMP 2* CONTACTOR
THERMIC 14-20A
FUSE

5* VIBRATION TIME
RELAY

3* VIBRATION THERMIC FUSE 4* 3 PHASE SWITCH ON OFF

7-10A

Sayfa 49 / 55
 SWİTCH WITH BOBBIN
7* 10A V OTOMAT

6* 220 VOLT RELAY

GROUP PICTURE USED LABOR

ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 3RV1021-4BA10 7,5 kw PUMP THERMIC 14-20A FUSE 1 PIECE 2
MANUEL MACHINE

2 3TF42 22-OAPO 7,5 kw CONTACTOR 1 PIECE 2

CONTROL PANEL

3TF40 10-OAPO 3 kw CONTACTOR 6 PIECES 2

3 3RV1011-1JA10 VIBRATION THERMIC 7-10 A FUSE 6 PIECES 2
4 YKL3 01 063 3 PHASE SWITCH ON OFF 63A 1 PIECES 2
5 AT4-3S VIBRATION TIME RELAY 1 PIECE 2
6 MY2 220-240VAC 220 VOLT RELAY 1 PIECE 2
7 B10A SINGLE V OTOMAT 1 PIECE 2
L2 MEP12 SWITCH WITH BOBBIN 1 PIECE 2

Sayfa 50 / 55
Sayfa 51 / 55
GROUP PICTURE USED LABOR
ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 MM.001EP ELECTRIC PANEL 1 PIECE 5
MANUEL MACHINE CONTROL

2 MM.005OKK OPERATOR CONTROL CAP 1 PIECE 4

3 MM.016DP TANK TOP PANEL SHEET 1 PIECE 4
UNIT WITH ROBOT

4 MM.002HYD HYDRAULIC OIL TANK 1 PIECE 4

7,5 kw 1500 d/d B5 ELECTRIC MOTOR
5 132M10HP1500 1 PIECE 3
WITH FLANGE CONNECTION
3 kw 1500 d/d B5 ELECTRIC MOTOR
6 100L4HP1500 1 PIECE 3
WITH FLANGE CONNECTION
7 SES2 HYDROLIC OIL FILLING CAP (WELDED) 1 PIECE 2
8 SNA127 HYDRAULIC THERMAL INDICATOR 1 PIECE 4
T2 UNIT 380 VOLT HYRAULIC OIL
9 T2-380V-HSK 1 PIECE 2
COOLER

Sayfa 52 / 55
Sayfa 53 / 55
GROUP PICTURE LABOR
ITEM CODE SPARE PARTS NAME USED QUANTITY
NAME NO LEVEL

7,5 kw 1500 d/d ELEKTRIC 1 PIECE

132M10HP1500 3
MOTOR
7,5 kw 1500 d/d ELEKTRIC 1 PIECE
132MB5 3
MOTOR B5 FLANGE
DK42-38/1 7,5 kw 1500 d/d 38 COIL 1 PIECE 3
7,5 kw PUMP GROUP

DK42-38/2 38 COUPLING 1 PIECE 3

DK42-38/3 38 COIL FOR 30 cm³/rev PUMP 1 PIECE 3
1K300 300 DRUM 1 PIECE 3
XV2P30CCS218 30 cm³/rev PUMP 1 PIECE 4
30 cm³/rev PUMP PRESSURE LINE 1 PIECE
HY.221BF30 3
FLANGE
30 cm³/rev POMPA ABSORPTION 1 PIECE
HY.223EF30 3
LINE FLANGE
125 FİLTER CONNECTION 1 PIECE
HY.224FN125 3
ADAPTOR
HY225F125 125 FILTER 1 PIECE 3

GROUP PICTURE LABOR

ITEM CODE SPARE PARTS NAME USED QUANTITY
NAME NO LEVEL
100L4HP1500 3 kw 1500 d/d ELEKTRIC MOTOR 1 PIECE 3
3 kw 1500 d/d ELEKTRIC MOTOR 1 PIECE
100LB5 3
B5 FLANGE
GR2-28/1 3 kw 1500 d/d 28 COIL 1 PIECE 3
GR2-28/2 28 COUPLING 1 PIECE 3
3 kw POMPA GRUBU

WELDING TYPE COOLER TUBE 1 PIECE

HY.207K1R 2
CONNECTION UNION
GR2-28/3 28 COIL FOR 11 cm³/rev PUMP 1 PIECE 3
1K250 250 DRUM 1 PIECE 4
11 cm³/rev PUMP PRESSURE 1 PIECE
HY.210BF11 3
LINE FLANGE
XV2P11CCS218 11 cm³/rev PUMP 1 PIECE 3
11 cm³/rev PUMP ASORPTION 1 PIECE
HY.210BF11 3
LINE FLANGE
HY.212FN45 45 FILTER CONNECTION NIPEL 1 PIECE 3
45 FILTER CONNECTION 1 PIECE
HY.213FR45 3
REDUCTION
HY.214F45 45 OIL FILTER 1 PIECE 3

WARNING: PLEASE LOOK AT THE CONTROL ARM DETAILS FOR SINGLE 3/8” 220
VOLT CONTROL ARM AND 9- 1 / 2” CONTROL ARM PRICE LIST

Sayfa 54 / 55
WARNING: PLEASE LOOK AT THE PRICE LIST OF OPERATOR CONTROL CAP.

Sayfa 55 / 55
Sayfa 56 / 55
 1* 7,5 kw PUMP 2* HELPING
THERMIC 14-20A
FUSE CONDUCTOR

3* VIBRATION THERMIC FUSE 7-10A

4* CONDUCTOR

5* RELAY 6* 3 PHASE SWITCH ON-OFF SWİTCH WITH BOBBIN

GROUP PICTURE USED LABOR

ITEM CODE SPARE PARTS NAME
NAME NO QUANTITY LEVEL
1 3RV1021-4BA10 7,5 kw PUMP THERMIC 14-20A FUSE 1 PIECE 2
MANUEL MACHINE
CONTROL CABINE

2 3VH1122-1BB40 HELPING CONDUCTOR 5 PIECES 2

3 3RV1011-1JA10 VIBRATION THERMIC 7-10 A FUSE 10 PIECES 2
4 3TF42 22-OAPO 7,5 kw CONTACTOR 1 PIECE 2
3TF40 10-OAPO 3 kw CONTACTOR 12 PIECES 2
5 GEMOART2 RELAY 1 PIECE 2
6 YKL3 01 063 3 PHASE SWITCH ON-OFF 63A 1 PIECE 2
L2 MEP12 SWITCH WITH BOBBIN 1 PIECE 2

Sayfa 57 / 55
