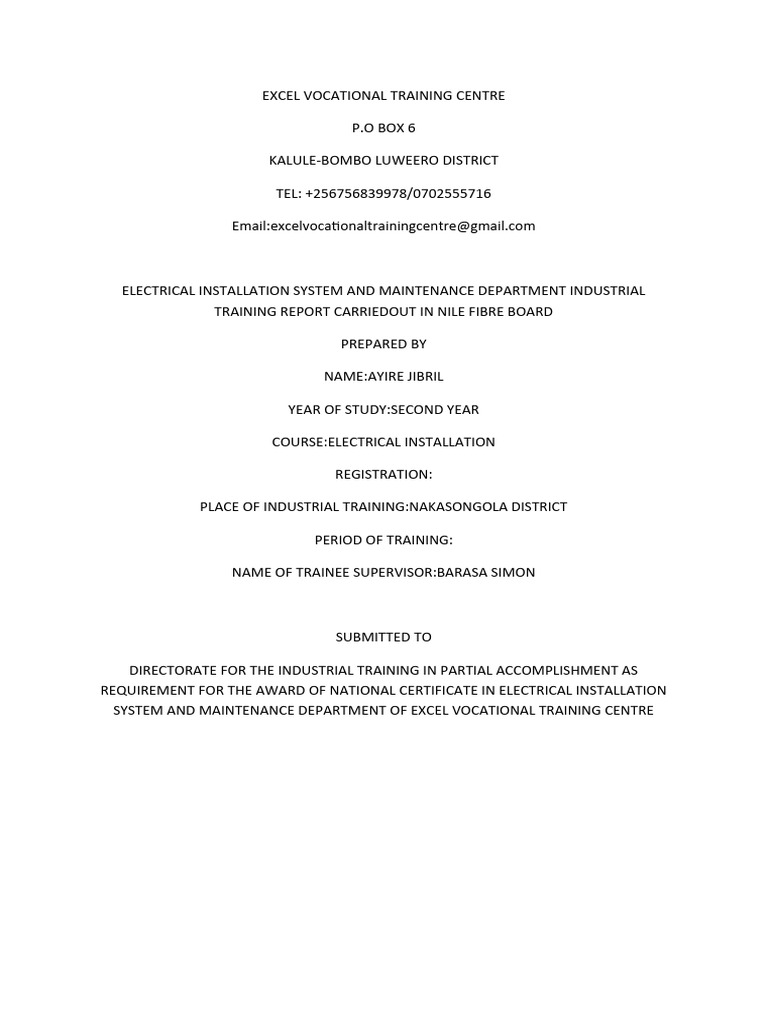

EXCEL VOCATIONAL TRAINING CENTRE

P.O BOX 6

KALULE-BOMBO LUWEERO DISTRICT

TEL: +256756839978/0702555716

Email:excelvocationaltrainingcentre@gmail.com

ELECTRICAL INSTALLATION SYSTEM AND MAINTENANCE DEPARTMENT INDUSTRIAL


TRAINING REPORT CARRIEDOUT IN NILE FIBRE BOARD

PREPARED BY

NAME:AYIRE JIBRIL

YEAR OF STUDY:SECOND YEAR

COURSE:ELECTRICAL INSTALLATION

REGISTRATION:

PLACE OF INDUSTRIAL TRAINING:NAKASONGOLA DISTRICT

PERIOD OF TRAINING:

NAME OF TRAINEE SUPERVISOR:BARASA SIMON

SUBMITTED TO

DIRECTORATE FOR THE INDUSTRIAL TRAINING IN PARTIAL ACCOMPLISHMENT AS


REQUIREMENT FOR THE AWARD OF NATIONAL CERTIFICATE IN ELECTRICAL INSTALLATION
SYSTEM AND MAINTENANCE DEPARTMENT OF EXCEL VOCATIONAL TRAINING CENTRE
TABLE OF CONTENT
DECLARATION

I AYIRE JIBRIL do declare that this industrial report is my work done during my training on
the knowledge and skills that have been submitted where for the award of National
Certificate in Electrical installation system and maintenance

Signature

Date
APPROVAL

Under signed manifest that AYIRE JIBRIL carriedout his industrial training work in Nile Fibre
Board Limited in Nakasongola district in partial fulfillment of his requirements for award of
National Certificate in Electrical system and maintenance

FIELD SUPERVISOR

Name.. BARASA SIMON.. Signature... Date..

HEAD OF DEPARTMENT

Name......signature.... Date....

ACADEMIC SUPERVISOR

Name....Signature......date.......
DEDICATION

The great honour,I dedicate report to Almighty Allah for giving me life, potential,knowledge
and power these helped me so that I completed my industrial training safely.

Secondly, i thank my father Mr. AYIRE SIRAJJE, my mother, brothers, sisters and others for
the support and services you gave me so that my studies and after studies be easier to all my
life. I pray for you so that Allah gives you blessings.

Lastly, to the management of NILE FIBRE BOARD LIMITED for accepting me to do my training
with them and mostly those in electrical department like Barasa Simon, Ceasor, Amos, Bus,
Rodgers and others for the training you taught me many skills in different areas.
ACKNOWLEDGEMENT

This mostly go to my mother Mrs. BYOGERO ZAINABU who has guide me and supported me
order to be in level of finishing my course in Electrical installation.

Secondly, I thank Mr. BARASA SIMON and whole electrical members who have worked and
taught guided me in many skills tirelessly.

Lastly, I extend thanks to my course mates with whom have worked with me during the
course of the training. They have really exhibited love shared with me ideas in a number of
areas.
ACRONYMS

DIT Directorate of industrial training

NFB Nile Fibre Board

VFD Variable Frequency Drive

AC Alternating Current

DC Direct Current

NO Normally Open

NC Normally Closed

MCB Miniature Circuit Breaker

MCCB Moulded Case Circuit Breaker

MPCB Motor Protected Circuit Breaker

VCB Vacuum Circuit Breaker

ABSTRACT

This industrial training report book contains basic knowledge about,

Contactor and its operation

Motor and motor starter

Protection
CHAPTER ONE

CHAPTER TWO

CONTACTOR

A contactor is an electrical device which is used for switching an electrical circuit on or off.

It is used to make or break the connection between the power supply and the load.

It helps to start a machine in a safe way

Main parts of a contactor

The coil

The contacts

The device enclosure

The coil or electromagnet, is the key component of a contactor

The contacts are the components of the device that carry power across the circuit being
switched

The contactor enclosure is another important part of the device

A contactor has contacts

Normally open

Normally closed

Diagram of contacts of a contactor

Normally open
Normally closed

Operating principle of a contactor

The current passing through the contactor excites the electromagnet. The excited
electromagnet produces a magnetic field, causing the contactor core to move the armature.
A normally closed (NC) contact completes the circuit between the fixed contacts and the
moving contacts. This permits the current to pass through these contacts to the load. When
current is removed, the coil is de-energized and opens the circuit. The contacts of the
contactor are known for their rapid open and close action.

Types of contactors

magnetic contactor

Manual controller

Knife blade contactor


Magnetic contactor is the most used like in industries

Applications of contactors

Controlling electric motors

Thermal evaporator

Lighting capacitor banks

Heating and other electrical loads

CHAPTER THREE

PROTECTION

Is the art and science of detecting a problem with power system components and isolating

Types of protective devices

Circuit breaker

Fuses

Switches

Overload relay

CIRCUIT BREAKER

This is the mechanical device which can be operated manually or automatically for making
and breaking the circuit under normal and abnormal condition.
They are designed for opening and closing an electrical circuit thus protects the electrical
system from damage

Types of circuit breaker

They are classified on basic of rated current and voltage of their carrying capacity

Low current handling circuit breaker

High current handling circuit breaker

Low current handling circuit breaker

Miniature circuit breaker(MCB)

Moulded case circuit breaker(MCCB)

Motor protective circuit breaker(MPCB)

Residual circuit breaker(RCB)

Earth leakage circuit breaker (ELCB)

High current circuit breaker

Moulded case circuit breaker(MCCB)

Vacuum circuit breaker (VCB)

Air blast circuit breaker(ACB)

Oil circuit breaker(OCB)

Sulphur hexa fluoride(SF6CB)

Advantages of circuit breaker

Circuit breakes respond quicker than fuses

Circuit breakers are more reliable

Circuit breakers are more sensitive

Unlike fuse which only operate once and need to be replaced a circuit breaker can be reset
Disadvantages of circuit breakers

Installation and repair are expensive

Fuse reacts faster compared to circuit breakers

FUSES

It is a protective device designed to melt and separate into pieces and breaking a circuit in
the events of excessive current as per rated current of a fuse.

Fuses are rated in terms of their voltages and current capacity.

Types of fuses

Rewirable fuse

High breaking capacity fuse

Cartridge fuse

REWIRABLE FUSE

The fuse carrier is easier to remove without having any electrical shock or injury.

Diagram
HIGH BREAKING CAPACITY FUSE (HBCF)

In this type of fuse, the flow of current by fuse is given under the normal condition

Here the fuse is designed to with stand a high current than the fuse rating without rapturing
or rating

APPLICATIONS OF HBCF

It is used in industries

It is used in main circuit/lines

It is used in circuit high protection switchgear

Advantages of HBCF

It is simple and easy to install

It can lost long

Diagram

CHAPTER FOUR

MOTOR

A motor is a device which converts electrical energy into mechanical energy


Parts of a motor

Rotor

Windings

Metal casing

Terminal block

Air gap

Shaft

Stator

Commutator

Bearing

MOTOR CONNECTION

This is the final connection of the cables at the terminal block

They are divided into four

Star connection

Delta connection

Star Delta connection

Capacitor start connection

STAR CONNECTION

A set of three different coil (windings) are short circuited at the terminal block one of lead

Illustration of star connection at the terminal block


Advantages of star connection

Used for high voltage

Common neutral point

Good for unbalanced loading

Each phase is a separate circuit

Disadvantages of star connection

Less torque

Construction cost is more expensive

Construction involves combining 3 phase into 1

Secondary distribution, light duty applications

DELTA CONNECTION

This is the type of a motor connection where the beginning of one winding set is linked to
the end of another winding set.

Sometime its referred to as a close loop.

Diagram of Delta connection


Advantage of Delta connection

More torque

Efficient

Simple motor design

Construction cost is low

Heavy duty application

Used in rotary conveyors

Disadvantages of Delta connection

Low voltage connection

No common neutral point

Detecting earth ground faults is difficult

STAR DELTA CONNECTION

(At terminal block)

This is the type of motor connection a set of a coil with common lead outles is supplied with
415V when the rotor of that motor as attain 75% of full speed

Diagram of Star Delta connection


CAPACITOR START STARTER

The capacitor start starter motors has a gauge rotor and has two windings on the same
starter.

And this windings have difference resistance

They are kowns

Main winding

Auxiliary winding

The two windings separated are 90°apart electrically

Characteristics of the capacitor start motor

The starting capacitor value must be large

The value of the starting winding resistance must be low


Properties of a single phase starter

It has two type of windings ie start winding and running windings

It has centrifugal switch

It has a capacitor

Applications of capacitor start starter

These motors are used for the loads of higher initial where frequent starting is required

Used in pumps and compressors

Used in the refrigerator and air conditioner / compressors

They are also used for conveyors and machine tools

NB: Centrifugal switch and starting capacitor are connected in series with the running
windings.

Phase diagram

Where
S centrifugal switch

Im current through the main windings

Ia current through the running windings

V voltage

Im . The current in the windings which is lagging, the auxiliary IA by 90°thus a single phase
supply current is simpliting into two

The two windings are 90°electrically and their MMF are equal magnitude by 90°apart in the
time

The motor act as a balanced 2 phase motor

The starting capacitors has a high value of capacitance ie 250*10^-6F to give high starting
torque.

CHAPTER FIVE
