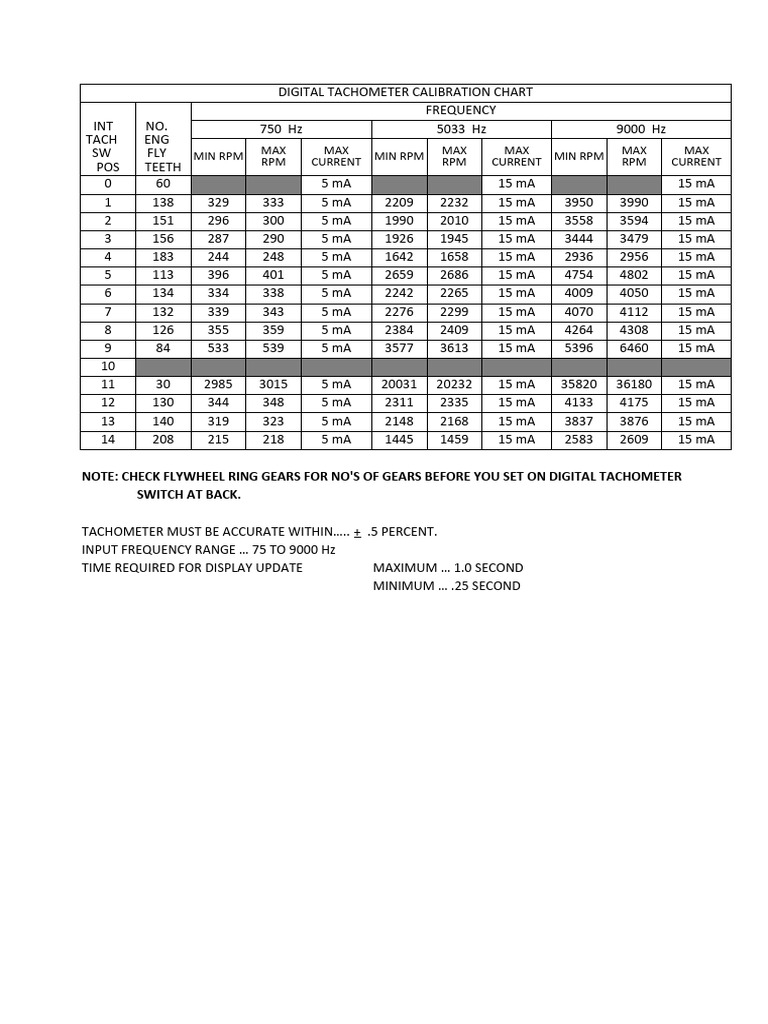

DIGITAL TACHOMETER CALIBRATION CHART

FREQUENCY
INT NO. 750 Hz 5033 Hz 9000 Hz
TACH ENG
SW FLY MIN RPM MAX MAX MIN RPM MAX MAX MIN RPM MAX MAX
POS TEETH RPM CURRENT RPM CURRENT RPM CURRENT
0 60 5 mA 15 mA 15 mA
1 138 329 333 5 mA 2209 2232 15 mA 3950 3990 15 mA
2 151 296 300 5 mA 1990 2010 15 mA 3558 3594 15 mA
3 156 287 290 5 mA 1926 1945 15 mA 3444 3479 15 mA
4 183 244 248 5 mA 1642 1658 15 mA 2936 2956 15 mA
5 113 396 401 5 mA 2659 2686 15 mA 4754 4802 15 mA
6 134 334 338 5 mA 2242 2265 15 mA 4009 4050 15 mA
7 132 339 343 5 mA 2276 2299 15 mA 4070 4112 15 mA
8 126 355 359 5 mA 2384 2409 15 mA 4264 4308 15 mA
9 84 533 539 5 mA 3577 3613 15 mA 5396 6460 15 mA
10
11 30 2985 3015 5 mA 20031 20232 15 mA 35820 36180 15 mA
12 130 344 348 5 mA 2311 2335 15 mA 4133 4175 15 mA
13 140 319 323 5 mA 2148 2168 15 mA 3837 3876 15 mA
14 208 215 218 5 mA 1445 1459 15 mA 2583 2609 15 mA

NOTE: CHECK FLYWHEEL RING GEARS FOR NO'S OF GEARS BEFORE YOU SET ON DIGITAL TACHOMETER
SWITCH AT BACK.

TACHOMETER MUST BE ACCURATE WITHIN….. + .5 PERCENT.


INPUT FREQUENCY RANGE … 75 TO 9000 Hz
TIME REQUIRED FOR DISPLAY UPDATE MAXIMUM … 1.0 SECOND
MINIMUM … .25 SECOND
