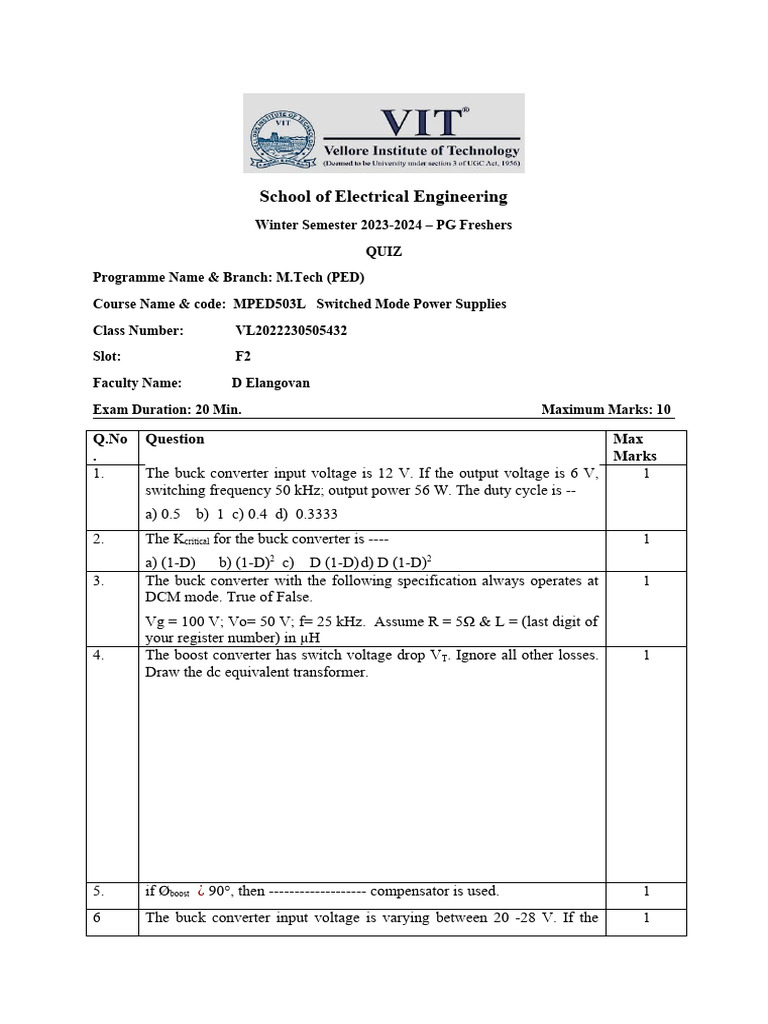

School of Electrical Engineering
Winter Semester 2023-2024 – PG Freshers
QUIZ
Programme Name & Branch: M.Tech (PED)
Course Name & code: MPED503L Switched Mode Power Supplies
Class Number: VL2022230505432
Slot: F2
Faculty Name: D Elangovan
Exam Duration: 20 Min. Maximum Marks: 10
Q.No Question Max
. Marks
1. The buck converter input voltage is 12 V. If the output voltage is 6 V, 1
switching frequency 50 kHz; output power 56 W. The duty cycle is --
a) 0.5 b) 1 c) 0.4 d) 0.3333
2. The Kcritical for the buck converter is ---- 1
a) (1-D) b) (1-D)2 c) D (1-D)d) D (1-D)2
3. The buck converter with the following specification always operates at 1
DCM mode. True of False.
Vg = 100 V; Vo= 50 V; f= 25 kHz. Assume R = 5Ω & L = (last digit of
your register number) in µH
4. The boost converter has switch voltage drop V T. Ignore all other losses. 1
Draw the dc equivalent transformer.
5. if Øboost ¿ 90°, then ------------------- compensator is used. 1
6 The buck converter input voltage is varying between 20 -28 V. If the 1
output voltage is 14 V, switching frequency 50 kHz; Output filter
capacitor 3.6 µF; output power 56W and output voltage ripple not
exceeding 2 %, then the value of filter inductance is _ (in µH)
a) 347.222 b) 347.989 c) 346.456 d) 349.456
7 Mobile Charger uses _____ DC to DC converter 1
a) Full bridge b) Flyback c) Push-pull d) Boost
8 1
Figure shows ZCS buck converter. When Switch is turned on voltage
across the capacitor Cr is
a) Vg b) VLr c) Vo d) 0
9 The [ B ]matrix in a buck-boost converter is 1
(a) D
0
(b) 1
0
(c) 0
0
(d) 0
D
10 In Buck converter, the diode has forward voltage drop Vd. You may 1
model this voltage drop as independent of current. All other elements
should be modeled as ideal. The converter operates in discontinuous
mode. The expression for Kcritical is -----------
