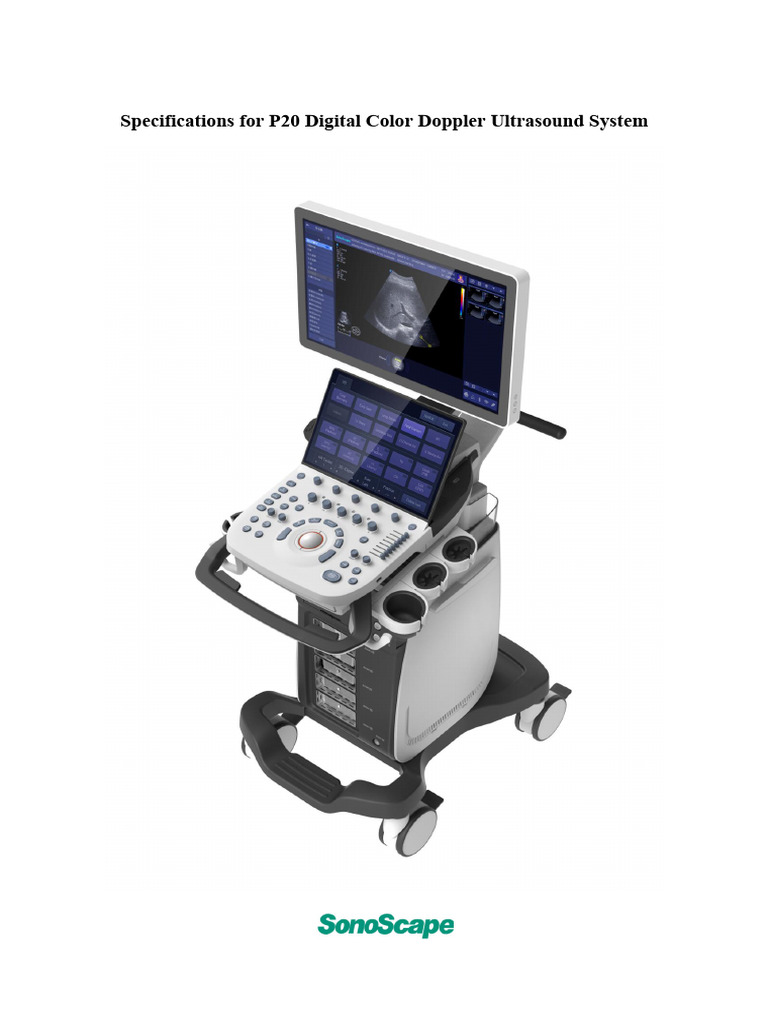

Specifications for P20 Digital Color Doppler Ultrasound System

SonoScape Medical Corp

901-04620-A03
Page 2 of 13
P20 Technical Specifications
1 General Specification l Auto IMT
l Auto NT
1.1 Application l Auto EF
l Abdomen l AVC Follicle
l Cephalic l Scr-Zoom
l Pediatric l B mode panoramic imaging
l Gynecology/Obstetrics l Color panoramic imaging
l Pelvic Floor l Biopsy guide
l Cardiology l Vis-Needle
l Peripheral vascular l Freehand 3D
l Small parts l 3D/4D
l Musculoskeletal l S-Live
l Transvaginal l S-Depth
l Transrectal l C-xlasto
1.2 Available Probe l ABD Contrast with TIC
l ECG
l Convex array probe
l S-Guide
l Linear array probe
l Auto Face
l Phased array probe
l Stress echo
l Volume probe
l Tei index
1.3 Imaging Mode 1.5 Available Language
l B l Software: English, Simplified Chinese, Spanish,
l THI/PHI Russian, French, Italian, German, Norwegian,
l M Portuguese
l Anatomical M l Keyboard: English, Simplified Chinese,
l Color M Spanish, Russian, French, Italian, German,
l CFM Norwegian, Portuguese
l PDI/DPDI l User manual: English, Simplified Chinese,
l PW Polish, German, Russian, French, Spanish,
l CW Italian, Portuguese
l TDI
l TDI+PW 2 Physical Specification
l TDI+M 2.1 Size and Weight
l 3D/4D
l Width: approx. 526 mm
1.4 Function and Configuration l Depth: approx. 751 mm
l 5-band adjustable frequency in B mode l Height: approx. 1110 mm (when the control
(fundamental wave and harmonic wave) panel and monitor are adjusted to the lowest
l μ-scan position); 1680 mm (when the control panel and
l Compound imaging monitor are adjusted to the highest position)
l LGC (2 bands) l Weight: approx. 86 kg
Tissue specific index
l
2.2 Monitor
l Image rotation
l Trapezoid Imaging l 21.5-inch medical high-resolution monitor
l Resolution: 1920×1080
l HPRF
l Simultaneous mode (Duplex/Triplex) l Viewing angle: 178° (horizontal), 178°
l PW Auto Trace (vertical)

901-04620-A03
Page 1 of 11
P20 Technical Specifications
l Swivel angle: ±45° 2.8 Power
l Up and down angle: 25° (up) to 90° (down)
l Power supply: 100-127V～/220-240V～, 2.7 -
l Contrast and brightness: adjustable
1.1A, 50/60Hz
l Frequency: 60 Hz
l Power Consumption: 500VA
l Monitor arm
l Built-in battery (charging time ≤ 9 h; power
ü Swivel angle: ±53° supply time ≥ 1.5 h)
ü Swivel angle between upper arm and lower
arm: left/right, ± 112°; height difference: 0 - 2.9 Working Environment
100 mm l Temperature: +10°C to +40°C
2.3 Touch Screen l Relative humidity: 30% - 75% RH (no
condensation)
l 13.3-inch medical high-resolution touch screen l Atmospheric pressure: 700 hPa - 1060 hPa
l Resolution: 1920×1080 l System noise: ≤ 44 dB
l Viewing angle: 160°(left and right), 160°(up
and down )
2.10 Storage and Transportation
l User preset for parameter layout Environment
l Angle of inclination adjustable: ≥10° l Temperature: -20°C to +55°C
l Brightness and contrast: adjustable l Relative humidity: 20% - 90% (no
l Available to touch with latex gloves condensation)
l Anti-glare protection film l Atmospheric pressure: 700 hPa - 1060 hPa
2.4 Control Panel 3 Annotation and Bodymark
l User-oriented design l Annotation: text annotation and arrow
l Backlight design: panel buttons annotation
l Multiple defined-keys l Manual text annotation by touch screen
l TGC: 8 levels slider controls l Front size of text annotation: adjustable
l Adjustable sensitivity of trackball l Initial position
l Pull-out keyboard l Preset text annotation
l Promotion and demotion difference: 0 - 230 mm l Arrow direction: adjustable
l Swivel angle: ±40° l All exam applications included
2.5 Speaker l Body marks: ≥ 122
l Body marks classified by specific exam types,
l Hi-Fi Speaker and position adjustable
Frequency respond: 200 Hz -12 kHz
l
4 Monitor Information
2.6 Caster
l Manufacturer logo
l Diameter: 5 inches l Hospital name
l Specification: all the 4 casters can be l System date and time
independently locked
l Probe and exam item
2.7 Probe Port and Probe Holder l MI and TIS
l Probe ports: 5 (4 ports are activated and l Operator
interchangeable, 1 port is inactive) l Probe icon
l Pencil probe port: 1 l Patient ID, name and date of birth
l Probe holder: 4 l Gender and GA
l Coupling gel holder: 2 l Exam type icon
l Cable hanger: 2 l Tissue temperature display (specified probe)
l Coupling gel heater: 1 l Depth scale and focus position
l Image parameters
l Thumbnail

901-04620-A03
Page 2 of 11
P20 Technical Specifications
l Clipboard l M process: Ave, Peak
l Screen saver l Power: 30 - 100%, 8 levels
5 Image Parameter l Color M: CFM, TDI (e.g. phased array probe)

5.1 Description 5.4 Anatomic M Mode

l Display 3 sample lines simultaneously
l System boot up: approx. 60s
l Angle and position of sample lines adjustable
l System shut down: approx. 20s
l Frame rate: ≥1493 fps (e.g. L741 probe) 5.5 CFM Mode
l Grayscale: 256 levels l Frame rate: ≥160 fps (e.g. L741 probe)
l Transducer element: up to 256 l Gain: 0 - 255 adjustable
l Quad-beam l Power: 0 - 100%, 11 levels
l Volume: 0 - 100, 101 levels l B reject: 0 - 255, 256 levels
5.2 B Mode l Size and position of color ROI: adjustable
l Image reverse: up/down, left/right
l Gain: 1 - 255 adjustable
l Invert: On/Off
l Scan depth: 40 cm
l Frequency: 5 levels adjustable
l Compound imaging: Off, 1, 2, 3 levels
l Wall filter: 25 - 750 adjustable (e.g. L741
l Frequency: 5 bands adjustable (fundamental
probe)
wave and harmonic wave)
l PRF: 0.5 - 8 kHz adjustable (e.g. L741 probe)
l Chroma: 1 -13, 13 types
l Line density: Low, Med, High, 3 levels
l Adaptive image fusion: 0 -15, 16 types
l Color Map: 1 - 10, 10 levels (e.g. L741 probe)
l μ-Scan: Off, 1 - 8, 9 levels
l Baseline: ±15, 31 levels
l Line density: Low, Med, High, 3 levels
l Persist: 0 - 80, 5 levels (e.g. L741 probe)
l Persist: 0 - 60 (e.g. L741 probe)
l ROI steer: 5 levels adjustable (linear array
l Focus: 12 (e.g. L741 probe)
probe)
l Focus span: adjustable
l ROI color: adjustable
l Dynamic range: 20 - 280 (e.g. L741 probe)
l Auto optimization
l Gray Map: 1 - 15, 15
l Dual live
l Power: 1-100%, 100 levels
l Tissue acoustic: 1400 - 1700, 31 levels 5.6 PDI/DPDI Mode
l TGC: 8 levels slider controls l Dual live
l LGC: left and right gain compensation l Power: 0 - 100%, 11 levels
l Image reverse: up/down, left/right, rotation l B reject: 0 - 255, 256 levels
l Scan range and position: adjustable l Persist: 0 - 80, 5 levels (e.g. 3C-A probe)
l B steer: 3 levels adjustable (linear array probe) l Color Map: 1 - 10, 10 levels, 1 - 7 for PDI; 8 -
l Trapezoid imaging: Off, 1, 2 (linear array 10 for DPDI (e.g. L741 probe)
probe) l Image reverse: up/down, left/right
l Auto optimization l Wall filter: 25 - 750 (e.g. L741 probe)
5.3 M Mode 5.7 PW Mode
l Gain: 1 - 255 adjustable l Gain: 0 - 255 adjustable
l Chroma: 1-5, 5 levels (e.g. 3P-A) l Display format: H1/2, H1/4, V1/3, V1/2, V2/3,
l Display format: H1/2, H1/4, V1/3, V1/2, V2/3, O1/4, 6 levels
O1/4 l Simultaneous mode (Duplex/Triplex)
l Scan speed: Min, Slow, Med, Fast, Max, 5 l PW sample volume size: 0.7 - 21 mm (e.g.
levels (e.g. phased array probe) L741 probe)
l Video invert: On/Off l PW sample volume position: adjustable

901-04620-A03
Page 3 of 11
P20 Technical Specifications
l Invert: On/Off 5.9 TDI+PW Mode
l Quick angle correction: 0°, 60°, -60°
l PRF: 1 - 16 kHz (e.g. 3P-A probe)
l Angle correction range: 0° to 72°
l Max velocity range: 0 - 19 m/s
l Steer angle: 0, ±16, ±20, 5 levels adjustable
l Auto trace: achievable in real-time mode and 5.10 TDI+M Mode
frozen mode l Gain: 1-255 adjustable
l Baseline: 17 levels selectable l Chroma: 1-5, 5 levels
l Frequency: 5 levels adjustable l Display format: H1/2, H1/4, V1/3, V1/2, V2/3,
l Wall filter: 25 - 750 adjustable (e.g. L741 O1/4
probe) l Scan speed: Min, Slow, Med, 3 levels
l PRF: 1 - 16 kHz (e.g. L741 probe) l M process: Ave, Peak
l HPRF l Power%: 30 - 100, 8 levels
l Max. velocity range: 0 - 13 m/s
l Sweep speed: Min, Slow, Med, Fast, Max, 5 5.11 Freehand 3D
levels l Scan method: sector scan, linear scan
l Chroma: 1 - 5, 5 levels l Display mode: dual-split screen display, quad-
l Dynamic range: 1 - 10, 10 levels (e.g. L741 split screen display, 3D full display
probe) l Rotate X: rotate 4° along X axis
l Auto optimization l Rotate Y: rotate 4° along Y axis
ü Baseline auto optimization l Rotate Z: rotate 4° along Z axis
ü PRF auto optimization l Up/Down: move the image up/down
5.8 CW Mode l Left/Right: move the image left/right
l Gain: 0 - 255 adjustable l Viewing angle: Top, Bottom, Left, Right, Front,
l Display format: H1/2, H1/4, V1/3, V1/2, V2/3, Back
O1/4, 6 levels l 3D orientation: 0°, 90°, 180°, 270°
l CW sample volume position: adjustable l Reset: default settings, swivel angle, view angle
l Invert: On/Off l Render mode: Surface, Grad. Light, Transp.
l Angle correction range: 0° - 72° Min, X-Ray, S-Depth, S-Live, S-Live
Silhouette, Skeleton, Skeleton Depth
l Auto trace: achievable in real-time mode and
l Threshold: 0 - 255, 1 each step
frozen mode
l Baseline: 17 levels selectable l Contrast: 0 - 100, 1 each step
l Wall filter: 25 – 1500 adjustable (e.g. 3P-A l Transparency: 0 - 100, 1 each step
probe) l Brightness: 0 - 100, 1 each step
l PRF: 1 - 48 KHz (e.g. 3P-A probe) l Smoothness: 0 - 30, 1 each step
l Max. velocity range: 0 - 65 m/s l Light position.: 0 - 9 , 1 each step
l Scan speed: Slow, Fast, Max, 3 levels l B Chroma: 1 - 13, 1 each step
l Chroma: 1 - 5, 5 levels l 3D Chroma: 0 - 14 adjustable, 1 each step
l Dynamic range: 1 - 5, 5 levels (render mode dependent)
l TDI mode l Zoom ratio in linear scan mode: 0.1 - 2.0, 0.1
l Tissue speed imaging: achievable each step (Too few of slices will decrease the
l Power: 0 - 100%, 11 levels adjustment range)
l B reject: 0 - 255, 256 levels l Zoom angle in sector scan mode: 10°- 170°, 5°
l Persist: 0 - 50, 5 levels (e.g. 3P-A probe) each step
l Color map: 1 - 14, 14 levels l Edit: trace, box, eraser
l Image reverse: up/down, left/right l M-Slice
ü Slice display: 1*2, 2*2, 3*3, 3*4, 4*4, 5*5
l Flow invert: On/Off
ü Slice distance: 0.5 - 10.0, 0.5 each step
l Wall filter: 25 - 750 (e.g. 3P-A probe)
901-04620-A03
Page 4 of 11
P20 Technical Specifications
üSlice number: 3 - 29, 2 each step l AVC Follicle
üSingle slice magnification
l AVC Follicle 5.13 C-xlasto
5.12 3D/4D l Image reverse: up/down, left/right
l Display mode: single display and dual live
l Display mode: dual-split screen display, quad-
display
split screen display, 3D full display
l Map display: independent adjustment of left and
l Rotate X: rotate 4° along X axis
right map
l Rotate Y: rotate 4° along Y axis
l Depth adjustment
l Rotate Z: rotate 4° along Z axis
l B image gain: adjustable
l Up/Down: move the image up/down
l TGC
l Left/Right: move the image left/right
l User-defined preset of C-xlasto
l Viewing angle: Top, Bottom, Left, Right, Front,
l Strain map left: 1 - 7, 1 each step
Back
l Strain map right: 0 - 7, 1 each step
l 3D orientation: 0°, 90°, 180°, 270°
l Frequency: 5 levels adjustable
l Reset: default settings, swivel angle, view angle
l Strain process: 0 - 6, 7 levels
l Render mode: Surface, Grad. Light, Transp.
l Contrast: 0.02 - 2.0, 0.01 each step
Min, X-Ray, S-Depth, S-Live, S-Live
l Transparency: 0.10 - 1.0, 0.02 each step
Silhouette, Skeleton, Skeleton Depth
l Persist: 0.02 - 0.98, 0.02 each step
l Free rotation: 0°, 45°, 90°, 180°, 270°, 360°
l Image quality: High, Med, Low 5.14 Contrast
l Swivel angle: 5° - 75° (VC6-2), 5° each step; l Display mode: single display and dual live
10° - 120° (VE9-5), 10° each step display
l Stability: On/Off l Image reverse: up/down, left/right
l Edit ROI: On/Off l Biopsy and biopsy correction
l Auto face: On/Off l Two timers
l Reset: default settings, swivel angle, view angle l Flash power: 1 - 100, 1 each step
l Adjust light: On/Off (S-Live) l Flash time: 0.1 s - 4.0 s
l Pre-activated mode: pre-activated mode return l Dynamic range: 40 - 320, 15 each step
available l Power: 1 - 100%, 100 levels
l Cine review: 0 - 499 (volume value dependent) l Gray map: 1 - 9, 9 levels
l Trackball (rotate highlighted): Rotate, Rotate Z l Chroma: 1 - 16, 16 levels
l Threshold: 0 - 255, 1 each step l μ-Scan: Off, 1 - 8, 9 levels
l Contrast: 0 - 100, 1 each step l Persist: 0 - 60, 7 levels
l Transparency: 0 - 100, 1 each step l TIC curve analysis
l Brightness: 0 - 100, 1 each step ü Auto/manual ellipse trace measurement
l Smoothness: 0 - 30, 1 each step ü Max. ROI: 8
ü Four compound curves: Bolus WIWO,
l Light Position: 0 - 9 , 1 each step
General, Wash In, Wash Out
l 3D Chroma: 0 - 14 adjustable, 1 each step
ü Cine speed: 7 levels
(render mode dependent)
l B Chroma: 1 - 13, 1 each step 5.15 Panoramic Imaging
l Edit: trace, box , eraser l B mode panoramic imaging
l Display (C-Plane): AB, AC, BC, ABC ü Real-time mode: linear array probe and
l M-Slice convex array probe (including micro-convex
ü Slice display: 1*2, 2*2, 3*3, 3*4, 4*4, 5*5 probe 6V3)
ü Slice distance: 0.5 - 10.0, 0.5 each step
ü Frozen mode: linear array probe, convex
ü Slice number: 3 - 29, 2 each step
ü Single slice magnification
array probe and phased array probe
l CFM/PDI color panoramic imaging (only for
901-04620-A03
Page 5 of 11
P20 Technical Specifications
linear array probe) l Line ID display: On, Off
l Rotation: 0 - 360° l Keep result window: On, Off
l Zoom: 2 times l Result font size: Small, Medium, Large
l Maximum available length: 1000 mm l Result position: Right Top, Right Bottom, Left
Top, Left Bottom adjustable in 2D/ dual-
5.16 Biopsy Guide Function
split+quad-split/ M/ Doppler mode
l Biopsy lines angle correction
l Biopsy lines angle: adjustable 6.2 Application-specific
l Biopsy lines offset: adjustable Measurement Package
l Biopsy grid (Biplane probe) l Obstetrics measurement package
l User-defined biopsy line angle l Small parts measurement package
5.17 Vis-Needle l Gynecology measurement package
l Vascular measurement package
l Steer angle: 20°, 30°, 40°, 50°, 4 levels
l Abdominal measurement package
l Biopsy depth: adjustable
l Cardiac measurement package
l Dual live
l Urology measurement package
5.18 Split Display l Pediatrics measurement package
l Display format: single (B), dual (2B), quad (4B) 6.3 Report
l B/C dual live: available in CFM, PDI and TDI
l Measurement values: editable
mode
l Value method: single value switch achievable
5.19 Widescan l Image insertion
l Trapezoid imaging: Off, 1, 2 (linear array l Report preview
probe) l Report logo (170 x 60 Pixel, bmp): changeable
l Widescan imaging (convex): Off, 1, 2 (only l Font size and color
available for some of probes) l Background color
l Export format: PDF, TXT
5.20 Zoom l Display items
l Zoom ratio: 0.8 - 10.0 l Application-specific measurement report
l Scr-Zoom ü Fetal growth curves
l HD-Zoom ü Fetus anatomy evaluation
ü Fetus compare (four fetuses)
5.21 Preset Exam
6.4 Auto Measurement
l Preset optimal exam mode and parameter for
l Auto IMT
different probes and exam types
l Auto NT
l Preset order: adjustable
l Auto EF
l Import or export preset
l AVC Follicle
6 Measurement/Analysis and
7 Storage and Data
Report
Management
6.1 Measurement Settings
7.1 Storage
l BSA setting: Eastern, Western
l Hard disk storage: 500G, free: ≥ 466G
l Cross cursor size: Small, Medium, Large
l 2D cine maximum frames: 100 - 2000 frames
l Measure line size: Small, Medium, Large
l 3D cine maximum frames: 77 frames (probe
l Distance dash line Display: On, Off
and parameter dependent)
l Velocity cross line display: On, Off
l Directly store to USB drive
l Ellipse cross line display: On, Off

901-04620-A03
Page 6 of 11
P20 Technical Specifications
l Prospective storage for contrast image: 480 s l Video print port: 2
(Maximum)
9.2 Video Output Settings
7.2 Data Management l Video/S-video: N, P
l Image share service (Samba) l DVI/HDMI: 1024*768, 1920*1080
l Export data to USB drive or DVD l VGA/RGB: 1024*768, 1920*1080
Export format:
l
9.3 Network Connection
ü System format
ü PC format l Local network
- Image format: BMP, JPG, TIF ü Local network: Enable/Disable
- Cine format: AVI, WMV ü DHCP or static IP
ü Static IP: IP address, netmask, default
- Report format: PDF, TXT
Gateway
ü DICOM format
ü MAC address check
l Clipboard: thumbnail display, delete, export
ü Advance: speed (10M, 100M, 1000M),
l Create exam, resume exam, resume suspended duplex (Semi Duplex, Full Duplex)
exam l Ping IP Address
l Query/Retrieve service l Wireless network
l Review current exam and history exam ü Wireless network: Enable/Disable
l Post-processing and post-measurement ü Authentication method: open authentication,
l Show gallery WEP, WPA/ WPA2-PSK
ü DHCP or static IP
8 Cine Review ü Static IP: IP, netmask, default gateway
Cine review: manual review frame by frame
l
10 DICOM 3.0
and auto play with adjustable speed
l Skip from first frame to last frame l DICOM storage
l Auto play with trackball l DICOM structured report
ü Gynecology structured report
9 System Input and Output ü Obstetrics structured report
ü Cardiology structured report
9.1 I/O Port ü Vascular structured report
l DICOM storage commitment
l Video output: 7
l DICOM Worklist
ü HDMI
ü DVI l DICOM MPPS
ü VGA l DICOM print
ü RGB l DICOM Q/R
ü VIDEO OUT: 2
ü S-VIDEO OUT 11 Probe
l Audio output: 1 (AUDIO OUT)
l Audio input: 2 (Reserved) 11.1 Convex Array Probe
ü AUDIO IN l 3C-A
ü MIC IN
ü Application: Abdomen, Gynecology,
l Video input: 2 (Reserved)
Obstetrics
ü VIDEO IN ü Frequency range: 1.0 - 7.0 MHz
ü S-VIDEO IN ü Curvature radius: 50 mm
l Physiological signal input: 1 ü Field of view: 60°
l USB port ü Widescan: 10°/20°
ü USB 3.0: 2 ü Depth: ≥ 40 cm
ü USB 2.0: 4 ü Acoustic lens: 60 mm × 18 mm
ü Engineering port: 1 ü Biopsy bracket: NGB3C-A,
l Foot switch input: 1 (round port) 12°/16.5°/22.5°/33.5°, disinfectable
l C1-6
l Ethernet port: 1
ü Application: Abdomen, Gynecology,

901-04620-A03
Page 7 of 11
P20 Technical Specifications
Obstetrics ü Frequency range: 4.0 - 16.0 MHz
ü Frequency range: 1.0 - 8.0 MHz ü Biopsy bracket: NGBBCL10-5, disinfectable;
ü Field of view: 64° Biopsy depth (linear array): 10 mm - 50 mm
ü Widescan: 10°/20° Convex array:
ü Depth: ≥ 40 cm ü Curvature radius: 10 mm
ü Acoustic lens: 60 mm × 16 mm ü Field of view: 200°
ü Biopsy bracket: NGBC1-6, 15°/24°, ü Depth: ≥ 15 cm
disinfectable ü Acoustic window: 40 mm × 10 mm
l 6V1 Linear array:
ü Application: Gynecology, Urology ü Width of view: 60 mm
ü Frequency range: 3.0 - 15.0 MHz ü Depth: ≥ 10 cm
ü Curvature radius: 11 mm ü Acoustic window: 63 mm × 9 mm
ü Field of view: 135°
ü Depth: ≥ 16 cm
11.2 Linear Array Probe
ü Acoustic lens: 32 mm × 10 mm l L741
ü Biopsy bracket: NGB6V1, 0°, disinfectable
ü Application: Vascular, Small parts,
ü Temperature monitoring
Peripheral, Musculoskeletal, Neurology
l 6V3 ü Frequency range: 4.0 - 16.0 MHz
ü Application: Gynecology, Urology ü Width of view: 46 mm
ü Frequency range: 3.0 - 15.0 MHz ü Depth: ≥ 10 cm
ü Curvature radius: 10.3 mm ü B steer: 0°/±8°, 3 levels (0°/ ±10° in some of
ü Field of view: 198° exam modes)
ü Widescan: 10° ü ROI/Sample line steer: 0°/ ±16°/ ±20°, 5
ü Depth: ≥ 16 cm levels
ü Acoustic lens: 41 mm × 10 mm ü Trapezoid imaging: 8°/ 20° (10°/ 20° in some
ü Biopsy bracket: NGB6V3-2, 0°, disinfectable of exam modes)
ü Temperature monitoring ü Acoustic lens: 49 mm × 10 mm
l 6V7 ü Biopsy bracket: NGBL741, 45°, disinfectable
ü Application: Gynecology, Urology l L752
ü Frequency range: 3.0 - 15.0 MHz ü Application: Vascular, Small parts,
ü Field of view: 198° Peripheral, Musculoskeletal, Neurology
ü Widescan: 10° ü Frequency range: 4.0 - 16.0 MHz
ü Depth: ≥ 16 cm ü Width of view: 51 mm
ü Acoustic lens: 41 mm × 10 mm ü Depth: ≥ 10 cm
ü Biopsy bracket: NGB6V7, 15°, disinfectable ü B steer: 0°/ ±8°, 3 levels (0°/ ±10° in some of
ü Temperature monitoring exam modes)
l 6V3A ü ROI/Sample line steer: 0°/ ±16°/ ±20°
ü Application: Gynecology, Urology ü Trapezoid imaging: 10°/ 20°
ü Frequency range: 3.0 - 15.0 MHz ü Acoustic lens: 55 mm × 10 mm
ü Curvature radius: 8 mm ü Biopsy bracket: NGBL752, 45°, disinfectable
ü Field of view: 147° l L742
ü Widescan: 10° ü Application: Vascular, Small parts,
ü Depth: ≥ 16 cm Peripheral, Musculoskeletal, Neurology
ü Acoustic window: 26 mm × 10 mm ü Frequency range: 4.0 - 16.0 MHz
ü Temperature monitoring ü Width of view: 38 mm
l C613 ü Depth: ≥ 10 cm
ü Application: Cardiology, Abdomen, Pediatric ü B steer: 0°/ ±8° (0°/ ±10° in some of exam
Cranial modes)
ü Frequency range: 4.0 - 13.0 MHz ü ROI/Sample line steer: 0°/ ±16°/ ±20°
ü Curvature radius: 14 mm ü Trapezoid imaging: 10°/ 20°
ü Field of view: 90° ü Acoustic lens: 42 mm × 10 mm
ü Depth: ≥ 16 cm ü Biopsy bracket: NGBL724-2, 42.9°/59.8°,
ü Acoustic lens: 30 mm × 10 mm disinfectable
ü Biopsy bracket: NGBC613, 12°/18°/30°, l 12L-A
disinfectable ü Application: Vascular, Small parts,
l BCL10-5 Musculoskeletal
ü Application: Urology ü Frequency range: 3.0 - 17.0 MHz

901-04620-A03
Page 8 of 11
P20 Technical Specifications
ü Width of view: 52 mm ü Depth: ≥ 25 cm
ü Depth: ≥ 10 cm ü Acoustic lens: 21 mm × 12 mm
ü B steer: 0°/ ±8°, 3 levels
ü ROI/Sample line steer: 0°/ ±16°/ ±20°
11.4 Volume Probe
ü Trapezoid imaging: 10°/ 20° l VC6-2
ü Acoustic window: 55 mm × 8 mm
ü Application: Obstetrics, Abdomen
ü Biopsy bracket: NGB12L-A, 44°/53°/64°,
ü Frequency range: 2.0 - 7.0 MHz
disinfectable ü Curvature radius: 40 mm
l 12L-B ü Field of view: 68°
ü Application: Vascular, Small parts, ü Widescan: 10°/20°
Musculoskeletal ü Depth: ≥ 24 cm
ü Frequency range: 3.0 - 17.0 MHz ü Acoustic window: 150 mm × 86 mm
ü Width of view: 38 mm l VE9-5
ü Depth: ≥ 10 cm
ü Application: Gynecology, Obstetrics
ü B steer: 0°/ ±8°, 3 levels
ü Frequency range: 2.0 - 13.0 MHz
ü ROI/Sample line steer: 0°/ ±16°/ ±20°
ü Curvature radius: 10.3 mm
ü Trapezoid imaging: 8°/ 20°
ü Field of view: 182°
ü Acoustic lens: 42 mm × 7.0 mm
ü Widescan: 10°/20°
l LAP7 ü Depth: ≥ 15 cm
ü Application: Laparoscopic ü Acoustic window: 24 mm × 24 mm/39 mm ×
ü Frequency range: 3.0 - 15.0 MHz 39 mm
ü Width of view: 39 mm ü Temperature monitoring
ü Depth: ≥ 12 cm
ü B steer: 0°/ ±8°, 3 levels (0°/ ±6° in some of 11.5 Intraoperative Probe
exam modes) l 6CI-A
ü ROI/Sample line steer: 0°/ ±12°/ ±16°
ü Application: Intraoperative
ü Trapezoid imaging: 10°/ 20°
ü Frequency range: 3.0 - 15.0 MHz
ü Acoustic lens: 42 mm × 10 mm
ü Curvature radius: 40 mm
ü Temperature monitoring
ü Field of view: 44°
11.3 Phased Array Probe ü Widescan: 10°
ü Depth: ≥ 18 cm
l 3P-A ü Acoustic window: 35 mm × 9 mm
ü Application: Cardiology ü Temperature monitoring
ü Frequency range: 1.0 - 7.0 MHz l 6CT-A
ü Field of view: 90°
ü Application: Intraoperative
ü Depth: ≥ 40 cm
ü Frequency range: 3.0 - 15.0 MHz
ü Acoustic window: 25 mm × 16 mm
ü Curvature radius: 40 mm
ü Biopsy bracket: NGB4P-A, 14°/26°,
ü Field of view: 44°
disinfectable ü Widescan: 10°
l S1-5 ü Depth: ≥ 18 cm
ü Application: Cardiology ü Acoustic window: 35 mm × 9 mm
ü Frequency range: 1.0 - 7.0 MHz ü Temperature monitoring
ü Field of view: 90° l 12LI-A
ü Depth: ≥ 32 cm
ü Application: Intraoperative
ü Acoustic window: 25 mm × 16 mm
ü Frequency range: 4.0 - 16.0 MHz
ü Biopsy bracket: NGBS1-5, 11.5°/18°/28°,
ü Width of view: 33 mm
disinfectable ü Depth: ≥ 10 cm
l MPTEE ü B steer: 0°/ ±6°, 3 levels (0°/ ±10° in some of
ü Application: Transesophageal exam modes)
ü Frequency range: 4.0 - 13.0 MHz ü ROI/Sample line steer: 0°/ ±12°/ ±16°
ü Field of view: 90° ü Trapezoid imaging: 10°/ 20°
ü Depth: ≥ 15 cm ü Acoustic lens: 37 mm × 8 mm
ü Temperature monitoring ü Temperature monitoring
l 7P-B l 12LT-A
ü Application: Pediatric Cardiology ü Application: Intraoperative
ü Frequency range: 2.0 - 9.0 MHz ü Frequency range: 4.0 - 16.0 MHz
ü Field of view: 90° ü Width of view: 33 mm

901-04620-A03
Page 9 of 11
P20 Technical Specifications
ü Depth: ≥ 10 cm 12.7 1T Hard Disk
ü B steer: 0°/ ±6° , 3 levels (0°/ ±10° in some of
exam modes) 12.8 ECG Cable
ü ROI/Sample line steer: 0°/ ±12°/ ±16°
ü Trapezoid imaging: 10°/ 20° 12.9 Double-wing Vagina Dilator
ü Acoustic lens: 37 mm × 8 mm
ü Temperature monitoring 12.10 Coupling Gel Heater
l 10I2
ü Application: Vascular, Small parts, 13 Safety and Certification
Musculoskeletal, Neurology
l Certification: ISO 9001, ISO 13485
ü Frequency range: 4.0 - 16.0 MHz
ü Width of view: 25 mm l Comply with:
ü Depth: ≥ 10 cm ü CSA C22.2 No. 601-1，
ü B steer: 0°/ ±6° (0°/ ±8° in some of exam ü EN 60601-1 and IEC 60601-1，
modes) ü EN 60601-1-2 and IEC 60601-1-2，
ü ROI/Sample line steer: 0°/ ±16°/ ±20°
ü EN 60601-1-6 and IEC 60601-1-6，
ü Trapezoid imaging: 6°/ 20° (8°/ 20° in some
ü EN 60601-2-37 and IEC 60601-2-37, EN
of exam modes)
62304 and IEC 62304，
ü Acoustic lens: 28 mm × 10 mm
ü EN 62366 and IEC 62366
12 Accessories l Certification: ISO 9001, ISO 13485
l CE announcement: this system is consistent
12.1 Printer with EU medical devices directive 93/42/EEC.
l Printer types The code (0197) following CE logo is the
ü Color ink jet printer number of the notified body by EU, which
ü B/W video printer
proves the system is consistent with the
ü Color video printer
l Print type directive 93/42/EEC.
ü Video print
ü Network print
ü USB print
ü Windows print
l Video invert
l Add printer

12.2 Built-in Wi-Fi

12.3 Footswitch
l 2 pedals
l Round port connection
l User-defined short-cut keys

12.4 USB Barcode Scanner

l Bar code scanning input
l Bar code scanning search

12.5 DVD R/W Drive

l Export patient data to DVD drive
l Import patient data from DVD drive

12.6 Built-in Battery

l Charging time ≤ 9 h
l Power supply time ≥ 1.5 h

901-04620-A03
Page 10 of 11
P20 Technical Specifications
NOTE:
l April 2020 SonoScape Company – All rights reserved
l The specifications of this system may change without any prior notification.
l Some products or features may not be available in some countries.
l Please contact your local SonoScape sales representative for more information.

Manufacturer: SonoScape Medical Corp.

Address: Room 201 & 202, 12th Building, Shenzhen Software Park Phase II, 1 Keji Middle
2nd Road, Yuehai Subdistrict, Nanshan District, Shenzhen, 518057, Guangdong, China
Tel: +86-755-26722890
Fax: +86-755-26722850
E-mail: sonoscape@sonoscape.net
www.sonoscape.com

901-04620-A03
Page 11 of 11
