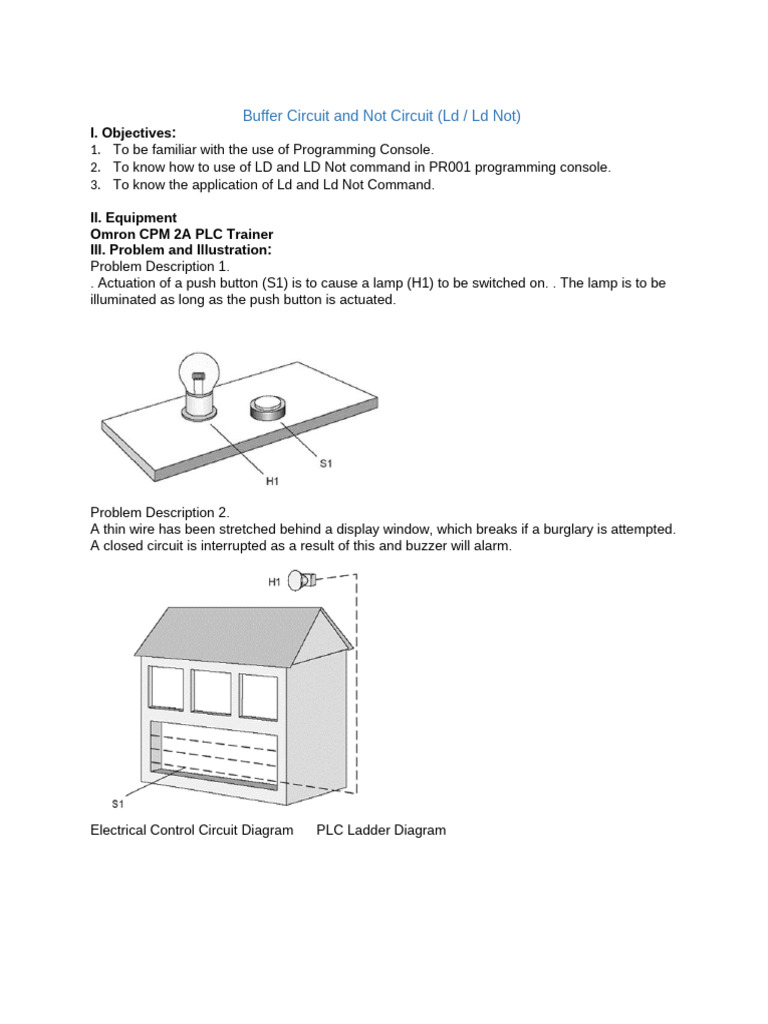

Buffer Circuit and Not Circuit (Ld / Ld Not)
I. Objectives:
1. To be familiar with the use of Programming Console.
2. To know how to use of LD and LD Not command in PR001 programming console.
3. To know the application of Ld and Ld Not Command.
II. Equipment
Omron CPM 2A PLC Trainer
III. Problem and Illustration:
Problem Description 1.
. Actuation of a push button (S1) is to cause a lamp (H1) to be switched on. . The lamp is to be
illuminated as long as the push button is actuated.
Problem Description 2.
A thin wire has been stretched behind a display window, which breaks if a burglary is attempted.
A closed circuit is interrupted as a result of this and buzzer will alarm.
Electrical Control Circuit Diagram PLC Ladder Diagram
Mnemonic Code
Address Command Data Enter
AND Logic Circuit ( And / And Not )
I. Objectives:
1. To be familiar with the use of Programming Console.
2. To know how to use of AND and AND Not command in PR001 programming console.
3. To know the industrial application of AND and And Not Command.
II. Equipment
Omron CPM 2A PLC Trainer
III. Problem and Illustration
Problem Description
. A press stamp Cylinder A is to advance only if a push button S1 is actuated and a protective
guard is closed. If one of these conditions is not met, the press tool is to return immediately. The
position of the closed protective guard B1 is monitored by a proximity switch B1.
Mnemonic Code
Address Command Data Enter
Practice Exercise: Draw the Mnemonic Code of the circuit.
Mnemonic Code
Address Command Data Enter
OR Logic Circuit (Or / Or Not )
I. Objectives:
1. To be familiar with the use of Programming Console.
2. To know how to use of OR and OR Not command in PR001 programming console.
3. To know the industrial application of OR and OR Not Command.
II. Equipment
Omron CPM 2A PLC Trainer
III. Problem and Illustration:
An apartment bell is to ring if bell button S1 at the front door is pressed or bell button S2
at the apartment door.
Mnemonic Code
Address Command Data Enter
AND LD
I. Objectives:
1. To understand the AND LD Command with the use of Programming Console.
2. To write the mneumonic code/statement list of a circuit with the application of And Ld
command.
3. To program a circuit with And Ld Command using programming console in CPM2A PLC.
II. Equipment
Omron CPM 2A PLC Trainer
Mnemonic Code
Address Command Data Enter
OR LD
I. Objectives:
1. To understand the OR LD Command with the use of Programming Console.
2. To write the mneumonic code/statement list of a circuit with the application of OR Ld
command.
3. To program a circuit with OR Ld Command using programming console in CPM2A PLC.
II. Equipment
Omron CPM 2A PLC Trainer
Electrical Circuit Diagram PLC Ladder Diagram
Mnemonic Code
Address Command Data Enter
Practice Exercises:
Write the Mneumonic Code of the following circuit and Download in CPM 2A PLC.
1.
2.
3.
4.
5.
