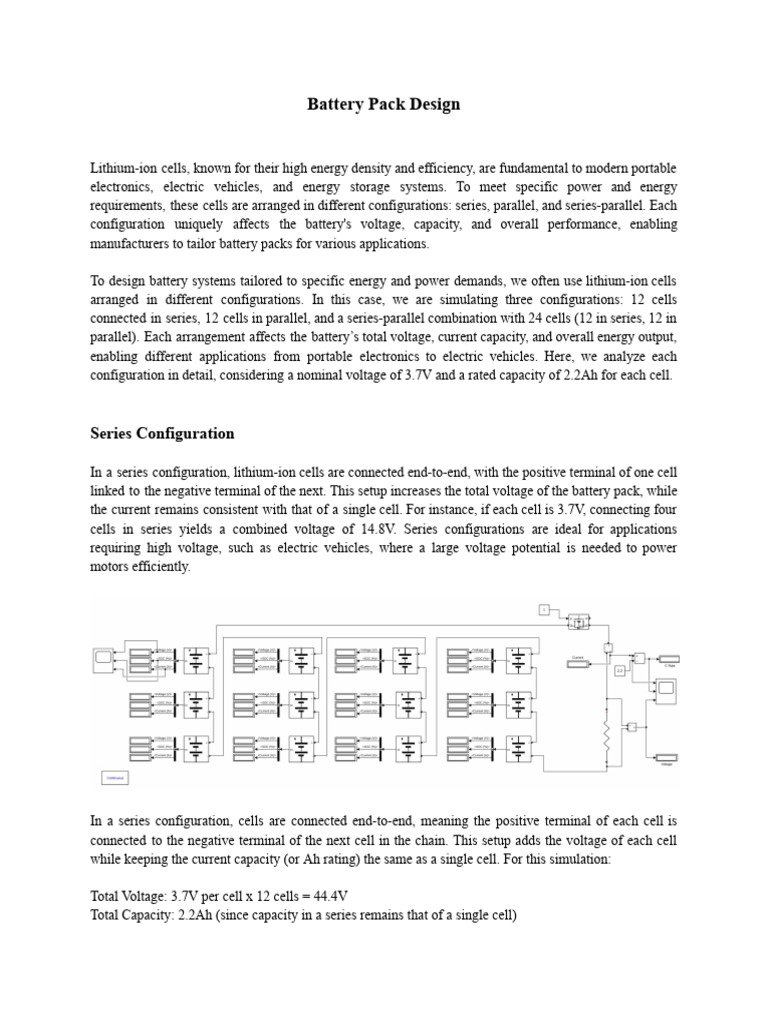

Battery Pack Design

Lithium-ion cells, known for their high energy density and efficiency, are fundamental to modern portable
electronics, electric vehicles, and energy storage systems. To meet specific power and energy
requirements, these cells are arranged in different configurations: series, parallel, and series-parallel. Each
configuration uniquely affects the battery's voltage, capacity, and overall performance, enabling
manufacturers to tailor battery packs for various applications.

To design battery systems tailored to specific energy and power demands, we often use lithium-ion cells
arranged in different configurations. In this case, we are simulating three configurations: 12 cells
connected in series, 12 cells in parallel, and a series-parallel combination with 24 cells (12 in series, 12 in
parallel). Each arrangement affects the battery’s total voltage, current capacity, and overall energy output,
enabling different applications from portable electronics to electric vehicles. Here, we analyze each
configuration in detail, considering a nominal voltage of 3.7V and a rated capacity of 2.2Ah for each cell.

Series Configuration

In a series configuration, lithium-ion cells are connected end-to-end, with the positive terminal of one cell
linked to the negative terminal of the next. This setup increases the total voltage of the battery pack, while
the current remains consistent with that of a single cell. For instance, if each cell is 3.7V, connecting four
cells in series yields a combined voltage of 14.8V. Series configurations are ideal for applications
requiring high voltage, such as electric vehicles, where a large voltage potential is needed to power
motors efficiently.

In a series configuration, cells are connected end-to-end, meaning the positive terminal of each cell is
connected to the negative terminal of the next cell in the chain. This setup adds the voltage of each cell
while keeping the current capacity (or Ah rating) the same as a single cell. For this simulation:

Total Voltage: 3.7V per cell x 12 cells = 44.4V

Total Capacity: 2.2Ah (since capacity in a series remains that of a single cell)
The high voltage generated by this arrangement (44.4V) is ideal for applications that require significant
voltage to operate effectively, such as some types of electric vehicles, industrial tools, or specialized
machinery. However, the relatively low capacity of 2.2Ah means that, while powerful, this battery won’t
provide an extended runtime. Additionally, in series arrangements, it is crucial to monitor each cell's
charge level. Any imbalance in cell voltage can lead to uneven charge distribution, risking overcharge or
deep discharge in individual cells, which can reduce the battery’s lifespan and potentially lead to safety
hazards.

Parallel Configuration

Parallel configurations involve connecting the positive terminals of all cells together and the negative
terminals together, effectively increasing the battery's capacity while maintaining the same voltage as a
single cell. In this setup, the total current output is the sum of each cell's capacity, enhancing the battery’s
ability to deliver sustained energy over a longer period. This approach is often used in applications
requiring extended runtime, such as laptops or portable power banks, where high capacity is prioritized
over high voltage.

In the parallel configuration, all cells have their positive terminals connected together and their negative
terminals connected together. This arrangement keeps the overall voltage of the battery pack the same as a
single cell, but it increases the overall capacity by adding the capacity ratings of each cell together. For
this configuration:

Nominal Voltage: 3.7V (same as a single cell)

Total Capacity: 2.2Ah x 12 cells = 26.4Ah

This setup is well-suited for applications that prioritize extended runtime over high voltage, such as
laptops, tablets, portable power banks, and backup power systems. The combined capacity of 26.4Ah
means that this battery pack can sustain longer operation compared to the series configuration. However,
the voltage remains limited to 3.7V, so this configuration wouldn’t suit high-voltage needs. Also, in
parallel arrangements, each cell needs to have a similar health status and internal resistance, as differing
cell conditions can cause an imbalance, leading to inefficiency and potential risks, particularly during
charging.

Series-Parallel Configuration

In a series-parallel configuration, cells are grouped in parallel and then connected in series, or vice versa,
to balance the benefits of both increased voltage and higher capacity. This arrangement is common in
large battery packs for electric vehicles and energy storage systems, allowing for high power and long
battery life. By combining series and parallel setups, designers can fine-tune the battery pack’s
specifications to match the needs of complex devices that require both high power output and substantial
energy reserves.

The series-parallel configuration combines the benefits of both series and parallel connections, creating a
versatile battery pack capable of delivering both high voltage and substantial capacity. Here, we create
two parallel groups of 12 cells each, then connect these two groups in series. This setup effectively
doubles both the voltage and capacity:

Nominal Voltage: 44.4V (3.7V x 12 cells in series)

Total Capacity: 26.4Ah (2.2Ah x 12 cells in parallel)

This combined configuration provides a powerful and enduring energy solution, making it ideal for
high-demand applications like electric vehicles, renewable energy storage systems, or industrial
machinery where both high voltage and long-lasting energy reserves are required. With 44.4V and
26.4Ah, this battery pack can power equipment that requires sustained power and energy output over
longer durations. However, this setup requires careful battery management systems (BMS) to balance
both voltage and capacity across all cells, ensuring no group of cells is overcharged or deeply discharged.
Applications and Considerations

Each configuration has distinct advantages and trade-offs. Series configurations suit high-voltage
applications but require careful balancing to prevent overcharging or discharging individual cells. Parallel
setups support high-capacity requirements but need consistent cell health to maintain efficiency.
Series-parallel configurations, while complex, offer the most versatile solutions, accommodating high
power and capacity. Understanding these configurations enables engineers to design optimized battery
systems for specific applications, from consumer electronics to renewable energy systems.

Comparison

Here's a comparison table summarizing the characteristics of the three configurations with 12 cells in
series, 12 cells in parallel, and a 24-cell series-parallel combination.

Configuration Number of Total Total Key Ideal Applications

Cells Voltage Capacity Advantage

12 Cells in 12 44.4V 2.2Ah High Voltage Electric vehicles,

Series industrial machinery
requiring high-voltage

12 Cells in 12 3.7V 26.4Ah High Capacity Portable electronics,

Parallel power banks, backup
systems

Series-Parallel 24 (12 44.4V 26.4Ah High Voltage Electric vehicles,

(24 Cells) series, 12 and High renewable energy
parallel) Capacity storage, long-duration
industrial applications

Each configuration provides distinct benefits. The 12 cells in series setup is ideal for high-voltage
demands but offers limited capacity. The 12 cells in parallel setup suits high-capacity needs at a lower
voltage. The series-parallel combination provides both high voltage and capacity, balancing applications
requiring extended power and longevity.
