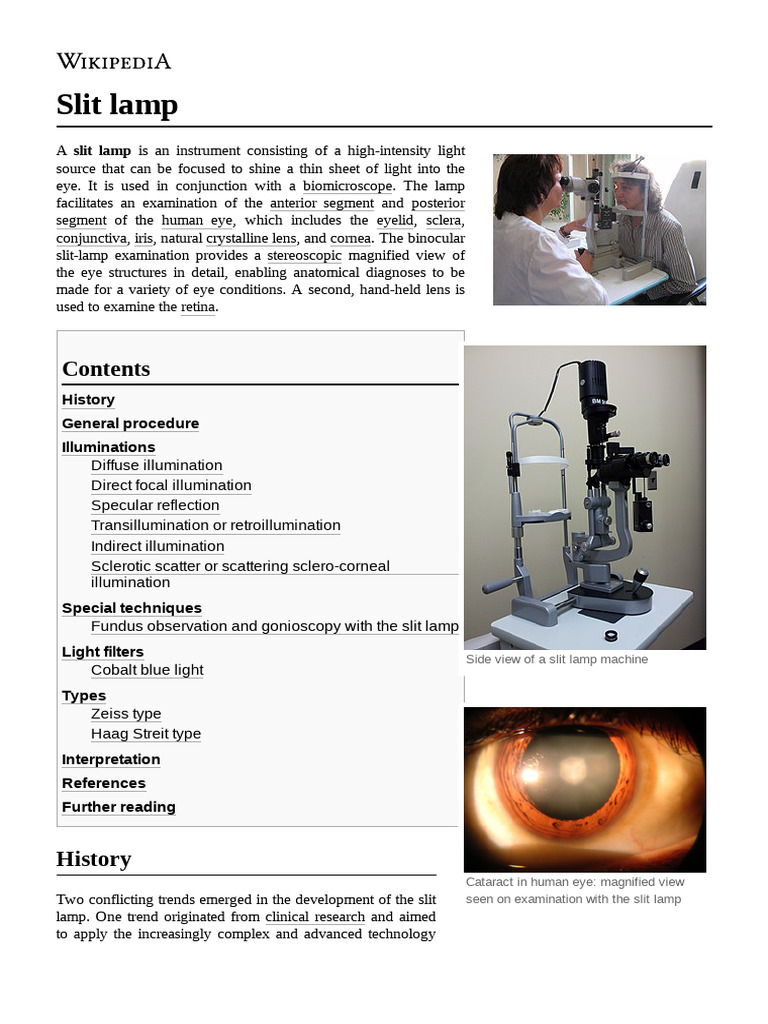

Slit lamp
A slit lamp is an instrument consisting of a high-intensity light
source that can be focused to shine a thin sheet of light into the
eye. It is used in conjunction with a biomicroscope. The lamp
facilitates an examination of the anterior segment and posterior
segment of the human eye, which includes the eyelid, sclera,
conjunctiva, iris, natural crystalline lens, and cornea. The binocular
slit-lamp examination provides a stereoscopic magnified view of
the eye structures in detail, enabling anatomical diagnoses to be
made for a variety of eye conditions. A second, hand-held lens is
used to examine the retina.
Contents
History
General procedure
Illuminations
Diffuse illumination
Direct focal illumination
Specular reflection
Transillumination or retroillumination
Indirect illumination
Sclerotic scatter or scattering sclero-corneal
illumination
Special techniques
Fundus observation and gonioscopy with the slit lamp
Light filters
Side view of a slit lamp machine
Cobalt blue light
Types
Zeiss type
Haag Streit type
Interpretation
References
Further reading
History
Cataract in human eye: magnified view
Two conflicting trends emerged in the development of the slit seen on examination with the slit lamp
lamp. One trend originated from clinical research and aimed
to apply the increasingly complex and advanced technology
of the time.[1] The second trend originated from ophthalmologic practice and aimed at technical perfection
and a restriction to useful methods. The first man credited with developments in this field was Hermann
von Helmholtz (1850) when he invented the ophthalmoscope.[2]
In ophthalmology and optometry, the instrument is called a "slit lamp", although it is more correctly called a
"slit lamp instrument".[3] Today's instrument is a combination of two separate developments, the corneal
microscope and the slit lamp itself. The first concept of a slit lamp dates back to 1911 credited to Allvar
Gullstrand and his "large reflection-free ophthalmoscope."[3] The instrument was manufactured by Zeiss
and consisted of a special illuminator connected to a small stand base through a vertical adjustable column.
The base was able to move freely on a glass plate. The illuminator employed a Nernst glower which was
later converted into a slit through a simple optical system.[4] However, the instrument never received much
attention and the term "slit lamp" did not appear in any literature again until 1914.
It wasn't until 1919 that several improvements were made to the Gullstrand slit lamp made by Vogt Henker.
First, a mechanical connection was made between lamp and ophthalmoscopic lens. This illumination unit
was mounted to the table column with a double articulated arm. The binocular microscope was supported
on a small stand and could be moved freely across the tabletop. Later, a cross slide stage was used for this
purpose. Vogt introduced Koehler illumination, and the reddish Nernst glower was replaced with the
brighter and whiter incandescent lamp.[4] Special mention should be paid to the experiments that followed
Henker's improvements in 1919. On his improvements the Nitra lamp was replaced with a carbon arc lamp
with a liquid filter. At this time the great importance of color temperature and the luminance of the light
source for slit lamp examinations were recognized and the basis created for examinations in red-free
light.[4]
In the year 1926, the slit lamp instrument was redesigned. The vertical arrangement of the projector made it
easy to handle. For the first time, the axis through the patient's eye was fixed along a common swiveling
axis, although the instrument still lacked a coordinate cross-slide stage for instrument adjustment. The
importance of focal illumination had not yet been fully recognized.[5]
In 1927, stereo cameras were developed and added to the slit lamp to further its use and application. In
1930, Rudolf Theil further developed the slit lamp, encouraged by Hans Goldmann. Horizontal and vertical
co-ordinate adjustments were performed with three control elements on the cross-slide stage. The common
swivel axis for microscope and illumination system was connected to the cross-slide stage, which allowed it
to be brought to any part of the eye to be examined.[6] A further improvement was made in 1938. A control
lever or joystick was used for the first time to allow for horizontal movement.
Following World War II the slit lamp was improved again. On this particular improvement the slit projector
could be swiveled continuously across the front of the microscope. This was improved again in 1950, when
a company named Littmann redesigned the slit lamp. They adopted the joystick control from the Goldmann
instrument and the illumination path present in the Comberg instrument. Additionally, Littmann added the
stereo telescope system with a common objective magnification changer.[7]
In 1965, the Model 100/16 Slit Lamp was produced based on the slit lamp by Littmann. This was soon
followed by the Model 125/16 Slit Lamp in 1972. The only difference between the two models was their
operating distances of 100 mm to 125 mm. With the introduction of the photo slit lamp further
advancements were possible. In 1976, the development of the Model 110 Slit Lamp and the 210/211 Photo
Slit Lamps were an innovation by which each were constructed from standard modules allowing for a wide
range of different configurations.[8] At the same time, halogen lamps replaced the old illumination systems
to make them brighter and essentially daylight quality. From 1994 onwards, new slit lamps were introduced
which took advantage of new technologies. The last major development was in 1996 in which included the
advantages of new slit lamp optics.[8] See also "From Lateral Illumination to Slit Lamp - An Outline of
Medical History (http://www.med-hist.uni-kiel.de/index.php?option=com_content&view=article&id=12:sp
altlampen&catid=5&Itemid=13)".[9]
General procedure
While a patient is seated in the examination chair, they rest their chin and forehead on a support area to
steady the head. Using the biomicroscope, the ophthalmologist or optometrist then proceeds to examine the
patient's eye. A fine strip of paper, stained with fluorescein, a fluorescent dye, may be touched to the side of
the eye; this stains the tear film on the surface of the eye to aid examination. The dye is naturally rinsed out
of the eye by tears.
A subsequent test may involve placing drops in the eye in order to dilate the pupils. The drops take about
15 to 20 minutes to work, after which the examination is repeated, allowing the back of the eye to be
examined. Patients will experience some light sensitivity for a few hours after this exam, and the dilating
drops may also cause increased pressure in the eye, leading to nausea and pain. Patients who experience
serious symptoms are advised to seek medical attention immediately.
Adults need no special preparation for the test; however children may need some preparation, depending on
age, previous experiences, and level of trust.
Illuminations
Various methods of slitlamp illumination are required to obtain full advantage of slit-lamp biomicroscope.
There are mainly six type of illuminating options:
1. Diffuse illumination,
2. Direct focal illumination,
3. Specular reflection,
4. Transillumination or retroillumination,
5. Indirect lateral illumination or Indirect proximal illumination and
6. Sclerotic scatter.
Oscillatory Illumination is sometimes considered an illumination technique.[10] Observation with an optical
section or direct focal illumination is the most frequently applied method of examination with the slit lamp.
With this method, the axes of illuminating and viewing path intersect in the area of the anterior eye media to
be examined, for example, the individual corneal layers.[11]
Diffuse illumination
If media, especially that of the cornea, are opaque, optical section images are often
impossible depending on severity. In these cases, diffuse illumination may be used to
advantage. For this, the slit is opened very wide and a diffuse, attenuated survey
illumination is produced by inserting a ground glass screen or diffuser in the
illuminating path.[12] "Wide beam" illumination is the only type that has the light
Diffuse
source set wide open. Its main purpose is to illuminate as much of the eye and its
Illumination of
adnexa at once for general observation.[13]
anterior
segment
Direct focal illumination
Observation with an optical section or direct focal illumination is the most frequently applied method. It is
achieved by directing a full-height, hairline to medium width, medium-bright beam obliquely into the eye
and focusing it on the cornea so that a quadrilateral block of light illuminates the transparent medias of eye.
Viewing arm and illuminating arm are kept parfocal. This type of illumination is
useful for depth localization. Direct focal illumination is used for grading cells and
flare in anterior chamber by shortening height of beam to 2–1 mm.[14]
Specular reflection Lesions are
seen in
Specular reflection, or reflected illumination is just like patches of reflection seen on superficial
sunlit lake water surface. To achieve specular reflection, the examiner directs a layers of cornea
medium to narrow beam of light (it must be thicker than an optical section) toward the by direct focal
eye from the temporal side. The angle of illumination should be wide (50°-60°) illumination
relative to the examiners axis of observation (which should be slightly nasal to the
patients visual axis). A bright zone of specular reflection will be evident on the
temporal, midperipheral corneal epithelium. It is used to see endothelial outline of cornea.[15]
Transillumination or retroillumination
In certain cases, illumination by optical section does not yield sufficient information or
is impossible. This is the case, for example, when larger, extensive zones or spaces of
the ocular media are opaque. Then the scattered light that is not very bright normally
is absorbed. A similar situation arises when areas behind the crystalline lens are to be
observed. In this case the observation beam must pass a number of interfaces that may
Retro-
reflect and attenuate the light.[16] illumination of
anterior
subcapsular
Indirect illumination cataract
With this method, light enters the eye through a narrow to medium slit (2 to 4 mm) to
one side of the area to be examined. The axes of illuminating and viewing path do not
intersect at the point of image focus, to achieve this; the illuminating prism is
decentered by rotating it about its vertical axis off the normal position. In this way,
reflected, indirect light illuminates the area of the anterior chamber or cornea to be
examined. The observed corneal area then lies between the incident light section
through the cornea and the irradiated area of the iris. Observation is thus against a Indirect lateral
comparatively dark background.[16] illumination of
corneal ulcer
Sclerotic scatter or scattering sclero-corneal illumination
With this type of illumination, a wide light beam is directed onto the limbal region of
the cornea at an extremely low angle of incidence and with a laterally de-centered
illuminating prism. Adjustment must allow the light beam to transmit through the
corneal parenchymal layers according to the principle of total reflection allowing the
interface with the cornea to be brightly illuminated. The magnification should be
selected so that the entire cornea can be seen at a glance.[17] Sclerotic scatter
illumination
showing KP on
Special techniques cornea
Fundus observation and gonioscopy with the slit lamp
Fundus observation is known by the ophthalmic and the use of
fundus cameras. With the slit lamp, however, direct observation of
the fundus is impossible due to the refractive power of the ocular
media. In other words: the far point of the eye (punctum remotum)
is so distant in front of (myopia) or behind (hyperopia) that the
microscope cannot be focused. The use of auxiliary optics -
generally as a lens – makes it possible however to bring the far
point within the focusing range of the microscope. For this various
auxiliary lenses are in use that range in optical properties and
practical application.[18]
Light filters Fundoscopy by using +90 diopter
lens with the slit lamp
Most slit-lamp use five light filters. Such as
1. Unfiltered,
2. Heat absorption- for increased patient comfort
3. Grey filter,
4. Red free- for better visualisation of nerve fibre layer and haemorrhages and blood vessels.
5. Cobalt blue- after staining with fluorescein dye, for seeing corneal ulcers, contact lens fitting,
Seidel's test
Cobalt blue light
Slit lamps produce light of the wavelength 450 to 500 nm, known as "cobalt blue". This light is specifically
useful for looking for problems in the eye once it has been stained with fluorescein.[19]
Types
There are two distinct slit lamp types based on the location of their
illumination system:
Zeiss type
In the Zeiss type slit lamp, the illumination is located below the
microscope. This type of slit lamp is named after the
manufacturing company Carl Zeiss.
Zeiss Type slit lamp
Haag Streit type
In the Haag Streit type slit lamp, the illumination is located above the microscope. This type of slit lamp is
named after the manufacturing company Haag Streit.
Interpretation
The slit lamp exam may detect many diseases of the eye, including:
Cataract
Conjunctivitis
Corneal injury such as corneal ulcer or corneal swelling
Diabetic retinopathy
Fuchs' dystrophy
Keratoconus (Fleischer ring)
Macular degeneration
Retinal detachment
Retinal vessel occlusion
Retinitis pigmentosa Haag Streit Type slit lamp
Sjögren's syndrome
Toxoplasmosis
Uveitis
Wilson's disease (Kayser-Fleischer ring)
One sign that may be seen in slit lamp examination is a "flare", which is when the slit-lamp beam is seen in
the anterior chamber. This occurs when there is breakdown of the blood-aqueous barrier with resultant
exudation of protein.[20]
References
1. "Eye Examination with the Slit Lamp" (http://www.zeiss.com/88256DE3007B916B/0/506FB
A0E8FCB598E882571D8007D4B40/$file/spaltlampen_eye_exam_en.pdf), Carl Zeiss
Meditec, AG, p. 33, accessed: February 6, 2011.
2. "Eye Examination with the Slit Lamp", Zeiss, p. 33
3. "Eye Examination with the Slit Lamp", Zeiss, p. 34
4. "Eye Examination with the Slit Lamp", Zeiss, p. 35
5. "Eye Examination with the Slit Lamp", Zeiss, p. 36
6. "Eye Examination with the Slit Lamp", Zeiss, p. 37
7. "Eye Examination with the Slit Lamp", Zeiss, p. 38
8. "Eye Examination with the Slit Lamp", Zeiss, p. 39
9. "From Lateral Illumination to Slit Lamp - An Outline of Medical History" (http://www.med-hist.
uni-kiel.de/index.php?option=com_content&view=article&id=12:spaltlampen&catid=5&Itemi
d=13), Koppenhöfer, Eilhard - online published 2012
10. Practical Ophthalmology A MANUAL FOR BEGINNING RESIDENTS, Fourth Edition, page
218-228.
11. "Eye Examination with the Slit Lamp", Zeiss, p. 14
12. "Eye Examination with the Slit Lamp", Zeiss, p. 16
13. Indiana University School of Optometry. "Slit Lamp Illumination Types" (http://www.opt.indian
a.edu/riley/HomePage/newslitlamp/1_part_one_slitlamp.html). Indiana University, Indiana:
2007. Retrieved 6 February 2011.
14. Practical Ophthalmology A MANUAL FOR BEGINNING RESIDENTS, Fourth Edition, page
220-221.
15. Practical Ophthalmology A MANUAL FOR BEGINNING RESIDENTS, Fourth Edition, page
221-222.
16. "Eye Examination with the Slit Lamp", Zeiss, p. 17
17. "Eye Examination with the Slit Lamp", Zeiss, p. 18
18. "Eye Examination with the Slit Lamp", Zeiss, p. 19
19. Gellrich, Marcus-Matthias (2013). The Slit Lamp: Applications for Biomicroscopy and
Videography (https://books.google.com/books?id=Kv-7BAAAQBAJ&pg=PA48). Springer
Science & Business Media. p. 48. ISBN 9783642397936.
20. Chapter 32 in Classification, Symptoms, and Signs of Uveitis (http://www.oculist.net/downat
on502/prof/ebook/duanes/pages/v4/v4c032.html) Archived (https://web.archive.org/web/201
20116055324/http://www.oculist.net/downaton502/prof/ebook/duanes/pages/v4/v4c032.htm
l) 2012-01-16 at the Wayback Machine by DEBRA A. GOLDSTEIN and HOWARD H.
TESSLER. 2006 Edition
Further reading
Vivino MA, Chintalagiri S, Trus B, Dati.les M., "Development of a Scheimpflug slit lamp
camera system for quantitative densitometric analysis", Computer Systems Laboratory,
National Eye Institute, National Institutes of Health, Bethesda, MD 20892. Eye (Lond).
1993;7 ( Pt 6):791-8.
"Slit-Lamp Gonioscopy." Postgraduate Medical Journal 39.451 (1963): 310.
Jobe, Frederick W. Slit Lamp. United States BAUSCH & LOMB, assignee. Patent "2235319"
Mar. 1941.
Nikon, Slit Lamp CS-1 Microscope (http://www.microscopyu.com/museum/slitlampcs1.html),
accessed February 6, 2011.
Ledford, Janice K. and Sanders, Valerie N. "The slit lamp primer" (https://books.google.com/
books?id=Iqd6qthQt78C&printsec=frontcover#v=onepage&q&f=false), 2nd Edition, SLACK
Incorporated, ISBN 978-1-55642-747-3, published 2006.
Schwartz, Gary S., "The eye exam: a complete guide", pp. 109-128 Slit Lamp Biomicroscopy
(https://books.google.com/books?id=vNwHSXEXYmkC&lpg=PP1&pg=PA109#v=onepage&
q&f=true), SLACK Incorporated, ISBN 978-1-55642-755-8, published 2006.
Koppenhöfer, Eilhard, "From Lateral Illumination to Slit Lamp — An Outline of Medical
History" (https://archive.is/20130106045725/http://www.med-hist.uni-kiel.de/med-hist/index.p
hp?option=com_content&view=article&id=12&Itemid=13), online published 2012
Retrieved from "https://en.wikipedia.org/w/index.php?title=Slit_lamp&oldid=1041873681"
This page was last edited on 2 September 2021, at 01:16 (UTC).
Text is available under the Creative Commons Attribution-ShareAlike License; additional terms may apply. By using
this site, you agree to the Terms of Use and Privacy Policy. Wikipedia® is a registered trademark of the Wikimedia
Foundation, Inc., a non-profit organization.
