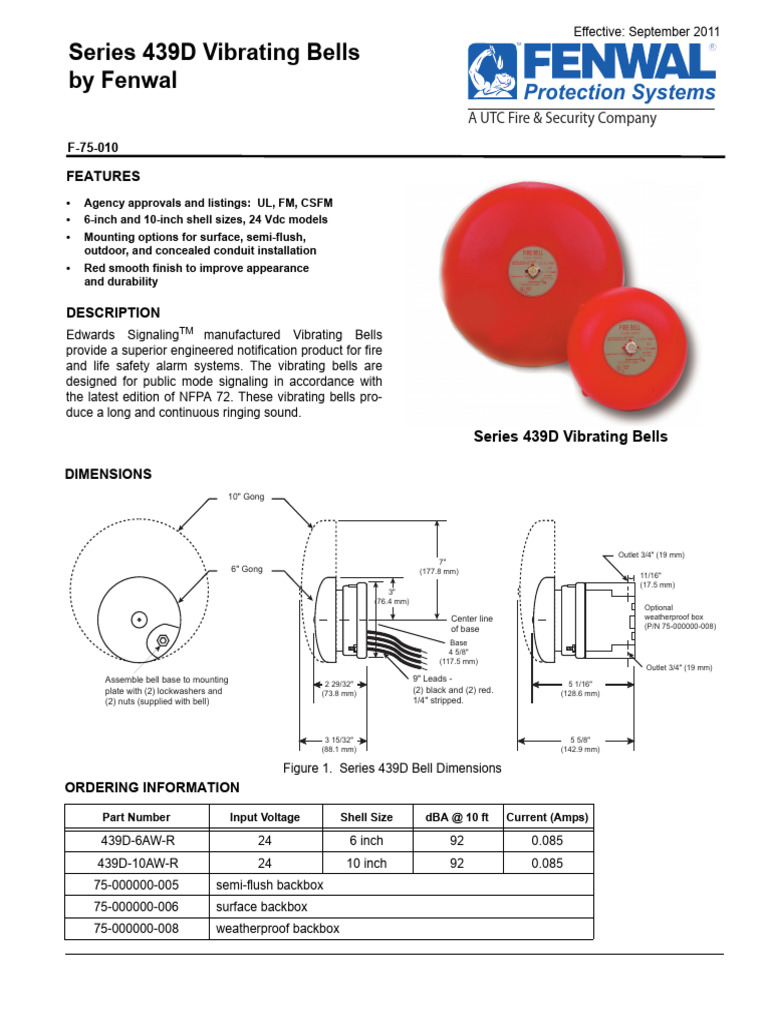

Effective: September 2011

Series 439D Vibrating Bells


TM
R

by Fenwal Protection Systems


A UTC Fire & Security Company
F-75-010

FEATURES
• Agency approvals and listings: UL, FM, CSFM
• 6-inch and 10-inch shell sizes, 24 Vdc models
• Mounting options for surface, semi-flush,
outdoor, and concealed conduit installation
• Red smooth finish to improve appearance
and durability

DESCRIPTION
Edwards SignalingTM manufactured Vibrating Bells
provide a superior engineered notification product for fire
and life safety alarm systems. The vibrating bells are
designed for public mode signaling in accordance with
the latest edition of NFPA 72. These vibrating bells pro-
duce a long and continuous ringing sound.
Series 439D Vibrating Bells

DIMENSIONS
10" Gong

Outlet 3/4" (19 mm)


7"
6" Gong (177.8 mm) 11/16"
(17.5 mm)
3"
(76.4 mm)
Optional
Center line weatherproof box
of base (P/N 75-000000-008)

Base
4 5/8"
(117.5 mm)
Outlet 3/4" (19 mm)
Assemble bell base to mounting 9" Leads -
2 29/32" 5 1/16"
plate with (2) lockwashers and (73.8 mm) (2) black and (2) red. (128.6 mm)
(2) nuts (supplied with bell) 1/4" stripped.

3 15/32" 5 5/8"
(88.1 mm) (142.9 mm)

Figure 1. Series 439D Bell Dimensions


ORDERING INFORMATION

Part Number Input Voltage Shell Size dBA @ 10 ft Current (Amps)

439D-6AW-R 24 6 inch 92 0.085


439D-10AW-R 24 10 inch 92 0.085
75-000000-005 semi-flush backbox
75-000000-006 surface backbox
75-000000-008 weatherproof backbox
MOUNTING
Bells may be easily surface mounted onto a wall
mounting plate or mounted with an optional backbox.
(See ordering information.) A mounting plate, insulator
plate, lockwashers and nuts are provided for each bell
body.

Mounting Plate
Attach green ground wire to appropriate earth
ground. Electrical box grounding shown for
illustration purpose only.
Insulator

Mounting Plate Bell Body


Gong

Insulator
Bell Body
Gong

Grooves for
aligning gong

Grooves for
aligning gong

Figure 2. Wall Box Installation Figure 3. Surface Mount Installation

WIRING DIAGRAM

Red Red

From supervised End of line


signal circuit or resistor (value based
previous appliance on panel circuit)
Blk Blk

Figure 4. Bell Wiring

Fenwal is a registered trademark of Kidde-Fenwal Inc.


Edwards Signaling is a trademark of Edwards.
TM
R

This literature is provided for informational purposes only. KIDDE-FENWAL, INC. assumes
no responsibility for the product’s suitability for a particular application. The product must be
properly applied to work correctly. Protection Systems
If you need more information on this product, or if you have a particular problem or ques- A UTC Fire & Security Company
tion, contact KIDDE-FENWAL, INC., Ashland, MA 01721. Telephone: (508) 881-2000.
400 Main Street
Ashland, MA 01721
F-75-010 Rev AC © 2011 Kidde-Fenwal Inc. Ph: 508.881.2000
Fax: 508.881.8920
