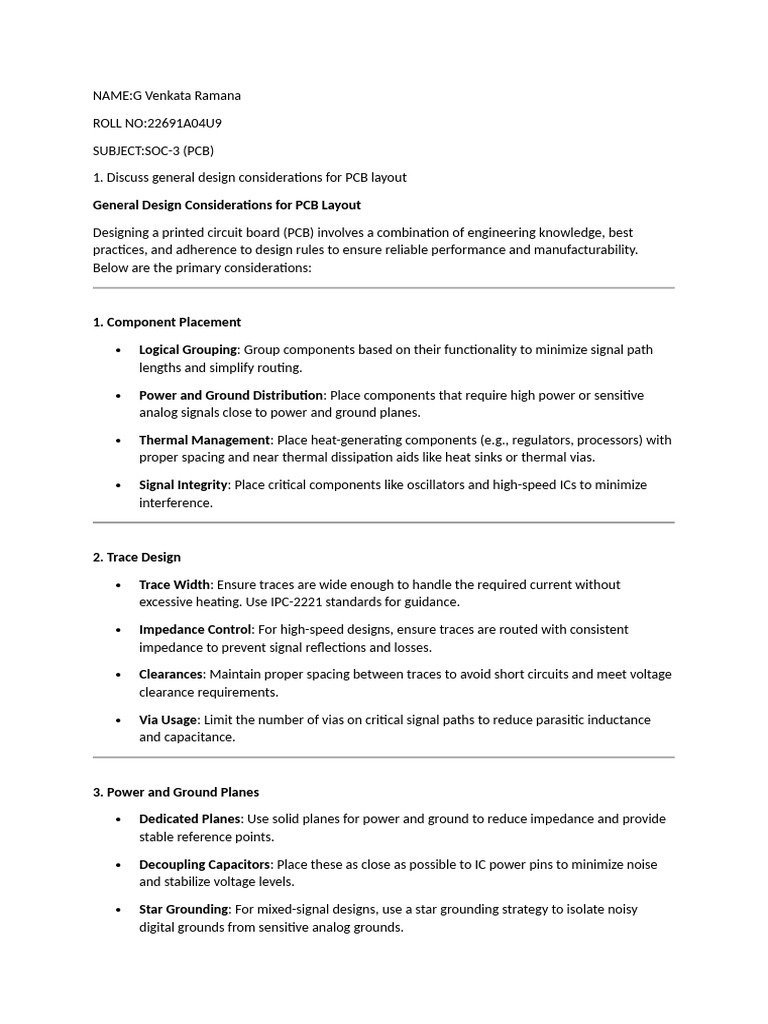

1. Discuss general design considerations for PCB layout

General Design Considerations for PCB Layout

Designing a printed circuit board (PCB) involves a combination of engineering knowledge, best
practices, and adherence to design rules to ensure reliable performance and manufacturability.
Below are the primary considerations:

1. Component Placement

 Logical Grouping: Group components based on their functionality to minimize signal path
lengths and simplify routing.

 Power and Ground Distribution: Place components that require high power or sensitive
analog signals close to power and ground planes.

 Thermal Management: Place heat-generating components (e.g., regulators, processors) with

proper spacing and near thermal dissipation aids like heat sinks or thermal vias.

 Signal Integrity: Place critical components like oscillators and high-speed ICs to minimize
interference.

2. Trace Design

 Trace Width: Ensure traces are wide enough to handle the required current without
excessive heating. Use IPC-2221 standards for guidance.

 Impedance Control: For high-speed designs, ensure traces are routed with consistent
impedance to prevent signal reflections and losses.

 Clearances: Maintain proper spacing between traces to avoid short circuits and meet voltage
clearance requirements.

 Via Usage: Limit the number of vias on critical signal paths to reduce parasitic inductance
and capacitance.

3. Power and Ground Planes

 Dedicated Planes: Use solid planes for power and ground to reduce impedance and provide
stable reference points.

 Decoupling Capacitors: Place these as close as possible to IC power pins to minimize noise
and stabilize voltage levels.

 Star Grounding: For mixed-signal designs, use a star grounding strategy to isolate noisy
digital grounds from sensitive analog grounds.
4. Signal Routing

 Shortest Path: Route signals using the shortest possible paths to reduce resistance,
inductance, and potential noise.

 Avoid Crosstalk: Maintain adequate spacing between parallel signal traces or use ground
traces as shields.

 Critical Signal Paths: Route high-speed or low-noise signals first, ensuring minimal
interference and adherence to timing requirements.

 Differential Pairs: Maintain equal trace lengths and consistent spacing for differential pairs to
ensure signal integrity.

5. Thermal Considerations

 Thermal Vias: Use vias under heat-generating components to dissipate heat into other PCB
layers or heatsinks.

 Copper Pour: Use copper pours connected to ground or power for better thermal
management.

 Component Placement: Place heat-sensitive components away from high-heat-generating

components.

6. Manufacturability

 Design for Manufacturability (DFM): Follow manufacturer-specific constraints for trace

width, via size, pad size, and solder mask clearance.

 Panelization: Ensure the PCB design allows for efficient panelization for mass production.

 Silkscreen Placement: Place silkscreen markings clearly and avoid obscuring critical pads or
vias.

7. Compliance and Testing

 Design Rule Check (DRC): Use design software to ensure all routing and placement adhere to
set rules.

 EMI/EMC Compliance: Follow practices to reduce electromagnetic interference, such as

proper grounding, shielding, and trace routing.

 Test Points: Add test points for key signals to facilitate testing and debugging.

8. Documentation and Communication

  Layer Stackup: Clearly define the layer stackup, including material properties and
thicknesses.

 BOM Synchronization: Ensure the PCB layout matches the Bill of Materials (BOM) for
seamless assembly.

 Assembly Guidelines: Provide clear assembly guidelines, including polarity markings for
components.

 2. Discuss in detail the Quality Control Methods of PCB layout

Quality Control Methods for PCB Layout

Ensuring the quality of a PCB layout is critical to achieving a reliable, manufacturable, and
functional product. Quality control methods encompass checks, testing procedures, and software
tools that identify and rectify errors during the design phase and subsequent manufacturing stages.
Below are detailed quality control methods for PCB layout:

1. Design Rule Check (DRC)

 Definition: DRC is a software-based validation process that ensures the PCB layout adheres
to predefined design rules and manufacturing capabilities.

 Key Parameters Checked:

o Trace width and spacing.

o Via sizes and clearances.

o Component placement constraints.

o Minimum solder mask openings.

 Tools: EDA tools like Altium Designer, KiCad, or Cadence PCB Designer have integrated DRC
functionalities.

2. Electrical Rule Check (ERC)

 Definition: ERC ensures the electrical connectivity of the PCB matches the intended circuit
design.

 Checks Performed:

o Proper connections between power and ground planes.

o Detection of floating nodes or

unconnected pins.

o Voltage level mismatches between

components.

o Current carrying capacity of traces.

3. Signal Integrity Analysis

Definition: This method evaluates high-speed signals to ensure they maintain integrity without
distortions like reflections, crosstalk, or delays.

 Techniques:

o Impedance Matching: Check if the impedance of traces and transmission lines meets
specifications.

o Simulation Tools: Use tools like HyperLynx or Ansys SIwave to simulate signal
performance.

 Outcomes:

o Minimized signal losses.

o Prevention of timing violations.

4. Power Integrity Analysis

 Definition: Ensures that power delivery is stable and free of excessive noise.

 Steps:

o Validate voltage drop across power planes.

o Check decoupling capacitor placement.

o Use simulation tools for dynamic power analysis.

5. Design for Manufacturability (DFM) Review

 Definition: Ensures the PCB design is optimized for manufacturing, assembly, and testing.

 Key Checks:

o Layer Stackup: Validate materials and thicknesses for manufacturability.

o Solder Mask Alignment: Ensure proper alignment of solder masks to avoid bridging.

o Hole Sizes: Confirm hole sizes and tolerances meet manufacturing capabilities.

o Panelization: Verify the layout supports efficient panelization.

 Collaboration: Engage PCB manufacturers early to get feedback on the design.

6. Thermal Analysis

 Definition: Evaluates the PCB’s ability to manage heat generated by components.

 Methods:

o Simulation: Use thermal simulation tools to identify hotspots.

o Heatsink Design: Validate the placement and effectiveness of heatsinks and thermal
vias.

o Copper Pours: Check the adequacy of copper pours for heat dissipation.
 o 7. Electromagnetic Compatibility (EMC) Testing

 Definition: Ensures the PCB does not emit excessive electromagnetic interference (EMI) and
complies with industry standards.

 Key Measures:

o Minimize loop areas for high-speed traces.

o Use ground planes and shielding techniques.

o Follow layout practices to prevent radiated emissions.

8. Testability Analysis

 Definition: Ensures the design facilitates efficient testing during production.

 Methods:

o Test Points: Add accessible test points for key signals and power lines.

o Boundary Scan Testing: Incorporate JTAG-compatible components for debugging.

o In-Circuit Testing (ICT): Ensure sufficient spacing for ICT probes.

9. Automated Optical Inspection (AOI)

 Definition: AOI uses cameras and imaging technology to inspect the PCB after
manufacturing.

 Checks Performed:

o Solder joint quality.

o Component placement accuracy.

o Trace continuity.

10. Functional and Reliability Testing

 Functional Testing: Validate the PCB's functionality against design requirements.

o Simulate actual operating conditions.

o Check power distribution and signal paths.

 Reliability Testing:

o Thermal Cycling: Test for performance under varying temperatures.

o Vibration Testing: Assess the mechanical durability of solder joints.

o Humidity Testing: Evaluate resistance to moisture.

11. Peer Reviews and Audits

 Definition: Regular reviews by experienced engineers to identify potential issues.

 Process:
 o Cross-check the schematic against the PCB layout.

o Validate component footprints.

o Review adherence to design standards.

12. Documentation and Revision Control

 Importance: Proper documentation and version control ensure consistent updates and
prevent errors in the production cycle.

 Documentation Includes:

o Layer stackup details.

o BOM with verified component details.

o Assembly drawings and notes.

13. Compliance with Standards

 Standards: Ensure the design complies with industry standards like:

o IPC-2221 (Generic PCB Design).

o IPC-A-610 (Acceptability of Electronics Assemblies).

o UL Certification (Safety standards).

o CE or FCC Compliance (EMI/EMC regulations).

14. Prototyping and Pilot Runs

 Prototyping: Create small batches for testing and validation before full-scale production.

 Pilot Runs:

o Identify and address manufacturing and assembly issues.

o Collect data to refine DFM practices.

15. Continuous Improvement

 Use feedback from manufacturing and field performance to refine the PCB design process.

 Incorporate lessons learned into future projects to prevent recurring issues.

By employing these quality control methods, PCB designers can significantly improve the reliability,
performance, and manufacturability of their designs while minimizing costly errors and revisions.
