Date 29-Jan-07

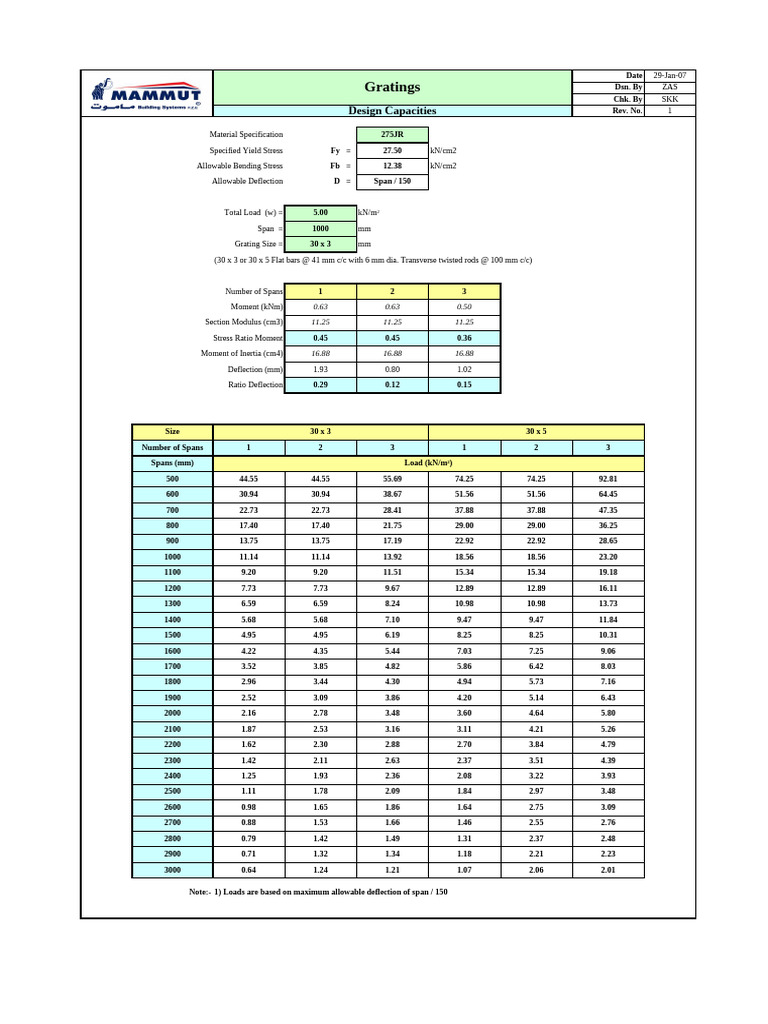

Gratings Dsn. By ZAS

Chk. By SKK
Design Capacities Rev. No. 1

Material Specification 275JR

Specified Yield Stress Fy = 27.50 kN/cm2

Allowable Bending Stress Fb = 12.38 kN/cm2

Allowable Deflection D = Span / 150

Total Load (w) = 5.00 kN/m2

Span = 1000 mm

Grating Size = 30 x 3 mm

(30 x 3 or 30 x 5 Flat bars @ 41 mm c/c with 6 mm dia. Transverse twisted rods @ 100 mm c/c)

Number of Spans 1 2 3

Moment (kNm) 0.63 0.63 0.50

Section Modulus (cm3) 11.25 11.25 11.25

Stress Ratio Moment 0.45 0.45 0.36

Moment of Inertia (cm4) 16.88 16.88 16.88

Deflection (mm) 1.93 0.80 1.02

Ratio Deflection 0.29 0.12 0.15

Size 30 x 3 30 x 5

Number of Spans 1 2 3 1 2 3

Spans (mm) Load (kN/m2)

500 44.55 44.55 55.69 74.25 74.25 92.81

600 30.94 30.94 38.67 51.56 51.56 64.45

700 22.73 22.73 28.41 37.88 37.88 47.35

800 17.40 17.40 21.75 29.00 29.00 36.25

900 13.75 13.75 17.19 22.92 22.92 28.65

1000 11.14 11.14 13.92 18.56 18.56 23.20

1100 9.20 9.20 11.51 15.34 15.34 19.18

1200 7.73 7.73 9.67 12.89 12.89 16.11

1300 6.59 6.59 8.24 10.98 10.98 13.73

1400 5.68 5.68 7.10 9.47 9.47 11.84

1500 4.95 4.95 6.19 8.25 8.25 10.31

1600 4.22 4.35 5.44 7.03 7.25 9.06

1700 3.52 3.85 4.82 5.86 6.42 8.03

1800 2.96 3.44 4.30 4.94 5.73 7.16

1900 2.52 3.09 3.86 4.20 5.14 6.43

2000 2.16 2.78 3.48 3.60 4.64 5.80

2100 1.87 2.53 3.16 3.11 4.21 5.26

2200 1.62 2.30 2.88 2.70 3.84 4.79

2300 1.42 2.11 2.63 2.37 3.51 4.39

2400 1.25 1.93 2.36 2.08 3.22 3.93

2500 1.11 1.78 2.09 1.84 2.97 3.48

2600 0.98 1.65 1.86 1.64 2.75 3.09

2700 0.88 1.53 1.66 1.46 2.55 2.76

2800 0.79 1.42 1.49 1.31 2.37 2.48

2900 0.71 1.32 1.34 1.18 2.21 2.23

3000 0.64 1.24 1.21 1.07 2.06 2.01

Note:- 1) Loads are based on maximum allowable deflection of span / 150

Form Last Revised on 23-Aug-05

 ALLOWABLE LOADS ON CQ. PLATE
100.00
LOADS IN KN/M2

0.00
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

SPAN
CQ. PLATE

15 16 17 18 19 20 21 22 23 24 25 26
