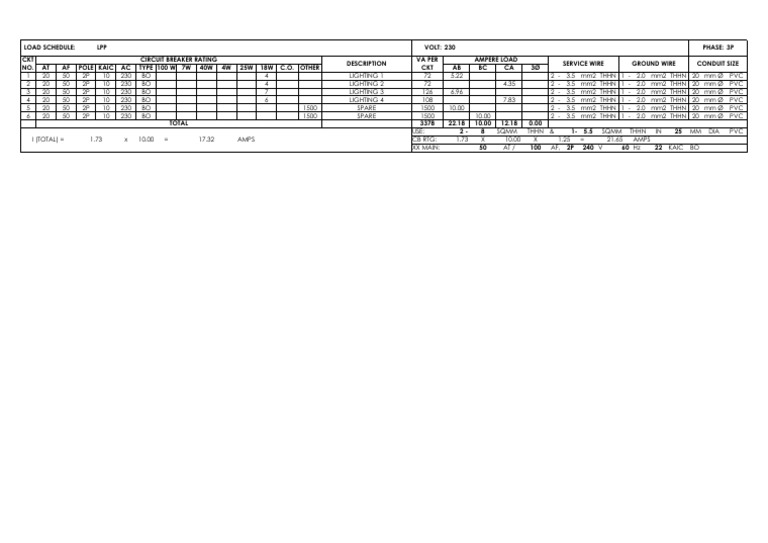

LOAD SCHEDULE: LPP VOLT: 230 PHASE: 3P

CKT CIRCUIT BREAKER RATING VA PER AMPERE LOAD


DESCRIPTION SERVICE WIRE GROUND WIRE CONDUIT SIZE
NO. AT AF POLE KAIC AC TYPE 100 W 7W 40W 4W 25W 18W C.O. OTHER CKT AB BC CA 3Ø
1 20 50 2P 10 230 BO 4 LIGHTING 1 72 5.22 2 - 3.5 mm2 THHN 1 - 2.0 mm2 THHN 20 mm Ø PVC
2 20 50 2P 10 230 BO 4 LIGHTING 2 72 4.35 2 - 3.5 mm2 THHN 1 - 2.0 mm2 THHN 20 mm Ø PVC
3 20 50 2P 10 230 BO 7 LIGHTING 3 126 6.96 2 - 3.5 mm2 THHN 1 - 2.0 mm2 THHN 20 mm Ø PVC
4 20 50 2P 10 230 BO 6 LIGHTING 4 108 7.83 2 - 3.5 mm2 THHN 1 - 2.0 mm2 THHN 20 mm Ø PVC
5 20 50 2P 10 230 BO 1500 SPARE 1500 10.00 2 - 3.5 mm2 THHN 1 - 2.0 mm2 THHN 20 mm Ø PVC
6 20 50 2P 10 230 BO 1500 SPARE 1500 10.00 2 - 3.5 mm2 THHN 1 - 2.0 mm2 THHN 20 mm Ø PVC
TOTAL 3378 22.18 10.00 12.18 0.00
USE: 2- 8 SQMM THHN & 1- 5.5 SQMM THHN IN 25 MM DIA PVC
I (TOTAL) = 1.73 x 10.00 = 17.32 AMPS CB RTG: 1.73 X 10.00 X 1.25 = 21.65 AMPS
XX MAIN: 50 AT / 100 AF, 2P 240 V 60 Hz 22 KAIC BO
