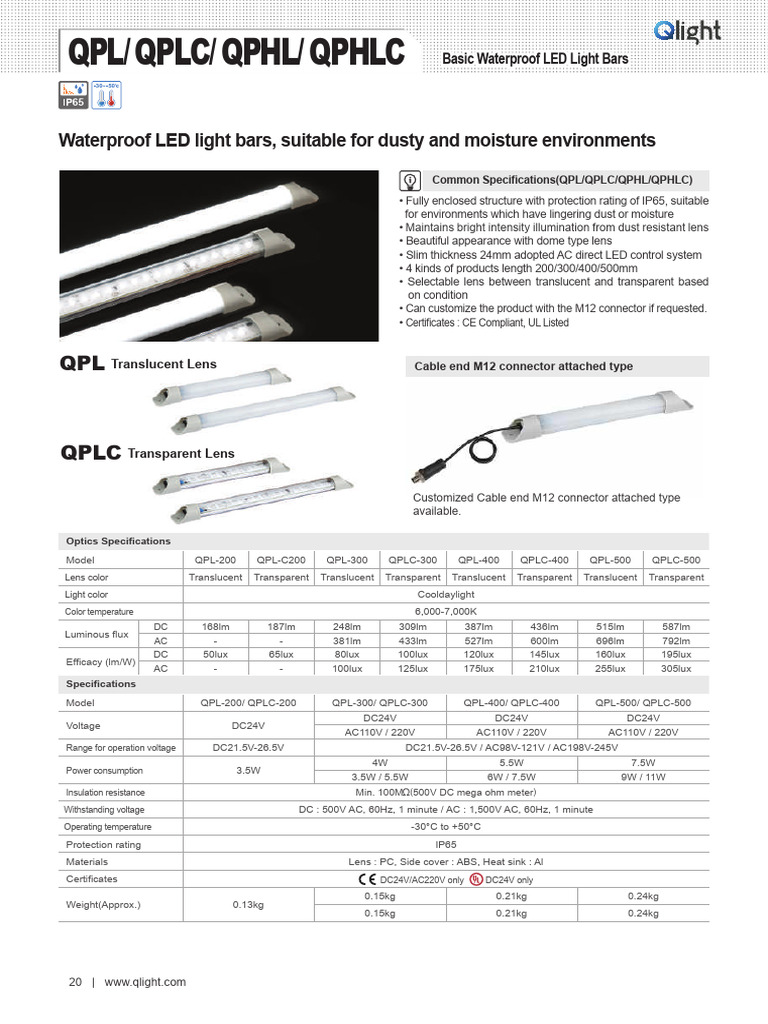

QPL/ QPLC/ QPHL/ QPHLC Basic Waterproof LED Light Bars
30 50
65
Waterproof LED light bars, suitable for dusty and moisture environments
Common Specifications(QPL/QPLC/QPHL/QPHLC)
• Fully enclosed structure with protection rating of IP65, suitable
for environments which have lingering dust or moisture
• Maintains bright intensity illumination from dust resistant lens
• Beautiful appearance with dome type lens
• Slim thickness 24mm adopted AC direct LED control system
• 4 kinds of products length 200/300/400/500mm
• Selectable lens between translucent and transparent based
on condition
• Can customize the product with the M12 connector if requested.
• Certificates : CE Compliant, UL Listed
QPL Translucent Lens Cable end M12 connector attached type
QPLC Transparent Lens
Customized Cable end M12 connector attached type
available.
Optics Specifications
Model QPL-200 QPL-C200 QPL-300 QPLC-300 QPL-400 QPLC-400 QPL-500 QPLC-500
Lens color Translucent Transparent Translucent Transparent Translucent Transparent Translucent Transparent
Light color Cooldaylight
Color temperature 6,000-7,000K
DC 168lm 187lm 248lm 309lm 387lm 436lm 515lm 587lm
Luminous flux
AC - - 381lm 433lm 527lm 600lm 696lm 792lm
DC 50lux 65lux 80lux 100lux 120lux 145lux 160lux 195lux
Efficacy (lm/W)
AC - - 100lux 125lux 175lux 210lux 255lux 305lux
Specifications
Model QPL-200/ QPLC-200 QPL-300/ QPLC-300 QPL-400/ QPLC-400 QPL-500/ QPLC-500
DC24V DC24V DC24V
Voltage DC24V
AC110V / 220V AC110V / 220V AC110V / 220V
Range for operation voltage DC21.5V-26.5V DC21.5V-26.5V / AC98V-121V / AC198V-245V
4W 5.5W 7.5W
Power consumption 3.5W
3.5W / 5.5W 6W / 7.5W 9W / 11W
Insulation resistance Min. 100MΩ(500V DC mega ohm meter)
Withstanding voltage DC : 500V AC, 60Hz, 1 minute / AC : 1,500V AC, 60Hz, 1 minute
Operating temperature -30°C to +50°C
Protection rating IP65
Materials Lens : PC, Side cover : ABS, Heat sink : Al
Certificates DC24V/AC220V only DC24V only
0.15kg 0.21kg 0.24kg
Weight(Approx.) 0.13kg
0.15kg 0.21kg 0.24kg
20 | www.qlight.com
QPL/ QPLC/ QPHL/ QPHLC Basic Waterproof LED Light Bars
30 50
65
QPHL Translucent Lens QPHLC Transparent Lens
Optics Specifications
Model QPHL-200 QPHLC-200 QPHL-300 QPHLC-300 QPHL-400 QPHLC-400 QPHL-500 QPHLC-500
Lens color Translucent Transparent Translucent Transparent Translucent Transparent Translucent Transparent
Light color Cooldaylight
Color temperature 6,000-7,000K
DC 289lm 344lm 460lm 529lm 668lm 768lm 803lm 907lm
Luminous flux
AC - - 505lm 582lm 714lm 814lm 927lm 1,094lm
DC 80lux 100lux 120lux 150lux 190lux 230lux 250lux 310lux
Efficacy (lm/W)
AC - - 135lux 170lux 200lux 250lux 290lux 375lux
Specifications
Model QPHL-200/ QPHLC-200 QPHL-300/ QPHLC-300 QPHL-400/ QPHLC-400 QPHL-500/ QPHLC-500
DC24V DC24V DC24V
Voltage DC24V
AC110V / 220V AC110V / 220V AC110V / 220V
Range for operation voltage DC21.5V-26.5V DC21.5V-26.5V / AC98V-121V / AC198V-245V
5.5W 8.5W 12W
Power consumption 4.8W
4W / 6.5W 7W / 9W 10W / 12W
Insulation resistance Min. 100MΩ(500V DC mega ohm meter)
Withstanding voltage DC : 500V AC, 60Hz, 1 minute / AC : 1,500V AC, 60Hz, 1 minute
Operating temperature -30°C to +50°C
Protection rating IP65
Materials Lens : PC, Side cover : ABS, Heat sink : Al
Certificates - DC24V/ AC220V only DC24V only
0.22kg 0.31kg 0.41kg
Weight(Approx.) 0.13kg
0.23kg 0.32kg 0.42kg
Technical Diagram (Units : mm)
QPL/ QPHL 200/ 300/ 400/ 500
QPLC/ QPHLC 200/ 300/ 400/ 500
2-Ø5.2 HOLES(Slot hole) A
C
7
MODEL A B C
39.4
5.2
QPL/ QPHL/ QPLC/ QPHLC 200 200 100 175
FITTING HOLES QPL/ QPHL/ QPLC/ QPHLC 300 300 200 275
QPL/ QPHL/ QPLC/ QPHLC 400 400 300 375
B
QPL/ QPHL/ QPLC/ QPHLC 500 500 400 475
24.4
2.5
※ External power line : DC TYPE - UL2464 AWG22(0.3sq×2C) 450mm
AC TYPE - VCTFK(0.75sq×2C) 450mm
www.qlight.com | 21
QPL/ QPLC/ QPHL/ QPHLC Basic Waterproof LED Light Bars
QMFHL-300
Light Distribution and Illuminance QMFHL-200
Model Light Distribution Curve Illumination Feature
200 200 200 200
QPL500
150
50lux 150
80lux 150
120lux 150
160lux
QPL400
100 100 100 100
QPL QPL300
50 QPL200 50 50 50
[lx] 0 [lx] 0 [lx] 0 [lx] 0
2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0
Distance (Unit: m) Distance (Unit: m) Distance (Unit: m) Distance (Unit: m)
200 200 200 200
QPLC500
150
65lux 150
100lux 150
145lux QPLC400 150
195lux
100 100 100 100
QPLC QPLC300
QPLC200
QPLC200
50 50 50 50
[lx] 0 [lx] 0 [lx] 0 [lx] 0
2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0
Distance (Unit: m) Distance (Unit: m) Distance (Unit: m) Distance (Unit: m)
300 300 300 300
QPHL500
200 80lux 200 120lux 200 190lux 200 250lux
QPHL400
QPHL 100 100
QPHL300
100 100
QPHL200
[lx] 0 [lx] 0 [lx] 0 [lx] 0
2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0
Distance (Unit: m) Distance (Unit: m) Distance (Unit: m) Distance (Unit: m)
400 400 400 400
QPHLC500
300
100lux 300
150lux 300
230lux 300
310lux
QPHLC400
200 200 200 200
QPHLC QPHLC300
100 QPHLC200 100 100 100
[lx] 0 [lx] 0 [lx] 0 [lx] 0
2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0 2.0 1.0 0.0 1.0 2.0
Distance (Unit: m) Distance (Unit: m) Distance (Unit: m) Distance (Unit: m)
Ordering Specification
QPHL 500 - 24
[Model number] [Product length] [Voltage]
| | |
• QPL : Translucent lens • 200 : 200mm • 24-DC24V
• QPLC : Transparent lens • 300 : 300mm • 110-AC110V
• QPHL : High illumination translucent lens • 400 : 400mm • 220-AC220V
• QPHLC : High illumination transparent lens • 500 : 500mm
