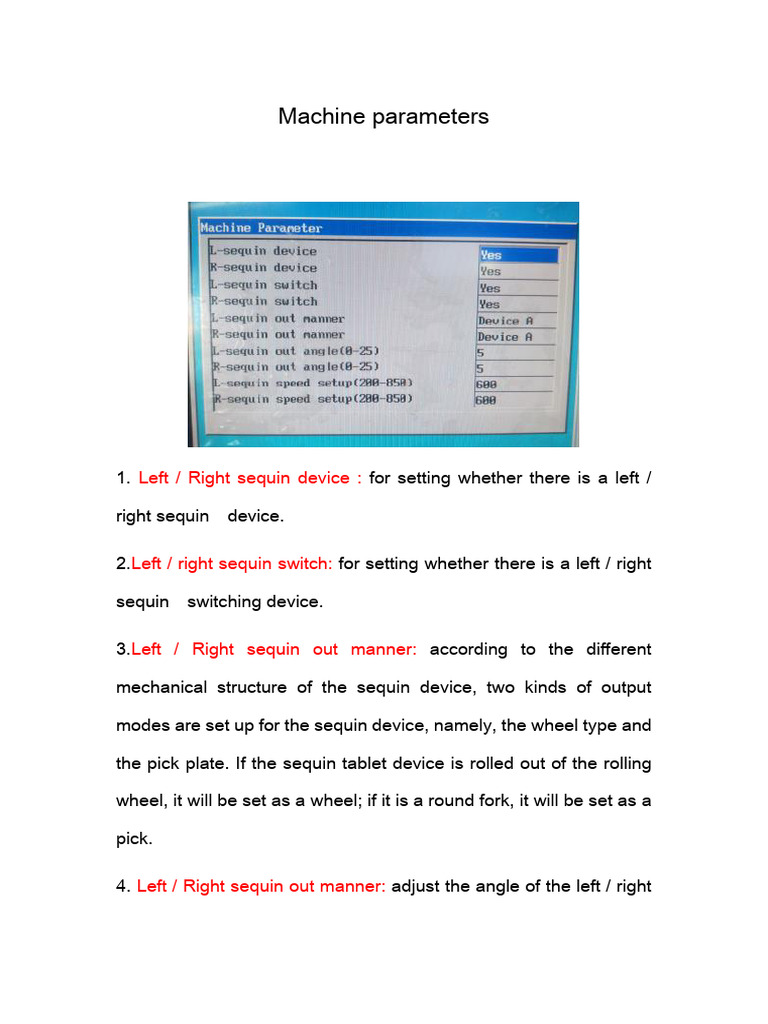

Machine parameters

1. Left / Right sequin device : for setting whether there is a left /

right sequin device.

2.Left / right sequin switch: for setting whether there is a left / right

sequin switching device.

3.Left / Right sequin out manner: according to the different

mechanical structure of the sequin device, two kinds of output

modes are set up for the sequin device, namely, the wheel type and

the pick plate. If the sequin tablet device is rolled out of the rolling

wheel, it will be set as a wheel; if it is a round fork, it will be set as a

pick.

4. Left / Right sequin out manner: adjust the angle of the left / right
sequin , and send the signal when the spindle reaches the set

angle.

5. Left / Right sequin speed setup: sequin film is defined as the

maximum speed of sequin embroidery.

6. Auto-start sequin: 'yes', when encountered sequin plate

embroidery automatically lifting sequin frame embroidered,' no ',

encountered when the sequin embroidery, waiting for the rod drive.

7.Auto-lifting after break : the parameter is' yes', the sequin device

will rise automatically when the broken thread stops, the parameter

is' no ', and the sequin device is not lifted when the thread is

broken.

8.Sequin cut line head : set the sequin device without raising the

number of needles for 50 needles. When embroidering a sequin

device , there are N jumps between a closed sequin device and the

next open sequin device . If the N<50 needle, the sequin device will

not be lifted, or the sequin device will be lifted automatically.

9.Flat seqin speed: "separate": separate the needle marks in the

sequin and the speed of the gold slices, needle tracking

according to the highest speed of embroidery, sequin according to

the maximum speed of sequin embroidery; "not separate":

according to the highest speed of sequin embroidered.

10.Sequin shelf fall time: when it starts, the time needed for the

sequin to fall from the upper position to the working position.

11. M-axis 0 after pulling: whether the M axis automatically return to

the reference point zero after the pull rod stops.

12.M-axis 0 after break: whether the M axis needs to return to the

reference point zero after disconnection.

13.M-axis runs after pulling: ‘Yes’ :M axis rotates when the handle

backtrack, the M axis rotates. 'No' the M axis does not rotate when

the handle backtrack. Embroidery should be set to 'yes' to prevent

the tape from rotating.

14.Special high speed: set the maximum speed for special head

embroidery.
15.Special low speed: set the minimum speed for special head

embroidery.

16.Special trim manner : For special head embroidery such as

chenille embroidery, the trimming type is defined, 'no trimming ',

and no trimming is performed for special embroidery. ` Cut the

thread below ', means cut the top thread. `cut the thread above and

below ', means both cut the top thread and cut the bobbin thread,

and hook knife for the hook line and other actions.

17.Special swerve speed : embroidery to the needle track of turn,

the main axis and M axis drop speed. When it is "0", the speed of

reduction is not reduced. The greater the value, the more obvious
speed of reduction.

18.Special stop stitches: in the special embroidery, when

encountered jump pin code whether or not to stop. ` Constantly

'encountered jumping pin code does not stop the car,' 1-9 'if set

value & GT; = The actual number of needles, then stop, otherwise

stop.

19.Special jump stitches: Special embroidery when encountered in

the pattern jump needle number of needles, the number of needles

in the pattern is N, '1-9', if the parameter value N, jump pin code

according to the needle treatment, jump pin does not cut lines.

20.Stop before jumping : "Yes": stop before cross the border of

box. ’No’: not stoping

21.pattern of coiling : Divide left and right, indicating the rotation

direction of the winding device, the larger the value, the denser the

winding.

22.Tape double winding: "Yes" choose two-line wheel mode,

non-serrated embroidery; "No" is an ordinary line wheel model that

can be embroidered with Sawtooth embroidery.

23.Pattern of zigzag: set the 6 kinds of embroidery effects of

Sawtooth embroidery: mode 1: each pin swing swing once. Mode 2:

Same mode 1, suitable for the embroidery of rough ropes. See the

electric control special embroidery parameter "when Sawtooth

mode 2 embroidery frame compensation". Mode 3: Drop two

needles at the same point and swing each pin swing once, enter a

pin without swinging, alternating. Mode 4: One swing per pin

swing and one swing per three pins swing alternately. Mode 5: A

pin falls at the same point and the pendulum swings once. A pin

does not swing, alternating. Mode 6: One swing per two pins.

24.Zigzag 2 frame compensation: When the rope is thick, the swing

direction of the Embroidered frame must be the same as the

direction of the pendulum. When you need to form a curve, the

opposite is true.

25.Zigzag swing position: the initial position of sawtooth embroidery

pendulum bar
26.Zigzag start angle: when the pendulum bar starts to swing, the

angle that the spindle moves, describes the relative position

between the needle bar and the rope, and adjusts the quality of the

embroidery. From 1 to 3, the angle of the pendulum is in advance in

turn

27.Zigzag swing: the amplitude swing of the connecting rod, when

the machine is doing sawtooth embroidery.

28.Press foot lift height: adjust the presser stroke of the work

position to the lock position.

39.Adjust foot height: the distance from the starting to the shifting

frame.

30.Press foot amplitude: the magnitude of the vibration of the

presser moves up and down with each needle.

31.Lift foot when start: "yes" the presser automatically lifts to the

high position, used for high position detection switch device; "no"

open the presser in situ.

32.Protect last sequin: "yes" means the end of the flat embroidered

head is equipped with a sequin protection device. In the special

embroidery stitch, if the sequin is in the lower position, the

machine will detect the sequin frame not in the normal position

and stop, in order to prevent the damage of the sequin hitting the

frame. "No" is not installed.

33.Ratio of swerve and dec: in the special embroidery process, the

speed of turning is reduced.

34.Speed level of laser EMB: when it is in laser embroidery, control

the speed of shifting frame. The larger the parameter value is, the

faster the frame speed.

Embroidery parameter
1. Surface thread detect: "yes" it detects the top thread broken,

operation box prompts "top thread broken", "no" it does not

detect, and does not alarm when the top thread is broken.

2. Bottom thread detect: "yes" it detects the bottom thread broken,

operating box prompts "bottom thread broken", "no" does not

detect, and does not alarm when the bottom thread is broken.

3.Stitch not T.B.detected: the number of stitches is not detected

when starting embroidery.

4.Stitch for filter T.B.: this parameter is used to set the number of

needles that are returned automatically when the thread breaking

detection is set to "yes" and the machine detects the thread broke

and stops automatically. If the number of return needles is set to 0,

there is no automatic return. If the set value is greater than 0,

automatic return is set, and the number of automatic return needles

is set as the set value

5.Auto trace numbers: when mending, where should the heads of

unbroken start embroidering? If the breakpoint advances the

number of stitches equals to zero, then make up the embroidery to

the retreat point, all the heads start the embroidery. If the number of

stitches in the breakpoint is more than zero, then start embroidering

to make up the embroidery where the advanced number of stitches.

6.Pre. stitch at break:At which needle before thread breakage point

of the head without thread breakage to begin to embroider when

the embroidery is mended: If the parameter’s value is zero, all

heads will work when mending embroidery back to the starting

back point; if the value is above zero all heads will work at the

needle place where the embroider starting.

7.All mending or not: set the mending status to the breakage heads

or all heads.

8.End mending mode: movement about to be complished when

mending is finished, including slow down, stop, or keep the same

speed.

9.Trim for flat: Whether switch the function of trimming when flat

embroidery.
10.Trim length: length of trimming

11. Lock stitch when trim: If the machine should lock the

stitch when trim it.

12. Speed when trimming: the working speed of the main

shaft when trimming.

13. Rounds after trimming: circles needed by the main shaft

from slowing down to stop when trimming . Whether it takes the

main shaft one round or two for the main shaft to stop or not.

14. Frame swing after trim: Place the frame after thread

trimming, so the upper thread can be detached and improve the

quality of the embroidery.

 15. Starting speed after trim: After thread trimming, the

starting speed of the spindle when embroidering.

16. Joggle stitches: After trimming, the number of start slow

needles of the spindle when embroidering.

Number of lock stitches after thread trimming: In the case of the

thread lock opening, the number of lock stitches automatically

added after the needle is taken after trimming, the default lock

stitchis one stitch.

17. Lock stitch after trim: The length of the lock stitch is

adjustable the long, medium and short parameters according to

different machines to ensure the embroidery production being

smooth and tidy.

18. Stitch locker length: the speed of the spindle from stop to

start.

19. Starting Rpm: the number of start slow needles of the

spindle when embroidering.

20. Jogging for start:Rotary circle numbers of main shaft at

the low speed from high-speed states. Choose “ 0 ” indicates

automatic, software adjusts to two times automatically.

 21. Flat high speed /Flat low speed: Maximum/minimum

speed setting of the spindle when doing flat embroidery.

22.Step to slow speed:Setting how long the long stitch is.

The parameters are 0.1 millimeter as a unit, 50 is 5mm. The

chief axis speed will automatically change according to the length

of the stitch when embroidering long stitch. The longer the stitch,

the lower the speed. When embroidering 3D pattern, the higher the

height of pattern,the smaller the parameter, so as not to break the

needle. When the actual stitching is shorter than the set value, the

machine is embroidered at the normal speed. When the stitching

step is longer than the set value, the machine will automatically

reduce the speed or jump the stitch according to the "long stitch

step processing". But the minimum speed will not be lower than the

minimum speed in the machine speed setting. Therefore, this value

should be determined according to the size of the machine.In

general,Machine less than 6 heads sets the value below “70”,

Machine less than 12 heads sets the value below “60”,Machine

more than 20 heads,long head internal and wide embroidery frame

set below “45”.

23.Large steps: There are 2 ways to embroider long stitches,slow

speed and jump stitch. When the actual stitching is longer than the

setting value in the "automatic transmission data", the embroidery

method is handled in 2 ways: slow speed and jump stitch. Slow

speed treatment means that the chief axis can automatically reduce

the speed according to the length of the stitch. The magnitude of

the speed reduction is different from the actual stitch step, the

longer the stitch, the lower the speed. The jumping stitch treatment

means to make the actual embroidery stitch according to the

proportion of "jumping segmentation", and finish the action at the

split point lock head empty jump, that is, the spindle runs two

circles after the segmentation. (A stitch that is two times longer than

the jump mode will shift the frame according to the multiple of the

division parameter.) The first circle only moves the frame without

stitching, The second circles drop the needle to complete a set of

"jump needle" processing. (When running for more than two cycles,

the lock is moved to the last lap of the long stitch.)

24. Step length to jump：Setting the distance to be separated

when the jumping stitch. The parameter is 0.1mm. There are 63

and 80 two files. If the actual stitching distance is less than the set

value, the needle will not jump. If the actual needle step is larger

than the set value, the jump point will be set at the split point. This

setting is only valid when selecting the "jumping stitch" in the "long

stitch processing" parameter.

25.Jump stitches: how to deal with skipping stitches during

embroidering operation. When the value is set as “0”, the machine

will recognize it as skipping stitches, no trimming; when there are N

times of continuous skipping stitches, and the value of N< a certain

value, the machine will recognize it as skipping stitches, no

trimming; if N>=a certain value set manually, the machine will

regard it as over-frame, i.e. it will stop working, do trimming, move

frame, then restart working automatically.

26.Jump speed: when skipping stitch code appears, the

embroidery speed can be set through the following 2 options: Fixed

speedset manually and Speed adjustment by machine itselfwith the

pattern files.

27.Speed when over frame: When the embroidery frame goes to

offset point or starting point, the speed of it can be set ashigh speed

or low speed.

28. Stop at same color：After setting auto-start status of color

change function, the machine will stop working or continue to work

according to the parameters preset after the previouscolor is

finished when there are 2 same colors next to each other.

29.Auto set start point:“Yes” The starting point is where the frame

stops, no need to set starting point manually.

“No”: The starting point has to be set manually.

30.Back to start point: “Yes”Embroidery frame will go back to the

starting point after embroidery of the pattern is finished.“No” The

embroidery frame will stop at the position where it finishes the last

stitch of the embroidery pattern.

31.Main-axis stop aptly: after the stop, the spindle shall normally be

at 100 degrees. The parameter is set as "yes". When the spindle is

at 100 degrees, the pull rod can be embroidered. If the spindle is

not in 100 degrees, the 'spindle is not in position' is displayed. The

parameter is set to "no", and the pull rod will automatically click and

then embroider.

32.Unit for move frame: the number of pins per step when using the

pull rod in and out of the frame, and if using "three needles", it

means that every in/out of the frame is three stitches.

33.Unit for slow move: when the rewind bar enters the

frame/rewind the frame, the number of slow needles is initially

adopted. When the rewind box is completed, the rapid rewind box

will be carried out.

34.Moving angle A Moving angle B: refers to the Angle of the

spindle when the frame is moved; If the speed is greater than the

minimum speed and is A large pin code, take the frame Angle A

when moving the frame, otherwise take B. For the

three-dimensional embroidery, this Angle should be set relatively

large, so that the needle completely out of the cloth before moving

the frame, preventing breakage of the needle.

35.X-axis drive parameter: the width and effect of embroidery can

be adjusted by changing the time of frame shifting and changing

the width of X-ray stitch.

36.Y-axis drive parameters: by changing the frame shifting time

and changing the length of y-direction stitch, the length of

embroidery products and the effect of embroidery products can be

adjusted.

37.Software limitation: is the software box limit used? Only setting

the "software limit no" in machine parameters to "limit" is valid.

There is no hardware limit switch, or to limit patterns to a small

range of embroidery, this parameter needs to be turned on and the

"software limit" function is used to determine the scope of

embroidery. General cap embroidery more.

38.Thick cloth compensation: When embroidering thick materials, the

thicker the embroidery, the larger the parameter setting should be.

39.Compensate for stop: refers to the pre-stop offset of the main

shaft brake. The larger the parameter is, the earlier the pre-stop

is.To some extent, it can solve the failure of main shaft improper
stop in position.

40.Parameter of needle down: The angular position of the spindle

when the needle is stopped in the lower position.

41.Check trim if ok: Check if the trimmer is in place. The parameter

is ‘Yes’. After the lever is pulled, check whether the trimmer is in

place. If it is in place, it will be embroidered, otherwise it will report

“Trimmer in place”; the parameter is “No”, and the direct

embroidery will not be detected.

42. Check hook if ok: Check if the hook knife is in place. The

parameter is ‘Yes’. After the lever is pulled, check if the hook knife

is in place. If it is in place, it will be embroidered, otherwise it will be

reported as “hook knife is not in place”; if the parameter is “No”, the

embroidering will be started with no test.

43.Cutter open modification: The splitting thread adjustment is the

angle adjustment of the knife, and the spindle angle when the start

splitting thread is activated. The larger the value, the larger the

angle, which is suitable for special models of motor trimming.

44.Cutter close modification: adjustment of the closing knives angle.

Adjusting spindle angle when adjusting and starting the knives.

The larger the value, the larger the angle, which is suitable for

special models of motor trimming.

45.Adjust hook angle: can book the time. Actually, it is adjustment

of the angle of the spindle .

46.Head pulse modification: adjust the lock pulse voltage value.

The larger the value, the larger the voltage. This parameter does

not allow you to arbitrarily modify its default value for no special

reason.

47.Button angle compensate: The angle of the buckle line is

compensated when starting the embroidery. The larger the

parameter setting value, the larger the compensation angle.

48.Boring embroidery needle: the needle you need when you use

the boring embroidery.

49.Offset after boring: only when the first needle position is

assembled a boring knife with sewing offset and the hole stitching

is done with 1 needle position, this parameter is set to "Yes" ，then

the software automatically increments the offset. If the hole is made

in other needle positions, this parameter setting is meaningless.

50.Cording needle: Set the embroidery needle position (1-9) during

working. If there is no such device, the parameter selection is

“None”.

51.Cord embroidery speed: The maximum speed of cord

embroidery.

52.Height of lock-chenille: the length of the pull-out thread when

embroidering, range 0-35mm
