1.

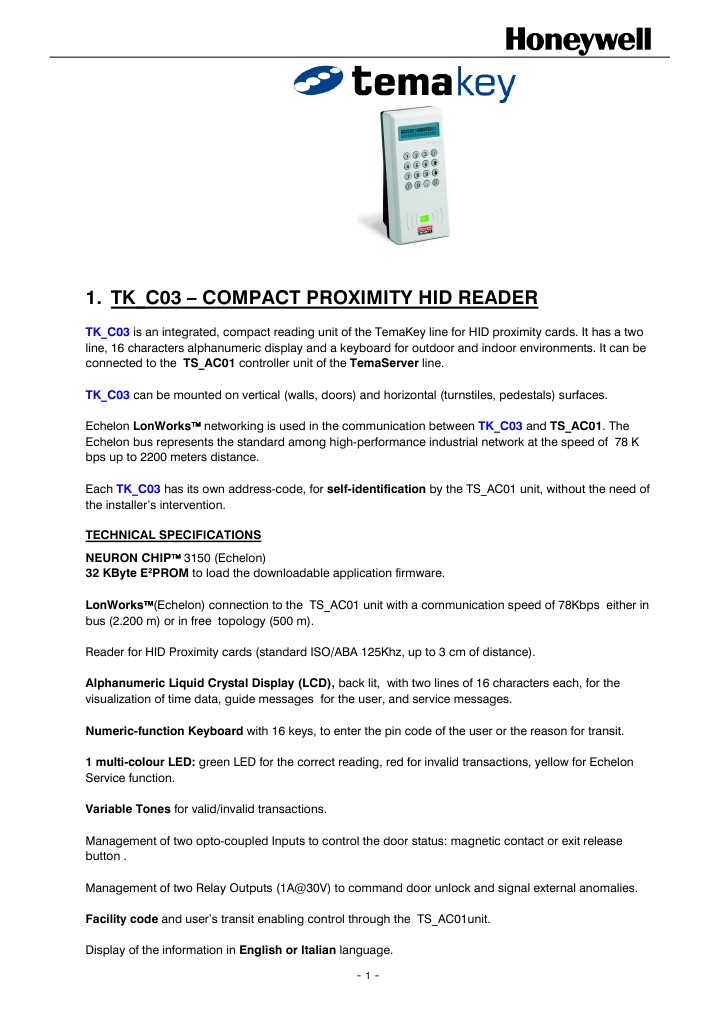

TK_C03 COMPACT PROXIMITY HID READER

TK_C03 is an integrated, compact reading unit of the TemaKey line for HID proximity cards. It has a two line, 16 characters alphanumeric display and a keyboard for outdoor and indoor environments. It can be connected to the TS_AC01 controller unit of the TemaServer line. TK_C03 can be mounted on vertical (walls, doors) and horizontal (turnstiles, pedestals) surfaces. Echelon LonWorks networking is used in the communication between TK_C03 and TS_AC01. The Echelon bus represents the standard among high-performance industrial network at the speed of 78 K bps up to 2200 meters distance. Each TK_C03 has its own address-code, for self-identification by the TS_AC01 unit, without the need of the installers intervention. TECHNICAL SPECIFICATIONS NEURON CHIP 3150 (Echelon) 32 KByte E2PROM to load the downloadable application firmware. LonWorks(Echelon) connection to the TS_AC01 unit with a communication speed of 78Kbps either in bus (2.200 m) or in free topology (500 m). Reader for HID Proximity cards (standard ISO/ABA 125Khz, up to 3 cm of distance). Alphanumeric Liquid Crystal Display (LCD), back lit, with two lines of 16 characters each, for the visualization of time data, guide messages for the user, and service messages. Numeric-function Keyboard with 16 keys, to enter the pin code of the user or the reason for transit. 1 multi-colour LED: green LED for the correct reading, red for invalid transactions, yellow for Echelon Service function. Variable Tones for valid/invalid transactions. Management of two opto-coupled Inputs to control the door status: magnetic contact or exit release button . Management of two Relay Outputs (1A@30V) to command door unlock and signal external anomalies. Facility code and users transit enabling control through the TS_AC01unit. Display of the information in English or Italian language.

-1-

Year 2000 compliant: filing, communication and management of the year with 4 digits. Low voltage power-supply (12 Vdc/ac) from the TemaPower unit for maintenance safety and protection against overcharging and polarity inversion Tamper protection of the unit to prevent opening. Protection Watchdog for recovery in case of system malfunction. ELECTRICAL SPECIFICATIONS Supply voltage: 12 Vdc/ac -15%/+20%. Energy consumption: 1.6W (2.0 W max). LonWorks cabling: up to 500m via unshielded twisted pair in free topology up to 2200m via unshielded twisted pair in network topology PHYSICAL SPECIFICATIONS IP55 rating for the terminal. Vertical or horizontal mounting on a 15 angle Wall mounting with a separate support. Dimensions: W=72, H=160, D=75 mm. Weight: 0,5 Kg ENVIRONMENTAL SPECIFICATIONS Working Temperature: 0C+50C. Relative Humidity: up to 95% without condensation. CERTIFICATIONS AND COMPLIANCE TK_C03 is

fully compliant with the mandatory requirements of the European Community Council Directives in regards to Electromagnetic Compliance. 92/68/CEE; 93/68/CEE

Electromagnetic-Compatibility: 89/336/CEE;
