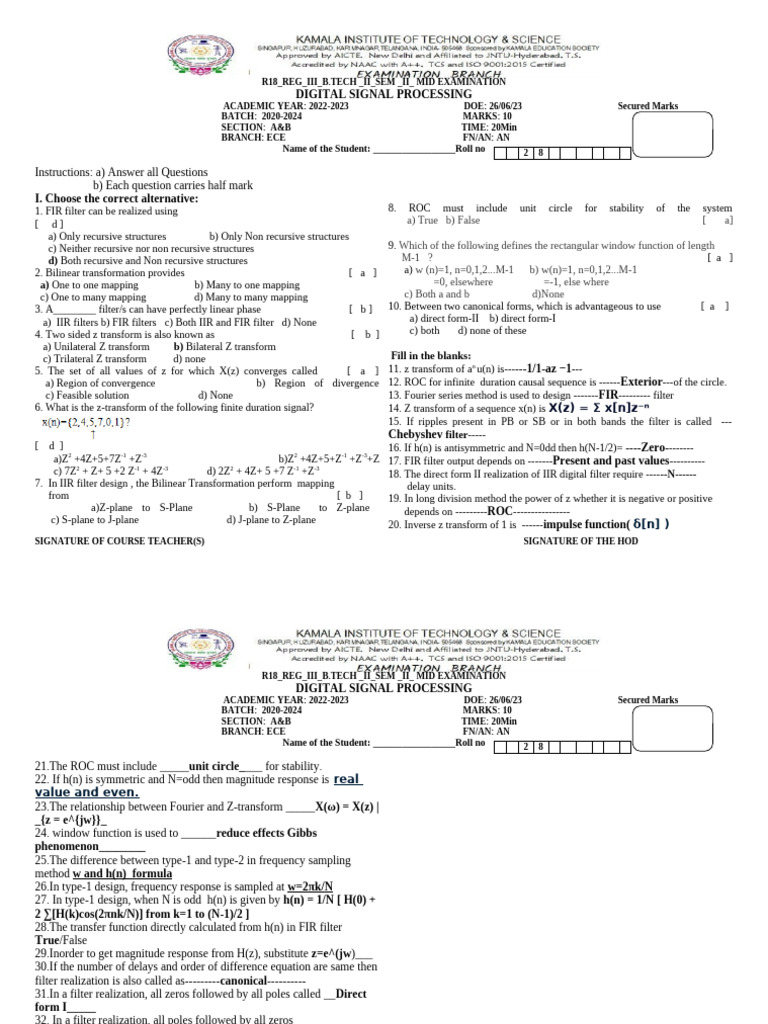

R18_REG_III_B.
TECH _II_SEM _II_ MID EXAMINATION
DIGITAL SIGNAL PROCESSING
ACADEMIC YEAR: 2022-2023 DOE: 26/06/23 Secured Marks
BATCH: 2020-2024 MARKS: 10
SECTION: A&B TIME: 20Min
BRANCH: ECE FN/AN: AN
Name of the Student: _________________Roll no 2 8
Instructions: a) Answer all Questions
b) Each question carries half mark
I. Choose the correct alternative:
1. FIR filter can be realized using 8. ROC must include unit circle for stability of the system
[ d] a) True b) False [ a]
a) Only recursive structures b) Only Non recursive structures
c) Neither recursive nor non recursive structures 9. Which of the following defines the rectangular window function of length
d) Both recursive and Non recursive structures M-1 ? [ a ]
2. Bilinear transformation provides [ a ] a) w (n)=1, n=0,1,2...M-1 b) w(n)=1, n=0,1,2...M-1
a) One to one mapping b) Many to one mapping =0, elsewhere =-1, else where
c) One to many mapping d) Many to many mapping c) Both a and b d)None
3. A________ filter/s can have perfectly linear phase [ b] 10. Between two canonical forms, which is advantageous to use [ a ]
a) IIR filters b) FIR filters c) Both IIR and FIR filter d) None a) direct form-II b) direct form-I
4. Two sided z transform is also known as [ b ] c) both d) none of these
a) Unilateral Z transform b) Bilateral Z transform
c) Trilateral Z transform d) none Fill in the blanks:
5. The set of all values of z for which X(z) converges called [ a ] 11. z transform of an u(n) is------1/1-az −1---
a) Region of convergence b) Region of divergence 12. ROC for infinite duration causal sequence is ------Exterior---of the circle.
c) Feasible solution d) None 13. Fourier series method is used to design -------FIR--------- filter
6. What is the z-transform of the following finite duration signal? 14. Z transform of a sequence x(n) is X(z) = Σ x[n]z⁻ⁿ
15. If ripples present in PB or SB or in both bands the filter is called ---
Chebyshev filter-----
[ d ] 16. If h(n) is antisymmetric and N=0dd then h(N-1/2)= ----Zero--------
a)Z2 +4Z+5+7Z-1 +Z-3 b)Z2 +4Z+5+Z-1 +Z-3+Z 17. FIR filter output depends on -------Present and past values----------
c) 7Z2 + Z+ 5 +2 Z-1 + 4Z-3 d) 2Z2 + 4Z+ 5 +7 Z-1 +Z-3 18. The direct form II realization of IIR digital filter require ------N------
7. In IIR filter design , the Bilinear Transformation perform mapping delay units.
from [ b ] 19. In long division method the power of z whether it is negative or positive
a)Z-plane to S-Plane b) S-Plane to Z-plane depends on ---------ROC----------------
c) S-plane to J-plane d) J-plane to Z-plane 20. Inverse z transform of 1 is ------impulse function( δ[n] )
SIGNATURE OF COURSE TEACHER(S) SIGNATURE OF THE HOD
R18_REG_III_B.TECH _II_SEM _II_ MID EXAMINATION
DIGITAL SIGNAL PROCESSING
ACADEMIC YEAR: 2022-2023 DOE: 26/06/23 Secured Marks
BATCH: 2020-2024 MARKS: 10
SECTION: A&B TIME: 20Min
BRANCH: ECE FN/AN: AN
Name of the Student: _________________Roll no 2 8
21.The ROC must include _____unit circle____ for stability.
22. If h(n) is symmetric and N=odd then magnitude response is real
value and even.
23.The relationship between Fourier and Z-transform _____X(ω) = X(z) |
_{z = e^{jw}}_
24. window function is used to ______reduce effects Gibbs
phenomenon________
25.The difference between type-1 and type-2 in frequency sampling
method w and h(n) formula
26.In type-1 design, frequency response is sampled at w=2πk/N
27. In type-1 design, when N is odd h(n) is given by h(n) = 1/N [ H(0) +
2 ∑[H(k)cos(2πnk/N)] from k=1 to (N-1)/2 ]
28.The transfer function directly calculated from h(n) in FIR filter
True/False
29.Inorder to get magnitude response from H(z), substitute z=e^(jw)___
30.If the number of delays and order of difference equation are same then
filter realization is also called as---------canonical----------
31.In a filter realization, all zeros followed by all poles called __Direct
form I_____
32. In a filter realization, all poles followed by all zeros
called Direct form II____
33.The number of delay units are reduced in ___direct form II_____
compared to direct from I in filter realization
SIGNATURE OF COURSE TEACHER(S) SIGNATURE OF THE HOD
