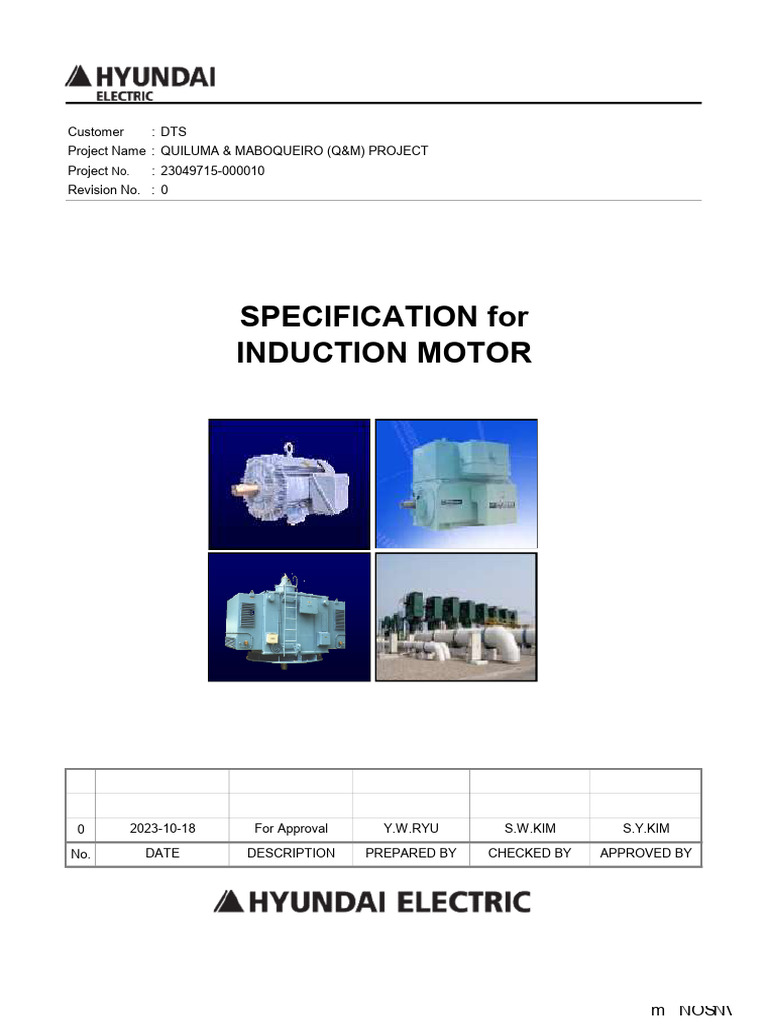

Customer : DTS

Project Name : QUILUMA & MABOQUEIRO (Q&M) PROJECT

Project No. : 23049715-000010
Revision No. : 0

SPECIFICATION for
INDUCTION MOTOR

0 2023-10-18 For Approval Y.W.RYU S.W.KIM S.Y.KIM

No. DATE DESCRIPTION PREPARED BY CHECKED BY APPROVED BY

 COMPANY Eni Angola Exploration B.V. JOB ORDER Revision
COUNTRY Angola 097275 - 817143

Eni Angola Exploration B.V. PLANT GTP - Onshore Plant Doc. n°

PROJECT Quiluma & Maboqueiro (Q&M) 362200XXXXYYYYY

TECHNICAL DATA SHEET FOR HOT OIL Sheet / of Compiled Date

STORAGE TANK PUMPS (TDS) X / X

THREE-PHASE ASYNCHRONOUS MOTORS (TDS)

TAG: 003611/2/3EKF001A/C/E/G QUANTITY: 12
TYPE: HL-XD
ENVIRONMENTAL CONDITIONS
TEMPERATURE: MIN 16 °C MAX 32 °C DESIGN 32 °C
MAXIMUM RELATIVE HUMIDITY: 85 % ALTITUDE 13.88 m a.s.l.
CLIMATE: TROPICAL CONTINENTAL DESERT HUMID/COASTAL/MARINE
H2S POLLUTION - CONCENTRATION p.p.m
SUPPLY SYSTEM DATA
RATED VOLTAGE : 400 V - FREQUENCY: 50 Hz
VOLTAGE VARIATION: ± 10 (5) % - FREQUENCY VARIATION: ± 5 (5) %
MAX. COMBINED VOLTAGE AND FREQUENCY VARIATION :
VOLTAGE: + 5 % - 5 % FREQUENCY: + 2 % - 2 %
SHORT CIRCUIT CURRENT: MINIMUM: kA - MAXIMUM: 65 kA
NUMBER OF PHASES: 3 NUMBER OF WIRES: 6
SYSTEM NEUTRAL: INSULATED SOLIDLY EARTHED RESISTANCE EARTHED
LOAD DATA (VTA)
SPEED AT FULL LOAD (NFL): r.p.m.
ABSORBED POWER AT FULL LOAD (PFL): kW (AT MOTOR SHAFT)
TORQUE AT FULL LOAD (TFL): N·m (AT MOTOR SHAFT)
SPEED-TORQUE DIAGRAM: SEE ANNEXED DIAGRAM
SPEED TORQUE EQUATION: A + B · s + C · s 2 + D · s3 N·m
WHERE: A= B= C= D=
DIRECTION OF ROTATION (1): CW CCW BI-DIRECTIONAL
MOTOR DATA
MANUFACTURER: HYUNDAI ELECTRIC MODEL: PPO1129516ME00HAA0FQ30D6Y1
APPLICABLE STANDARDS: IEC NEMA VDE BS
DUTY: CONTINUOUS SERVICE FACTOR: S-1
RATED VOLTAGE: 400 V WINDING CONNECTION: STAR DELTA
NUMBER OF POLES: 4P RATED FREQUENCY: 50 Hz RATED POWER: 11 kW
EFFICIENCY CLASS (2): IE 2 IE 3
AVAILABLE POWER AT MOTOR SHAFT AT DESIGN TEMPERATURE FOR SPECIFIED DUTY: 11 kW
INSULATION CLASS: F - TEMPERATURE RISE LIMITS ACCORDING TO CLASS B
SUITABLE FOR VSD REINFORCED INSULATION
ROTOR TYPE: SQUIRREL CAGE DOUBLE SQUIRREL CAGE WOUND
MOUNTING ARRANGEMENT CODE: V6 - FRAME SIZE: 160L
INSTALLATION : INDOOR OUTDOOR SHELTERED
SAFETY EXECUTION Ex-db eb IIB T3 / IECEx BAS 13.0076X
PROTECTION DEGREE : MOTOR FRAME: IP 56 - TERMINAL BOXES: IP 66
COOLING METHOD: IC 411 - TEFC
LUBRICATION: OIL GREASE
LUBRICATION INTERVAL: N/A
BEARINGS: BALL SLEEVE TYPE INSULATED
MAX. NOISE LEVEL: 82 dB(a) AT 1 m -
STARTING METHOD: DIRECT ON LINE AUTOTRANSFORMER RESISTANCE
SOFT STARTER VSD
QUANTITY OF SEQUENTIAL STARTS FROM WARM CONDITIONS:
COUPLING: HTD-Belt GEAR BELT
BASEPLATE: IN COMMON WITH DRIVEN MACHINE SEPARATE
NOTES: SEE FOLLOWING SHEET
Saipem Classification - General Use
This document is property of Eni Angola Exploration B.V.
#

It shall neither be shown to Third Parties nor used for purposes other than those for which it has been sent.
 COMPANY Eni Angola Exploration B.V. JOB ORDER Revision
COUNTRY Angola 097275 - 817143

Eni Angola Exploration B.V. PLANT GTP - Onshore Plant Doc. n°

PROJECT Quiluma & Maboqueiro (Q&M) 362200XXXXYYYYY

TECHNICAL DATA SHEET FOR HOT OIL Sheet / of Compiled Date

STORAGE TANK PUMPS (TDS) X / X

THREE-PHASE ASYNCHRONOUS MOTORS (TDS)

TAG: 003611/2/3EKF001A/C/E/G QUANTITY: 12
TYPE: HL-XD
MOTOR DATA (VTA)
OVERALL / DIMENSIONS (W x L x H) Approx.610 mm x Approx.598 mm x Approx.499 mm
MASSES: TOTAL 135 kg - ROTOR Approx.45 kg - MOMENT OF INERTIA: 0.111 kg·m2
MASS OF THE HEAVIEST PART TO BE LIFTED kg
PAINT COLOUR (RAL CODE): RAL 5017 CYCLE: 3

TERMINAL BOXES:
MAIN TERMINAL BOX: POSITION (D.E.) (1): TOP LEFT
ENTRY TYPE : CABLE GLAND CONE THREADED THREAD TYPE: METRIC FOR 400 AND 230 V

CABLE TYPE: SINGLE CORE THREE CORE FOUR CORE

NUMBER AND SECTION OF CONDUCTORS OF EACH PHASE: 3 x 16 mm2 + 1 x 16 mm2
EARTHING CONDUCTOR (PE) SECTION OF EARTHING CONDUCTOR: 35 mm2

NEUTRAL TERMINAL BOX: POSITION (N.D.E.) (1): TOP LEFT

PERFORMANCE DATA (VTA)

RATED SPEED: 1475 r.p.m.
RATED CURRENT: 21.7 A - STARTING CURRENT: 650 P.U.
FULL LOAD CURRENT: 21.7 A - FULL LOAD TORQUE (FLT): 71.54 N·m
LOCKED ROTOR TORQUE (LRT): 128.77 N·m - BREAK-DOWN TORQUE (BDT): 164.54 N·m
RATED TORQUE (TN): 71.54 N·m - LRT / FLT: 180% - BDT / FLT: 230%
X / R RATIO:

EFFICIENCY AND POWER FACTOR (2)

EFFICIENCY CLASS (2): IE 2 IE 3
LOAD IN PERCENT OF RATED POWER: 100% 75% 50% 25%
EFFICIENCY: 91.40% 75 88.4 84.4
POWER FACTOR: 0.8 0.75 0.65 0.45
POWER FACTOR AT STARTING: 0.4505

NOTES: (1) POSITION/DIRECTION OF ROTATION WHEN VIEWED FROM THE DRIVING END.
(2) MOTORS SHALL BE "HIGH EFFICIENCY" TYPE IN ACCORDANCE WITH IEC 60034-30 -1 TABLE 7
(3) LV MOTORS SHALL COMPLY WITH IOGP STANDARD S-703.ENG.ELE.STD AND PROJECT SPECIFICATION
DOC. NO. 362200BEST40402.
(4) ALL MOTORS SHALL BE SUITABLE FOR ZONE 1 IIB T3; RELEVANT IECex CERTIFICATION IS PREFERRED
(5) VALUE REFER TO STEADY STATE CONDITION.
Saipem Classification - General Use
#

(6) THE TRANSIENT VARIATION TO BE VOLTAGE VARIATION ±20% AND FREQUENCY VARIATION ±10%.

This document is property of Eni Angola Exploration B.V.

It shall neither be shown to Third Parties nor used for purposes other than those for which it has been sent.
 COMPANY Eni Angola Exploration B.V. JOB ORDER Revision
COUNTRY Angola 097275 - 817143

Eni Angola Exploration B.V. PLANT GTP - Onshore Plant Doc. n°

PROJECT Quiluma & Maboqueiro (Q&M) 362200XXXXYYYYY

TECHNICAL DATA SHEET FOR HOT OIL Sheet / of Compiled Date

STORAGE TANK PUMPS (TDS) X / X

THREE-PHASE ASYNCHRONOUS MOTORS (TDS)

TAG: 003611/2/3EKF001A/C/E/G QUANTITY: 12
TYPE: HL-XD

ACCESSORIES AND ANCILLARY EQUIPMENTS

EQUIPMENT COSTRUCTION CHARACTERISTICS

ANTI-CONDENSATION HEATERS N° OF PHASES : - 1 V- 230 Hz - 50

6 (SIX) WINDING PTC (2 FOR EACH PHASE) (IF RATING ≥ 75kW OR SUPPLIED VIA VSD)
2 (TWO) BEARING PT100 3 WIRES RTDs (ONE FOR EACH BEARING) (IF RATING ≥ 75kW OR SUPPLIED VIA VSD) (8)
2 (TWO) ACCELEROMETERS FOR MEASURING OF HOUSING VIBRATION
4 (FOUR) PROXIMITY PROBES (TWO FOR EACH BEARING)

SPARE PARTS REQUIRED FOR COMMISSIONING (7)

QUANTITIES
DESCRIPTION MANUFACTURER / TYPE / CODE
MIN. REQUIRED ACTUAL
BEARINGS OF EACH TYPE
1 (ONE)
AND DIMENSIONS SUPPLIED

FINISHING PAINT OF EACH 2 kg

COLOUR

NOTES: (7) SPARE PARTS SUPPLY SHALL BE IN ACCORDANCE WITH PROJECT SPECIFICATION 362200DGSG66011
(8) WHERE PRACTICABLE/FEASIBLE.

# Saipem Classification - General Use

This document is property of Eni Angola Exploration B.V.
It shall neither be shown to Third Parties nor used for purposes other than those for which it has been sent.
 COMPANY Eni Angola Exploration B.V. JOB ORDER Revision
COUNTRY Angola 097275 - 817143
Eni Angola Exploration B.V. PLANT GTP - Onshore Plant Doc. n°
PROJECT Quiluma & Maboqueiro (Q&M) 362200XXXXYYYYY
TECHNICAL DATA SHEET FOR HOT OIL Sheet / of Compiled Date
STORAGE TANK PUMPS (TDS) X / X

THREE-PHASE ASYNCHRONOUS MOTORS (TDS)

SPEED-TORQUE DIAGRAM OF THE LOAD (VTA)

This document is property of Eni Angola Exploration B.V.

It shall neither be shown to Third Parties nor used for purposes other than those for which it has been sent.

# Saipem Classification - General Use

 S-703D Data Sheet for

Issue
Data Sheet for Low Voltage Three Phase Cage Induction Motors
Row

Converter-fed Motor
2 Tag No. :
3 Service :
4 Ref. Clause Description Additional notes
5 General
6 Manufacturer : HD HYUNDAI ELECTRIC
7 Model number : LATER
8 Serial number : LATER
9 Order status : for purchase
10 Conformity Assessment System (CAS) level : D
11 Frame size : 160M
12 Duty
13 4.1, 4.2.1, 4.2.10,
4.2.2, 4.2.3, 4.2.4,
4.2.5, 4.2.6, 4.2.7, Duty type : S1
4.2.8, 4.2.9, 5.1, 5.3,
5.5.2
14 Number of poles : 4 pole
15 Duty point shaft power : Input Data kW
16 Direction of rotation : clockwise
17 Load drive : belt
18 11.3.5.3, 11.3.5.4 External radial loading on the motor shaft end : 784 N
19 11.3.5.3, 11.3.5.4 External axial loading on the motor shaft end : 980 N
20 Moment of inertia of the load (Jext) : Input Data kg·m²
21 Rating
22 11.8.2, 5.5.3, 5.8 Rated power output : 11 kW
23 Full load current (FLC) : 21.7 A
24 Site conditions
25 6.1 Location environment : Select
26 6.1, 6.2 Altitude : 1000 m
27 6.1, 6.3 Maximum ambient air temperature : 40 °C
28 6.1, 6.4 Minimum ambient air temperature : -15 °C
29 6.6 Transport and storage conditions : within defined site conditions
30 6.6 Standstill period : ≤ 6 months
31 6.1, 6.3 Maximum relative humidity : other % 85%
32 6.8.1 Motor enclosure ingress protection : IP55
33 6.9 Impact protection : Select None of motor's scope
34 Thermal performance
35 8.1 Thermal class : F
36 8.1 Temperature rise class : B
37 Starting performance
38 Moment of inertia of the motor (Jm) : 0.111 kg·m²
39 Data for protection setting/power modelling : not required
40 Operating performance
41 9.6, Table 18 Rated full load speed : 1475 r/min
42 Rated full load torque : 71.54 N·m
43 Rated breakdown torque : 230% pu of FLT
44 9.14.1, 9.14.2 Efficiency : IE3
45 9.14.1, 9.14.2 Efficiency at 100% rated output : 92.1 %
46 Power factor at 100% rated output : 81 pu
47 Noise
48 9.13.1, 9.13.2 Purchaser maximum permissible noise limit : as per IEC 60034-9 db(A)
49 9.13.1, 9.13.2 Maximum declared motor sound power level at no-load : 82 db(A)
50 9.13.1, 9.13.2 Maximum expected motor sound power level at full load : N/A db(A)
51 9.13.1, 9.13.2 Noise level test of one motor from this order batch : No
52 Machine construction
53 Motor weight : 135 kg
54 Stainless steel fixings : Select None of motor's scope
55 Rotor
56 11.3.2.2 Maximum vibration magnitude : grade A
57 Fan
58 11.3.3.1 Fan impeller material : other Non-sparking fan
59 11.3.3.2 Fan direction of rotation : bi-directional, uni-directional clockwise
60 Terminal box
61 Location : top
62 6.8.1 Ingress protection of all terminal box(es) : IP55
63 11.3.4.3, 11.3.4.5 Line conductor terminal box cable gland entries : M32XP1.5
64 Line conductor cross-section area : Select mm²
65 Large terminal box : not required
66 Bearings
67 11.3.5.1, 11.3.5.3 D-end bearing type : BALL ANTI FRICTION
68 11.3.5.1, 11.3.5.3 N-end bearing type : BALL ANTI FRICTION
69 11.3.5.2 Internal clearance : C3
70 11.3.5.1 Lubrication specification : 6309ZZ / 6309ZZ
71 Space heaters
72 11.3.6.1 Heater requirement : required
73 11.3.6.2 Supply voltage : 200-240 V 230V
74 11.7.2 Separate terminal box : required
75 11.3.6.5 Warning label language : English
76 Mounting
77 11.4.1, 11.4.2 Mounting arrangement : IM V6 (IM 1031)
78 Cooling
79 11.5 Cooling method : IC4A1A1
80 Vibration
81 11.3.5.5 Vibration monitoring : None
82 11.3.2.1, 11.3.2.2 Vibration level test report : not required
83 Shock pulse monitoring connection : N/A
 S-703D Data Sheet for

Issue
Data Sheet for Low Voltage Three Phase Cage Induction Motors
Row

Converter-fed Motor
2 Tag No. :
3 Service :
4 Ref. Clause Description Additional notes
84 Surface protection
85 11.6.1, 11.6.2 Surface protection corrosivity category : Select
86 11.6.3 Surface protection durability category : medium (M) 7 to 15 years, high (H) 15 to 25 years
87 Surface finish : manufacturer's standard
88 Paint colour : Manufacturer's standard
89 Temperature monitoring
90 11.7.1, 11.7.2 Winding temperature detection : PTC - see comment
91 Converter-fed motor data
92 15.3 Converter manufacturer : Input Data by Converter manufacturer
93 15.3 Converter model number : Input Data by Converter manufacturer
94 Minimum operating speed : Input Data rpm by Converter manufacturer
95 Maximum operating speed : Input Data rpm by Converter manufacturer
96 9.6 Fine balancing above rated speed : Not required
97 Motors intended for use in potentially explosive atmospheres
98 Motor to be rated for use in potentially explosive atmosphere : yes
99 15.1.1, 15.1.2 Hazardous area equipment certifying body : ATEX Directive, IECEx
100 15.1.1, 15.1.3 Temperature group : T4
101 15.1.1, 15.1.3 Gas group : IIB
102 15.1.2, 15.1.3 Equipment protection level : Select
103 15.1.4, 15.2.1 Motor classification : Ex db eb
104 Miscellaneous
105 Provision for IoT hardware installation : Select
 AC INDUCTION MOTOR DATA SHEET
Model No.or RFQ No. Item No. 003611/2/3EKF001A/C/E/G Rev. No. [ 0 ]
Project Name QUILUMA & MABOQUEIRO (Q&M) PROJECT Project No. 23049715-000010 Quantity 12 sets
GENERAL SPECIFICATION PERFORMANCE DATA
Frame Size 160M Rated Output 11 kW 15 HP
Type HL-XD Number of Poles 4
Enclosure(Protection) Totally Enclosed ( IP56 ) Rotor Type Squirrel Cage
Method of Cooling IC411(FC) Starting Method* V.V.V.F.(V.T. : 5~50Hz) or (C.T.: 15~50Hz)
Rated Frequency 50 Hz Rated Voltage 400 V
Number of Phases 3 Current Full Load 21.7 A
Insulation Class F B H Locked-rotor** 650 %
Temp. Rise at full load (by resistance method) Efficiency
at 1.0 S.F 80 ℃ (CLASSB) 50% Load 88.4 %
Motor Location Indoor Outdoor 75% Load 90.4 %
Altitude Less than 1000m 100% Load 91.4 %
Relative Humidity Less than 85 % Power Factor(p.u)
Ambient Temp. 40 ℃ MAX. 50% Load 0.650
Duty Type Continuous(S1) 75% Load 0.750
Service Factor 1.0 100% Load 0.800
Mounting B3 B5 V1 V6 Speed at Full Load 1475 r.p.m
Type Anti-Friction Torque
Bearing DE/N-DE 6309ZZC3 / 6309ZZC3 Full Load 7.3 kg.m
Lubricant Grease(Polyrex-EM) Locked-rotor** 180 %
External Thrust Not applicable Breakdown** 230 %
Coupling Method HTD-Belt V-Belt Moment of Inertia (J)
Shaft Extension Single Double Load 0.165 kg·m²
Main Steel Cast Iron Motor 0.111 kg·m²
Terminal
Aux. Yes No Sound Pressure Level (No-load & mean value at 1m from motor)
Box
Location Refer to Outline Drawing 82 dB(A)
Application Export Compressor Intercooler Fan for Bay# 1,2,3,4 Vibration 2.2 mm/sec(r.m.s)
Area classification Hazardous Permissible number of Cold 3 times
Type of Ex-Protection Ex db eb IIB T4 consecutive starts Hot 2 times
Applicable Standard KS,IEC,NEMA MG1 Part31 Paint Ral No. 5017
ACCESSORIES SUBMITTAL DRAWING
W.T.D.(Thermistor,145℃) : 2EA/Ph. Outline Dimension Drawing \ Motor Weight(Approx.)
B.T.D.(Pt 100 Ω at 0℃,Single) : 2EA/Motor V6 LM-23049715-10 135 kg
Space Heater(1ph. 230V,44W) : 1EA/Motor Main T-Box Ass'y TB-23049715-10

REMARK
Premium Efficiency(IE3)
For use on PWM VFD 10:1VT,3:1CT@1.0S.F&F Temp.rise

SPARE PARTS

Date DSND CHKD CHKD APPD

2023-10-18 Y.W.RYU S.W.KIM S.Y.KIM

Note: Others not mentioned in this data sheet shall be in accordance with maker standard.
Above technical data are only design values and shall be guaranteed with tolerance of applicable standard.
Inspection and performance test shall be maker standard, if not mentioned.
In case of Inverter-Fed Motor, performance data is based on sine wave tests.
The data are based on rated voltage & frequency, and data are expressed as a percentage of full load value.
HEES W230-131-1 * In case of Inverter or V.V.V.F Motor:Performance data is based on sine wave tests. A4(210mm X 297mm)
 1 2 3 4
50S REV DATE CONTENTS REVD BY CHKD BY CHKD BY APPD BY
12.5S
3.2S
G
0.4S

Ex db eb IIB
본 도면은 현대일렉트릭(주) 재산이므로
허가없이 복사할 수 없슴 (취급유의)

G
F

F
E
THIS DRAWING IS PROPRIETARY TO HYUNDAI ELECTRIC. NO PART OF THIS DRAWING

E
D
MAYBE REPRODUCED WITHOUT THE PERMISSION OF HYUNDAI ELECTRIC.

D
C

C
B

한신규 DWG SIZE

APPD BY UNIT mm SUBJECT KS,IEC Fr. 160M/Ex db IIB A4 ( 1:10)
CHKD BY 김승연 SCALE 1/10
B TITLE
A CHKD BY 김인규 PROJEC'N 3rd Angle A
DSND BY Y.W.RYU DATE 2023.10.16
OUTLINE
REF. NO LM-H1165B3PT001 Sheet No. of

DWG NO LM-23049715-10 Revision No. 0

1 2 3 4
 1 2 3 4 5 6 7 8 9
G G

Ex db eb IIB T4

F F

35 35

W2 U2 V2

35
E U1 V1 W1
E

284

128
162
THIS DRAWING IS PROPRIETARY TO HEES. NO PART OF THIS DRAWING

D D
MAYBE REPRODUCED WITHOUT THE PERMISSION OF HEES.

115 162

C 230 C

B B

Q'TY DESCRIPTION MATERIAL DIMENSION WEIGHT PART NO. REMARK NO.

DWG SIZE
APPD BY UNIT mm SUBJECT IEC 200FR A3 (1:3.5)
CHKD BY SCALE 1/3.5
TITLE
A CHKD BY PROJEC'N 3rd Angle A
DSND BY Y.W.RYU DATE 2023.08.29
MAIN TERMINAL BOX ASSEMBLY
REF. NO Sheet No. of

REV DATE CONTENTS REVD BY CHKD BY CHKD BY APPD BY DWG NO TB-23049715-10 Revision No. 0
1 2 3 4 5 6 7 8 9
 1 2 3 4 5 6 7 8 9
G G

Ex db eb IIB "A"
본 도면은 현대일렉트릭(주) 재산이므로

F F
허가없이 복사할 수 없슴 (취급유의)

E E
THIS DRAWING IS PROPRIETARY TO HYUNDAI ELECTRIC. NO PART OF THIS DRAWING

D D
MAYBE REPRODUCED WITHOUT THE PERMISSION OF HYUNDAI ELECTRIC.

"A"

C C
SEC. "A"-"A"

B B

50S Q'TY DESCRIPTION MATERIAL DIMENSION WEIGHT PART NO. REMARK NO.
12.5S APPD BY UNIT mm
DWG SIZE
SUBJECT FR.160-180 (CAST IRON) A3 ( 1:2)
3.2S CHKD BY SCALE 1/2
TITLE
A 0.4S CHKD BY PROJEC'N 3rd Angle A
일반가공공차 일반제관공차
DSND BY Y.W.RYU DATE 2023.10.16
TERMINAL BOX ASS'Y
1-4 ±0.1 6-30 ±0.5
4-18 ±0.2 30-120 ±0.8 REF. NO Sheet No. of
18-63 ±0.3 120-315 ±1.2
63-250 ±0.5 315-1000 ±2.0
REV DATE CONTENTS REVD BY CHKD BY CHKD BY APPD BY 250- ±0.8 1000- ±3.0
DWG NO ATB-23049715-10(WTD) Revision No. 0
1 2 3 4 5 6 7 8 9
 1 2 3 4 5 6 7 8 9
G G

Ex db eb IIB "A"
본 도면은 현대일렉트릭(주) 재산이므로

F F
허가없이 복사할 수 없슴 (취급유의)

E E
THIS DRAWING IS PROPRIETARY TO HYUNDAI ELECTRIC. NO PART OF THIS DRAWING

D D
MAYBE REPRODUCED WITHOUT THE PERMISSION OF HYUNDAI ELECTRIC.

"A"
C C
SEC. "A"-"A"

B B

50S Q'TY DESCRIPTION MATERIAL DIMENSION WEIGHT PART NO. REMARK NO.
12.5S APPD BY UNIT mm
DWG SIZE
SUBJECT FR.160-180 (CAST IRON) A3 ( 1:2)
3.2S CHKD BY SCALE 1/2
TITLE
A 0.4S CHKD BY PROJEC'N 3rd Angle A
일반가공공차 일반제관공차
DSND BY Y.W.RYU DATE 2023.10.16
TERMINAL BOX ASS'Y
1-4 ±0.1 6-30 ±0.5
4-18 ±0.2 30-120 ±0.8 REF. NO Sheet No. of
18-63 ±0.3 120-315 ±1.2
63-250 ±0.5 315-1000 ±2.0
REV DATE CONTENTS REVD BY CHKD BY CHKD BY APPD BY 250- ±0.8 1000- ±3.0
DWG NO ATB-23049715-10(BTD,S/H) Revision No. 0
1 2 3 4 5 6 7 8 9
1 2 3

4 6 10

그리스
10 warning that heater terminals may be live
5 그리스확인 확인
when the motor is isolated.
ITEM NO.:

11 SPACEITEM
HEATERPLATE
WARNING PLATE SUS
SUS 0.5t
0.5t 10
1 CERT. PLATE SUS 0.5t 9
7
003611EKF001A 003612EKF001A 003613EKF001A 1 SPACE HEATER PLATE SUS 0.5t 8
STARTING DUTY : COLD3 / HOT2 TIMES
003611EKF001C 003612EKF001C 003613EKF001C 1 STARTING DUTY PLATE SUS 0.5t 7
003611EKF001E 003612EKF001E 003613EKF001E 1 LUBRICATION PLATE SUS 0.5t 6
003611EKF001G 003612EKF001G 003613EKF001G 1 EQUIPMENT PLATE SUS 0.5t 5
1 ROTATION PLATE SUS 0.5t 4

8 1 WARNING PLATE VINYL STICKER 3

9
1 CONNECTION PLATE SUS 0.5t 2
1 MAIN NAME PLATE SUS 0.5t 1

44
230
Y.W.RYU 2023-10-18
1

NP-23049715-000010 0
 CURVE NO.
PERFORMANCE CURVE
Export Compressor Intercooler Fan for Bay# 1,2,3,4
C-23049715-10
Type : HL-XD Item No. : 003611/2/3EKF001A/C/E/G 11 kW 4P 50 Hz
Full Load Torque : 7.3 kg.m Speed at Full Load : 1475 RPM
Load moment of Inertia (J) : 0.165 kg·m² Rated Voltage 400 V
Motor moment of Inertia (J) : 0.111 kg·m² Full Load Current 21.7A

SPEED VS TORQUE & CURRENT CURVE

250 700
Current at rated voltage

600
200
Current(80% Voltage)
500
Torque at rated voltage

CURRENT IN %
150
TORQUE IN %

400

Torque(80% Voltage)
300
100

200

50
100
Load

0 0
0 10 20 30 40 50 60 70 80 90 100
SPEED IN %

OUTPUT VS EFF., P.F & CURRENT CURVE

100.0 200
Efficiency
90.0 180

80.0 Power Factor 160

70.0 140
EFF. & P.F IN %

CURRENT IN %

60.0 120

50.0 100

40.0 Current 80

30.0 60

20.0 40

10.0 20

0.0 0
25 50 75 100
LOAD IN %

RM-P251-133 A4(210mm x 297mm)

 CURVE NO.

TL-23049715-10
Export Compressor Intercooler Fan for Bay# 1,2,3,4

Type : HL-XD Item No. : 003611/2/3EKF001A/C/E/G 11 kW 4P 50 Hz

Full Load Torque : 7.3 kg.m RATED SPEED : 1475 rpm
Load moment of Inertia (J) : 0.165 kg·m² Rated Voltage 400 V
Motor moment of Inertia (J) : 0.111 kg·m² Full Load Current 21.7A

10000

1000
Time(sec)

100

10

1
100 200 300 400 500 600 700 800
Current(%)

THERMAL LIMIT CURVE AT COLD CONDITION

THERMAL LIMIT CURVE AT HOT CONDITION
TIME VS. CURRENT CURVE AT RATED VOLTAGE STARTING
TIME VS. CURRENT CURVE AT 80% OF RATED VOLTAGE STARTING

STARTING TIME SAFE STALL TIME

2 sec. at rated voltage starting 18 sec. at Hot condition
at Cold condition
4 sec. at 80% of rated voltage starting 24 sec. at Cold condition
*. THERMAL LIMIT CURVE AROUND RATED CURRENT.

RM-P251-133 A4(210mm x 297mm)
