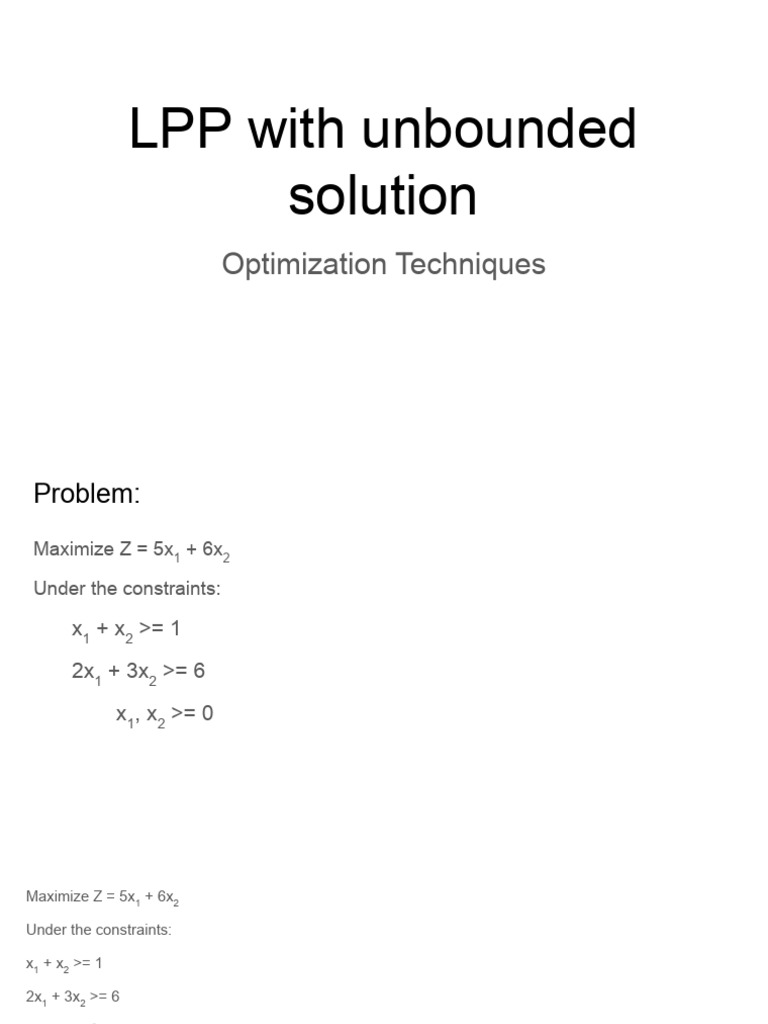

LPP with unbounded

solution
Optimization Techniques
Problem:
Maximize Z = 5x1 + 6x2

Under the constraints:

x1 + x2 >= 1
2x1 + 3x2 >= 6
x1, x2 >= 0
Maximize Z = 5x1 + 6x2

Under the constraints:

x1 + x2 >= 1

2x1 + 3x2 >= 6

x1, x2 >= 0
Solution:
Introducing surplus and Artificial variables:

x1 + x2 >= 1 —---> x1 + x1 – S1+A1 = 1

2x1 + 3x2 >=6 —---> 2x1 + 3x2 – S2+A2 = 6

x1, x2 >= 0
Initialise the table: Introducing slack variables:

Maximize Z = 5x1 + 6x2 Z = 5x1 + 6x2

Under the constraints: x1 + x2 >= 1 —---> x1 + x1 – S1+A1 = 1

x1 + x2 >= 1 2x1 + 3x2 >=6 —---> 2x1 + 3x2 – S2+A2 = 6

2x1 + 3x2 >= 6 x1, x2 >= 0

x1, x2 >= 0

Cj Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc
Initialise the table: Introducing slack variables:

Maximize Z = 5x1 + 6x2 Z = 5x1 + 6x2 +0S1+0S2

Under the constraints: x1 + x2 >= 1 —---> x1 + x1 –S1+A1 =1

x1 + x2 >= 1 2x1 + 3x2 >=6 —---> 2x1 + 3x2 –S2+A2 =6

2x1 + 3x2 >= 6 x1, x2 >= 0

x1, x2 >= 0

Cj 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc
Initialise the table: Introducing slack variables:

Maximize Z = 5x1 + 6x2 Z = 5x1 + 6x2 +0S1+0S1

Under the constraints: x1 + x2 >= 1 —---> 1x1 + 1x1 – 1S1+1A1 = 1

x1 + x2 >= 1 2x1 + 3x2 >=6 —---> 2x1 + 3x2 – 1S2+1A2 = 6

2x1 + 3x2 >= 6 x1, x2 >= 0

x1, x2 >= 0

Cj 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

1 1 -1 0 1 0 1

2 3 0 -1 0 1 6
Initialise the table: Introducing slack variables:

Maximize Z = 5x1 + 6x2 Z = 5x1 + 6x2 +0S1+0S1

Under the constraints: x1 + x2 >= 1 —---> 1x1 + 1x1 – 1S1+1A1 = 1

x1 + x2 >= 1 2x1 + 3x2 >=6 —---> 2x1 + 3x2 – 1S2+1A2 = 6

2x1 + 3x2 >= 6 x1, x2 >= 0

x1, x2 >= 0

Cj 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 1 1 -1 0 1 0 1

A2 2 3 0 -1 0 1 6
Initialise the table: Introducing slack variables:

Maximize Z = 5x1 + 6x2 Z = 5x1 + 6x2 +0S1+0S1

Under the constraints: x1 + x2 >= 1 —---> 1x1 + 1x1 – 1S1+1A1 = 1

x1 + x2 >= 1 2x1 + 3x2 >=6 —---> 2x1 + 3x2 – 1S2+1A2 = 6

2x1 + 3x2 >= 6 x1, x2 >= 0

x1, x2 >= 0

Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6

Zj - C j -3M-5

-M*1+(-M )*2 - 5 = -3M-5


Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6

Zj - C j -3M-5 -4M-6

-M*1-M *2 - 5 = -3M-5
-M*1-M *3 - 6 = -4M-6
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6

Zj - C j -3M-5 -4M-6 +

-M*1-M *2 - 5 = -3M-5
-M*1-M *3 - 6 = -4M-6
-M*-1+(-M)*0 – 0 = +ve
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6

Zj - C j -3M-5 -4M-6 + +

-M*1-M *2 - 5 = -3M-5
-M*1-M *3 - 6 = -4M-6
-M*-1-M*0 - 0 = +ve
-M*-1-M*0 - 0 = +ve
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6

Zj - C j -3M-5 -4M-6 + + 0

-M*1-M *2 - 5 = -3M-5
-M*1-M *3 - 6 = -4M-6
-M*-1-M*0 - 0 = +ve
-M*0-M*0 - 0 = +ve
-M*1-M*0-(-M) = 0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6

Zj - C j -3M-5 -4M-6 + + 0 0

-M*1-M *2 - 5 = -3M-5
-M*1-M *3 - 6 = -4M-6
-M*-1-M*0 - 0 = +ve
-M*0-M*0 - 0 = +ve
-M*1-M*0+M = 0
-M*0-M*1+M=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6

Zj - C j -3M-5 -4M-6 + + 0 0

-M*1-M *2 - 5 = -3M-5 Select the least negative element among the Zj - Cj’s.
-M*1-M *3 - 6 = -4M-6 Here it is -4M-6.
-M*-1-M*0 - 0 = +ve
-M*0-M*0 - 0 = +ve
-M*1-M*0+M = 0
-M*0-M*1+M=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1

A2 -M 2 3 0 -1 0 1 6

Zj - C j -3M-5 -4M-6 + + 0 0

-M*1-M *2 - 5 = -3M-5 Select the least element among the Zj - Cj’s. Here it is
-M*1-M *3 - 6 = -4M-6 -4M-6.
-M*-1-M*0 - 0 = +ve The column in which the least element (-4M-6) is
-M*0-M*0 - 0 = +ve present is called the pivotal column / key column.
-M*1-M*0+M = 0
-M*0-M*1+M=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0

Select the least element among the Zj - Cj’s. Here it is


-M*1-M *2 - 5 = -3M-5 -4M-6.The column in which the least element (-4M-6) is present
-M*1-M *3 - 6 = -4M-6 is called the pivotal column / key column.
-M*-1-M*0 - 0 = +ve
-M*0-M*0 - 0 = +ve
-M*1-M*0+M = 0
-M*0-M*1+M=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0

Select the least element among the Zj - Cj’s. Here it is


-M*1-M *2 - 5 = -3M-5 -4M-6.The column in which the least element (-4M-6) is present
-M*1-M *3 - 6 = -4M-6 is called the pivotal column / key column.
-M*-1-M*0 - 0 = +ve
Now choose the least positive element among the Ratios. Here it
-M*0-M*0 - 0 = +ve is 1.
-M*1-M*0+M = 0
-M*0-M*1+M=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0

Select the least element among the Zj - Cj’s. Here it is


-M*1-M *2 - 5 = -3M-5 -4M-6.The column in which the least element (-4M-6) is present
-M*1-M *3 - 6 = -4M-6 is called the pivotal column / key column.
-M*-1-M*0 - 0 = +ve
Now choose the least positive element among the Ratios. Here it
-M*0-M*0 - 0 = +ve is 1. Now the row in which this minimum ratio is present is called
-M*1-M*0+M = 0 the pivotal row / key row.
-M*0-M*1+M=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 /
Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0

Now, the intersection of this pivotal row and pivotal column is


-M*1-M *2 - 5 = -3M-5 called as the pivot element
-M*1-M *3 - 6 = -4M-6
-M*-1-M*0 - 0 = +ve
-M*0-M*0 - 0 = +ve
-M*1-M*0+M = 0
-M*0-M*1+M=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

-M*1-M *2 - 5 = -3M-5 .
-M*1-M *3 - 6 = -4M-6 Now, the intersection of this pivotal row and pivotal column is
called as the pivot element.
-M*-1-M*0 - 0 = +ve
Now, since pivot element lies in the row of A1 and the column of
-M*0-M*0 - 0 = +ve x2, we say that A1 leaves and x2 enters.
-M*1-M*0+M = 0
-M*0-M*1+M=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6

A2 -M
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1/1=1 1/1=1 -1/1=- 0/1=0 1/1=1 0/1=0 1/1=1


1

A2 -M

Now, for the new entry x2, we do first row of previous


iteration divided by the pivot element, and put in the
entries.
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1

A2 -M
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1

A2 -M -1 0 3 -1 -3 1 3

2-1(3)=-1 3-1(3)=0 0+1(3)=3 -1-0(3)=-1 0-1(3)=-3 1-0(3)=0 6-1(3)=3


Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1

A2 -M -1 0 3 -1 -3 1 3

Zj - C j + 0 -3M-6 + + 0

Now we calculate all the Zj - Cj’s.


6+(-M)*(-1)-5=+ve; 6+0-6=0; 6*(-1)+(-M)(3)-0=-3M-6; 0+(-M)(-1)-0=+ve;6+(-M)(-1)-(-M)=+ve;0+(-M)(1)-(-M)=0
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1

A2 -M -1 0 3 -1 -3 1 3

Zj - C j + 0 -3M-6 + + 0

-3M-6 is the Minimun element . The highlighted column is the pivotal column
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0

Calculating the ratios


Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0

1 is the least positive value


Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0

1 is the least positive value. Hence, A2’s row is the pivotal row, and the intersection element, 3 is
the pivotal element.
Cj -> 5 6 0 0 -M -M - Ratio

Basic CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0 A2:leaves
S1:enters
Cj -> 5 6 0 0 -M -M - Ratio

Basi CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc
c

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0 A2:leaves
S1:enters

S1 0

X2 6
Cj -> 5 6 0 0 -M -M - Ratio

Ba CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc
sic

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0 A2:leaves
S1:enters

S1 0 -1/3 0 1 -1/3 -1 1/3 1

x2

Now, for the new entry S1, we do first row of previous iteration divided by the pivot
element, and put in the entries.
Cj -> 5 6 0 0 -M -M - Ratio

Ba CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc
sic

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0 A2:leaves
S1:enters

S1 0 -1/3 0 1 -1/3 -1 1/3 1

x2 6 2/3 1 0 -1/3 0 1/3 2

x2new = x2old - (corres. key row element * corres. key column element) / pivot element
Cj -> 5 6 0 0 -M -M - Ratio

Ba CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc
sic

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0 A2:leaves
S1:enters

S1 0 -1/3 0 1 -1/3 -1 1/3 1

x2 6 2/3 1 0 -1/3 0 1/3 2

Zj - C j -1 0 0 -2 + +

0*(-1/3)+6*(2/3)-5=-1; 0+6*1-6=0; 0+0-0=0; 0+6*(-1/3)-0=-2; 0+0-(-M)=+ve; 0+6*(1/3)-(-M)=+ve


Cj -> 5 6 0 0 -M -M - Ratio

Ba CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc
sic

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0 A2:leaves
S1:enters

S1 0 -1/3 0 1 -1/3 -1 1/3 1

x2 6 2/3 1 0 -1/3 0 1/3 2

Zj - C j -1 0 0 -2 + +

-2 is the Minimum element.The highlighted column is the pivotal column


Cj -> 5 6 0 0 -M -M - Ratio

Ba CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc
sic

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0 A2:leaves
S1:enters

S1 0 -1/3 0 1 -1/3 -1 1/3 1 -3

x2 6 2/3 1 0 -1/3 0 1/3 2 -6

Zj - C j -1 0 0 -2 + +

Calculating the ratios.


Cj -> 5 6 0 0 -M -M - Ratio

Ba CBi x1 x2 S1 S2 A1 A2 P0 = P0 / Pc
sic

A1 -M 1 1 -1 0 1 0 1 1/1=1

A2 -M 2 3 0 -1 0 1 6 6/3=2

Zj - C j -3M-5 -4M-6 + + 0 0 A1 leaves


X2 enters

x2 6 1 1 -1 0 1 0 1 1/-1=-ve

A2 -M -1 0 3 -1 -3 1 3 3/3=1

Zj - C j + 0 -3M-6 + + 0 A2:leaves
S1:enters

S1 0 -1/3 0 1 -1/3 -1 1/3 1 -3 All ratio


values
are less
x2 6 2/3 1 0 -1/3 0 1/3 2 -6
than 0.

Zj - C j -1 0 0 -2 + +

So, the solution is unbounded.

You might also like
