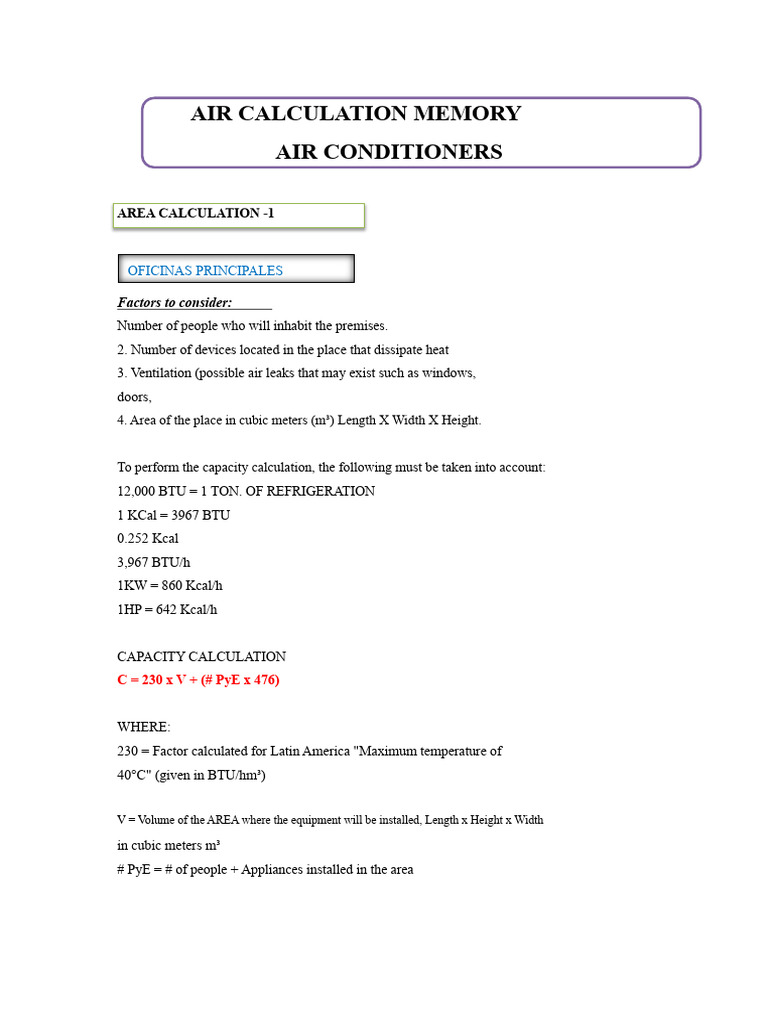

ScribdTranslationsAIR CALCULATION MEMORY
AIR CONDITIONERS
AREA CALCULATION -1
OFICINAS PRINCIPALES
Factors to consider:
Number of people who will inhabit the premises.
2. Number of devices located in the place that dissipate heat
3. Ventilation (possible air leaks that may exist such as windows,
doors,
4. Area of the place in cubic meters (m³) Length X Width X Height.
To perform the capacity calculation, the following must be taken into account:
12,000 BTU = 1 TON. OF REFRIGERATION
1 KCal = 3967 BTU
0.252 Kcal
3,967 BTU/h
1KW = 860 Kcal/h
1HP = 642 Kcal/h
CAPACITY CALCULATION
C = 230 x V + (# PyE x 476)
WHERE:
230 = Factor calculated for Latin America "Maximum temperature of
40°C" (given in BTU/hm³)
V = Volume of the AREA where the equipment will be installed, Length x Height x Width
in cubic meters m³
# PyE = # of people + Appliances installed in the area
476 = Factors of gain and loss contributed by each person and/or
appliance (in BTU/h)
Data:
11.03 m
10.98 m
h=3m
about 15 people
of devices
Applying the formula we have:
V = 11.03 m x 3.40 m x 2.50 m = 93.75 m 3
C = (230 x 93.75 mt) + (24 x3 476)
C = 21562.5 + 11424
32986.50 BTU
2 air conditioners of 18,000 BTU are selected.
OFICINA DE PROYECCION SOCIAL
Factors to consider:
Number of people who will inhabit the venue.
2. Number of devices present in the location that dissipate heat
3. Ventilation (possible air leaks that may exist such as windows,
doors,
4. Area of the place in cubic meters (m³) Length X Width X Height.
To perform the capacity calculation, the following must be taken into account:
12,000 BTU = 1 ton of refrigeration.
1 KCal = 3967 BTU
1 BTU = 0.252 Kcal
1 KCal/h = 3,967 BTU/h
1KW = 860 Kcal/h
1HP = 642 Kcal/h
CAPACITY CALCULATION
C = 230 x V + (# PyE x 476)
WHERE:
230 = Factor calculated for Latin America 'Maximum temperature of
40°C (given in BTU/hm³)
V = Volume of the AREA where the equipment will be installed, Length x Height x Width
in cubic meters m³
# PyE = # of people + Appliances installed in the area
476 = Factors of gain and loss contributed by each person and/or
appliance (in BTU/h)
Data:
Width = 3.82 m
2.82 meters
h=3m
about 2 people
1 computer
Applying the formula we have:
V = 3.82 m x 2.82 m x 3.00 m = 32.31 m 3
C = (230 x 32.31 mt ) + (3 x3 476)
C = 7431.30 + 1428
C = 8851.30 BTU
1 air conditioner of 9,000.00 BTU is chosen.
OFICINA DE UNIDAD AMBIENTAL
Factors to consider:
Number of people who will inhabit the venue.
2. Number of devices present in the location that dissipate heat
3. Ventilation (possible air leaks that may exist such as windows,
doors,
4. Area of the place in cubic meters (m³) Length X Width X Height.
To calculate capacity, the following must be taken into account:
12,000 BTU = 1 TON of Refrigeration
1 KCal = 3967 BTU
1 BTU = 0.252 Kcal
1KCal/h = 3.967 BTU/h
1KW = 860 Kcal/h
1HP = 642 Kcal/h
CAPACITY CALCULATION
C = 230 x V + (# PyE x 476)
WHERE:
230 = Factor calculated for Latin America "Maximum temperature of
40°C
V = Volume of the AREA where the equipment will be installed, Length x Height x Width
in cubic meters m³
# PyE = # of people + Appliances installed in the area
476 = Factors of gain and loss contributed by each person and/or
appliance (in BTU/h)
Data:
2.57 m
2.82 m
h=3m
about 2 people
Number of devices = 1 computer
Applying the formula we have:
V = 2.57 m x 2.82 m x 3.00 m = 21.74 m 3
C = (230 x 21.74 mt) + (3 x3476)
C = 5000.70 + 1428
C = 6,428.70 BTU
An air conditioner of 8,000.00 BTU is chosen.
OFICINA DE PROTECION CIVIL
Factors to consider:
Number of people who will inhabit the venue.
2. Number of devices located in the place that dissipate heat
3. Ventilation (possible air leaks that may exist such as windows,
doors,
4. Area of the place in cubic meters (m³) Length X Width X Height.
To perform the capacity calculation, the following must be taken into account:
12,000 BTU = 1 TON of refrigeration.
1 KCal = 3967 BTU
1 BTU = 0.252 Kcal
1KCal/h = 3,967 BTU/h
1KW = 860 Kcal/h
1HP = 642 Kcal/h
CAPACITY CALCULATION
C = 230 x V + (# PyE x 476)
WHERE:
230 = Factor calculated for Latin America 'Maximum temperature of
40°C" (given in BTU/hm³)
V = Volume of the AREA where the equipment will be installed, Length x Height x Width
in cubic meters m³
# PyE = # of people + Appliances installed in the area
476 = Factors of gain and loss contributed by each person and/or
appliance (in BTU/h)
Data:
Width = 2.64 m
2.82 m
h=3m
about 2 people
1 computer
Applying the formula we have:
V = 2.64 m x 2.82 m x 3.00 m = 32.31 m 3
(230 x 22.33 mt) + (3 x 476)3
C = 5,136.91 + 1428
6,564.91 BTU
1 air conditioner of 8,000.00 BTU is chosen.
OFICINAS DE SECRETARIA MUNICIPAL Y AUXILIAR
Factors to consider:
Number of people who will inhabit the venue.
2. Number of devices in the place that dissipate heat
3. Ventilation (possible air leaks that may exist such as windows,
doors)
4. Area of the place in cubic meters (m³) Length X Width X Height.
To perform the capacity calculation, the following must be taken into account:
12,000 BTU = 1 TON of refrigeration.
1 KCal = 3967 BTU
1 BTU = 0.252 Kcal
1KCal/h = 3,967 BTU/h
1KW = 860 Kcal/h
1HP = 642 Kcal/h
CAPACITY CALCULATION
C = 230 x V + (# PyE x 476)
WHERE:
230 = Factor calculated for Latin America 'Maximum temperature of
40°C" (given in BTU/hm³)
V = Volume of the AREA where the equipment will be installed, Length x Height x Width
in cubic meters m³
# PyE = # of people + Appliances installed in the area
476 = Factors of gain and loss contributed by each person and/or
appliance (in BTU/h)
Data:
5.42 m
2.85 m
h = 2.70 m
about 2 people
# of devices = 2 computers
Applying the formula we have:
V = 5.42 m x 2.85 m x 2.70 m = 41.70 m 3
C = (230 x 41.70 m) + (4 x 476)
3
C = 9592.59 + 1904
C = 11,496 BTU
1 air conditioner of 12,000.00 BTU is chosen.
OFICINAS DE DESPACHO MUNICIPAL
Factors to consider:
Number of people who will inhabit the venue.
2. Number of devices located in the place that dissipate heat
3. Ventilation (possible air leaks that may exist such as windows,
doors,
4. Area of the space in cubic meters (m³) Length X Width X Height.
To calculate capacity, the following must be taken into account:
12,000 BTU = 1 TON of refrigeration
3967 BTU
1 BTU = 0.252 Kcal
1KCal/h = 3,967 BTU/h
1KW = 860 Kcal/h
1HP = 642 Kcal/h
CAPACITY CALCULATION
C = 230 x V + (# PyE x 476)
WHERE:
230 = Factor calculated for Latin America 'Maximum temperature of
40°C" (given in BTU/hm³)
V = Volume of the AREA where the equipment will be installed, Length x Height x Width
in cubic meters m³
# PyE = # of people + Appliances installed in the area
476 = Factors of gain and loss contributed by each person and/or
appliance (in BTU/h)
Data:
Width = 3.98 m
4.68 m
2.70 m
about 7 people
# of devices = 2 computers
Applying the formula we have:
V = 3.98 m x 4.68 m x 2.70 m = 50.29 m 3
C = (230 x 50.29 mt) + (9 x3476)
C = 11566.99 + 4284
15850.99 BTU
1 air conditioner of 16,000.00 BTU is chosen.
OFICINAS DE UACI, CONTADOR Y AUDITOR INTERNO
Factors to consider:
Number of people who will inhabit the venue.
Number of devices present in the location that dissipate heat
3. Ventilation (possible air leaks that may exist such as windows,
doors)
4. Area of the place in cubic meters (m³) Length X Width X Height.
To calculate capacity, the following must be taken into account:
12,000 BTU = 1 TON of refrigeration
1 KCal = 3967 BTU
1 BTU = 0.252 Kcal
1 KCal/h = 3,967 BTU/h
1KW = 860 Kcal/h
1HP = 642 Kcal/h
CAPACITY CALCULATION
C = 230 x V + (# PyE x 476)
WHERE:
230 = Factor calculated for Latin America "Maximum temperature of
40°C" (given in BTU/hm³)
V = Volume of the AREA where the equipment will be installed, Length x Height x Width
in cubic meters m³
# PyE = # of people + Appliances installed in the area
476 = Gain and loss factors contributed by each person and/or
appliance (in BTU/h)
Data:
Width = 2.96 m
7.15 m
h = 2.70 m
about 5 people
# of devices = 3 computers
Applying the formula we have:
V = 2.96 m x 7.15 m x 2.70 m = 57.14 m 3
C = (230 x 57.14 mt) + (8 x3476)
C = 13142.00 + 3808
C = 16950.00 BTU
1 air conditioner of 18,000.00 BTU is chosen.
