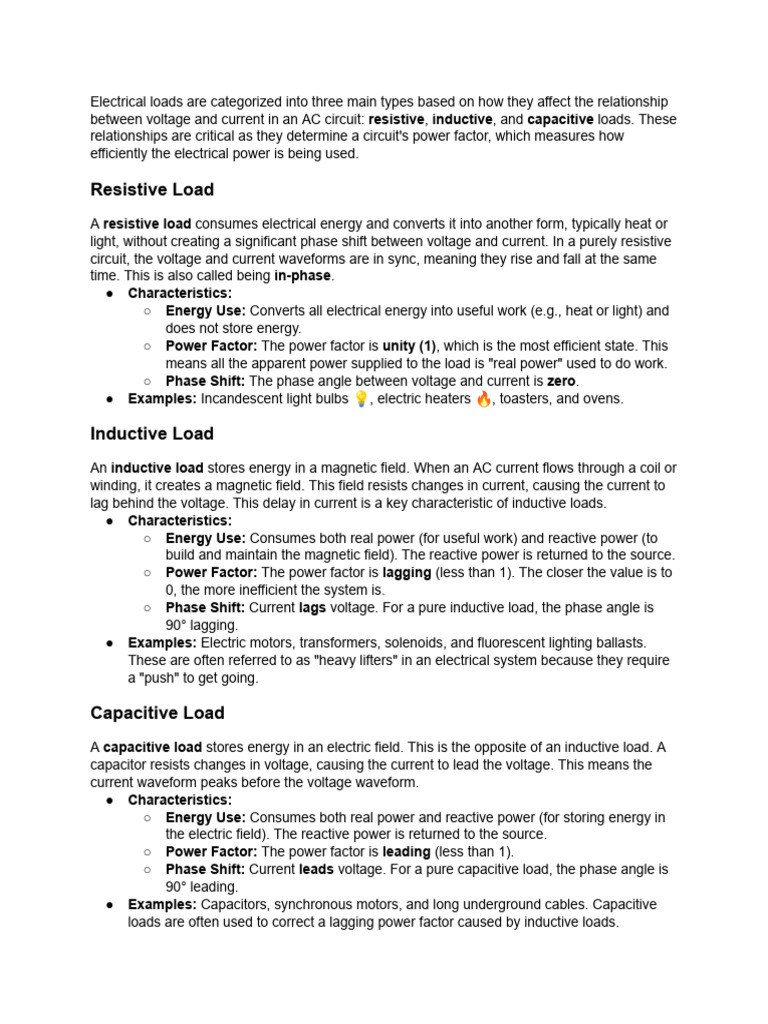

Electrical loads are categorized into three main types based on how they affect the relationship

between voltage and current in an AC circuit: resistive, inductive, and capacitive loads. These
relationships are critical as they determine a circuit's power factor, which measures how
efficiently the electrical power is being used.

Resistive Load
A resistive load consumes electrical energy and converts it into another form, typically heat or
light, without creating a significant phase shift between voltage and current. In a purely resistive
circuit, the voltage and current waveforms are in sync, meaning they rise and fall at the same
time. This is also called being in-phase.
●​ Characteristics:
○​ Energy Use: Converts all electrical energy into useful work (e.g., heat or light) and
does not store energy.
○​ Power Factor: The power factor is unity (1), which is the most efficient state. This
means all the apparent power supplied to the load is "real power" used to do work.

●​ Examples: Incandescent light bulbs 💡 🔥


○​ Phase Shift: The phase angle between voltage and current is zero.
, electric heaters , toasters, and ovens.

Inductive Load
An inductive load stores energy in a magnetic field. When an AC current flows through a coil or
winding, it creates a magnetic field. This field resists changes in current, causing the current to
lag behind the voltage. This delay in current is a key characteristic of inductive loads.
●​ Characteristics:
○​ Energy Use: Consumes both real power (for useful work) and reactive power (to
build and maintain the magnetic field). The reactive power is returned to the source.
○​ Power Factor: The power factor is lagging (less than 1). The closer the value is to
0, the more inefficient the system is.
○​ Phase Shift: Current lags voltage. For a pure inductive load, the phase angle is
90° lagging.
●​ Examples: Electric motors, transformers, solenoids, and fluorescent lighting ballasts.
These are often referred to as "heavy lifters" in an electrical system because they require
a "push" to get going.

Capacitive Load
A capacitive load stores energy in an electric field. This is the opposite of an inductive load. A
capacitor resists changes in voltage, causing the current to lead the voltage. This means the
current waveform peaks before the voltage waveform.
●​ Characteristics:
○​ Energy Use: Consumes both real power and reactive power (for storing energy in
the electric field). The reactive power is returned to the source.
○​ Power Factor: The power factor is leading (less than 1).
○​ Phase Shift: Current leads voltage. For a pure capacitive load, the phase angle is
90° leading.
●​ Examples: Capacitors, synchronous motors, and long underground cables. Capacitive
loads are often used to correct a lagging power factor caused by inductive loads.
