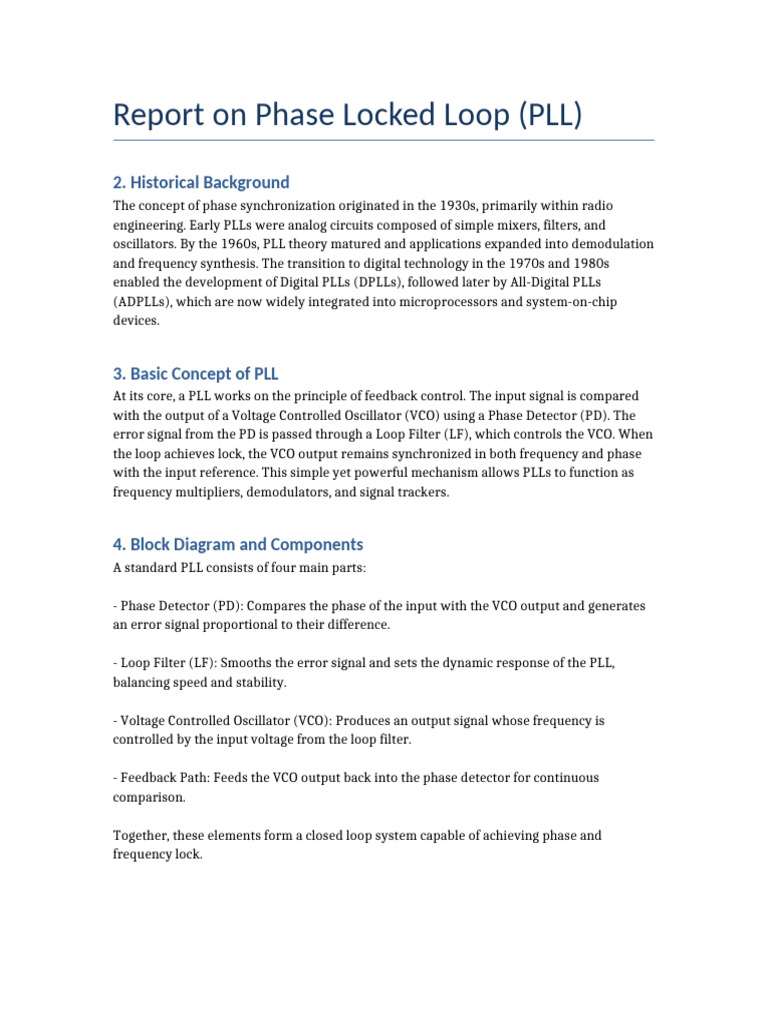

Report on Phase Locked Loop (PLL)
2. Historical Background
The concept of phase synchronization originated in the 1930s, primarily within radio
engineering. Early PLLs were analog circuits composed of simple mixers, filters, and
oscillators. By the 1960s, PLL theory matured and applications expanded into demodulation
and frequency synthesis. The transition to digital technology in the 1970s and 1980s
enabled the development of Digital PLLs (DPLLs), followed later by All-Digital PLLs
(ADPLLs), which are now widely integrated into microprocessors and system-on-chip
devices.
3. Basic Concept of PLL
At its core, a PLL works on the principle of feedback control. The input signal is compared
with the output of a Voltage Controlled Oscillator (VCO) using a Phase Detector (PD). The
error signal from the PD is passed through a Loop Filter (LF), which controls the VCO. When
the loop achieves lock, the VCO output remains synchronized in both frequency and phase
with the input reference. This simple yet powerful mechanism allows PLLs to function as
frequency multipliers, demodulators, and signal trackers.
4. Block Diagram and Components
A standard PLL consists of four main parts:
- Phase Detector (PD): Compares the phase of the input with the VCO output and generates
an error signal proportional to their difference.
- Loop Filter (LF): Smooths the error signal and sets the dynamic response of the PLL,
balancing speed and stability.
- Voltage Controlled Oscillator (VCO): Produces an output signal whose frequency is
controlled by the input voltage from the loop filter.
- Feedback Path: Feeds the VCO output back into the phase detector for continuous
comparison.
Together, these elements form a closed loop system capable of achieving phase and
frequency lock.
8. Types of PLL Architectures
Different forms of PLLs have been developed to suit various applications:
- Analog PLL: The earliest type, relying on continuous-time components such as multipliers,
RC filters, and analog VCOs.
- Digital PLL (DPLL): Uses digital logic for phase detection and filtering, offering robustness
and easier integration in digital systems.
- All-Digital PLL (ADPLL): Fully digital implementation using numerically controlled
oscillators, now common in microelectronics.
- Delay-Locked Loop (DLL): A related concept where delay elements, rather than oscillators,
are synchronized to a reference signal.
9. Design Considerations and Challenges
Designing a PLL requires careful trade-offs. The loop filter must be designed to achieve
stability without sacrificing response speed. A wide bandwidth allows faster acquisition but
increases susceptibility to noise. Narrow bandwidth improves noise rejection but slows
down locking. Nonlinearities in the VCO and phase detector also affect performance.
Additionally, minimizing phase noise and jitter is critical in applications such as
communication systems, where timing accuracy is essential.
10. Applications of PLL
PLLs are versatile and widely used in modern technology:
- FM and AM Demodulation: A PLL can recover the original message signal by locking onto
the carrier.
- Clock and Data Recovery: Essential in digital communications such as Ethernet, USB, and
wireless protocols.
- Frequency Synthesizers: Generate stable, tunable frequencies for radios, televisions, and
transceivers.
- Control Systems: Used in robotics and motor control for synchronization.
- Microprocessors: Provide stable clock generation in CPUs and SoCs.
11. Simulation and Results
Simulation offers insight into PLL dynamics. Using MATLAB/Simulink, a PLL can be
modeled with blocks representing the phase detector, loop filter, and VCO. By applying a
sinusoidal input, the output initially differs in frequency but gradually converges to match
the input. A scope output shows the phase error decreasing until lock is achieved. Further
analysis can demonstrate capture range, lock time, and the effect of varying loop filter
parameters.
13. Conclusion
The Phase Locked Loop is a cornerstone of modern electronics, bridging the gap between
analog and digital systems. Its ability to synchronize, filter, and generate frequencies has
made it indispensable across communications, signal processing, and computing. While the
design involves challenges in stability and noise performance, advances in digital
technology continue to expand the range and efficiency of PLL applications.
14. References
1. Gardner, Floyd M. *Phaselock Techniques*. 3rd ed. Wiley, 2005.
2. Best, Roland E. *Phase-Locked Loops: Design, Simulation, and Applications*. McGraw-Hill,
2007.
3. MATLAB and Simulink Documentation, MathWorks.
4. Various IEEE Transactions on Circuits and Systems (for PLL design case studies).
