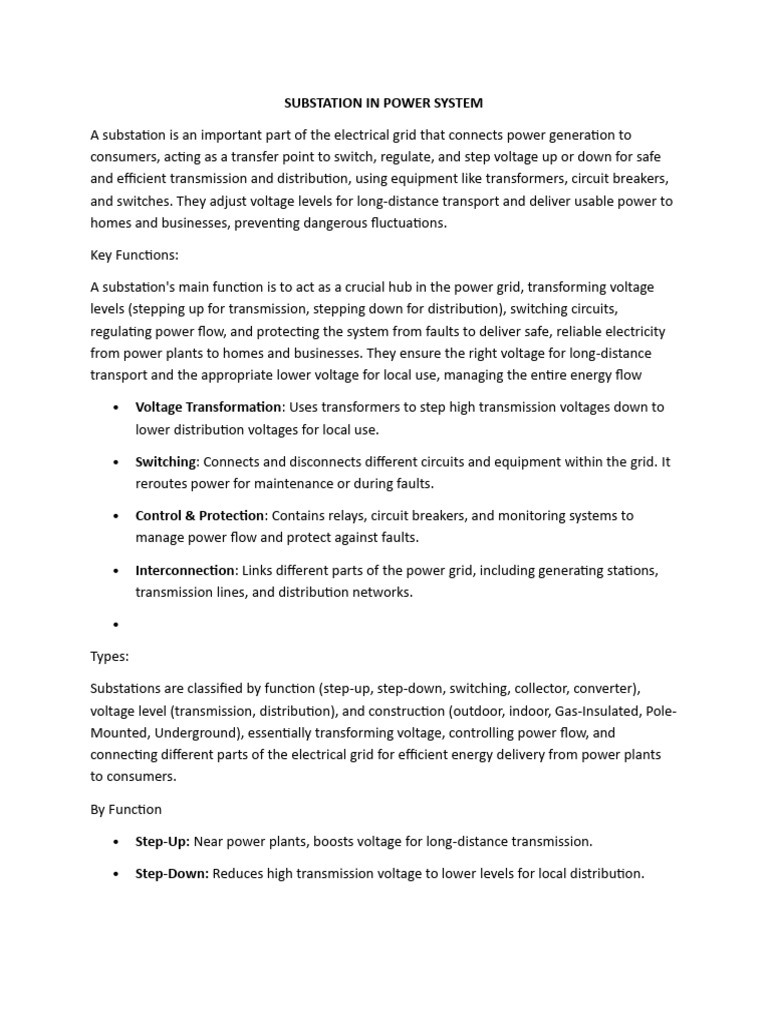

SUBSTATION IN POWER SYSTEM
A substation is an important part of the electrical grid that connects power generation to
consumers, acting as a transfer point to switch, regulate, and step voltage up or down for safe
and efficient transmission and distribution, using equipment like transformers, circuit breakers,
and switches. They adjust voltage levels for long-distance transport and deliver usable power to
homes and businesses, preventing dangerous fluctuations.
Key Functions:
A substation's main function is to act as a crucial hub in the power grid, transforming voltage
levels (stepping up for transmission, stepping down for distribution), switching circuits,
regulating power flow, and protecting the system from faults to deliver safe, reliable electricity
from power plants to homes and businesses. They ensure the right voltage for long-distance
transport and the appropriate lower voltage for local use, managing the entire energy flow
• Voltage Transformation: Uses transformers to step high transmission voltages down to
lower distribution voltages for local use.
• Switching: Connects and disconnects different circuits and equipment within the grid. It
reroutes power for maintenance or during faults.
• Control & Protection: Contains relays, circuit breakers, and monitoring systems to
manage power flow and protect against faults.
• Interconnection: Links different parts of the power grid, including generating stations,
transmission lines, and distribution networks.
Types:
Substations are classified by function (step-up, step-down, switching, collector, converter),
voltage level (transmission, distribution), and construction (outdoor, indoor, Gas-Insulated, Pole-
Mounted, Underground), essentially transforming voltage, controlling power flow, and
connecting different parts of the electrical grid for efficient energy delivery from power plants
to consumers.
By Function
• Step-Up: Near power plants, boosts voltage for long-distance transmission.
• Step-Down: Reduces high transmission voltage to lower levels for local distribution.
• Switching: Connects different lines, reroutes power, or switches sources without
changing voltage levels.
• Collector: Gathers power from multiple renewable sources (wind, solar) and feeds it into
the main grid.
• Converter: Changes AC to DC (or vice versa) for specific transmission needs like HVDC
(High Voltage Direct Current) systems.
By Construction/Location
• Air-Insulated (AIS): Traditional outdoor substations with equipment spaced out,
requiring more land.
• Gas-Insulated (GIS): Compact, enclosed substations using SF6 gas, ideal for urban areas,
but more costly.
• Pole-Mounted: Small units on utility poles, serving small communities or loads.
• Underground: Buried in vaults for aesthetic reasons in dense cities, often for
distribution.
• Mobile: Transportable units used as temporary backup during emergencies or
maintenance.
By Voltage Level/Role in Grid
• Transmission Substations: Handle very high voltages (e.g., 132kV, 220kV, 500kV) for bulk
power transfer. Connect circuits at high voltage, creating the main transmission network.
• Distribution Substations: Reduce voltage for local areas (e.g., 11kV down to 400V for
homes). Lower voltage for delivery to end-users (homes, businesses).
SUBSTATION EQUIPMENT
Substation equipment includes core components like power transformers, circuit breakers,
busbars, and switches that manage electricity flow, plus protective gear like lightning arresters,
relays, instrument transformers (CTs/VTs), capacitor banks, and grounding systems for safety
and voltage control, all overseen by control buildings and SCADA for monitoring and operation.
These parts work together to step voltage up or down, switch circuits, and ensure reliable, safe
power delivery across the grid.
Core Equipment
• Power Transformers: Step voltage up for transmission or down for distribution.
• Circuit Breakers: Interrupt faults and normal current to protect equipment.
• Busbars: Thick conductors connecting incoming/outgoing circuits.
• Disconnect Switches (Isolators): Isolate sections for maintenance.
• Switchgear: Combines switches, fuses, and breakers for control.
Protection & Control
• Lightning Arresters (Surge Arresters): Divert lightning/surge energy to ground.
• Relays: "Brains" of the system, detecting faults and triggering breakers.
• Instrument Transformers (CTs & VTs/PTs): Measure high currents/voltages for metering
and protection.
• Earthing (Grounding) System: Safely discharges fault currents.
• Control Building/SCADA: Houses control panels, relays, and SCADA systems for
monitoring/remote control.
Support & Auxiliary Equipment
• Capacitor Banks: Improve power factor and stabilize voltage.
• Shunt Reactors: Absorb reactive power.
• Insulators: Support conductors and insulate them from ground/structures.
• Fencing & Control Panels: For safety and monitoring.
• Wave Traps/CVTs: For power line carrier communication
SUBSTATION SAFETY
Substation safety involves strict protocols, specialized PPE (arc flash suits, hard hats, insulated
gear), robust training, and physical barriers (fences, tags) to prevent electrocution, arc flashes,
and falls from heights, requiring constant awareness of energized equipment, safe clearances,
and adherence to lockout/tagout procedures for personnel and public protection. Key elements
include authorized access, proper grounding, fall protection, and clear signage, as substations
contain extremely high voltages that are dangerous even to the public.
Key Safety Measures for Workers
• Personal Protective Equipment (PPE): Mandatory arc-rated/flame-retardant clothing,
insulated gloves, hard hats, safety glasses, face shields, and steel-toed footwear.
• Training: Comprehensive training on hazards, equipment function, voltage levels, and
clearance requirements.
• Lockout/Tagout (LOTO): Strict procedures with "Danger – Do Not Operate" tags to
prevent accidental energization.
• Grounding: Proper grounding of equipment and structures to manage step and touch
potentials.
• Clearances: Maintaining safe distances from energized parts, with minimum heights for
overhead components.
• Fall Protection: Mandatory use of harnesses, shock-absorbing lanyards, and fall arrest
systems when working at heights.
Public Safety & Site Security
• Perimeter Security: Fences, locked gates, and warning signs to deter trespassers.
• No Trespassing: The public must never enter a substation or touch equipment due to
severe electrocution risks.
• Downed Lines: Assume all downed lines are live; stay 35 feet away and report
immediately
