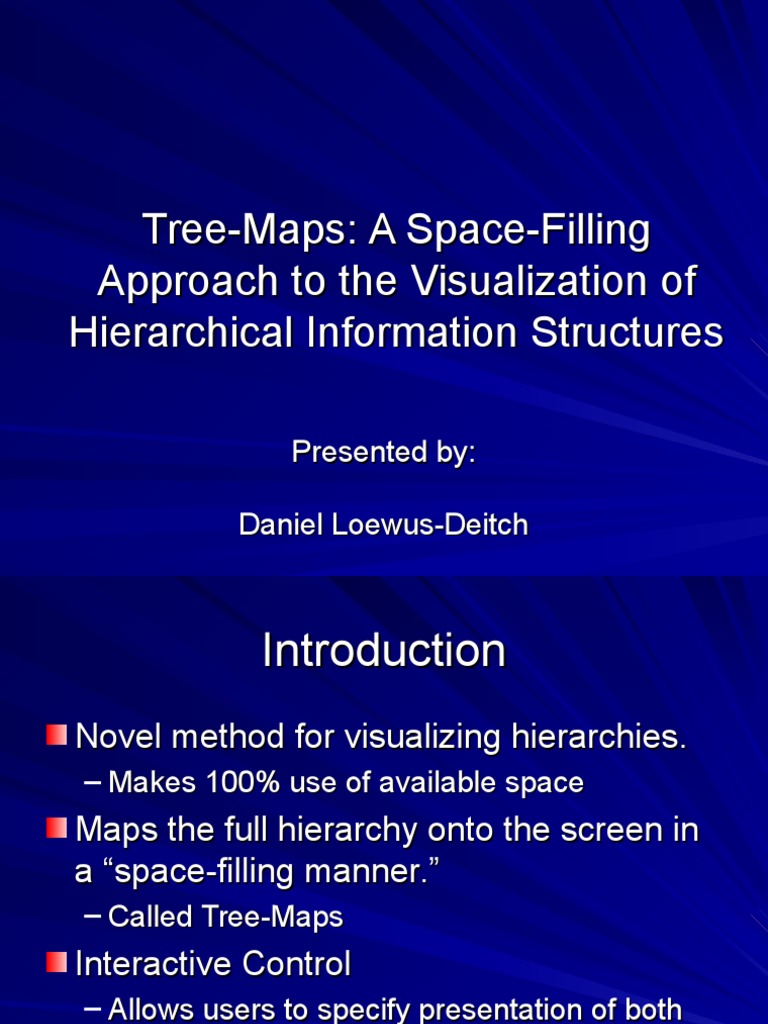

Tree-Maps: A Space-Filling

Approach to the Visualization of

Hierarchical Information Structures
Presented by:
Daniel Loewus-Deitch

Introduction
Novel method for visualizing hierarchies.
Makes 100% use of available space

Maps the full hierarchy onto the screen in

a space-filling manner.
Called Tree-Maps

Interactive Control
Allows users to specify presentation of both
structural and content information

Introduction
Sections of hierarchy with more important
information are allocated more display space.
Collection of rectangular boxes represent the
tree structure.
Best suited to hierarchies where
The content of the leaf nodes and the structure of the
hierarchy are most important.
The content information associated with internal
nodes is largely derived from their children.

Main Objectives
Efficient space utilization
Interactivity
Comprehension
Esthetics

Motivation
(Problems with Current Methods)
Traditional methods for displaying
hierarchies can be classified into 3
categories:
Listings
Outlines
Tree diagrams

Listings
Can provide detailed content information.
Present structural information poorly.
Requires users to parse path information and
move manually through the hierarchy to get a
real idea of its structure.

Outlines
Can nicely provide both structural and
content.
Structure can only be viewed a few lines
at a time.
Inadequate for displaying a hierarchical
structure with more than a few hundred
nodes.

Tree Diagrams
Excellent for small structures.
Make poor use of available display space.
Too much space used up for background.

Little content information.

Presenting additional information clutters the
display space.

Why Tree-Maps are a good

alternative
They use display space efficiently.
Can provide structural information
implicitly.
Eliminates the need to draw internal nodes.

Provide an overall (global) view of the

entire hierarchy.
Makes navigation and orientation easier.

Provides creative visual cues to

communicate content information.

Presenting Directories
Problems with current methods:
None provide a graphical representation of
the relative sizes of files or directories.
Command line listings force user to piece
directory tree together manually.
Windows obscure each other and require too
much effort to be arranged in any kind of
useful manner.
Icons only show the type of the file, but no
other properties.

Presenting Directories
Origin of Tree-Maps concept
Venn diagrams
Tree diagrams
Because these waste space, decided to use
boxes instead of ovals, along with a binpacking algorithm.
Worked well for small hierarchies only.
Nesting caused problems.

Presenting Directories
Origin of Tree-Maps concept
Discovered slice and dice method.
Simple linear method (top-down).

Developed a weight-proportionate distribution.

Added a pop-up dialog window for detailed
content information.
Simple color mapping helps distinguish
various properties of files, such as type and
size.

Tree Map Method

Structural Information:
Interactive approach gives user control over
how tree is displayed.
Requires that a weight be assigned to each
node, which determines the size of that
nodes bounding box.

Tree Map Method

Structural Information:
There are some properties that always hold,
maintaining a consistent relationship between
the structure of the hierarchy and its Tree-Map
representation (pg. 156).
Structural information is implicitly presented,
but can be nested to explicitly indicate.
Non-nested display explicity provides direct
selection only for leaf nodes.

Tree Map Method

Content Information:
Variety of display properties determines how
the node is drawn.
Color is the most important property.
Other properties include pitch of tone and
color saturation.
Pop-up display provides information about the
node currently under the cursor.

Coping With Size

Groups of small files can become
indistinguishable (completely black
regions).
Zooming in on these regions helps the
local structure become clear.

Future Research
Exploration of alternate structural
partitioning schemes.
Appropriate visual display of both numeric
and non-numeric content information.
Dynamic views
Animated time slice

Future Research
Extended operations
Zooming
Marking
Selecting
Searching

Space-Filling Software
Visualization
Presented by:
Daniel Loewus-Deitch

Introduction
SeeSys is a system that allows users to
visualize statistics associated with code
that is divided hierarchically into
subsystems, directories, and files.

Introduction
Problems with current methods:
Ineffective for large software systems.
Routines for producing flow charts, function
call graphs, and structure diagrams often
break down.
Incomprehensible, cluttered display.

Introduction
Project managers need a tool that
facilitates management issues of software
development.
Where new development activity is occurring.
Which modules are error prone.

Motivation for SeeSys came from AT&Ts

massive communications software system.
Five questions for project managers (pg.
162)

Introduction
Statistical methods, alone, dont provide
the context necessary to make valid
analyses.
SeeSys visualizes subsystem, directory,
and file statistics, but within appropriate
context.
Preserves hierarchical relationships in the
code.
Makes it easy to relate the statistics to the
components.

Approach
Based on idea that software system can
be decomposed into its individual
components.
Subsystems labeled with letters.
Subsystems are partitioned vertically and
their area is based on a particular
subsystem statistic.
Allows for visual comparison of directories
within a subsystem.

Approach
Fill represents a second statistic, such as
indicating newly-developed code.
Zoom view to get a closer look at an
individual subsystem.
Hierarchical decomposition immediately
relates the files to their directories and the
directories to their subsystems.
Makes cross unit comparisons easy.

Approach
The fill represents percentages.
Allows for quick discovery of outliers.

Applications
Subsystem information
Size and color brightness represent the size
or individual subsystems.

Directory information
Each subsystem is partitioned vertically to
show its internal directories.
Area and color represent size.
Fill is related to new development.
Figure 3 is the software skyline.

Applications
Error-prone code
Directory spikes represent detail for directory
bug fixing.
Subsystem g shows an example of a very high
bug rate (figure 5), represented by the light
gray subsystem rectangle.

System evolution
Animated display portrays growth through the
softwares version releases.
Shows history and trends of each subsystem.

The Visualization System

SeeSys was designed to display software
metrics that have two properties
Quantitative measure
Additive

May be extended to display complexity

metrics.

User Interaction
Tracks mouse movements and shows
extra information about the component
that the mouse cursor is touching.
Active component indicated by a red
highlighted boundary.

Available stats are shown on lower left

side of screen.
Clicking these stats creates a redrawn
display focused on this particular statistic.

User Interaction
Five buttons control various options such
as presence of fill and zoom activation.
ROWS slider controls the number of rows
in the display.
Speed slider and frame slider control
animation.
During animation, one can watch the
active bar in the slider to see that
particular subsystems evolution.

Display Principles
Based on 3 principles:
Individual components can be assembled to
form the whole.
Allows users to see relationships between
components.

Pairs of components can be compared.

Components can be disassembled into
smaller components.
Allows structure of display to reflect structure of
software.

Screen Real-Estate
100% of display area is utilized.
Components with large statistics are
visually dominant.
Zoom feature allows user to see small
directories.

Spatial Relationships
Takes advantage of human ability to
recognize spatial relationships.
People relate each component to the
whole.
It is easier to see relationships between
components if the heights of the
rectangles are equal.
Row slider allows user to choose number of
rows displayed for an optimal display.

Color
Redundantly encodes size.
Can also be used to encode age,
complexity, activity, number of
programmers, etc.

Implementation
Four linked views of data:
Colorful space-filling display.
Leftspace controls, buttons, sliders.
Bottomspace color scale and statistics.
Zoom view details of a particular
subsystem.

Summary
SeeSys provides the following utilities:
Shows the sizes of the subsystems and
directories and where the recent activity has
occurred.
Zoom in on particular subsystems.
Explore where bug fixes and new functionality
have occurred.
Identify directories and subsystems with high
fix-on-fix rates.
Find historically active and extinct subsystems

Summary
3 principles should ultimately be observed
when designing any visualization system
for large software systems:
Structure of display should reflect structure of
software.
Individual components should by comparable
and decomposable.
Animation helps user visualize the evolution
of the software.

Summary
Potential users of SeeSys:
Project managers
Feature engineers
Software developers
