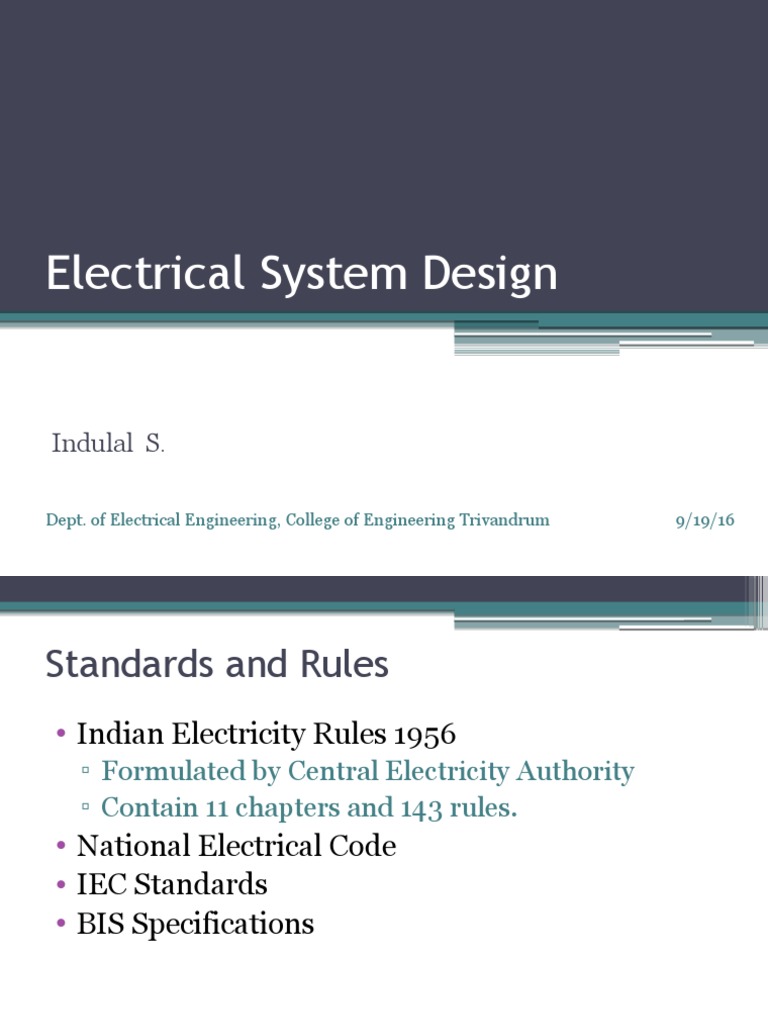

Electrical System Design
Indulal S.
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Standards and Rules
Indian Electricity Rules 1956
Formulated by Central Electricity Authority
Contain 11 chapters and 143 rules.
National Electrical Code
IEC Standards
BIS Specifications
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Installation in Domestic Buildings
The wiring installation should be in accordance with the
Indian Electricity Rules 1956
Procedure
Identify the loads consulting with the consumer
Calculate the total connected load and type of supply
Deciding the number of sub circuits
Prepare the installation plan
Deciding the main switch, distribution board, ELCB, MCBs
Deciding the size of wires and conduits
Prepare the schematic diagram
Prepare the estimate
(Including quantity of materials, cost of material, transportation
charge and labour charge)
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Type of Wiring
PVC insulated wires in steal/PVC conduits
PVC insulated wires in concealed conduits
Major rules
Only rigid conduits to be used
Conductors of different supply systems shall not be bundled in
the same conduit
Conduits shall be supported by saddles with a maximum spacing
of 60 cm
Suitable inspection boxes shall be provided (min size 75x75 mm)
Flush type outlets shall be made of mild steal or aluminium boxes
with provision for earthing and a cover plate of insulating
material.
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Recommended Illumination levels
Location
Illumination
level (lux)
Location
Illuminatio
n level (lux)
Entrance
100
Bath room
100
Living room
300
Stairs
100
Dining room
150
Garage
70
Bed room General
300
Study
300
Bed room dressing
table
200
Games/recreation
room
100
Kitchen
200
Table games
300
Laundry
200
Workshop
200
Sewing
700
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Typical Schematic
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Preparation of estimate
Sl. Specifications
No.
Uni
t
Qty.
Rate
amount
Main Switch: Installation testing and
commissioning of 500V, 32 A, 4-pole
switch fuse unit (TPN) etc.
2000
2000
Distribution Board: Installation,
testing and commissioning of 500V,
double insulated IP42 TPN Distribution
Board conforming to IS 8623 universal
mounting with 100 A copper bus bars,
neutral and earth bar, cable ties, top and
bottom removable gland plates with
knockouts and suitable for fixing four pole
ELCB as incoming and single pole MCBs
as out going etc. complete with 32 A four
pole ELCB as incomer and 6 A single pole
MCBs nos., 16 A MCBs .nos. as
outgoing. Etc.
Sl. Specifications
No.
3
Uni
t
Wiring System: Laying and fixing of ISI
marked rigid 20 mm dia. PVC conduit and
wiring of light , fan and 5 A plug socket
points using 2x1.5 sq.mm fine copper wire
as per IS 732.82 with 14 SWG continues
copper earth wire, earth socket brass bolt
and nut, up to and fixing 5 A piano type
single pole switches on hylum plate and
giving connection to 3 plate ceiling rose
making good the damages etc. complete.
a) One light point controlled with one
switch
b) Two light point controlled with one
switch
c) Ceiling fan point with regulators
Qty.
Rate
amount
Sl.
No.
Specifications
Un
it
d) Exhaust fan point
e) Fixing of 5 A flush type plug socket with 5 A
piano type single pole control switch on
existing switch board and giving connection
as
required in combined position.
Wiring for 16 A socket outlet: Laying and
E
fixing of
25 mm dia. PVC conduit and wiring of 16 A
socket outlet points using 2x2.5 sq.mm fine
copper wire as per IS 732.89 with 14 SWG
continues copper earth wire, earth socket,
brass bolt and nut up to and fixing 16 A piano
type single pole switch on hylum plate making
good the damages etc. complete.
Qty. Rate amount
Sl.
No.
Specifications
Wiring for telephone socket points to the
respective telephone sockets with modular
socket outlets of approved brand using
0.5 sq.mm copper conductor PVC insulated
two pair telephone cable in recessed
condition.
Wiring for TV sockets with modular TV socket
outlets and wired with 75 ohm TV cable for
cable TV connection.
Light and fan fixtures: Testing and
commissioning of light fittings, fans and
exhaust fans complete with a) lamps and
fittings b) earthing of fittings and c) fixing
accessories.
i) Wall mounted fluorescent fittings 1x40 W
Un
it
Qty. Rate amou
nt
Sl.
No.
Specifications
Un
it
ii) Wall mounted CFL fittings 15 W
iii) Exhaust fans 300 mm light duty
iv) 1200 mm sweep ceiling fans with regulator
v) External light fittings
Earthing: Providing pipe earthing as per IS
3043-1987 for equipment earthing complete
with excavation in hard soil, pipe electrode of
approved size brick masonry, charcoal and
salt as required and back filling pipe earthing.
Qty. Rate amou
nt
2
nos.
Sl.
No.
Specifications
Laying of copper earth wires/strips for inter
connections of earthing, DB, SB etc. complete
with fixing acessoreis.
Un
it
a) No. 10 SWG
b) No. 12 SWG
Total Amount
Contigencies
Grand Total
Qty. Rate amou
nt
Miniature Circuit Breaker (MCB)
1. Actuator lever
2. Actuator mechanism
3. Contacts
4. Terminals
5. Bimetallic strip
6. Calibration screw
7. Solenoid
8. Arc divider/extinguisher
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Domestic Wiring Problem
Figure shows the plan of a domestic building
which is to be provided with electric connection.
Provide sufficient number of light and fan
points, 5A and 15A socket outlets and airconditioner in bed room. Suggest type of supply,
number of sub circuits and specifications of DB,
ELCB, MCB etc. Also draw the installation plan
and schematic diagram.
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Installation Plan
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
Schematic
Dept. of Electrical Engineering, College of Engineering Trivandrum
9/19/16
