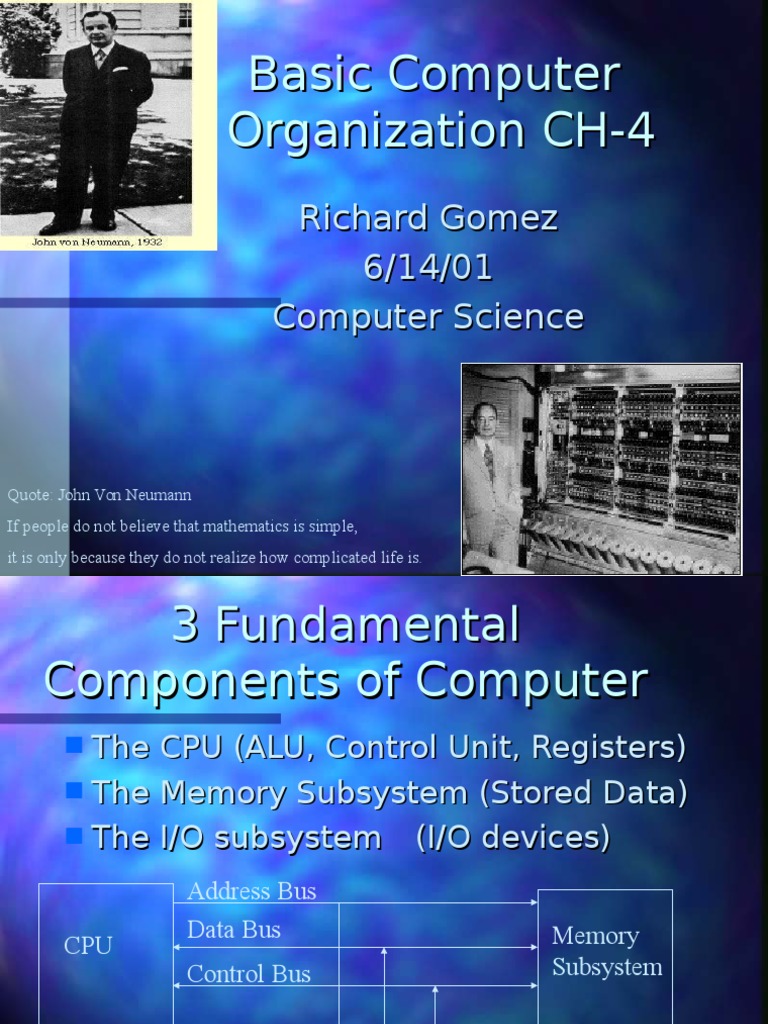

Basic Computer

Organization CH-4
Richard Gomez
6/14/01
Computer Science

Quote: John Von Neumann

If people do not believe that mathematics is simple,
it is only because they do not realize how complicated life is.

3 Fundamental
Components of Computer
The CPU (ALU, Control Unit, Registers)
The Memory Subsystem (Stored Data)
The I/O subsystem (I/O devices)

CPU

Address Bus
Data Bus
Control Bus

I/O Device
Subsystem

Memory
Subsystem

Each of these Components

are connected through
Buses.
BUS - Physically a set of wires. The
components of the Computer are
connected to these buses.
Address Bus
Data Bus
Control Bus

Address Bus
Used to specify the address of the
memory location to access.
Each I/O devices has a unique address.
(monitor, mouse, cd-rom)
CPU reads data or instructions from other
locations by specifying the address of its
location.
CPU always outputs to the address bus
and never reads from it.

Data Bus
Actual data is transferred via the
data bus.
When the cpu sends an address to
memory, the memory will send
data via the data bus in return to
the cpu.

Control Bus
Collection of individual control signals.
Whether the cpu will read or write
data.
CPU is accessing memory or an I/O
device
Memory or I/O is ready to transfer
data

I/O Bus or Local Bus

In todays computers the the I/O
controller will have an extra bus
called the I/O bus.
The I/O bus will be used to access
all other I/O devices connected to
the system.
Example: PCI bus

Instruction Cycles
Procedure the CPU goes through to
process an instruction.
1. Fetch - get instruction
2. Decode - interperate the
instruction
3. Execute - run the instruction.

Process of an Instruction
(Define fetch)
When CPU is ready the it will assert the
read control signal.
Depending on the CPU the read can be
active high (1) or low (0).
After being asserted the subsystem will
return the data through the data bus.
The CPU will then receive this data and
store into one of its registers

Process of an Instruction
(Define Decode)
Now the CPU will decode the
instruction.
The CPU will determine the sequences
of commands needed to perform.
Each instruction can require different
sequences of operations.
This is perform within the CPU with no
system buses.

Process of an Instruction
(Define Execute)
The CPU will now execute the
instruction.
This sequence will vary from
different instructions.
Read or write data to memory or
I/O subsystem.

Timing Diagram:
Memory Read

Address is placed at beginning of clock

after one clock cycle the CPU asserts the read.
Causes the memory to place its data onto the data bus.
CLK : System Clock used to synchronize

CLK
Bus
Bus
Read

Address
Data

Timing Diagram :
Memory Write

CPU places the Address and data on the first clock cycle.
At the start of the second clock the CPU will assert the
write control signal.
This will then start memory to store data.
After some time the write is then deasserted by the CPU
after removing the address and data from the
subsystem.

CLK
Address Bus
Data Bus
Read

Address
Data

I/O read and Write Cycles

The I/O read and Write cycles are
similar to the memory read and write.
Memory mapped I/O : Same sequences
as input output to read and write.
The processor treats an I/O port as a
memory location.
This results in the same treatment as a
memory access.

CPU organization
CPU controls the Computer
The CPU will fetch, decode and
execute instructions.
The CPU has three internal
sections: register section, ALU and
Control Unit

Register Section
Includes collection of registers and a
bus.
Processors instruction set
architecture are found in this section.
Non accessible registers by the
programmer. These are to be used for
registers to latch the address being
accessed and a temp storage register.

Arithmetic/Logic Unit (ALU)

Performs most Arithmetic and
logical operations.
Retrieves and stores its
information with the register
section of the CPU.

Memory Subsystem

2 Types of Memory:
ROM : Read Only Memory

Program that is loaded into memory and

cannot be changed also retains its data even
without power.

RAM : Random Access Memory

Also called read/write memory. This type of

memory can have a program loaded and
then reloaded. It also loses its data with no
power.

Different ROM Chips

Masked ROM :

Programmable ROM (PROM) :

Capable of being programmed by the user

with a ROM programmer. Not hardwired.

Erasable PROM (EPROM) :

ROM that is programmed with data when

fabricated. Data will not change once
installed. Hardwired.

Much like the PROM this EPROM can be

programmed and then erased by light.

EEPROM :

Another form of EPROM but is reprogammable

electrically.

Different RAM Chips

Dynamic RAM (DRAM) :

Leaky capacitors. Caps are charged and slowly

leak until they are refreshed to there original
data locations. Ex. Computer RAM

Static RAM (SRAM) :

Much like a register. The contents stay valid

and does not have to be refreshed. SRAM is
faster than DRAM but cost more Ex. Cache

Each RAM chip has 2^n * m. n address

inputs and m bidirectional data pins

Internal Memory
Organization

A2
A1
A0

CE
OE

ROM and RAM have similar internal organization.

Internal linear Organization. Ex. 8 X 2 ROM Chip:

0
1
2
Decoder 3
4
5
6
E
7
3-8

D0

Internal Memory Cont.

This chip has 3 Address inputs
2 data outputs
16 bits of internal storage arranged as 8
2-bit locations
The 3 address bits will be decoded to select
one of the 8 locations only if CE is active (1).
With both CE and OE enabled the buffers are
enabled and data is allowed to flow out.

Internal Memory Cont.

As the # of locations increases the
size of the address decoder needed
in linear organization becomes very
large.
To get around this problem we can
use multi-dimensions of decoding.
The size of an n to 2^n decoder is
said to be O(2^n)

Memory Subsystem
Memory subsystem is the
combination of memory chips
Example : 8 x 2 chips can be
combined to make an 8 x 4 memory.
Both chips will receive the same 3
address inputs from the bus, as well
as the CE and OE signals.
The data pins of the first chip are
connected to bits 3 and 2 and the
other to 1 an 0 of the data bus

Memory Subsystem Cont.

When the CPU reads data it places the
address on the address bus.
Both chips will read in bits A1, A2, and A0
and decode
Since both chips are using the same CE
and OE either both chips are active or
not.
To the CPU it will act just like an 8 x 4
memory chip.

Von Neumann and Harvard

architectures

Are similar in implementation using this diagram.

Address Bus
CPU

Data Bus
Control Bus

Memory
Subsystem

I/O Device
They differ in how data is arranged
in memory.
Subsystem
The Neumann uses mixed memory module while
the Harvard uses separate memory modules for
data and instructions

Von Neumann and Harvard

architectures

Modern computers today predominantly use the

Neumann architecture.
Although it will also use some elements of the harvard
architecture.
The difference is the PC will assign sections of memory
to either instructions or data.
Although this is not a true Harvard architecture because
that system requires that a memory module always be
assign the same one of the two.
