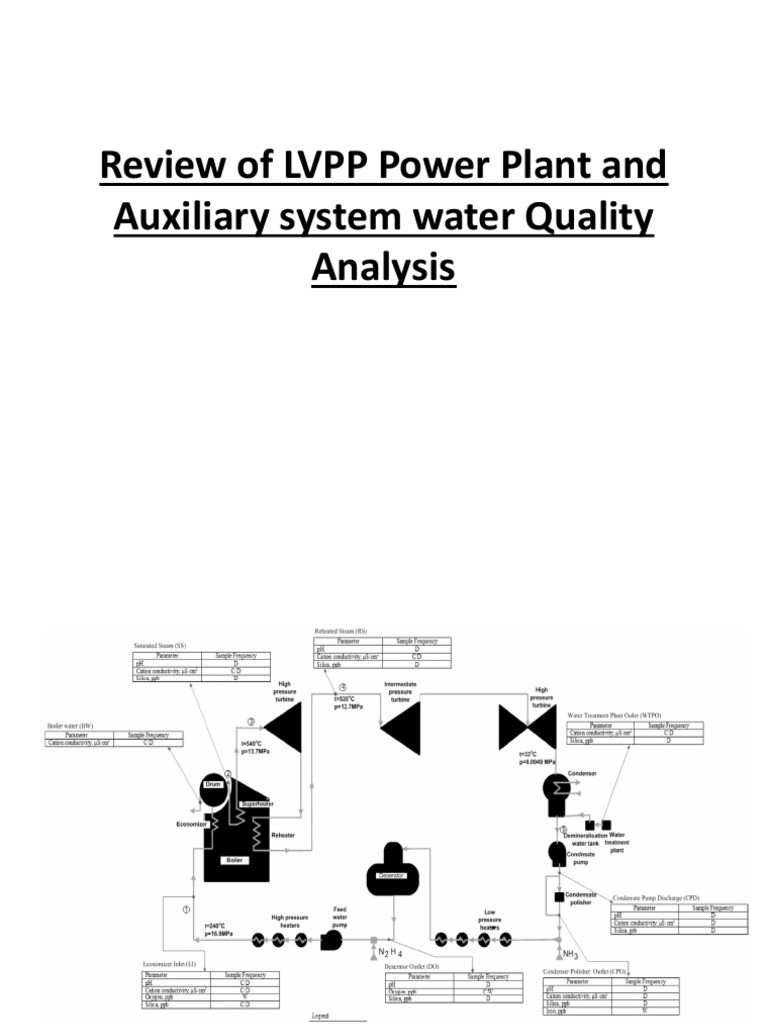

Review of LVPP Power Plant and
Auxiliary system water Quality
Analysis
BOILER WATER
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH pH pH
S. Conductivity S.Conductivity S.Conductivity S. Conductivity S. Conductivity S.Conductivity
Phosphate Phosphate Phosphate Phosphate
Silica Silica Silica Silica Silica
Chloride
Boiler Water Na Na
Fe Fe
Cu Cu
Chloride
Sulfate
Ammonia
Hardness
Lab Analysis
pH, Specific Conductivity , Phosphate analysis need to be continue with lower frequency every
6 hr. (Recommended EPRI Frequency is one reading for one day) However if have any deviation of
above parameters we must need to increase testing frequency.
Boiler Water Silica analysis must be conducted one time a day in the lab.
Fe / Cu Analysis need to be conducted one time a month
Hardness Analysis no need to conduct in the Boiler water.
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose.
FEED WATER
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH pH pH
Conductivity Conductivity Conductivity Conductivity
Silica Silica Silica Silica Silica
Cation Conductivity Cation Conductivity Cation Conductivity Cation Conductivity
Hydrazine Hydrazine Hydrazine
Feed Water Dissolved Oxygen Dissolved Oxygen Dissolved oxygen
Sodim Sodium
Fe Fe Fe
Cu Cu Cu
Tatal Hardness
Oil
TOC TOC
Lab Analysis
pH, Specific Conductivity , Sodium analysis need to be continue with lower frequency every
6 hr. (Recommended EPRI Frequency is one reading for one day) However if have any deviation of above
parameters we must need to increase testing frequency
Residual Carbohydrazide content need to be analyze one time a day
Feed Water Silica analysis must be conducted one time a day in the lab
Fe / Cu / Dissolved Oxygen / TOC Analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose.
CONDENSED WATER
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH pH pH
S.Conductivity S.Conductivity S.Conductivity S. Conductivity S.Conductivity S.Conductivity
Silica Silica Silica
Condensed Water
Cation Conductivity Cation Conductivity Cation Conductivity Cation Conductivity
Dissolved Oxygen Dissolved Oxygen Dissolved Oxygen Dissolved Oxygen Dissolved Oxygen
Sodium Sodium Sodim Sodium
Hardness Hardness
TOC TOC
Lab Analysis
pH, Specific Conductivity , Sodium analysis need to be continue with lower frequency every
6 hr. (Recommended EPRI Frequency is one reading for one day) However if have any deviation of
above parameters we must need to increase testing frequency
Condensed Water Silica analysis must be conducted one time a day in the lab
Fe / Cu / Dissolved Oxygen / TOC Analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose.
SATURATED STEAM
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH
Conductivity Conductivity Conductivity Conductivity
Cation Conductivity Cation Conductivty Cation Conductivity Cation Conductivity
Saturated Steam Silica Silica Silica
Sodium Sodium Sodim Sodium
cu Cu cu
Fe Fe Fe
TOC TOC
Lab Analysis
pH, Specific Conductivity , Sodium analysis need to be continue with lower frequency every
6 hr. (Recommended EPRI Frequency is one reading for one day) However if have any deviation of
above parameters we must need to increase testing frequency
Super Heated and Saturated steam Silica analysis must be conducted one time a day in the lab
Fe / Cu / TOC Analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose.
SUPER HEATED STEAM
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH
Conductivity Conductivity Conductivity Conductivity
Cation Conductivity Cation Conductivty Cation Conductivity Cation Conductivty
Super Heated Steam
Silica Silica Silica Silica Silica
Sodium Sodium Sodim Sodium Sodium Sodium
cu Cu cu
Fe Fe Fe
TOC TOC
Lab Analysis
pH, Specific Conductivity , Sodium analysis need to be continue with lower frequency every
6 hr. (Recommended EPRI Frequency is one reading for one day) However if have any deviation of
above parameters we must need to increase testing frequency
Super Heated and Saturated steam Silica analysis must be conducted one time a day in the lab
Fe / Cu / TOC Analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose.
REHEATED STEAM
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH Cation Conductivity
Conductivity Conductivity Conductivity Conductivity
Cation Conductivity Cation Conductivty
Reheated Steam Silica Silica Silica
Sodium Sodium Sodim Sodium
cu Cu cu
Fe Fe Fe
TOC TOC
Lab Analysis
pH, Specific Conductivity , Sodium analysis need to be continue with lower frequency every
6 hr. (Recommended EPRI Frequency is one reading for one day) However if have any deviation of
above parameters we must need to increase testing frequency
Reheated Steam Silica analysis must be conducted one time a day in the lab
Fe / Cu / TOC Analysis need to be conducted one time a month
Online Analysis
Cation Coductivity analyzer needs to be implement for reheated steam.
CLOSED CYCLE WATER
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH pH Corrosion Rate (Fe)
Conductivity Conductivity Conductivity Conductivity Conducivity (SC)
Hydrazine Hydrazine
Dissolved Oxygen Dissolved Oxygen
Cl /F / SO4 Cl /F / SO4
Closed Cycle Water Fe/ Cu Fe/ Cu
TSS TSS
Hydrazine Hydrazine
Ammonia
Silica
Sodium Sodim
Hardness
Lab Analysis
pH, Specific Conductivity need to be continue with lower frequency every 6 hr. (Recommended EPRI
Frequency is one reading for one day) However if have any deviation of above parameters we must need
to increase testing frequency
Sodium analysis no needs to conduct in the closed cycle water system.
Residual Carbohydrazide content need to be analyze one time a day
Fe / Cu / TSS/ Cl / SO4 / F / Ammonia Analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose
STATOR COOLING WATER
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH pH pH
Conductivity (S/C ) S.Conductivity S.Conductivity S.Conductivity S.Conductivity S.Conductivity
Sodium Sodium Sodim Sodium
Stator cooling Water Turbidity Turbidity Turbidity Turbidity
Hardness
Cu Cu Cu Cu
Ammonia
Dissilved Oxygen Dissolved Oxygen Dissolved Oxygen Dissolved Oxygen Dissolved Oxygen
Lab Analysis
pH, Specific Conductivity , Turbidity, Sodium need to be continue with lower frequency every 6 hr.
(Recommended EPRI Frequency is one reading for one day) However if have any deviation of above
parameters we must need to increase testing frequency
Cu analysis needs to conduct one time a day in the closed cycle water system.
Cu / Dissolved Oxygen , Ammonia analysis need to be conducted one time a month
Online Analysis
Dissolved oxygen need to continuously monitor in the Stator Cooling Water System.
MIXED BED INLET
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH
S.Conductivity S. Conductivity
Cation Conductivity Cation Conductivity Cation Conductivity
Mixed Bed Inlet
Sodium Sodium Sodium Sodium
Silica Silica Silica Silica
Fe Fe
Cu Cu
Lab Analysis
PH, Specific Conductivity, Sodium need to analyze in the lab every 6 hr.
Mixed bed Silica analysis must be conducted one time a day in the lab.
Fe/ Cu / analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose.
MIXED BED OUTLET
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH pH pH
S.Conductivity S.Conductivity S. Conductivity
Mix bed Outlet Catin Conductivity Cation Conductivity Cation Conductivity Cation Conductivity
Silica Silica Silica Silica Silica
Sodium Sodium Sodium Sodium Sodium
Fe Fe
Cu Cu Cu
Lab Analysis
PH, Specific Conductivity, Sodium need to analyze in the lab every 6 hr.
Mixed bed outlet Silica analysis must be conducted one time a day in the lab.
Fe/ Cu / analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose.
DEAERATOR INLET AND OUT LET
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH
Dearator Inlet
S. Conductivity S. Conductivity
D/O D/O Dissolved Oxygen Dissolved Oxygen
Fe Fe
Cu Cu
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH pH
Dearator Outlet S. Conductivity S. Conductivity S. Conductivity
D/O D/O Dissolved Oxygen Dissolved Oxygen
Fe Fe
Cu Cu
Lab Analysis
PH, Specific Conductivity, need to analyze in the lab every 6 hr.
Dissolved Oxygen / Fe/ Cu / analysis need to be conducted one time a month
Online Analysis
Online pH analyzer needs to implement for deaerator inle and outlet
MAKE UP WATER TANK
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH
S. Conductivity S. Conductivity
Make Up Water Tank Silica Silica
Fe Fe
Cu Cu
Sodium Sodium
Lab Analysis
PH, Specific Conductivity, Sodium need to analyze in the lab every 6 hr.
Makeup water tank Silica analysis must be conducted one time a day in the lab
Fe/ Cu / analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose
ECONOMIZER OUTLET
CMEC Guide EPRI Guide Lab Recommended Lab Online Recommended online
pH pH
S. Conductivity S. Conductivity
Economizer Outlet Silica Silica
Fe Fe
Cu Cu
Lab Analysis
PH, Specific Conductivity, need to analyze in the lab every 6 hr.
Makeup water tank Silica analysis must be conducted one time a day in the lab
Fe/ Cu / analysis need to be conducted one time a month
Online Analysis
Recommended online parameters are available in the site. No need addition measurement requirement.
However online parameter values need to be records in the excel file for analysis purpose
Malfunctioning of Online Analyzer
Unit 01 Unit 02 Unit 03
Mixed Bed A/B/ C Na Analyzer Mixed Bed A/B/ C Mixed Bed A/B/ C Silica
Silica Analyzer Analyzer
Mixed Bed Outlet “Si “ Analyzer Mixed Bed Outlet “Si “
Analyzer
Economizer Inlet “Si”
Analyzer
Saturated Steam
“Cation Conductivity “
Super Heated Steam
“Na “ and “Si “Analyzer
