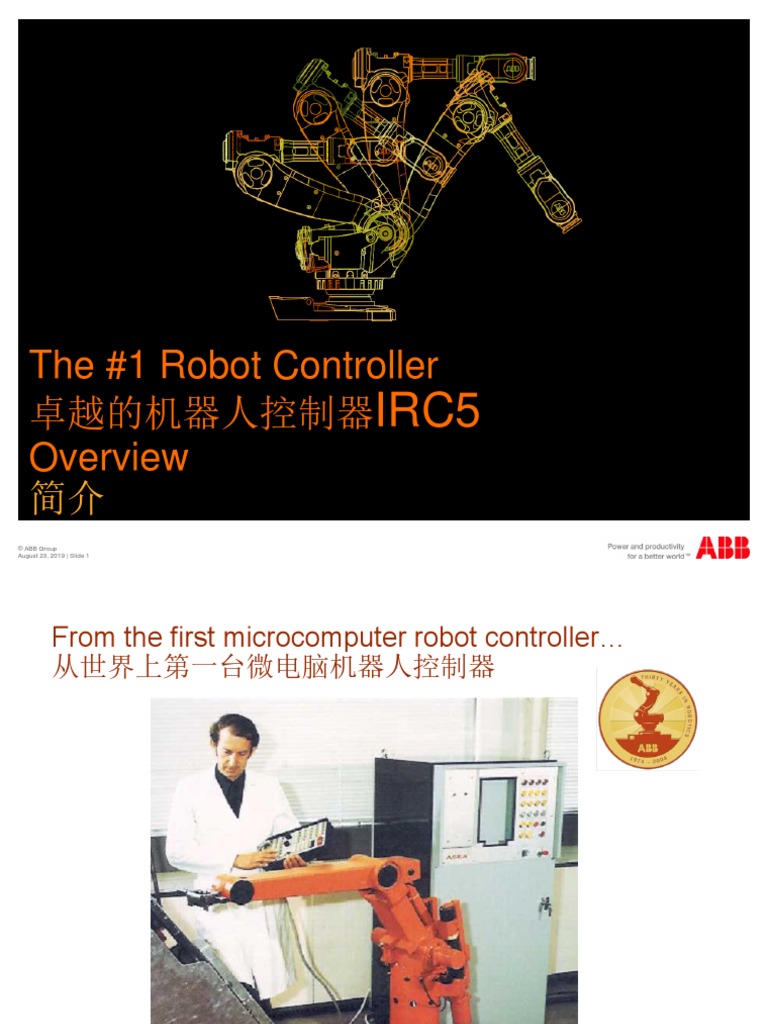

The #1 Robot Controller

卓越的机器人控制器IRC5
Overview
简介
© ABB Group
August 23, 2019 | Slide 1
 From the first microcomputer robot controller…
从世界上第一台微电脑机器人控制器

© ABB Group
August 23, 2019 | Slide 2
 …to the 5th generation Robot Controller: IRC5
到第5代机器人控制器：IRC5
 Built on established ABB controller strengths
 Motion control 运动控制
 Modular cabinet 模块化
 Software 软件
 Teach pendant 示教器
 Miscellaneous 特色功能
 15 new patents
15项专利

© ABB Group
August 23, 2019 | Slide 3
 Motion Control 运动控制

© ABB Group
August 23, 2019 | Slide 4
 World best Motion Control 世界最佳的运动控制技术

 TrueMove™ ensures that the motion

path followed by the robot is the same
as the programmed path – regardless
of the robot speed 在任何速度下，始终
按照编程路径运动

 QuickMove™ minimizes cycle time by

maximizing acceleration at every
moment. 以最佳的加速方式确保最短的 speed
运动节拍

QuickMoveTM Traditional

Cycle time gain

© ABB Group
August 23, 2019 | Slide 5
 Benchmark, Sealing 涂胶

Competitor ABB

© ABB Group
August 23, 2019 | Slide 6
Benchmark, Path Accuracy 运动路径精度

Several path variants and velocities tested by a customer

不同状况下的客户测试结果

Test result
Path deviation
路径偏移
ABB Less than 1 mm

Competitor X Up to 10 mm

Competitor Y Up to 12 mm

© ABB Group
August 23, 2019 | Slide 7
Benchmarks, Cycle Time 运动节拍
Spot welding cycle, IRB 6600 (including 34 s process time)电焊节拍
（包括34秒焊接工艺过程）
Point-to-Point Linear
点到点 线性运动
ABB 50.42 sec 50.54 sec

Competitor X 52.65 sec 56.30 sec

Competitor Y 53.20 sec 53.40 sec

Material handling cycle 物料搬运节拍, IRB 1600

ABB 4.4 s

Competitor X 6.7 s

Competitor Y 8.6 s

© ABB Group
August 23, 2019 | Slide 8
Benchmark - Collision Detection 碰撞防护
 Substantial reduction of collision
forces 大幅降低碰撞力 Reaction forces during a
collision in mech arm
 Robot retracts automatically 碰撞后作用于机械手臂上的反作用力
and releases tension from the tool机 2.5

器人碰撞后自动退回 No Coll. Det.

 Damage to gripper and peripherals

2.0

minimized 最小程度的设备损伤 1.5

Mech clutch
 Faster recovery after collision 碰撞后

Force (kN)
快速恢复 1.0

 No need for mechanical clutch 无需 Collision Det. 0.5

额外的机械设备
0

At a recent customer test only ABB

could come up with 0 5
Reaction Time (sec)
reliable collision detection!
在客户测试中，只有ABB拥有可靠的碰
© ABB Group
撞防护
August 23, 2019 | Slide 9
Load Identification 负载识别

 Very accurate 高精度

 Optimal robot performance 优化机器人运行过程
 No need for manual calculation 无需人工计算
 “The only useful load identification” (German customer)
唯一可用的自动负载识别 （德国客户）

Yw

Zw Yt
Y’
Zt

Z’
Xw

Back
Xt
© ABB Group
August 23, 2019 | Slide 10
X’
 Modular cabinet 模块化

Cabinet

© ABB Group
August 23, 2019 | Slide 11
Module Family Concept 模块化
Remote panel 远程面板

202 cm
137 cm

162 cm
97cm
Dual cabinet Process module on Single cabinet Process module on
Dual cabinet Single cabinet
双柜式 双柜式+过程柜 单柜式 单柜式+过程柜
 Front access of connections and parts
正面电气接口
 Flush sides for reduced floor space
平齐侧面，节约空间
 All modules stackable on top of each other 所有模块位置任意组合

© ABB Group
August 23, 2019 | Slide 12
 Distributability 可扩展
 Place modules where they fit best 将模块放置在最合适的地方
 save floor space 节约空间
 optimize cost 降低成本

Up to 75 m (std
10 or 30)

Up to 75m (std
2, 4, 30)

Up to 50m (std
7, 15, 22, 30)
Up to 75 m (std
15, 22, 30)

© ABB Group
August 23, 2019 | Slide 13
 Versatile I/O and Communication System 通用通讯方式

&

© ABB Group
August 23, 2019 | Slide 14
Panel Mounted Controller 面板式控制器

 Controller modules without

enclosure, to be mounted in
any suitable enclosure by
customer
没有外壳的控制模块，可放置
在客户的任何控制柜内
 Available for IRB 140, 340,
260, 1600, 2400 以上型号机
器人适用
 Compact and fully integrated
solution, e.g. for machine
builders 高度集成化的解决方
案，如可集成在机床内

© ABB Group
August 23, 2019 | Slide 15
Software Products 软件

© ABB Group
August 23, 2019 | Slide 16
 Operating System 操作系统– RobotWare
 Based on VxWorks ＆ .Net FrameWork  High performance – used by NASA in the
equipments on Mars
基于VxWorks 和 .Net FrameWork
性能卓越 – VxWorks同时应用在太空总署的火
 Robust 星探测设备的操作系统中
非常稳定  No viruses
没有病毒

 From competitor manual:

竞争对手：容易受到病毒攻击，下图来自竞争对手的手册中关于受到
病毒攻击时的处理方法

© ABB Group
August 23, 2019 | Slide 17
The RAPID Language 编程语言
 Modern, high-level language 高级编程语言
 Designed for end users 面向最终用户
 Structured 结构化语言
Shop floor language 类似车间操作模式的语言结构
Z

Z
 Customized instructions support支持自定义命令
 Customer developed application support支持客户二次开发
Z Y Y Y
 Error handling有错误处理功能 Y X
X X Z
 Interrupt handling有中断功能
Z Z
 Many powerful built-in functions许多内置功能
X
Y
X Y
X

ABB 的高级语言结构
Competitor 竞争对手使用的是低级语言
IF r1 = 0 THEN GOTO L1 IF product = CAR THEN
CALL sub1 MakeCar;
GOTO L3 ELSE
L1: r1 = 10 FOR num FROM 1 TO 10 DO
L2: CALL sub2 MakeBike;
SUB r1, 1 ENDFOR
IF r1 > 0 THEN GOTO L2 ENDIF
© ABB Group
L3:
August 23, 2019 | Slide 18
RobotStudio-Online 基于PC的操作软件

 Install and configure the robot controller to

your needs 根据您的需要安装和配置机器人的
控制器
 Setup and download RobotWare systems
配置和安装RobotWare
 Easy and controlled change of system
parameters 十分简便的更改系统参数
 Monitor I/O signals 监控I/O信号
 Basic RAPID editing 基本编程语言编辑
 Managing production data管理生产数据
 Record events记录事件
 Backup and restore controller data备份和
恢复数据
 Remote Access可远程接入

© ABB Group
August 23, 2019 | Slide 19
 VirtualRobotTM Technology 虚拟机器人技术 - RobotStudio

 VirtualRobot is an exact copy of the real controller

VirtualRobot是现实机器人控制器的精确拷贝
 Robot programs and configuration parameters
can easily be transferred between robots and PC 机器人
程序和配置参数可以在机器人和电脑直接方便地传输

VirtualRobotTM Technology True Offline Simulation

虚拟机器人技术 完全真实的离线仿真

© ABB Group
August 23, 2019 | Slide 20
RobotStudio-完全离线仿真

Easier To
RobotStudio™ Use New
Welcome to
RobotStudio
Graphics
 Build Your Station Engine
 Create Paths
 Create a Program

 What’s new in RobotStudio

MultiMove
and Multiple
Task Controllers
oriented

© ABB Group
August 23, 2019 | Slide 21
FlexPendant 示教器

© ABB Group
August 23, 2019 | Slide 22
ABB Operator Concept
 The FlexPendant and RobotStudioOnline work together
示教器和RobotStudioOnline 协同工作
 Same accessibility of data on FlexPendant as on RobotStudioOnline
可同样操作控制器内数据
 Select the optimal tool for each task
不同的应用对象
 RobotStudioOnline benefit examples:
 Remote access 远程介入
 Overview (large screen)
 Text entry (keyboard) 文本编辑
 FlexPendant benefit examples:
 Portability 便携式
 Safety features 安全性
 Jogging 摇杆操作
 Position teaching 位置示教

© ABB Group
August 23, 2019 | Slide 23
机器人示教器比较__ABB
ABB 机器人示教器
三维操纵杆
彩色、触摸屏设计 使用简易、方便、快捷
（中、英文互换）

以人为本的设计，
告别繁复的按钮操作

仿Windows操作界面
会使用电脑的您，同样能轻易掌握操作
© ABB Group
August 23, 2019 | Slide 24
FlexPendant 示教器

 3D joystick (patented) 3D摇杆

 Large colour touch screen 彩色大触摸屏
 14 languages, including full Asian character support支持14国语言
 User Authorization System, allowing different access levels for
different user groups可配置不同的访问权限
 Right and left-handed support支持左右手设置
 Harsh environment protected恶劣环境防护
 Only 8 hard keys (4 customizable)只有8个按钮（包括4个自定义按
钮）
Competitors at least 30-40竞争对手至少有30-40个按钮

© ABB Group
August 23, 2019 | Slide 25
Customizable User Interface自定义用户界面
 Ability to build custom applications with full use of
graphics and controller information 可以开发客户自定
义的应用界面
 Offline development support支持离线开发
 Not anymore a programming unit only, but
also an operator panel!不在局限于编程功能，
可以作为操作面板使用

© ABB Group
August 23, 2019 | Slide 26
 Extensive Process Support, Software & Hardware-专用应用
软件包

ABB开发各种专用的应用操作界面

© ABB Group
August 23, 2019 | Slide 27
Miscellaneous 特色功能

© ABB Group
August 23, 2019 | Slide 28
Electronic Position Switches 电子位置开关
 Replacing mechanical switches
替代机械开关
 Fully integrated in cabinet
完全集成在控制柜内
 Maintenance free
免维护
 Increased flexibility
柔性
 Easier to set up
安装配置简便
 Easier to replace a
robot in production
更换机器人简便
 Enabling more compact mechanical units
节省更多空间给其它机械单元

© ABB Group
August 23, 2019 | Slide 29
X
No more cams 无需机械开关
SafeMove – Next Generation Robot Safety
下一代机器人安全系统
 Enabling new lean cell concepts 新颖的精
益概念
 More compact cells 更精简的单元
 Enabling Human – Robot cooperation 使人
机协作成为现实

© ABB Group
August 23, 2019 | Slide 30
Safety Certified 安全认证!?
 Who cares? You should! 您应该关注！
 UL 1740 and ISO 10218 are Robot Safety Standards
机器人安全标准UL 1740 and ISO 10218
 ABB robots are subject to independent inspections by certified bodies ABB机器人拥有独
立认证机构的认证
 Most competitors do not have UL certificate 大多数竞争对手没有UL认证
 Most competitors do only self assessment for ISO 10218
大多数竞争对手只有ISO 10218的自我鉴定

© ABB Group
August 23, 2019 | Slide 31
PickMaster 3&5 拾料和堆垛大师

 Ease of use software for Picking, Packing and

Palletizing applications 便捷的应用软件，应用于
拾料、装箱和堆垛
 Flexible solutions 柔性解决方案
 Saves programming time 节省编程时间
 Powerful built in applications tool 强大的植入
工具
 Integrated machine vision 集成机器视觉

© ABB Group
August 23, 2019 | Slide 32
Force Control 力控制
 Force sensor interface 力传感器接口
 Superior dynamic responsiveness
出众的动态响应
 Process support 支持工艺过程
 Assembly 装配
 Grinding 打磨
 Machining 机械加工

Force/Torque sensor
力/力矩传感器

Assembly of a torque converter

© ABB Group
August 23, 2019 | Slide 33
Summary - IRC5 Strong Points
小结-IRC5的亮点

 World class path accuracy and cycle time 顶级的路径精

度和节拍
 Flexible and powerful robot language - RAPID 柔性和强
大的机器人语言
 FlexPendant – the perfect tool for teaching and
operation 示教器-完美的操作工具
 SafeMove – the tool for lean cell design and
collaborative applications 精益单元和协同工作工具
 Wide range of user friendly process applications 广泛的
应用
 Powerful PC tools for effective on-/off-line support and
network communication 强大的在/离线PC工具和通讯工
具

© ABB Group
August 23, 2019 | Slide 34
