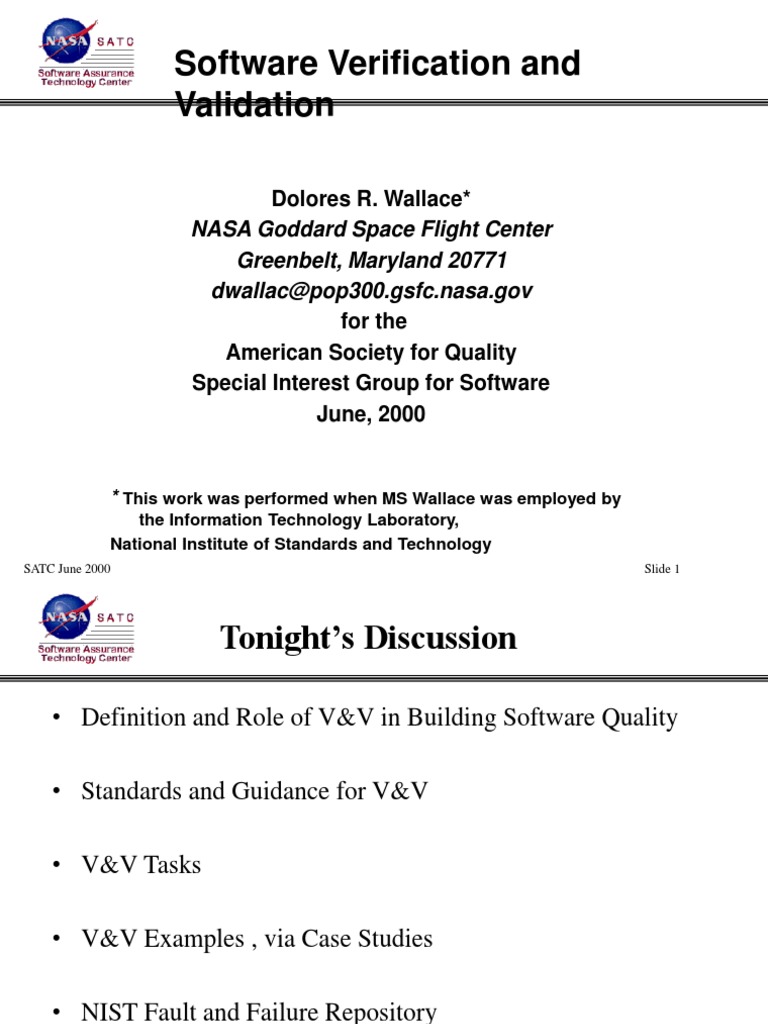

Software Verification and

Validation

Dolores R. Wallace*
NASA Goddard Space Flight Center
Greenbelt, Maryland 20771
dwallac@pop300.gsfc.nasa.gov
for the
American Society for Quality
Special Interest Group for Software
June, 2000

* This work was performed when MS Wallace was employed by

the Information Technology Laboratory,
National Institute of Standards and Technology
SATC June 2000 Slide 1
 Tonight’s Discussion

• Definition and Role of V&V in Building Software Quality

• Standards and Guidance for V&V

• V&V Tasks

• V&V Examples , via Case Studies

• NIST Fault and Failure Repository

SATC June 2000 Slide 2

 Elements of Software Quality

• Process – examples CMM; ISO9000 (ASQ)

- Standards to define what must be performed to build software
systems
- Assessment of organizations for conformance

• People – example ASQ’s CSQE

- Skilled people to get processes right
- People with knowledge beyond computer science/swe
- Licensing “software engineers” by state examinations

• Product – example Software V&V*

- Evaluation, measurement of the product
- Uncertainty reduced by reference, measurement methods
* Quality built in via excellent development practices but assurance needed

SATC June 2000 Slide 3

 Definition of V&V

• Verification
– Confirmation by examination and provisions of objective evidence
that specified requirements have been fulfilled. Ensures that
product(s) of each development phase meets requirements levied
by previous phase, and is internally complete, consistent and
correct enough to support the next development phase.

• Validation
– Confirmation by examination and provisions of objective evidence
that the particular requirements for a specific intended use are
fulfilled. Through the process of execution, ensures that product
conforms to functional and performance specifications stipulated in
the requirements.

SATC June 2000 Slide 4

 V&V Objectives

• Assess software products, processes during life

cycle
• Facilitate early detection and correction of software
errors
• Reduce effort to remove faults, via early detection
• Demonstrate software, system requirements correct,
complete, accurate, consistent, testable
• Enhance management insight into process and
product risk
• Support the software life cycle processes to ensure
compliance with program performance, schedule,
and cost requirements, and
• Enhance operational correctness and product
SATC June 2000 Slide 5
 Organization of V&V

• Independent V&V

• Part of “development” process

• Combination

• All use standards, guidelines to determine best fit

SATC June 2000 Slide 6

 New : IEEE 1012-1998 Software V&V

• More comprehensive than IEEE 1012-1986

• Product and process examination
• Integrity levels, metrics, independence
• Compliance with a higher level standard
• Separation of operation and maintenance
• New tasks: criticality analysis; hazard analysis; risk
assessment; configuration management assessment
• Retention of tasks in original 1012 standard:
– V&V management
– Evaluation of all artifacts, all stages
– Testing, beginning with requirements activities

SATC June 2000 Slide 7

 Guidance: NIST SP 500-234
http://hissa.nist.gov/VV234

• Provides guidance for performing V&V

– independence types
– step-by-step activities
• Describes verification, test techniques
– brief overview identifies issues for each technique
– questions, issues for V&V of reused software
• Explains some metrics for V&V
– general metrics; metrics for design, code, test
– reliability models

SATC June 2000 Slide 8

 Selected V&V Tasks

• Traceability Analysis
• Evaluation of Requirements, Design, Code
– Inspection, walkthrough, review
– Analysis (e.g., control flow, database, algorithm, performance)
– Formal Verification
– Simulation, modeling
• Change Impact Assessment
• Configuration Management Assessment
• Test
– Requirements based
– Evaluation of test documentation
– Simulation
– Regression testing
• Measurement
SATC June 2000 Slide 9
 Traceability Analysis

Trace system, software requirements through design, code

and test materials. Benefits:

• Identification of most important or riskiest paths

• Sets stage for special analyses (e.g., timing, interface)
• Locations of interactions
• Completeness / omission
• Identification of re-test areas
• Impact of change
• Discovery of root cause of faults, failures

SATC June 2000 Slide 10

 Change Impact Analysis

Use traceability analysis to identify every place affected by

proposed change

• Identification and evaluation of all interactions affected by

changes

• Evaluation of how changes affect assumptions about

COTS, other components

• Identification of regression tests

SATC June 2000 Slide 11

 EVALUATION

• Verify and validate that the software item satisfies the

requirements of its predecessor software requirements
(e.g., design to requirements; code to design).
• Verify software item complies with standards, references,
regulations, policies, physical laws, and business rules.
• Validate the design sequences of states and state changes
using logic and data flows coupled with domain expertise,
prototyping results, engineering principles, or other basis.
• Validate that the flow of data and control satisfy
functionality and performance requirements.
• Validate data usage and format.
• Assess the appropriateness of methods and standards for
that item.
• Verify specified configuration management procedures.

SATC June 2000 Slide 12

 EVALUATION (Con’t)

• Verify internal consistency between the elements of the

item and external consistency with its predecessor.
• Verify that all terms and concepts are documented
consistently.
• Validate that the logic, computational, and interface
precision (e.g., truncation and rounding) satisfy the
requirements in the system environment.
• Validate that the modeled physical phenomena conform to
system accuracy requirements and physical laws.
• Verify and validate that the software source code interfaces
with hardware, user, operator, software, and other systems
for correctness, consistency, completeness, accuracy,
testability.
• Verify functionality:algorithms, states, performance &
scheduling, controls, configuration data, exception
handling.

SATC June 2000 Slide 13

 Two Case Studies Affirm Need for
V&V
• Case Study 1
- 342 failures or real systems, in service
- Logic, calculation, and CM problems prevalent
- QA not implemented in maintenance
- Logic faults: many likely in requirements
• Case Study 2
- 1 system under development
- Strong focus on requirements analysis found 54% faults
- Logic, calculation faults prevalent
• Further information on Case Study 1:
http://hissa.nist.gov/effProject/handbook/failure
http://hissa.nist.gov/project/lessonsfailures.pdf
SATC June 2000 Slide 14
 Fault Distribution by Class
Case Study 1

3%
calculation -24%
change impact -6%
CM - 1%
3%4%
3% 24% data - 5%
3% fault tolerance-1%
initialization -2%
interface -2%
6% logic - 43%
1% omission -3%
5% other -3%
43% 1%
2% quality assurance - 3%
2% requirements -4%
timing - 3%

SATC June 2000 Slide 15

 Case Study 2: System in Development

Faults found by Discovery Phase Acceptance test 9%

acceptance 9% = 69; go clockwise
Analysis 3%
26
99 69 Coding 1%
4
8 Design 1%

Integration test
120 15%
Not provided 0%

2 Operation 2%

16 Other 3%
20
419 Requirements
specification 54%
System test 13%
SATC June 2000 Slide 16
 0
20
40
60
80
100
120
140
160
co
m bui

SATC June 2000

da pu ld
ta tat
do ha ion
cu nd
m lin
im ent g
pr ati
ov on
sev 1

in em
iti
al ent
iza
tio
n
in
sev 2

in pu
te t
rfa
ce
N
sev 3

ot lo
pr gic
ov
om ided
iss
sev 4

io
pe ou n
rfo tp
u
sp rma t
sev 5

ec nc
ifi
ca e
tio
n
Slide 17
Case Study 2: System in Development
 Prevalent Faults

Case Study 1 Case Study 2

•Logic •Logic
•Computation •Specification
•Change Impact •Computation
•Configuration management •Performance
•Requirements •Improvements
•Performance •Output
•Quality Assurance •Initialization
•Data handling

SATC June 2000 Slide 18

 EXAMPLE: Prevalent Faults
• Calculation
– increments, boundary values
– precision, rounding
– units, interactions with other functions
– scaling, sequencing, indexing
– previous algorithm incorrect in new version
• Logic
– incorrectly specified conditions, switches
– interactions
– ranges
– previous logic affected by current changes
• Detection approaches
– Specialized analyses; inspections &walkthroughs; simulation;
traceability; change impact analysis

SATC June 2000 Slide 19

 EXAMPLES of V&V Usage

Fault V&V Detection

•Calculation: constants incorrectly •Focused inspection; unit test
coded
•Change impact: change not verified •V&V process check on QA;
regression test
•CM: use of wrong master program •V&V check of CM procedures
•Interface: software does not •Interface analysis
properly interface with external
device
•Logic: incomplete or incorrect •Review: control flow analysis; test
control logic

SATC June 2000 Slide 20

 Examples (con’t)
FAULT
•Requirements: exceptional
conditions not specified
•Calculation: algorithm incorrect in
reference material
•Calculation: failure of register to
reset
•Interface analysis: incorrect
interaction of 2 components yields
false message
•Logic: function switches into
inappropriate disconnect
•Logic: failure under multiple
conditions at extreme values
SATC June 2000
V&V Detection
•Requirements analysis/ review;
design evaluation
•Requirements review against
reference material
•Design, code evaluation
•Interface analysis; integration test
•Analysis, focus on logic
•Modeling and simulation
Slide 21
 Practices for Assurance

• Focused review, inspection against characteristics faults &

vendor's history.
• Training in the application domain, behavior.
• Traceability analysis.
• Mental execution of potentially troublesome locations
(e.g., an algorithm, a loop, an interface).
• Code reading.
• Recording, use of fault information & symptoms.
• Checklists.
• Formal, informal proofs of correctness, algorithms.
• Simulation.

SATC June 2000 Slide 22

 Practices for Testing

• Test cases aimed at manifesting prevalent symptoms

observed by device operators.

• Test cases that cover all pairs of input values, and all three
or four-way combinations.

• Training in the application domain and specifically about

the device's intended behavior.

• Stress testing.

• Change impact analysis and regression testing.

SATC June 2000 Slide 23

 Testing (con’t)

• Integration testing focused on interface values under

varying conditions.

• SCM release of versions with evidence of change impact

analysis, regression testing; validation of changes.

• System testing under various environmental circumstances:

conditions, input data incorrect or different from expected
environmental conditions.

• Recording of test results, all failures and their resolution,

fault type of the software.

SATC June 2000 Slide 24

 NIST Project to Build Fault Profiles

• Industry data (under non-disclosure agreements)

• Profiles generated by language, other characteristics
• Custom profiles generated by users
• Public domain tools for use by developers to collect, analyze
their project fault an failure data
• NIST public repository housing tools, handbook, current
data at
http://hissa.nist.gov/effProject
CONTACT: Michael.Koo@nist.gov

SATC June 2000 Slide 25

 EFF PUBLIC REPOSITORY

Http access to Interface to Http access to

all components
(http://hissa.nist.gov/effProject)
Related
Information Http access to
Http access to

Handbook
Only NIST
Enters data Public Data Collection
user interface

Profiles Custom Statistics Graphics

views
SATC June 2000 Slide 26
 SUMMARY

• V&V is a rigorous engineering discipline

• V&V encompasses all life cycle

• V&V tasks repeat, with specifics to the stage of development

• V&V tasks and their intensity vary with integrity level

• Other technical methods support the tasks

• V&V testing at all levels requires early plans

SATC June 2000 Slide 27
