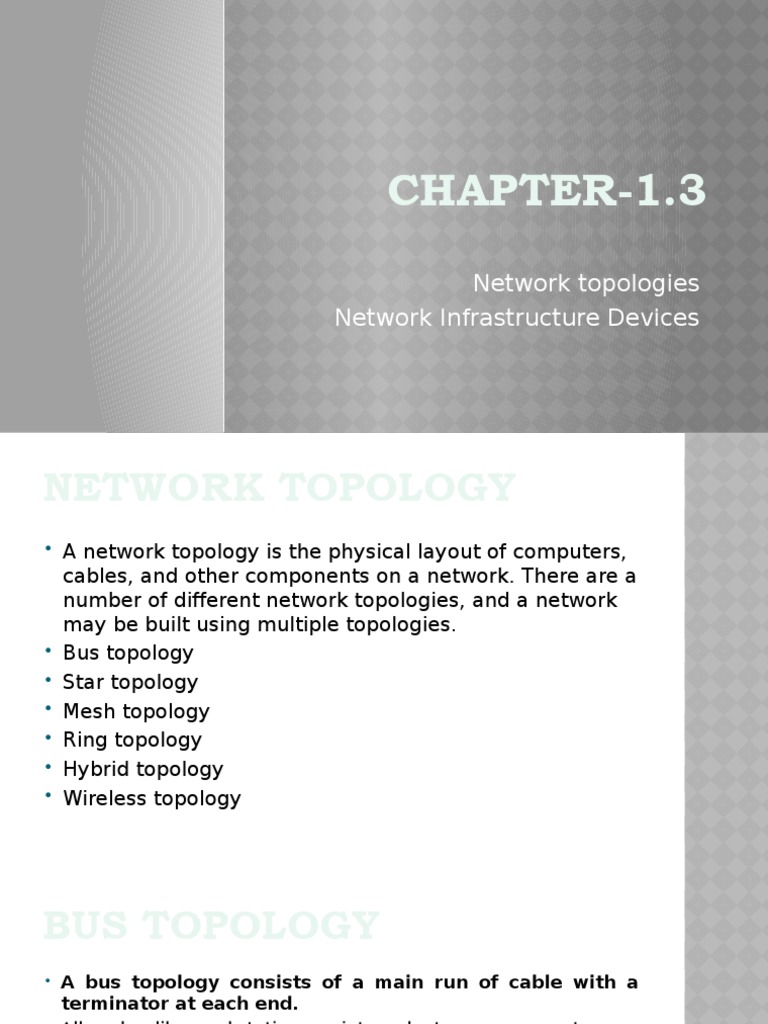

Network topologies
Network Infrastructure Devices
NETWORK TOPOLOGY
A network topology is the physical layout of computers,
cables, and other components on a network. There are a
number of different network topologies, and a network
may be built using multiple topologies.
Bus topology
Star topology
Mesh topology
Ring topology
Hybrid topology
Wireless topology
BUS TOPOLOGY
A bus topology consists of a main run of cable with a
terminator at each end.
All nodes like workstations, printers, laptops, servers etc., are
connected to the linear cable. The terminator is used to absorb
the signal when the signal reaches the end, preventing signal
bounce.
When using bus topology, when a computer sends out a signal,
the signal travels the cable length in both directions from the
sending computer. When the signal reaches the end of the cable
length, it bounces back and returns in the direction it came
from. This is known as signal bounce. Signal bounce will create
problem in the network, because if another signal is sent on the
cable length at the same time, the two signals will collide.
BUS TOPOLOGY
Advantages
• Easy to connect a
computer or peripheral to a
linear bus.
• Requires less cable
length than a star topology.
Disadvantages
• Entire network shuts down if there is a break in the main cable.
• Terminators are required at both ends of the backbone cable.
• Difficult to identify the problem if the entire network shuts
down.
• Not meant to be used as a stand-alone solution.
STAR TOPOLOGY
A star topology is designed with each
node (like workstations, printers,
laptops, servers etc.) connected directly
to a central device called as a network
switch. Each workstation has a cable
that goes from its network card to a
network switch.
The first half (24 BITS) of a MAC address contains the ID number of
the adapter manufacturer. These IDs are regulated by an Internet
standards body (see sidebar). The second half (24 MORE BITS) of a
MAC address represents the serial number assigned to the adapter
by the manufacturer. In the example,
00:A0:C9:14:C8:29
The prefix
00A0C9
indicates the manufacturer is Intel Corporation.
HUB
Hubs were the common network infrastructure devices
used for Local Area Network (LAN) connectivity but
network switches are rapidly replacing hubs.
When a hub receives a packet of data at one of its
ports from a network device, it transmits (repeats) the
packet to all of its ports to all of the other network
devices. If two network devices on the same network
try to send packets at the same time a collision is said
to occur.
BRIDGE/SWITCH
A Bridge/Switch is a network device that typically operates
at the Data Link layer (Layer 2) of the OSI model.
Bridge has only few ports and connect only a few hosts. A
Bridge has comparatively less ports than a Switch. A
Switch has usually 24 ports or 48 ports.
Bridges can operate only in half duplex mode, but a Switch
can operate both in half duplex or full duplex mode.
ROUTER
A router is another network infrastructure
device that directs packets through the
network based on information from Network
Layer (Layer 3) of OSI model. A router uses a
combination of hardware and software to
"route" data from its source to its destination.
A router can be configured to route data
packets from different network protocols, like
TCP/IP (industry standard), IPX/SPX, and
AppleTalk.
ROUTER
A router is a networking device that
forwards data packets between
computer networks. Routers perform the
traffic directing functions on the
Internet. A data packet is typically
forwarded from one router to another
router through the networks that
constitute the internetwork until it
reaches its destination node.
GATEWAY
A node on a network that serves as an
entrance to another network. In
enterprises, the gateway is the
computer that routes the traffic from a
workstation to the outside network that
is serving the Web pages. In homes, the
gateway is the ISP that connects the
user to the internet.
