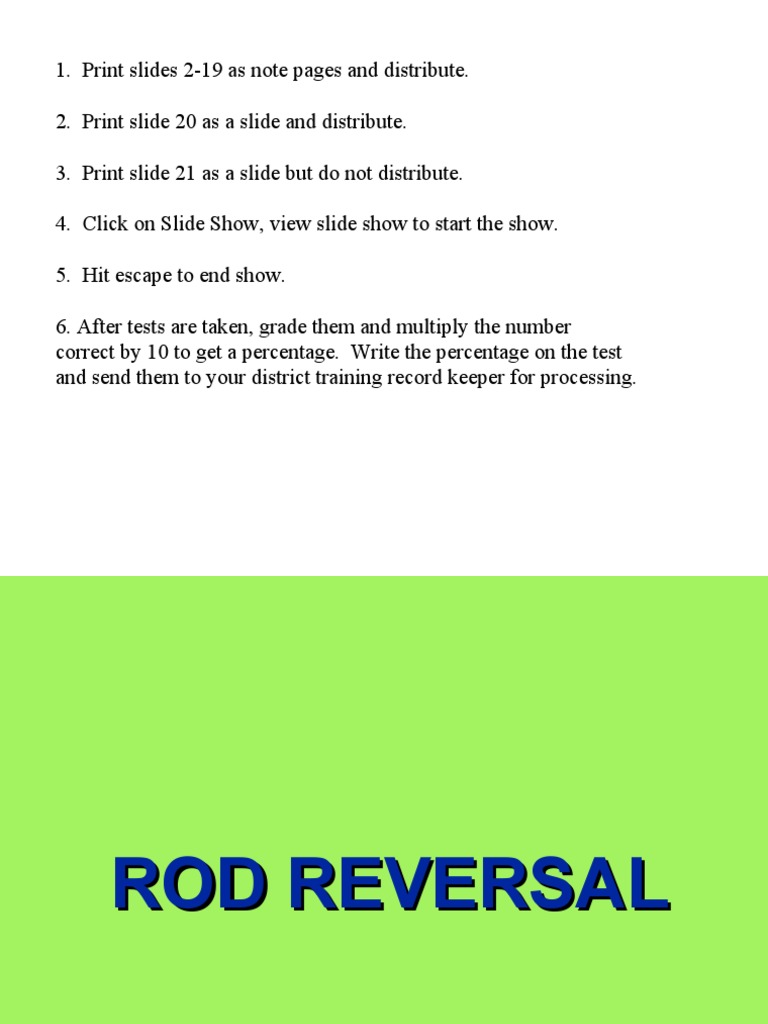

1. Print slides 2-19 as note pages and distribute.
2. Print slide 20 as a slide and distribute.
3. Print slide 21 as a slide but do not distribute.
4. Click on Slide Show, view slide show to start the show.
5. Hit escape to end show.
6. After tests are taken, grade them and multiply the number
correct by 10 to get a percentage. Write the percentage on the test
and send them to your district training record keeper for processing.
ROD REVERSAL
AA
PISTON ROD IN COMPRESSION
AA
PISTON ROD IN TENSION
FAILURE OF OUTER END DISCHARGE VALVE
FAILURE OF OUTER END DISCHARGE VALVE
FAILURE OF OUTER END DISCHARGE VALVE
FAILURE OF OUTER END DISCHARGE VALVE
FAILURE OF FRAME END SUCTION VALVE
OR UNLOADING FRAME END
FAILURE OF FRAME END SUCTION VALVE
OR UNLOADING FRAME END
FAILURE OF FRAME END SUCTION VALVE
OR UNLOADING FRAME END
FAILURE OF FRAME END SUCTION VALVE
OR UNLOADING FRAME END
ALWAYS SINGLE ACT ON FRAME END ONLY
HIGH PRESSURE CYLINDERS ARE IN
DANGER OF NON-REVERSING LOADS
EVEN WITH GOOD VALVES
HIGH PRESSURE CYLINDERS ARE IN
DANGER OF NON-REVERSING LOADS
EVEN WITH GOOD VALVES
HIGH PRESSURE CYLINDERS ARE IN
DANGER OF NON-REVERSING LOADS
EVEN WITH GOOD VALVES
USING A TAILROD TO HELP ROD REVERSAL
USING A TAILROD TO HELP ROD REVERSAL
Rod Reversal
Percentage: 1. Rod reversal is not a desired condition as it can lead to failed components.
2. As the load on the piston rod reverses from compression to tension, the crosshead pin
changes positions in the bushing therefore allowing proper lubrication on both sides of the
pin.
3. Since the compressor cylinders are designed to be double-acting, there will always be
proper reversal throughout the life of the compressor.
4. Failed valves or improper cylinder configuration could lead to a non-reversing
condition.
Date:
5. Tail rods are used to help balance opposing throws.
6. Smaller cylinders stand a greater chance of suffering a non-reversing condition.
7. A failed valve, if in a critical location, could lead to a crosshead failure.
8. Valves should only need to be monitored if they are suspected of having failed.
9. Smaller diameters cylinders, as long as the valves are in good operating condition, will
never be subject to a non-reversing condition.
Name:
10. Dresser-Rand always recommends unloading or removing the frame end suction
valve/s when single acting a cylinder.
Rod Reversal
1. Rod reversal is not a desired condition as it can lead to failed components. F
2. As the load on the piston rod reverses from compression to tension, the crosshead pin
changes positions in the bushing therefore allowing proper lubrication on both sides of the
pin. T
3. Since the compressor cylinders are designed to be double-acting, there will always be
proper reversal throughout the life of the compressor. F
4. Failed valves or improper cylinder configuration could lead to a non-reversing
condition. T
5. Tail rods are used to help balance opposing throws. F
6. Smaller cylinders stand a greater chance of suffering a non-reversing condition. T
7. A failed valve, if in a critical location, could lead to a crosshead failure. T
8. Valves should only need to be monitored if they are suspected of having failed. F
9. Smaller diameters cylinders, as long as the valves are in good operating condition, will
never be subject to a non-reversing condition. F
10. Dresser-Rand always recommends unloading or removing the frame end suction
valve/s when single acting a cylinder. F
