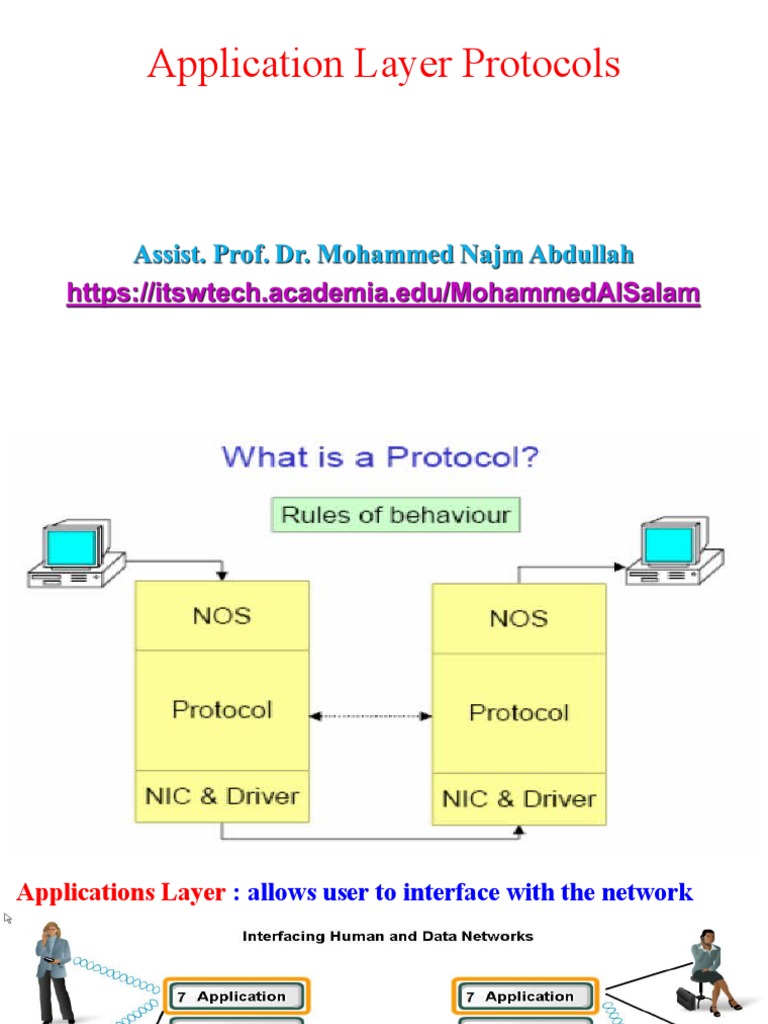

Application Layer Protocols

Applications Layer : allows user to interface with the network

Application Layer: Provides the interface between the applications on either end of
the network.
• Processes communicating
Process:
program running within a host

Client process:
initiates communication
Server process:
waits to be contacted

process sends/receives messages to/from its socket

identifier includes both IP address and port numbers

associated with process on host.
• App-layer protocol defines
• Types of messages exchanged,
• e.g., request, response
• Message syntax:
• what fields in messages & how fields are delineated
• Message semantics
• meaning of information in fields
• Rules for when and how processes send & respond to messages
Public-domain protocols: Proprietary protocols:
 defined in RFCs  e.g., Skype
 allows for interoperability
 e.g., HTTP, SMTP
Protocols and networks
Protocols
 DNS : Matches domain names with IP addresses
 HTTP : Used to transfer data between clients/servers using a web browser
 SMTP & POP3 : used to send email messages from clients to servers over the
internet
 FTP : allows the download/upload of files between a client/server
 Telnet : allows users to login to a host from a remote location and take control
as if they were sitting at the machine (virtual connection)
 DHCP : assigns IP addresses, subnet masks, default gateways, DNS servers,
etc. To users as they login the network
Application layer software
There are two types
 Applications: Provide the human (user) interface. Relies on lower
layers to complete the communication process.
 Services: Establish an interface to the network where protocols
provide the rules and formats that govern how data is treated..

How data requests occur & are filled

 Client/server model
Advantages:
Centralized administration
Security is easier to enforce
 Peer-to-peer networking and applications
Client/Server Model
 Client
device requesting information (initiates the data exchange) Can also UPLOAD data to the
servers
 Server : device responding to the request
How does it handle multiple request from multiple users and keep everything in order?
Relies on support from the lower layer functions to distinguish between services and
conversations.
Server relies on a service called a server daemon – runs in the background and ‘listens’ for
requests for that service. It can then exchange messages as appropriate & send requested data.
 Examples:
E-mail Client on an employee computer issues a request to the e-mail server for any unread e-
mail. The server responds by sending the e-mail to the client.
Conversations can originate with either party.
Peer-to-Peer (P2P) Network Model
 Two or more computers are connected and are able to share resources without
having a dedicated server
 Every end device can function as a client or server on a ‘per request’ basis
 Resources are decentralized (information can be located anywhere)
 Difficult to enforce security and policies
 User accounts and access rights have to be set individually on each peer device
Common Port Numbers
 TCP
FTP – 20-21
Telnet – 23
SMTP – 25
DNS – 53 (Both TCP & UDP)
HTTP – 80
 UDP
DHCP – 67 & 68
POP – 110
Domain Name System (DNS)
 Each terminal in network has an unique IP address and a name (name space).
 A name space that maps each address to a unique name can be organized in
two ways: flat or hierarchical
 In a flat name space, a name is assigned to an address. A name in this space
is a sequence of characters without structure.
 In a hierarchical name space, each name is made of several parts.

An example given below in which TCP/IP uses a DNS client and a DNS server to
map a name to an address. A user wants to use a file transfer client to access the
corresponding file transfer server running on a remote host. The user knows only
the file transfer server name, such as afilesource.com. However, the TCP/IP suite
needs the IP address of the file transfer server to make the connection. The
following six steps map the host name to an IP address:
 The user passes the host name to the file transfer client.
 The file transfer client passes the host name to the DNS client.
 Each computer, after being booted, knows the address of one DNS server. The
DNS client sends a message to a DNS server with a query that gives the file
transfer server name using the known IP address of the DNS server.
 The DNS server responds with the IP address of the desired file transfer server.
 The DNS server passes the IP address to the file transfer client.
 The file transfer client now uses the received IP address to access the file transfer
Server.
DNS is used for designing hierarchical name space
Example of hierarchical name space: www.staffs.ac.uk, www.fcet.staffs.ac.uk,
gawains.staffs.ac.uk, blackboard.staffs.ac.uk
In this design the names are defined in an inverted-tree structure with the root
at the top. The tree can have only 128 levels: level 0 (root) to level 127
Domain Name and Label
Domain Name
 Each node in the tree has a domain name. A full domain name is a sequence of
labels separated by dots (.). The domain names are always read from the node
up to the root. The last label is the label of the root (null). This means that a
full domain name always ends in a null label, which means the last character is
a dot because the null string is nothing.
 If a label is terminated by a null string, it is called a fully qualified domain
name (FQDN).
DNS Server
Stores domain name space information within its domain/subdomain.
DSN Services and Protocol

DNS Servers resolve names to IP addresses. It would be difficult to remember the

IP address of every website we like to visit, but we can remember names.
World Wide Web
The Web is a repository of information in which the documents, called web
pages, are distributed all over the world and related documents are linked
together.
The WWW is a distributed client-server service, in which a client using a
browser can access a service using a server. However, the service provided is
distributed over many locations called sites. Each site holds one or more web
pages. Each web page, however, can contain some links to other web pages in
the same or other sites
• Web Client (Browser):
Each browser usually consists of three parts: a controller, client protocols, and
interpreters. The controller receives input from the keyboard or the mouse and
uses the client programs to access the document. After the document has been
accessed, the controller uses one of the interpreters(HTML, Java, or JavaScript)
to display the document on the screen. The client protocol can be one of the
protocols such as HTTP or FTP.
• Web Server
The web page is stored at the server. Each time a request arrives, the
corresponding document is sent to the client.
• Web Documents
The documents in the WWW can be grouped into three broad categories:
–Static
–Dynamic
–active
 Static Documents
Static documents are fixed-content documents that are created and stored in a server. The
client can get a copy of the document only. In other words, the contents of the file are
determined when the file is created, not when it is used.
 Dynamic Documents
A dynamic document is created by a web server whenever a browser requests the document.
When a request arrives, the web server runs an application program or a script that creates
the dynamic document. The server returns the result of the
program or script as a response to the browser that requested the document. Because a fresh
document is created for each request, the contents of a dynamic document may vary from
one request to another. A very simple example of a dynamic document is the retrieval of the
time and date from a server.
 Active Documents
For many applications, a program or a script needs to be run at the client site. These are
called active documents. For example, suppose a program that creates animated graphics on
the screen or a program that interacts with the user. When a browser requests an active
document, the server sends a copy of the document or a script. The document is then run at
the client (browser) site.
HyperText Transfer Protocol (HTTP)
 The Hyper Text Transfer Protocol (HTTP) is used to define how the client-server
programs can be written to retrieve web pages from the Web. An HTTP client
sends a request; an HTTP server returns a response. The server uses the port
number 80.
 HTTP uses the services of TCP. This means that, before any transaction between
the client and the server can take place, a connection need s to be established
between them. After the transaction, the connection should be terminated.
WWW Service and HTTP
Steps:
1. URL is typed in the address bar.
2. Browser checks with DNS server to convert it to an IP address
3. Connects to the server requested
4. Using HTTP or HTTPS protocol requirements, the browser sends a GET
request to the server to ask for the desired html document (usually index.html)
5. The server sends the HTML code for the web page to the browser.
6. The browser interprets the HTML code and formats the page to fit the browser
window.
WWW Service and HTTP

HTTP/HTTPS are some of the MOST used application protocols!

E-mail services and SMTP/POP protocols
 E-mail is the most popular network service.
 E-mail client (when people compose e-mail) is called Mail User
Agent (MUA)
 MUA allows messages to be sent/retrieved to and from your mailbox
 Requires several applications and services POP or POP3 – deliver email
from server to client (incoming messages) SMTP – handles outbound messages
from clients
E-mail services and SMTP/POP protocols
What do servers require?
1. Must be running SMTP!
2. Also operates
a. Mail Transfer Agent (MTA) – used to forward email
 Receives email from the clients MUA
 Uses SMTP to route email between SERVERS!
 Passes email to the MDA for final delivery
b. Mail Delivery Agent (MDA) – receives messages from MUA or from the
MTA on another server
3. For two e-mail servers to talk – MUST run SMTP and MTA in order to
transfer mail between the 2 servers!
E-mail services and SMTP/POP protocols
FTP
 Commonly used application layer protocol
 Allows for the transfer of files between clients/servers.
 Requires 2 connections to the server
1. Commandes – uses TCP port 21
2. Actual data – uses TCP port 20
DHCP
Dynamic Host Configuration Protocol – enables devices to obtain IP
addresses, subnet masks, gateways, DNS server information, etc. from a DHCP
server.
An IP address that is not being used is assigned from a range of available
addresses
Not permanently assigned – only leased for a specific period of time (usually
24 hours – 7 days)
If the host logs off or the power is lost, the IP address they were using is
returned to the pool to be re-assigned to another host when needed.
This is how you are able to use Wi-Fi at various places in the world!
Don’t use DHCP for devices such as servers, printers, routers, switches, etc.
These should be statically assigned.
Telnet
Developed in the early 1970’s – among the oldest of the application layer
protocols and services in the TCP/IP protocol suite.
Allows users to follow text-based terminal devices over the network using
software.
A connection is known as a ‘virtual terminal (vty)’ session.
Can be run from the command prompt on a PC.
You can use the device as if you were sitting there with all the rights and
priorities that you username will offer you.
TELNET requires a logging name and password, it is vulnerable to hacking
because it sends all data including the password in plaintext (not encrypted). A
hacker can eavesdrop and obtain the logging name and password. Because of this
security issue, the use of TELNET has diminished in favor of another protocol,
Secure Shell (SSH).
