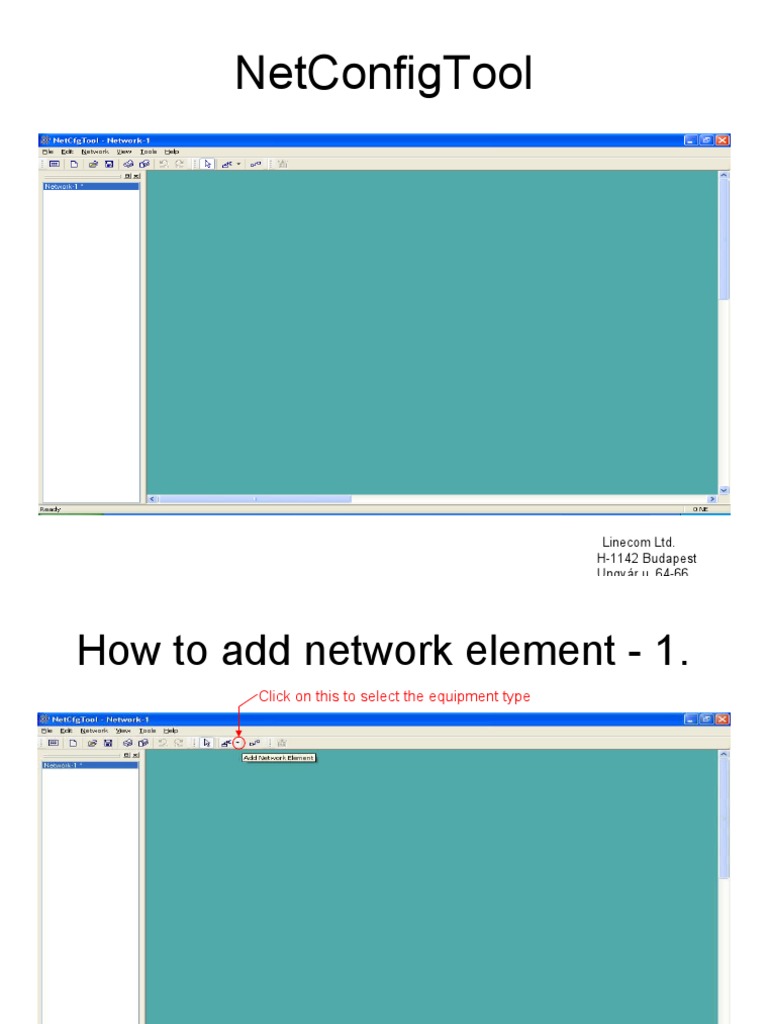

NetConfigTool

Linecom Ltd.
H-1142 Budapest
How to add network element - 1.
Click on this to select the equipment type

Linecom Ltd.
H-1142 Budapest
How to add network element – 2.

Click on the element with the right mouse button,

then access properties

Linecom Ltd.
H-1142 Budapest
Network properties
1., Changing name (if necessary)

Linecom Ltd.
H-1142 Budapest
 Network properties
• Accessing the network via PNMS LAN

Entry point for PC

(Setting for the element,
which is marked with ‘R’)

Linecom Ltd.
H-1142 Budapest
Create configuration – 1.

Click on create configuration

to create the configuration
file

Linecom Ltd.
H-1142 Budapest
Create configuration – 2.

Linecom Ltd.
H-1142 Budapest
Create configuration – 3.

Linecom Ltd.
H-1142 Budapest
Create configuration – 4.

Linecom Ltd.
H-1142 Budapest
Create configuration – 5.

Linecom Ltd.
H-1142 Budapest
Checking addresses - 1.

Move the cursor on the equipment, and the

address will appear

Linecom Ltd.
H-1142 Budapest
Checking addresses - 2.

Move the cursor on the equipment, and the

address will appear

Linecom Ltd.
H-1142 Budapest
 Exporting the configuration file
• Access File->Export->File for PNMS..., if you
want to use PNMS to monitoring devices.
• Access File->Export->Configuration files for PM
Card..., if you want to use Superguard+ software
to monitoring devices.
• If there is a valid connection between two
elements, it is recommended to download the
configuration files first to the remote station,
because after downloading, there will be a
control reset on the equipment, regarding the
management system.
Linecom Ltd.
H-1142 Budapest
 Dowloading the configuration to the equipment
(SuperGuard+) – 1.
• Connecting through PPP

Click on the element, to access the link view

Linecom Ltd.
H-1142 Budapest
Dowloading the configuration to the equipment
(SuperGuard+) – 2.

Click on the IDU to access the Identification tab

Linecom Ltd.
H-1142 Budapest
Dowloading the configuration to the equipment
(SuperGuard+) – 3.

Linecom Ltd.
H-1142 Budapest
Dowloading the configuration to the equipment
(SuperGuard+) – 4.

Access the PmCard

folder, then select the
file which you made by
NetCfgTool.

Linecom Ltd.
H-1142 Budapest
Dowloading the configuration to the equipment
(SuperGuard+) – 5.

Select the correct

equipment, than
download the network
file (*.cfg).

Linecom Ltd.
H-1142 Budapest
Dowloading the configuration to the equipment
(SuperGuard+) – 6.

After downloading the network file, you have to

download the *.mib file.

Linecom Ltd.
H-1142 Budapest
Dowloading the configuration to the equipment
(SuperGuard+) – 6.
Select the *.mib file, and dowload it
to the equipment, in the same way.

Linecom Ltd.
H-1142 Budapest
Dowloading the configuration to the equipment
(SuperGuard+) – 7.

After you downloaded both files, there will be a control reset

on the equipment.

Linecom Ltd.
H-1142 Budapest
Accessing the network with PNMS (LAN)
Port IP assigning

Station A Station B

172.18.0.1 172.18.0.2

PASOLINK+ PASOLINK+

PNMS LAN Port:

192.168.1.240

PNMS: 192.168.1.30
Gateway: 192.168.1.240
LAN cable

Linecom Ltd.
H-1142 Budapest
Accessing the network with PNMS (LAN)
Gateway setting

Linecom Ltd.
H-1142 Budapest
How to change network properties? – 1.

Linecom Ltd.
H-1142 Budapest
How to change network properties? – 2.

Click on ‘Modify’ button to change IP address of the element

Linecom Ltd.
H-1142 Budapest
How to change network properties? – 3.

After creating the new configuration, you can check the

adresses

Linecom Ltd.
H-1142 Budapest
How to change network properties? – 4.
