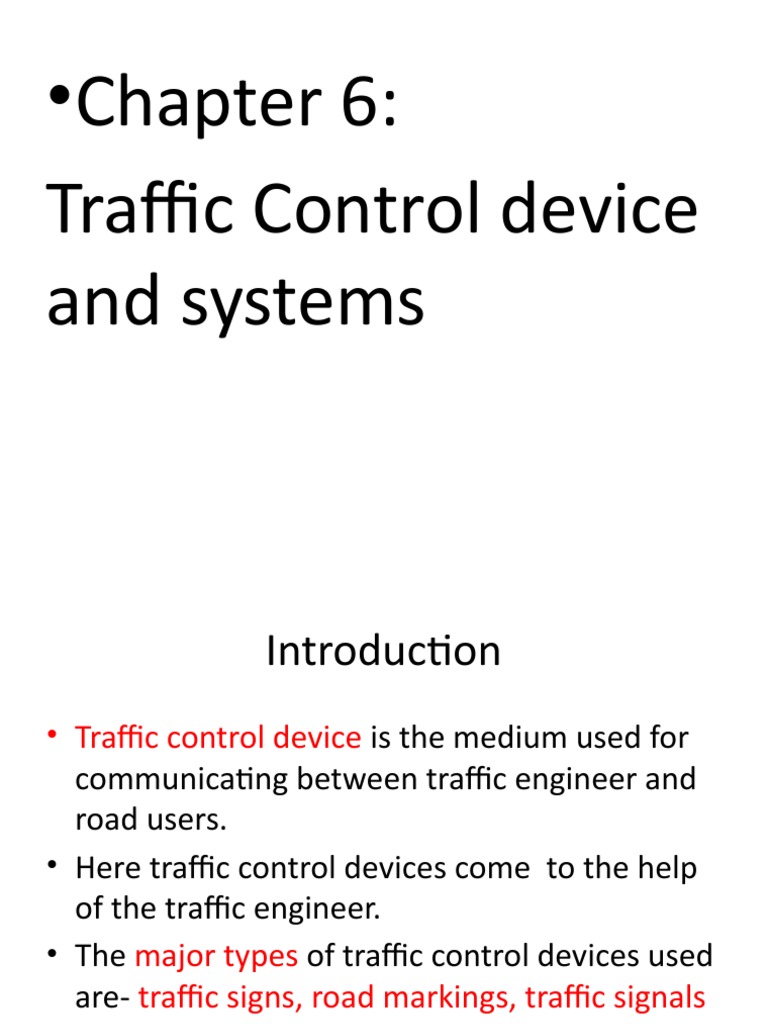

and systems Introduction • Traffic control device is the medium used for communicating between traffic engineer and road users. • Here traffic control devices come to the help of the traffic engineer. • The major types of traffic control devices used are- traffic signs, road markings, traffic signals and parking control. Requirements of traffic control devices The control device should fulfill a need : Each device must have a specific purpose for the safe and efficient operation of traffic flow. It should command attention from the road users: Visible, clear, distinctive and be placed in such a way that the driver requires no extra effort to see the sign. It should convey a clear, simple meaning: is essential for the driver to properly understand the meaning in short time. The use of color, shape and legend as codes becomes important in this regard, so that even a less educated driver could understand the message in less time. Traffic Signs Road users must respect the signs: Respect is commanded only when the drivers are conditioned to expect that all devices carry meaningful and important messages. The control device should provide adequate time for proper response from the road users: The sign boards should be placed at a distance such that the driver could see it and gets sufficient time to respond to the situation. For example, the STOP sign which is always placed at the stop line of the intersection should be visible for at least one safe stopping sight distance away from the stop line. Communication tools • A number of mechanisms are used by the traffic engineer to communicate with the road user. These mechanisms recognize certain human limitations, particularly eyesight. Messages are conveyed through the following elements. Color: It is the first and most easily noticed characteristics of a device. The most commonly used colors are red, green, yellow, black, blue, and brown . Cont.. Shape : It is the second element discerned by the driver next to the color of the device. The categories of shapes normally used are circular, triangular, rectangular, and diamond shape. Two exceptional shapes used in traffic signs are octagonal shape for STOP sign and use of inverted triangle for GIVE WAY (YIELD) sign. Legend : This is the last element of a device that the drive comprehends. This is an important aspect in the case of traffic signs. Symbols are normally used as legends so that even a person unable to read the language will be able to understand that. There is no need of it in the case of traffic signals and road markings. Cont.. Pattern: It is normally used in the application of road markings, complementing traffic signs. Generally solid, double solid and dotted lines are used. Each pattern conveys different type of meaning. Types of traffic signs • Mainly classified into three categories. Regulatory signs: require the driver to obey the signs for the safety of other road users. Warning signs: are for the safety of oneself who is driving and advice the drivers to obey these signs. Informative signs: provide information to the driver about the facilities available ahead, and the route and distance to reach the specific destinations In addition special type of traffic sign namely work zone signs are also available. A. Regulatory (mandatory) signs • These signs are primarily meant for the safety of other road users. If the driver fails to obey them, the control agency has the right to take legal action against the driver. These signs have generally black legend on a white background. They are circular in shape with red borders. The regulatory signs can be further classified into : Right of way series, Speed series, Movement series, Parking series, Pedestrian series and Miscellaneous Cont.. • Right of way series: These include two unique signs that assign the right of way to the selected approaches of an intersection. They are the STOP sign and GIVE WAY sign Cont.. • Speed series: Number of speed signs may be used to limit the speed of the vehicle on the road. They include typical speed limit signs, truck speed, minimum speed signs etc. Minimum speed limits are applied on high speed roads like expressways, freeways etc. Cont.. • Movement series: They contain a number of signs that affect specific vehicle maneuvers. These include turn signs, alignment signs, exclusion signs, one way signs etc. Turn signs include turn prohibitions and lane use control signs. Lane use signs make use of arrows to specify the movements which all vehicles in the lane must take. Turn signs are used to safely accommodate turns in unsignalized intersections. • Parking series: They include parking signs which indicate not only parking prohibitions or restrictions, but also indicate places where parking is permitted, the type of vehicle to be parked, duration for parking etc. Cont.. • Pedestrian series: They include both legend and symbol signs. These signs are meant for the safety of pedestrians and include signs indicating pedestrian only roads, pedestrian crossing sites etc. • Miscellaneous: Wide variety of signs that are included in this category are: a "KEEP OF MEDIAN“ sign, signs indicating road closures, signs restricting vehicles carrying hazardous cargo or substances, signs indicating vehicle weight limitations etc. • Some examples of the regulatory signs are shown in figure 1. They include a stop sign, give way sign, signs for no entry, sign indicating prohibition for right turn, vehicle width limit sign, speed limit sign etc. Cont.. B. Warning signs • Warning signs or cautionary signs give information to the driver about the impending road condition. The color convention used for this type of signs is that the legend will be black in color with a white background. The shape used is upward triangular or diamond shape with red borders. Some of the examples for this type of signs are given in fig 2 and includes right hand curve sign board, signs for narrow road, sign indicating railway track ahead etc. Cont.. C. Informative signs • Informative signs also called guide signs, are provided to assist the drivers to reach their desired destinations. • Some of the examples for these type of signs are route markers, destination signs, mile posts, service information, recreational and cultural interest area signing etc. Route markers are used to identify numbered highways. They have designs that are distinctive and unique. Informative sign are, in general, rectangular with the long dimension in the horizontal direction. They are color coded as white letters with green background. Cont.. • Mile posts are provided to inform the driver about the progress along a route to reach his destination. • Service guide signs give information to the driver regarding various services such as food, fuel, medical assistance etc. They are written with white letters on blue background. Information on historic, recreational and other cultural area is given on white letters with brown background. In the • figure 3 we can see some examples for informative signs which include route markers, destination signs, mile posts, service centre information etc.. Cont.. Road markings • The essential purpose of road markings is to guide and control traffic on a highway. They supplement the function of traffic signs. The markings serve as a psychological barrier and signify the delineation of traffic path and its lateral clearance from traffic hazards for the safe movement of traffic. Hence they are very important to ensure the safe, smooth and harmonious flow of traffic. • Various types of road markings like longitudinal markings, transverse markings, object markings and special markings to warn the driver about the hazardous locations in the road etc. Cont.. • The road markings are defined as lines, patterns, words or other devices, except signs, set into applied or attached to the carriageway or kerbs or to objects within or adjacent to the carriageway, for controlling, warning, guiding and informing the users. The road markings are classified as longitudinal markings, transverse markings, object markings, word messages, marking for parkings, marking at hazardous locations etc. A. Longitudinal markings • Longitudinal markings are placed along the direction of traffic on the roadway surface, for the purpose of indicating to the driver, his proper position on the roadway. Longitudinal markings are provided for separating traffic flow in the same direction and the predominant color used is white. • Yellow color is used to separate the traffic flow in opposite direction and also to separate the pavement edges. • The lines can be either broken, solid or double solid. • Broken lines are permissive in character and allows crossing with discretion, if traffic situation permits. • Solid lines are restrictive in character and does not allow crossing except for entry or exit from a side road or premises or to avoid a stationary obstruction. Cont.. • Double solid lines indicate severity in restrictions and should not be crossed except in case of emergency. There can also be a combination of solid and broken lines. In such a case, a solid line may be crossed with discretion, if the broken line of the combination is nearer to the direction of travel. Vehicles from the opposite directions are not permitted to cross the line. • Different types of longitudinal markings are centre line, traffic lanes, no passing zone, warning lines, border or edge lines, bus lane markings, cycle lane markings. Cont.. • Centre line : separates the opposing streams of traffic and facilitates their movements. Usually no centre line is provided for roads having width less than 5 m and for roads having more than four lanes. • On urban roads with less than four lanes, the centre line may be single broken line segments of 3 m long and 150 mm wide. The broken lines are placed with 4.5 m gaps (figure 4). • On curves and near intersections, gap shall be reduced to 3 meters. On undivided urban roads with at least two traffic lanes in each direction, the centre line marking may be a single solid line of 150 mm wide as in figure 5, or double solid line of 100 mm wide separated by a space of 100 mm as shown in figure 6. Cont..
Figure 7: Centre barrier line marking for four lane road
Cont.. Traffic lane lines • The subdivision of wide carriageways into separate lanes on either side of the carriage way helps the driver to go straight and also curbs the meandering tendency of the driver. At intersections, these traffic lane lines will eliminate confusion and facilitates turning movements. • Thus traffic lane markings help in increasing the capacity of the road in addition ensuring more safety. The traffic lane lines are normally single broken lines of 100 mm width. Some examples are shown in figure 8 and figure 9. Cont.. No passing zones • are established on summit curves, horizontal curves, and on two lane and three lane highways where overtaking maneuvers are prohibited because of low sight distance. • It may be marked by a solid yellow line along the centre or a double yellow line. In the case of a double yellow line, the left hand element may be a solid barrier line, the right hand may be a either a broken line or a solid line . These solid lines are also called barrier lines. When a solid line is to the right of the broken line, the passing restriction shall apply only to the opposing traffic. Some typical examples are shown in figure 10 and figure 11. • In the latter case, the no passing zone is staggered for each direction. Cont.. • Warning lines: warn the drivers about the obstruction approaches. • They are marked on horizontal and vertical curves where the visibility is greater than prohibitory criteria specified for no overtaking zones. They are broken lines with 6 m length and 3 m gap. A minimum of seven line segments should be provided. A typical example is shown in figure 12. Cont.. • Edge lines: indicate edges of rural roads which have no kerbs to delineate the limits upto which the driver can safely venture. • They should be at least 150 mm from the actual edge of the pavement. • They are painted in yellow or white. • All the lines should be preferably light reflective, so that they will be visible during night also. • Improved night visibility may also be obtained by the use of minute glass beads embedded in the pavement marking materials to produce a retroreflective surface. B. Transverse markings • Transverse markings are marked across the direction of traffic. They are marked at intersections etc. Stop line markings, markings for pedestrian crossing, direction arrows, etc. are some of the markings on approaches to intersections. • Stop line : indicates the position beyond which the vehicles should not proceed when required to stop by control devices like signals or by traffic police. They should be placed either parallel to the intersecting roadway or at right angles to the direction of approaching vehicles. An example for a stop line marking is shown in figure 13. Cont.. • Pedestrian crossings: are provided at places where the conflict between vehicular and pedestrian traffic is severe. The site should be selected that there is less inconvenience to the pedestrians and also the vehicles are not interrupted too much. • At intersections, the pedestrian crossings should be preceded by a stop line at a distance of 2 to 3m for unsignalized intersections and at a distance of one metre for signalized intersections. • Most commonly used pattern for pedestrian crossing is Zebra crossing consisting of equally spaced white strips of 500 mm wide. A typical example of an intersection illustrating pedestrian crossings is shown in figure 14. Cont.. Directional arrows • In addition to the warning lines on approaching lanes, directional arrows should be used to guide the drivers in advance over the correct lane to be taken while approaching busy intersections. Because of the low angle at which the markings are viewed by the drivers, the arrows should be elongated in the direction of traffic for adequate visibility. • The dimensions of these arrows are also very important. A typical example of a directional arrow is shown in figure 15. C. Object marking • Physical obstructions in a carriageway like traffic island or obstructions near carriageway like signal posts, pier etc. cause serious hazard to the flow of traffic and should be adequately marked. They may be marked on the objects adjacent to the carriageway. Objects within the carriageway • The obstructions within the carriageway such as traffic islands, raised medians, etc. may be marked by not less than five alternate black and yellow stripes. The stripes should slope forward at an angle of 45 with respect to the direction of traffic. These stripes shall be uniform and should not be less than 100 m wide so as to provide sufficient visibility. Cont.. Objects adjacent to carriageway • Sometimes objects adjacent to the carriageway may pose some obstructions to the flow of traffic. • Objects such as subway piers and abutments, culvert head walls etc. are some examples for such obstructions. They should be marked with alternate black and white stripes at a forward angle of 45 with respect to the direction of traffic. • Poles close to the carriageway should be painted in alternate black and white up to a height of 1.25 m above the road level. Other objects such as guard stones, drums, guard rails etc. where chances of vehicles hitting them are only when vehicle runs of the carriageway should be painted in solid white. Kerbs of all islands located in the line of traffic flow shall be painted with either alternating black and white stripes of 500 mm wide or chequered black and white stripes of same width. The object marking for central pier and side walls of an underpass is illustrated in figure 16. D. Word messages • Information to guide, regulate, or warn the road user may also be conveyed by inscription of word message on road surface. Characters for word messages are usually capital letters. • The legends should be as brief as possible and shall not consist of more than three words for any message. • Word messages require more and important time to read and comprehend than other road markings. Therefore, only few and important ones are usually adopted. Some of the examples of word messages are STOP, SLOW, SCHOOL, RIGHT TUN ONLY etc. • The character of a road message is also elongated so that driver looking at the road surface at a low angle can also read them easily. The dimensioning of a typical alphabet is shown in figure 17. E. Parking • The marking of the parking space limits on urban roads promotes more efficient use of the parking spaces and tends to prevent encroachment on places like bus stops, fire hydrant zones etc. where parking is undesirable. • Such parking space limitations should be indicated with markings that are solid white lines 100 mm wide. • Words TAXI, CARS, SCOOTERS etc. may also be written if the parking area is specific for any particular type of vehicle. • To indicate parking restriction, kerb or carriage way marking of continuous yellow line 100 mm wide covering the top of kerb or carriageway close to it may be used F. Hazardous location • Wherever there is a change in the width of the road, or any hazardous location in the road, the driver should be warned about this situation with the help of suitable road markings. • Road markings showing the width transition in the carriageway should be of 100 mm width. Converging lines shall be 150 mm wide and shall have a taper length of not less than twenty times the off-set distance. • Typical carriageway markings showing transition from wider to narrower sections and vice-versa is shown in figure 18. In the figure, the driver is warned about the position of the pier through proper road markings. Cont.. Regulatory measures for traffic management • Regulatory traffic management has its basis in law, and uses mandatory and prohibitory traffic signs and markings to inform drivers regarding what they must and must not do in relation to speed, movement and waiting. • Regulatory measures of particular interest include speed limits, restrictions on turning movements, the closure or one-way operation of streets, tidal- flow operation of major roads, priority for high occupancy vehicles, and on-street waiting restrictions and parking control. i. Speed limits • The evidence is overwhelming that the number and severity of road accidents increase with vehicle speed. • Properly implemented maximum speed limits modify speeding behavior and the downward change generally reduces the number and severity of accidents by: - shortening the distances required to stop vehicles safely, - ensuring that more moving vehicles maintain at least the minimum desirable clearance distances between them to avoid rear-end collisions, - maximizing the available skid resistance (the skidding resistance offered by a wet carriageway surface decreases as a vehicle's speed increases), and - making it easier for pedestrians to judge when it is safe to cross a road. Cont.. Factors which should be taken into account when establishing a speed limit include: the design speed of the road, prevailing vehicle speeds, road cross-section, curvature, gradient and (quality of) surfacing, frequency and spacing of intersections, traffic volume and composition, accident history, presence/absence of pedestrians and/or of parking/unparking vehicles, and traffic control devices that affect/are affected by vehicle speeds. As a guide, the imposed speed limit should not be much less than the 85th percentile speed distribution measured, and it should never be greater than the design speed of the road section. ii. Restriction of turning movements • Congestion and accidents caused by left-turning vehicles at signal-controlled intersections are usually coped with by inserting an extra phase or early cut-off and late start arrangements in the signal cycle. • In some instances it may be preferable to ban left- turning vehicles at a critical intersection during all or part of the day, rather than attempt to provide directly for this movement. iii. One way streets • One-way traffic operation is a simple regulatory tool available for the relief of traffic congestion which does not require expensive policing. • Its most effective usage is on streets in and about the central areas of towns. • Advantages of one-way operation include: - road capacity is increased, with the amount depending upon the conditions prevailing locally, e.g. the distribution of the previous two-way flow, the street width, and the turning movements at intersections - odd lanes which were not usable previously can be fully utilised Cont.. - slow-moving/stopped vehicles are more safely overtaken - turning movements at intersections are not delayed by opposing traffic - journey times and delays are reduced through more efficient traffic-signal timing and - higher vehicle speeds - the linking of traffic signals is facilitated - public transport operation is more reliable - overall there is generally a reduction in vehicle-vehicle and pedestrian vehicle accidents at intersections, and mid-block head-on accidents are eliminated - parking is facilitated (in terms of increased numbers of places and ease of parking). Cont.. Disadvantages of one-way operation include: - vehicles generally travel further to reach their destinations - public transport stops for the opposing direction of travel have to be relocated, and walking distances to/from stops increased - the severity of non-head-on accidents is increased because of higher speeds - mid-block weaving accidents may increase - non-local motorists may become confused and additional signs, markings, channelisation and signal indications may be required to deal with unanticipated vehicle movements - displaced traffic have to be routed to a complementary street through residential areas, thereby causing increased speeds, loss of amenity and more accidents in these locales. - One-way street operation is most easily introduced into an urban area with a gridiron street pattern; with radial and linear street systems suitable complementary streets may not be available to take displaced traffic. iv. Tidal-flow operation • Tidal-flow operation is a traffic management tool whereby the total carriageway width is shared between two directions of travel in near proportion to the flow in each direction. • The number of lanes assigned to each direction of travel varies with the time of day so that extra capacity is provided to the heavier traffic flow during, typically, peak com- muter periods. • The great advantage of tidal-flow operation is that extra capacity is provided on the same road at the time required and, unlike one-way streets, traffic in the minor direction doesn’t have to move to a complementary street. • Its usage particularly applicable to heavily trafficked bridges, tunnels and radial roads in urban areas. Cont.. • Disadvantages of tidal-flow schemes include: - their implementation can be expensive - poor implementation can result in increasing numbers of head-on accidents - central pedestrian refuges have to be removed - no-parking restrictions are normally imposed - Right turns from minor roads may have to be banned. - this type of operation normally cannot be applied to roads divided by central reservations. v. Priority for high-occupancy vehicles • The use of high-occupancy vehicle (HOV) facilities, which focus on increasing the person-movement efficiency of a road or travel corridor, is aimed at addressing traffic congestion and environmental concerns as well as reducing the delays to buses and increasing their reliability. • A variety of HOV treatments are currently in operation worldwide; they include busways (bus roads) on separate rights of way, exclusive lanes, and priority for HOVs at intersections. vi. Waiting restrictions and parking control • The main functions of a road are to provide for the safe and efficient movement people and goods in vehicles, and to provide access for adjacent properties. Thus, ideally, all stopping and parking of vehicles should take place off the carriageway. In practice, of course, this is not possible and vehicles are permitted to stop and to park the curbside unless it is specifically prohibited. Although convenient for motorists, on- street parking contributes to accidents. • Curb parking also reduces the traffic capacity of a street as part of the carriageway width is lost for movement purposes and frictions are caused by parking maneuvers in the lane next to the parking lane. Cont.. • Road locations where stopping/waiting/parking should not be permitted for safety and/or capacity reasons include: - on approaches to or departures from major intersections and at-grade rail crossings - at or immediately adjacent to pedestrian crossings, fire hydrants, and public transport lanes and stops - in front of driveways - where double 'no-overtaking' lines are provided at the centre of the carriageway - at locations which might interfere with the movement of emergency vehicles, e.g. at hospitals, ambulance and fire stations - in tunnels, on bridges, or on narrow streets. Cont..
• Note: all regulatory traffic
management measures are/ must be accompanied by appropriate traffic signs and road markings as well as their enforcement require critical attention. Physical methods of traffic calming • By physical methods of control are meant those procedures which are essentially self policing in terms of their influence on vehicular behavior. • They include the application of what is now known as traffic calming to existing roads, as well as the use of pedestrian crossings and precincts, and cycle routes. • Traffic calming is a generic term used to describe changes to the horizontal and/or vertical alignments of existing roads in built-up areas, e.g. in residential and shopping areas, in order to reduce the speeds of motor vehicles. Cont.. • The main objectives underlying traffic calming are to: - reduce the higher speeds of vehicles in the traffic stream(s) - create road conditions which encourage motorists to drive carefully and calmly - remove extraneous car and commercial vehicle traffic from the road being calmed - improve amenity and enhance the environment - reduce accident numbers and severity. Types of traffic calming mechanisms i. Road humps • The most effective measures used to lower vehicle speeds are vertical deflectors, commonly known as road humps. Variants of the standard road humps are known as speed tables and cushions. • The standard road hump has a circular cross-section with a chord length (in the direction of travel) of 3.7 m and a height of 50 mm (minimum) to 100 mm (maximum). This hump may be extended from curb to curb across the full road width (in which case alternative, more expensive drainage arrangements must be made), or with a drainage gap of 200 mm adjacent to each curb. • Within the road hierarchy, standard road humps are commonly used on residential access roads when vehicle speeds are excessive and severe reduction measures are required, and on distributor roads where lower speeds are required Cont.. • Trapezoidal flat-top road humps (also known as raised tables and speed tables) may be used as an alternative to circular profile humps. They are often regarded as being more environmentally acceptable to pedestrians, as they provide flat crossing places between curbs. • Flat-top humps are used on the same types of road as standard circular humps. Particular locations where they are deemed to be especially useful are outside schools and shops, at zebra and pelican crossings (especially across roads where high proportions of the pedestrians crossing are people with disabilities or with prams). Cont.. Rumble devices • Rumble strips, rumble areas and jiggle bars are attention-getting raised areas that are extended across the carriageway. They are usually less than 15 mm high, and are of a color contrasting with the road surface. • The function of a rumble device is to alert drivers to road signage warning of the need to slow down for particular hazards. It does so by sending severe vibrations through a crossing vehicle, making the ride feel very uncomfortable for the driver and passengers. Gateways • These are provided at locales where it is desired to inform the driver of a change in character of the roadway, e.g. at the start of a traffic calming scheme or at the entry to a village. • They usually consist of structures carrying signs at the side of the road and even above it. Cont.. Other elements • Many other engineering elements are used to reduce vehicle speeds in traffic calming schemes. For example, false roundabouts have been used on long straight roads at locations where there are no side road connectors. • Islands are often used in conjunction with gateways at the start of traffic calming schemes. Offset islands have been used to help create chicanes while protecting a cycle lane. • In many instances landscaping can greatly add to the aesthetic value and acceptability of a traffic calming scheme to the public. Pedestrian priority • The overall aim of traffic calming is to tame the motor vehicle so that its usage at particular locales is compatible with cyclists and pedestrians. • In the case of pedestrian priority the aim is to subordinate the motor vehicle to the pedestrian at particular locales. Cont.. Pedestrian consideration • Pedestrians are the largest single group of road users and walking is the most used transport mode (because it is involved in all modes of travel). Pedestrians encompass people of both sexes and of all ages and socia-economic groupings. They include people of various degrees of physical fitness, including the disabled. • Pedestrians are very vulnerable to serious injury when involved in a collision with a motor vehicle. • Walking speeds vary over a wide range, generally determined by age of pedestrian, purpose of trip, crowd density and other traffic impediments. Cont.. • There are different types of pedestrian facility in the transport system, these include: i. Segregated foot way/sidewalk, ii. At grade pedestrian crossings - Uncontrolled crossing: zebra crossing is simply a 'mid-block' uncontrolled portion of the carriageway where the pedestrian has legal priority over the motor vehicle. The crossing strip is outlined by parallel lines of studs and marked with alternate black and white. - Light controlled crossing: In most motorized areas pedestrians are encouraged to cross with the green lights when opposing vehicular flow is brought to a standstill at conventional traffic signal controlled intersections. If the pedestrian movements are heavy additional pedestrian-only stages may be incorporated into the signal phasing. Or at mid block sections, where the pedestrian volume is high, pelican crossing (pedestrian light controlled with a zebra crossing) may be used. iii. Grade separated or segregated crossings: this is the ideal pedestrian crossing, which eliminates the possibilities of pedestrian-vehicle conflicts; these are of two types under and overpass (pedestrian crossing bridge). Cyclist priority • Cycle facilities must be taken in to consideration in line with the physical methods of traffic calming, these include provision of cycle routs and cycle paths.
