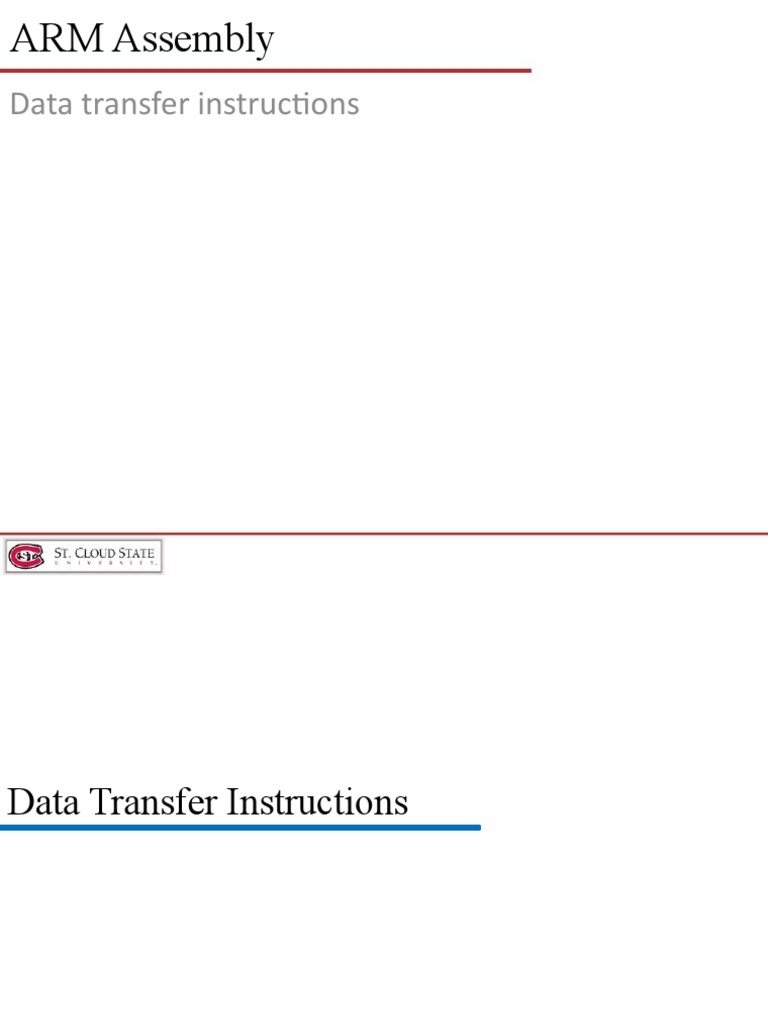

ARM Assembly

Data transfer instructions

Data Transfer Instructions
The ARM instruction set
• ARM instructions fall into three categories:
– Data processing instructions (Ch. 7)
• operate on values in registers
– Flow control instructions (Ch. 8)
• change the program counter (PC)
– Data transfer instructions (Ch. 6)
• move values between memory and registers
Syntax
MOV{<cond>}{S} <Rd>, <shifter_operand>
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

cond 0 0 I 1 1 0 1 S Ignored(0) Rd shifter operand

{<cond>} and {S} are optional – discussed in details later

<Rd> - destination register
<shifter_operand> are required and it can have different forms.
 if (<cond> is true)
• Rd  shifter_operand
• if((S==1) AND (Rd is R15)) CPSR  SPSR, will cover that later
Flags (if S is appended and Rd is not R15)
 N, Z, C (C is based on shifter operand)
Examples
MOV r4, r5 ; r4 := r5
MOV r3, #10 ; r3 := 0x0000 000A
; # indicates an immediate value
MOV r2, #&2C ; r2 := 0x0000 002C
; & used for a hexadecimal number
MOV r2, #0x2C ; 0x used for a hexadecimal number
MOV r3, #2_01011001 ; r3 := 0x0000 0059
; 2_ used for a binary number
MOV r1, #'A' ; r1 := 0x0000 0041
; ' ' used for an ASCII character
3 modes on <shifter_operand>
• <shifter_operand> = register
MOV r4, r5 ; r4 := r5

• <shifter_operand> = immediate data

 allowed immediate values are (in general):
(0 - 255) x 22n (0 ≤ n ≤ 15)

• <shifter_operand> = shifted registers

MOV R1, R0, LSL #2 ; R1 := R0 << 2
MOV R2, R0, LSR #1 ; R2 := R0 >> 1
Syntax
MOV{<cond>}{S} <Rd>, <shifter_operand>
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

cond 0 0 I 1 1 0 1 S Ignored(0) Rd Rotate 8_bit immd

<shifter_operand> = immediate data

 In ARM state, allowed immediate values are: (0 - 255) x 22n
(0 ≤ n ≤ 15)
 In Thumb state, allowed immediate values are: (0 - 255) x 22n
(0 ≤ n ≤ 12)
Example

MOV R0, #0x10F ;Load 0x10F to R0

error: A1510E: Immediate 0x0000010F cannot

be represented by 0-255 and a rotation.
Not every constant can be used with MOV!
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

cond 0 0 1 1 1 0 1 S Ignored(0) Rd Rotate 8_bit immd

Rotate value applied any number 0 - 255

to 8_bit immd

The way it works: the 8-bit immd is first multiplied by 2 and then the
result is rotated to the right by number of bits specified in Rotate.

• If number of bits between the first bit '1' and the last bit '1‘ of the constant are 6,
MOV can be used with that constant
• If the constant cannot be represented in this format, MOV cannot be used to load
that constant to the register.
MOV with an immediate operand
• Instead of using 12 bits for immediate value, the bit field is
divided into 4 + 8 bits.
• Rotation count is formed by doubling 4 bit value.
• Immediate value is then right-rotated by the count calculated
in previous step.

Illustration Source: http://www.davespace.co.uk/arm/introduction-to-arm/immediates.html

Example of Creating Constants with Rotation

No rotate 000000000000000000000000abcdefgh 0x000000FF

Right,2 bits gh000000000000000000000000abcdef 0x??
Right,4 bits efgh000000000000000000000000abcd 0xF000000F
Right,6 bits cdefgh000000000000000000000000ab 0x??
Right,8 bits abcdefgh000000000000000000000000 0xFF000000
. . .
Right,26 bits 000000000000000000abcdefgh000000 0x??
Right,28 bits 00000000000000000000abcdefgh0000 0x??
Right,30 bits 0000000000000000000000abcdefgh00 0x??
So, how to load 0x10F to the register?

MOV R0, #0x10F ;Load 0x10F to R0

LDR rd, =0x10F ;Assembler feature

• If the constant can not be formed using rotation, the

assembler will produce the constant in literal pool.
LDR r0, =0x1234ABCD;LDR r0, [pc, offset to literal pool]
…
DCD 0x1234ABCD
