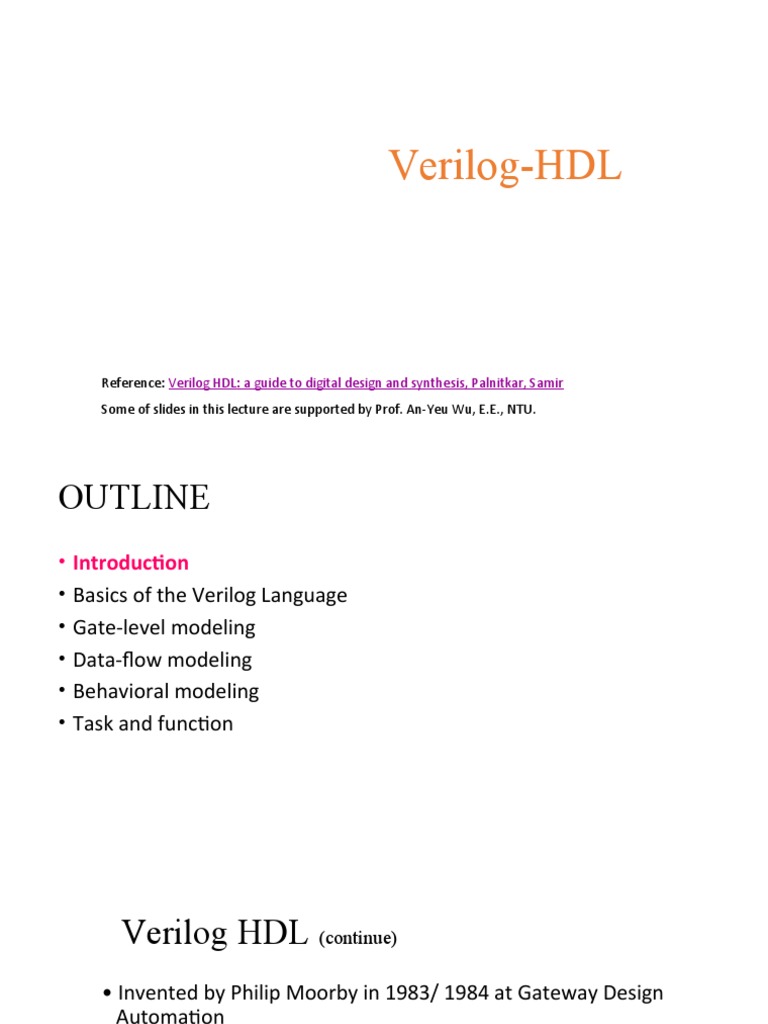

Verilog-HDL

Reference: Verilog HDL: a guide to digital design and synthesis, Palnitkar, Samir
Some of slides in this lecture are supported by Prof. An-Yeu Wu, E.E., NTU.
OUTLINE
• Introduction
• Basics of the Verilog Language
• Gate-level modeling
• Data-flow modeling
• Behavioral modeling
• Task and function
 Verilog HDL (continue)
• Invented by Philip Moorby in 1983/ 1984 at Gateway Design
Automation
• Enables specification of a digital system at a range of levels
of abstraction: switches, gates, RTL, and higher
• Initially developed in conjunction with the Verilog simulator
Verilog HDL
• Verilog- based synthesis tool introduced by Synopsys in
1987
• Gateway Design Automation bought by Cadence in
1989
• Verilog placed in public domain to compete with VHDL
– Open Verilog International (OVI) IEEE 1364 -1995 and
• revised version IEEE 1364 -2001
• revised version IEEE 1364 -2005
What is Verilog HDL ?
• Mixed level modeling
• Behavioral
• Algorithmic ( like high level language)
• Register transfer (Synthesizable)
• Structural
• Gate (AND, OR ……)
• Switch (PMOS, NOMS, JFET ……)
• Single language for design and simulation
• Built-in primitives and logic functions
• User-defined primitives
• Built-in data types
• High-level programming constructs
Basic Conventions
• Verilog is case sensitive
– Keywords are in lowercase
• Extra white space is ignored
– But whitespace does separate tokens
• Comments
– One liners are //
– Multiple lines /* */
– Comments may not be nested
OUTLINE
• Introduction
• Basics of the Verilog Language
• Overview of Verilog Module
• Identifier & Keywords
• Logic Values
• Data Types
• Numbers & Negative Numbers
• Gate-level modeling
• Data-flow modeling
• Behavioral modeling
• Task and function
Overview of Verilog Module

Test bench
Basic unit --Module
module module_name (port_name);
port declaration
data type declaration
module functionality or structure
Endmodule
D-FlipFlop
module D_FF(q,d,clk,reset);
output q; //port declaration
input d,clk,reset; // data type declaration
reg q;
always @ (posedge reset or negedge clk)
if (reset)
q=1'b0;
else
q=d;
endmodule
Instance
• A module provides a template which you can create actual objects.
• When a module is invoked, Verilog creates a unique object from the
template
• The process of creating a object from module template is called
instantiation
• The object is called instance
Instances
module adder (in1,in2,cin,sum,cout);
.......
endmodule

module adder8(....) ; Mapping port positions

adder add1(a,b,1’b0,s1,c1) ,
add2(.in1(a2),.in2(b2),.cin(c1),.sum(s2)
,.cout(c2)) ; Mapping names

.....
endmodule
T-FlipFlop
module T_FF(q,clk,reset);
output q;
input clk,reset;
wire d;
D_FF dff0(q,d,clk,reset); // create an instance
not n1(d,q);
endmodule
Identifier & Keywords
• Identifier
• User-provided names for Verilog objects in the descriptions
• Legal characters are “a-z”, “A-Z”, “0-9”, “_”, and “$”
• First character has to be a letter or an “_”
• Example: Count, _R2D2, FIVE$
• Keywords
• Predefined identifiers to define the language constructs
• All keywords are defined in lower case
• Cannot be used as identifiers
• Example:initial, assign, module, always….
Hierarchical Modeling Concepts
Top level block

Sub-block 1 Sub-block 1 Sub-block 1 Sub-block 1

Leaf Leaf Leaf Leaf Leaf Leaf Leaf Leaf

cell cell cell cell cell cell cell cell
Hierarchical Modeling Concepts
• Module ripple_carry_counter(q,clk, reset);
• Output [3:0] q;
• Input clk, reset;
• T_FF tff0(q[0], clk, reset);
• T_FF tff1(q[1], q[0], reset);
• T_FF tff0(q[2], q[1], reset);
• T_FF tff0(q[3], q[2], reset);
• endmpdule
Hierarchical Modeling Concepts q

• module T_FF(q, clk, reset); 。

• output q;
• input clk, reset; d q
clk
• wire d; ○

• D_FF dff0(q, d, clk, reset);

• not na(d, q);
• endmodule
Hierarchical Modeling Concepts
• module D_FF(q, d, clk, reset);
• output q;
• input d, clk, reset;
• reg q;
• always @(posedge reset or negedge clk)
• if (reset)
• q=1’b0;
• else
• q=d;
• endmodule
4-bits Ripple Carry Counter
Ripple carry counter

T_FF (tff0) T_FF (tff1) T_FF (tff2) T_FF (tff3)

D_ FF Inverte D_ FF Inverte D_ FF Inverte D_ FF Inverte

r r r r
Exercise
• module FullAdd4(a, b, carry_in, sum, carry_out);
• input [3:0] a, b;
• input carry_in;
• output [3:0] sum;
• output carry_out;
• wire [3:0] sum;
• wire carry_out;
• FullAdd fa0(a[0], b[0], carry_in, sum[0], carry_out1);
• FullAdd fa1(a[1], b[1], carry_out1, sum[1], carry_out2);
• FullAdd fa2(a[2], b[2], carry_out2, sum[2], carry_out3);
• FullAdd fa3(a[3], b[3], carry_out3, sum[3], carry_out);
• endmodule
Exercise
• // FullAdd.V, 全加器
• module FullAdd(a, b, carryin, sum, carryout);
• input a, b, carryin;
• output sum, carryout;
• wire sum, carryout;
• assign {carryout, sum} = a + b + carryin;
• endmodule
Exercise
• Implement a 16 bits full adder by using 4 bits full adders.
