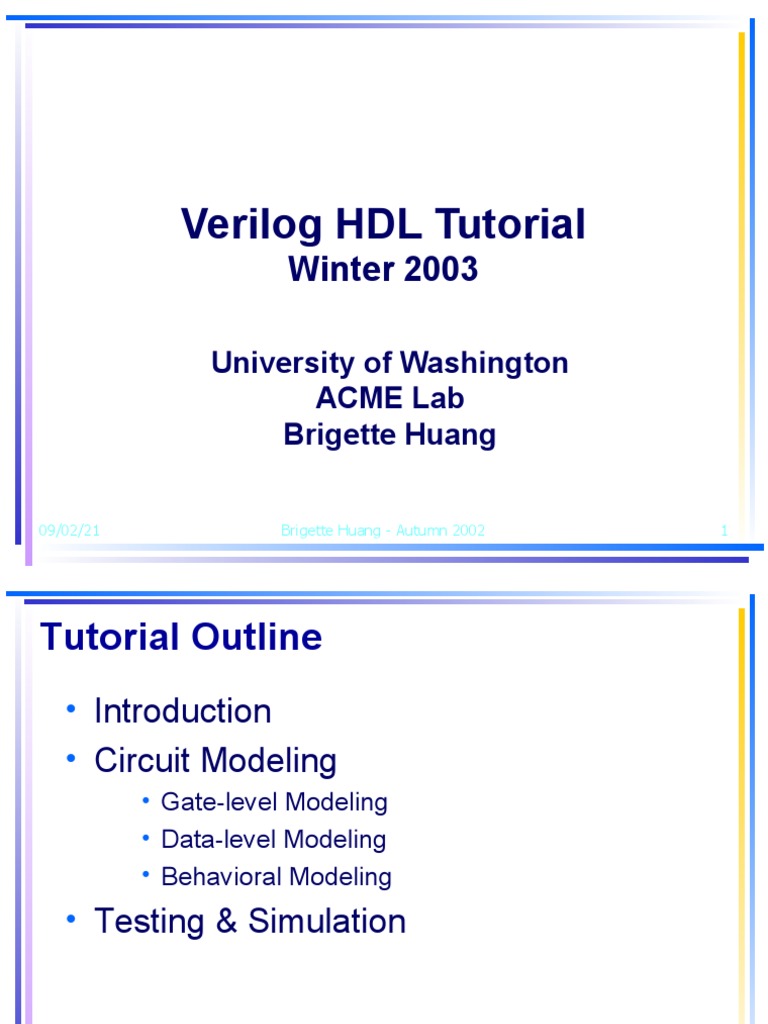

Verilog HDL Tutorial

Winter 2003

University of Washington
ACME Lab
Brigette Huang

09/02/21 Brigette Huang - Autumn 2002 1

Tutorial Outline
• Introduction
• Circuit Modeling
• Gate-level Modeling
• Data-level Modeling
• Behavioral Modeling
• Testing & Simulation

09/02/21 Brigette Huang - Autumn 2002 2

Introduction
• What is Verilog HDL?

Verilog HDL is a Hardware Description

Language that can be used to model a
digital system at many levels of
abstraction:
– Algorithmic-level
– Gate-level
– Switch-level

09/02/21 Brigette Huang - Autumn 2002 3

 Where can we use Verilog HDL?
• Verilog is designed for circuit verification and
simulation, for timing analysis, for test
analysis (testability analysis and fault
grading) and for logic synthesis.

• For example, before you get to the structural

level of your design, you want to make sure
the logical paths of your design is faultless
and meets the spec.

09/02/21 Brigette Huang - Autumn 2002 4

Basic Procedure of Using Verilogger
• Preparation – always create a new folder in C drive.
– c:/documents and settings
– your_login_name
– your_project_folder

• Start – all programs –synaptiCAD - Verilogger pro 6.5

• Editor – new HDL file – write your code – save as filename.v
in your project folder
• Project – add HDL files – choose the file you just saved
• Project – save HDL project – save it in the your project
folder too.

We will continue after we finishing the modeling section…..

09/02/21 Brigette Huang - Autumn 2002 5

Basic Syntax of a Module
Module module_name (port_list);
Declarations:
input, output, wire, parameter…..

System Modeling:
describe the system in gate-level, data-flow, or
behavioral style…

endmodule
09/02/21 Brigette Huang - Autumn 2002 6
Basic Module Construction
// Compute the logical AND and OR of inputs A
and B.
AND_OR
A
andOut

TheAndGate

orOut
B

TheOrGate

module AND_OR(andOut, orOut, A, B);

output andOut, orOut;
input A, B;
  and TheAndGate (andOut, A, B);
or TheOrGate (orOut, A, B);
endmodule

09/02/21 Brigette Huang - Autumn 2002 7

Gate-Level Modeling
Systems structure can be described using Build-in
gates or pre-built modules.
Basic syntax is :

gate-type #delay instance1_name(outputs.., inputs.. ),

:
:
instance6_name(outputs.., inputs.. );

pre-built module module_instance1(output…,inputs..);

09/02/21 Brigette Huang - Autumn 2002 8

The Built-in Primitive Gates
• Multiple-input gates:
– and, nand, or, nor, xor, xnor
xor xor1(out, inA, inB, inC);
• Multiple-output gates:
– buf, not
not inverter1(fanout1, fanout2, in);
• Tristate gates:
– bufif0, bufif1, notif0, notif1
bufif0 tbuffer1(out, in, control);

09/02/21 Brigette Huang - Autumn 2002 9

Gate Delays
• Syntax: #(Tplh, Tphl)
• Examples:

nor #10 Tplh =Tphl=10 time units

nor #(3,5) Tplh=3, Tphl=5
nor #(2:3:4, 5) Tplh=(min2,typ3,max4)

09/02/21 Brigette Huang - Autumn 2002 10

Example: A 4 to1 Multiplexer

D3 T3

D2 T2
Z

D1 T1

D0 T0

S0

S1

09/02/21 Brigette Huang - Autumn 2002 11

Simple Example
module Mux4_1 (Z, D,S);
output Z;
input [3:0] D;
input [1:0] S;
wire S0b, S1b, T0, T1, T2, T3;

not #5 inv0(S0b, S[0]),

inv1(S1b, S[1]);
and #10 and0(T0, D[0], S1b, S0b),
and1(T1, D[1], S1b, S[0]),
and2(T2, D[2], S[1], S0b),
and3(T3, D[3], S[0], S[1]);
or #10 or1(Z, T0,T1,T2,T3);
endmodule

09/02/21 Brigette Huang - Autumn 2002 12

Data-flow Modeling
• The basic mechanism used to model a
design in the dataflow style is the
continuous assignment.
• In a continuous assignment, a value is
assigned to a net.
• Syntax:
assign #delay LHS_net = RHS_expression;

09/02/21 Brigette Huang - Autumn 2002 13

Example: 2 to 4 Decoder

Z[0]
A
Z[1]

B Z[2]

EN Z[3]

09/02/21 Brigette Huang - Autumn 2002 14

Example
module Decoder 2_4(A,B,EN,Z);

Input A,B,EN;
output [0:3] Z;
wire Ab, Bb;
assign #1 Ab=~A;
assign #1 Bb=~B;
assign #2 Z[0]=~(Ab & Bb & EN);
assign #2 Z[1]=~(Ab & B & EN);
assign #2 Z[2]=~(A & Bb & EN);
assign #2 Z[3]=~(A & B & EN);
endmodule
09/02/21 Brigette Huang - Autumn 2002 15
Behavioral Modeling
• The behavior of a design is described
using procedural constructs. These are:
– Initial statement: This statement executes
only once.
– Always statement: this statement always
executes in a loop forever…..
• Only register data type can be assigned
a value in either of these statements.

09/02/21 Brigette Huang - Autumn 2002 16

Always Statement
• Syntax: always
#timing_control procedural_statement
• Procedural statement is one of :
– Blocking Procedural_assignment
always
@ (A or B or Cin)
begin
T1=A & B;
T2=B & Cin;
T3=A & Cin;
Cout=T1 | T2 | T3;
end
T1 assignment is occurs first, then T2, then T3….

09/02/21 Brigette Huang - Autumn 2002 17

Procedural statements
Conditional_statement
always
@(posedge clk or posedge reset)
if ( Sum <60)
begin
Grade = C;
Total_C=Total_C +1;
end
else if (Sum<75)
Grade = B;
else
Grade = A;

09/02/21 Brigette Huang - Autumn 2002 18

Procedural statements
Case_statement
always
@(Time ==7)
case(Day)
Tue: Pocket-Money = 6;
Mon,
Wed: Pocket_Money = 2;
Fri,
Sat,
Sun: Pocket_Money = 7;
default: Pocket_Money= 0;
endcase

09/02/21 Brigette Huang - Autumn 2002 19

Let’s look at a file to review what
we have learned today…..

09/02/21 Brigette Huang - Autumn 2002 20

References
• Couple of good verilog books here:
– A Verilog HDL Primer by J. Bhasker
– Verilog HDL: A Guide to Digital Design and
Synthesis by Samir Palnitkar

• Special thanks to
Professor Peckol and Professor Hauck for
their support and the tutorial documents
they provided…..
09/02/21 Brigette Huang - Autumn 2002 21
