ATS Presentation

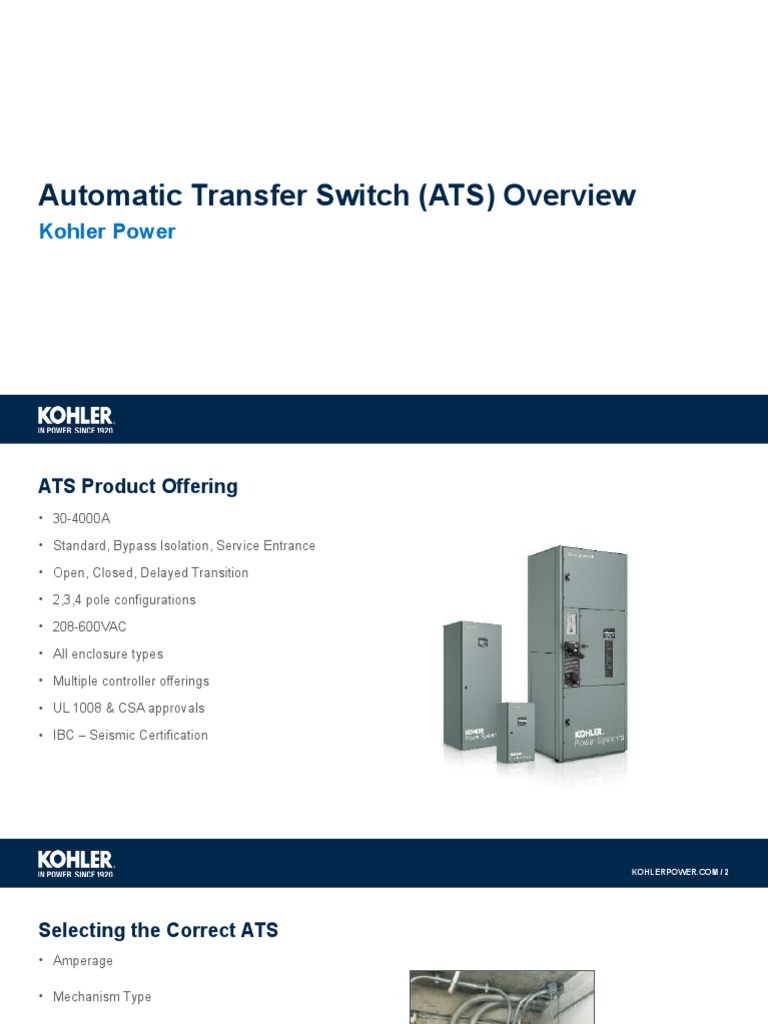

Automatic Transfer Switch (ATS) Overview
Kohler Power
ATS Product Offering
• 30-4000A
• Standard, Bypass Isolation, Service Entrance
• Open, Closed, Delayed Transition
• 2,3,4 pole configurations
• 208-600VAC
• All enclosure types
• Multiple controller offerings
• UL 1008 & CSA approvals
• IBC – Seismic Certification
KOHLERPOWER.COM / 2
Selecting the Correct ATS
• Amperage
• Mechanism Type
• Transfer Type
• Withstand Rating
• Neutral Switching
• Controller
KOHLERPOWER.COM / 3
Mechanism Type
• Standard • Bypass / Isolation • Service Entrance
– Single contactor mechanism – Two contactor mechanisms in parallel – Dual breaker-based
mechanism
• Automatic
– Drawout
• Manual
– Fixed
KOHLERPOWER.COM / 4
Transfer Type
Open Programmed Transition Closed
• Break before make • Break – OFF - Make • Make before break (under
100mS)
KOHLERPOWER.COM / 5
Withstand Rating
• Series (Specific Breaker)
– Switchboard: UL891 Swbd UL891 OR Swgr UL1558
– Circuit Breaker: UL489 CB UL489 CB UL1066
• 3 Cycle (Any Breaker)
– Switchboard: UL891
– Circuit Breaker: UL489
• 30 Cycle
– Switchgear: UL1558
– Circuit Breaker: UL1066
– CAUTION: adds significant cost
• Make sure it is required
KOHLERPOWER.COM / 6
Neutral Switching
• Solid
– 2-Pole or 3-Pole
– Source to load neutral through bus
– No ground fault on generator (not separately derived source) Solid
• Switched
– 4-Pole
– Switching neutral with 3 phase
– Ground fault on generator OK (separately derived source)
• Overlapping
– 4-Pole Switched/Overlapping
– Make Before Break on Neutral
KOHLERPOWER.COM / 7
KOHLER ATS Overview
Decision-Maker MPAC 750 Decision-Maker MPAC 1200 Decision-Maker MPAC 1500
BASIC ADVANCED MISSION-CRITICAL
• Control critical system settings • Full control of system, including • Full featured to manage loads and
• Standard Open Transition extended I/O meet unique system needs
• Standard Open Transition • Standard Open Transition
• Standard Delayed Transition • Standard Delayed Transition
• Standard Closed Transition • Standard Closed Transition
• Bypass Isolation Open Transition
• Bypass Isolation Delayed Transition
• Bypass Isolation Closed Transition
• Service Entrance Delayed Transition
KOHLERPOWER.COM / 8
MPAC 750 Overview
Source Status SiteTech
Connection
Contactor Position Fault/Warning

Indications
Test Exercise
Run generator Set the 7 day schedule
loaded or unloaded loaded or unloaded
KOHLERPOWER.COM / 9
MPAC 750 Standard Features
• Test • Configurable Parameters
– Initiate via button on panel – Under Voltage Dropout, Normal
– Run generator loaded/unloaded – Under Voltage Pickup, Normal
• Exercise – Over Voltage Dropout, Normal
– Set at time button actuated – Over Voltage Pickup, Normal
on panel – Voltage Debounce Time, Normal
– Schedule weekly loaded/unloaded • Time Delays
• Setup via SiteTech – Engine Start/Cooldown, Source 2
• RS-485 (Modbus RTU) – Fail to Acquire Standby
• In-Phase Monitor – Preferred to Standby
– Programmable 15° to 5° – Standby to Preferred
• Phase Rotation
– Fixed ABC
• Operating Mode
– Fixed Util-to-Gen
• Running Time Meter
KOHLERPOWER.COM / 10
MPAC 750 I/O
• 2 Inputs
PROGRAMMABLE INPUTS
Remote Common Alarm
• 2 Outputs Remote Test
Inhibit Transfer
PROGRAMMABLE OUTPUTS
Aux Switch Open / Fault
Contactor in Preferred / Standby Position
Contactor in Source E / N Position
Exerciser / Test Mode Active
Fail to Acquire Standby / Transfer
Source E / N Phase Rotation Error
Not in Auto
Common Alarm
In-Phase Monitor Sync
MPAC 750 Optional Features
• External Programmable Exerciser
– Program 56 on/off events
• Ethernet Communication
– Modbus TCP/IP
MPAC 1200 Overview
Connection

Indications
Display Menu Buttons
• Setup via SiteTech or Display • Configurable Parameters
• Test – Under Voltage Dropout/Pickup, Normal/Emergency
– Run generator loaded/unloaded – Over Voltage Dropout/Pickup, Normal/Emergency
• Exercise – Voltage Debounce Time, Normal/Emergency
– Program 21 events loaded/unloaded
– Voltage Unbalance
• RS-485 (Modbus RTU)
– Under Frequency Dropout/Pickup, Emergency
• In-Phase Monitor
– Over Frequency Dropout/Pickup, Emergency
– Programmable 15° to 5°
– Frequency Debounce Time, Emergency
• Phase Rotation
– ABC/BAC/Disable • Time Delays
• Operating Mode – Engine Start/Cooldown, Source 2
– Fixed Util-to-Gen – Fail to Acquire Standby
• Running Time Meter – Preferred to Standby / Standby to Preferred
• Phase-to-Phase Voltage Calibration – Pre-/Post-Transfer to Standby/Preferred
• Transfer Commit – Fail to Synchronize
• Operation Counter – Off Position
• Frequency Meter – Load # Disc / Rec N>E / E>N (time-based)
Note: text in blue indicates additional features from the MPAC 750
MPAC 1200 I/O
• 2 Inputs
PROGRAMMABLE INPUTS
Remote Common Alarm Remote Test Inhibit Transfer
• 2 Outputs
Low Battery Voltage Remote End Time Delay Forced Transfer to OFF
• Up to 4 I/O Peak Shave Mode Remote Monitor In #1-4

extensions PROGRAMMABLE OUTPUTS
Aux Switch Fault / Open Alarm Silenced / Audible I/O Module Lost
Alarm Communication
Contactor in Preferred / Contactor in Source E / N / Exerciser / Test Mode Active
Standby Position OFF Position
Fail to Acquire Standby / Source E / N Phase Rotation Preferred / Standby Source
Transfer Error Available
Load Bank Control Active Load Control Active Load Control Out 1-9
Maintenance Mode Non-Emergency Transfer Peak Shave Active
Fail to Open / Close Source MBUS Control RDO #1-4 Not in Auto
1/2
In-Phase Monitor Sync Common Alarm Low Battery
Source N Loss of Phase / Source E Loss of Phase / Source E Over Frequency /

Over Voltage / Under Voltage / Over Voltage / Under Voltage / Start Signal / Under
Voltage Unbalance Voltage Unbalance Frequency
• I/O Extensions
– Standard
– High Voltage / High Current
– Alarm
– External Battery
• Ethernet Communication
– Modbus TCP/IP
• Load Shed Module
• Line-to-Neutral Monitor
• Current Sensing Kit
• Digital Meter Kit
• Supervised Transfer Switch
• Source Priority Selector
MPAC 1500 Overview
Connection

Indications
Display Menu Buttons
• Setup via SiteTech or Display • Configurable Parameters
• Test – Under Voltage Dropout/Pickup, Normal/Emergency
– Run generator loaded/unloaded – Over Voltage Dropout/Pickup, Normal/Emergency
• Exercise – Voltage Debounce Time, Normal/Emergency
– Program 21 events loaded/unloaded – Voltage Unbalance
• RS-485 (Modbus RTU) – Under Frequency Dropout/Pickup, Normal/Emergency
• Ethernet (Modbus TCP/IP) – Over Frequency Dropout/Pickup, Normal/Emergency
– Frequency Debounce Time, Normal/Emergency
• In-Phase Monitor
– Programmable 15° to 5° – Three Source System/Bypass Isolation/Service
Entrance/Prime Power
• Phase Rotation
– ABC/BAC/Disable • Time Delays
• Operating Mode – Engine Start/Cooldown, Source 1/2
– Util-to-Gen/Gen-to-Gen/Util-to-Util/Util-Gen-Gen – Fail to Acquire Standby/Preferred
• – Preferred to Standby / Standby to Preferred
Phase-to-Phase Voltage Calibration
– Pre-/Post-Transfer to Standby/Preferred
• Running Time Meter
– Fail to Synchronize
• Transfer Commit – Off Position
• Operation Counter – Load # Disc / Rec N>E / E>N (time-based)
• Frequency Meter – Load # Add/Remove (current-based)
MPAC 1500 I/O PROGRAMMABLE INPUTS
• 2 Inputs Remote Common Alarm Remote Test Inhibit Transfer
Low Battery Voltage Remote End Time Delay Forced Transfer to OFF
• 2 Outputs Peak Shave Mode Remote Monitor In #1-4 Three-Source System
Disabled
• Up to 4 I/O Bypass Contactor Disable Service Disconnect
extensions PROGRAMMABLE OUTPUTS
Aux Switch Fault / Open Alarm Silenced / Audible I/O Module Lost
Alarm Communication
Contactor in Preferred / Contactor in Source E / N Exerciser / Test Mode Active
Standby Position Position
Fail to Acquire Standby / Source E / N Phase Rotation Preferred / Standby Source
Preferred / Transfer Error Available
Load Bank Control Active Load Control Active Load Control Out 1-9
Maintenance Mode Non-Emergency Transfer Peak Shave Active
Fail to Open / Close Source 1 MBUS Control RDO #1-4

/2 Source N / E Loss of Phase /
In-Phase Monitor Sync Common Alarm Over Voltage / Over
Frequency / Start Signal /
Low Battery Not in Auto Under Voltage / Under
Frequency / Voltage
Three-Source System Source N / E Tripped Unbalance
Disabled
• I/O Extensions
– Standard
– High Voltage / High Current
– Alarm
– External Battery
• Load Shed Module

• Line-to-Neutral Monitor
• Current Sensing Kit
• Digital Meter Kit
• Supervised Transfer Switch
• Source Priority Selector
Controller Comparison
VOLTAGE AND FREQUENCY SETTINGS MPAC 750 MPAC 1200 MPAC 1500
Pickup/Dropout Normal Voltage Programmable Programmable Programmable
Pickup/Dropout Emergency Voltage Programmable Programmable
Frequency Selection 50/60 Hz 50/60 Hz 50/60 Hz
Pickup/Dropout Normal Frequency Programmable
Pickup/Dropout Emergency Frequency Programmable Programmable
Over Voltage Trip Programmable Programmable
Over Frequency Trip Programmable Programmable
Voltage Unbalance Available Available
In-Phase Monitor Available Available Available
Transfer Commit Available Available
Phase Rotation Sensing Available Available
TIME DELAYS / CONFIGURABLE SETTINGS MPAC 750 MPAC 1200 MPAC 1500
Transfer to Emergency / Normal Programmable Programmable Programmable
Engine Cooldown Fixed Programmable Programmable
Generator Exerciser 7-day 21 Events 21 Events
Remote Peak Shave Available Available
Start Time Delay Programmable Programmable Programmable

(Emergency Only) (Emergency Only)
Fail to Acquire Programmable Programmable Programmable

(Emergency Only) (Emergency Only)
COMMUNICATIONS
RS-485 Available Available Available
Ethernet Optional Optional Available
ACCESSORIES MPAC 750 MPAC 1200 MPAC 1500

External Programmable Exerciser X
I/O Extension Modules X X
Load Shed Module X X
Line-to-Neutral Voltage Monitor X X
Current Sensing Kit X X
Digital Meter Kit X X
Supervised Transfer Switch X X
Time- and Current-
Load Control Time-based
based
Three Source System X
Prime Power X
Accessories
• Surge Protection Device
• User Interface Cover
• Controller Disconnect Switch
• Heater
• Controller Options
– I/O Modules
– Load Shed Module
– Line-to-Neutral Monitor
– Current Sensing Kit
– Digital Meter Kit
– Supervised Transfer Switch
– Source Priority Selector
Automatic vs. Manual Operation
Position Automatic Non-Automatic
Automatically transfers to the standby source when available, if the preferred source is lost
AUTO Transfers back to the preferred source when it becomes available
Automatically transfers to an available Enables the Not-In-Auto indicator

source if the connected source is lost Transfers only when the switch is manually
Does not automatically transfer back to moved to the TRANSFER position:
preferred when both sources are available Does not automatically transfer to an
MANUAL available source when the connected
source is lost
Does not automatically transfer back to
preferred when both sources are available
Can use to transfer when the switch is in Must use for all transfers when the switch is
MANUAL position and both sources are in the MANUAL position
available Initiates transfer sequences to the other
TRANSFER Initiates transfer sequences to the other source including all time delays
source including all time delays Operates pre- and post-transfer load control
Operates pre- and post-transfer load control time delays if both sources are available
time delays if both sources are available
Load Control
• Load Shed
• Time-Based Load Control
• Current-Based Load Control
Load Shed
Disconnects non-critical loads to prevent generator overload.
Standard Features
• Disconnects non-critical loads to prevent generator overload
• Monitors generator current and frequency to determine when
to shed loads
• Loads are added and shed according to priority
• Forced transfer from Emergency to OFF for programmed-
transition models
• Load priorities are hard-wired at installation
• Requires load shed kit
Recommendation
• For applications with multiple transfer switches
• For applications where ATS units have low priority loads where
it is critical not to exceed the load capacity of the generator
Time-Based Load Control
• Control up to 9 individual loads
• Adds and removes based on pre-transfer and
post-transfer
– Only occurs at time of transfer
– Requires I/O modules
Recommendation
• Good for highly inductive loads while minimizing
the size of the generator
Time-based load staging (delay=5.0s)
Current-Based Load Control
• Control up to 9 individual loads
• Adds and removes based on current measurement
– Occurs at any time during operation
– Requires I/O modules and current sensing kit
Recommendation
• Good for insuring power stability for critical loads while minimizing the size of the generator
Three Source System
• One generator is available while the other
is serviced
• Automatic backup power
• Extend time between maintenance and

overhauls
• Lengthen time between refueling

ATS Presentation

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

ATS Presentation

Uploaded by

Copyright:

Available Formats

Automatic Transfer Switch (ATS) Overview

• Standard, Bypass Isolation, Service Entrance

• Open, Closed, Delayed Transition

• 2,3,4 pole configurations

• All enclosure types

• Multiple controller offerings

• UL 1008 & CSA approvals

• IBC – Seismic Certification

– Source to load neutral through bus

– No ground fault on generator (not separately derived source) Solid

– Switching neutral with 3 phase

– Ground fault on generator OK (separately derived source)

– Make Before Break on Neutral

Contactor Position Fault/Warning

Contactor in Preferred / Standby Position

Contactor in Source E / N Position

Exerciser / Test Mode Active

Fail to Acquire Standby / Transfer

Source E / N Phase Rotation Error

– Program 56 on/off events

Contactor Position Fault/Warning

Display Menu Buttons

• Up to 4 I/O Peak Shave Mode Remote Monitor In #1-4

Maintenance Mode Non-Emergency Transfer Peak Shave Active

Source N Loss of Phase / Source E Loss of Phase / Source E Over Frequency /

Contactor Position Fault/Warning

Display Menu Buttons

• 2 Inputs Remote Common Alarm Remote Test Inhibit Transfer

Maintenance Mode Non-Emergency Transfer Peak Shave Active

Fail to Open / Close Source 1 MBUS Control RDO #1-4

• Load Shed Module

Start Time Delay Programmable Programmable Programmable

Fail to Acquire Programmable Programmable Programmable

ACCESSORIES MPAC 750 MPAC 1200 MPAC 1500

Position Automatic Non-Automatic

Automatically transfers to an available Enables the Not-In-Auto indicator

Disconnects non-critical loads to prevent generator overload.

– Requires I/O modules

Time-based load staging (delay=5.0s)

– Requires I/O modules and current sensing kit

• Automatic backup power

• Extend time between maintenance and

• Lengthen time between refueling

You might also like
