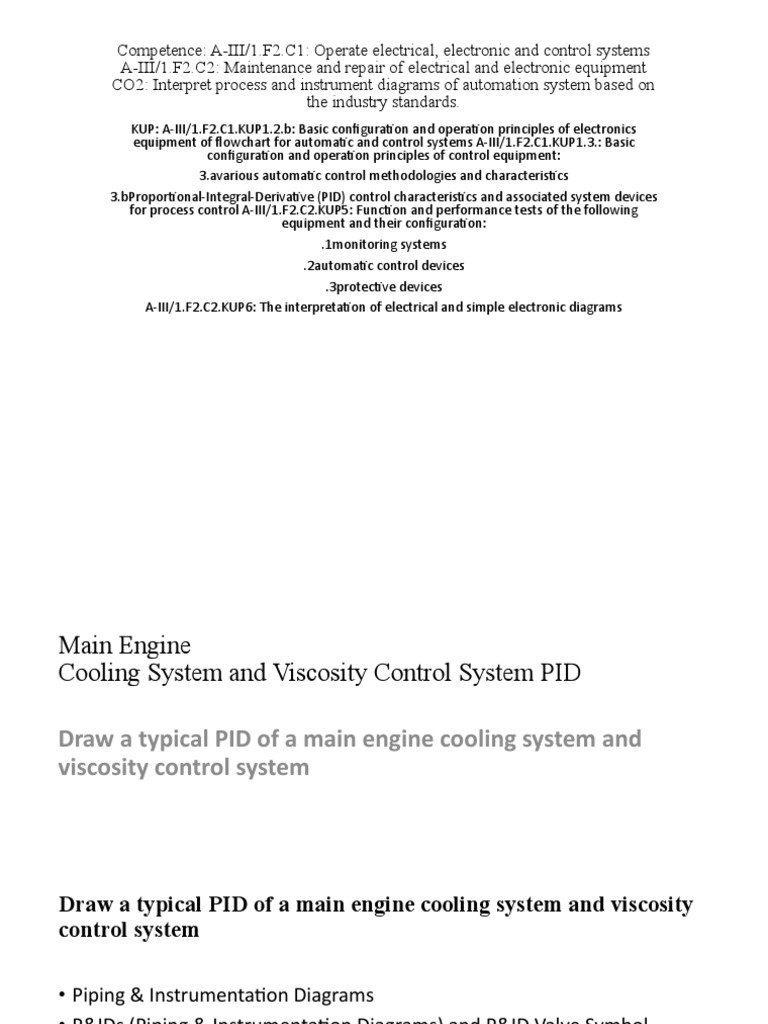

Competence: A-III/1.F2.

C1: Operate electrical, electronic and control systems

A-III/1.F2.C2: Maintenance and repair of electrical and electronic equipment
CO2: Interpret process and instrument diagrams of automation system based on
the industry standards.
KUP: A-III/1.F2.C1.KUP1.2.b: Basic configuration and operation principles of electronics
equipment of flowchart for automatic and control systems A-III/1.F2.C1.KUP1.3.: Basic
configuration and operation principles of control equipment:
3.avarious automatic control methodologies and characteristics
3.bProportional-Integral-Derivative (PID) control characteristics and associated system devices
for process control A-III/1.F2.C2.KUP5: Function and performance tests of the following
equipment and their configuration:
.1monitoring systems
.2automatic control devices
.3protective devices
A-III/1.F2.C2.KUP6: The interpretation of electrical and simple electronic diagrams
Main Engine
Cooling System and Viscosity Control System PID

Draw a typical PID of a main engine cooling system and

viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system

• Piping & Instrumentation Diagrams

• P&IDs (Piping & Instrumentation Diagrams) and P&ID Valve Symbol
Library. Description. A piping and instrumentation diagram (P&ID) is a
graphic representation of a process system that includes the piping,
vessels, control valves, instrumentation, and other process components
and equipment in the system.
• P&IDs are a schematic illustration of the functional relationship of piping,
instrumentation and system equipment components used in the field of
instrumentation and control or automation. They are typically created by
engineers who are designing a manufacturing process for a physical plant.
Draw a typical PID of a main engine cooling system and viscosity control system

• The piping and instrumentation diagram , also called P & amp; ID,
illustrates the interactions of the piping, equipment and
instrumentation of a physical process flow. P & amp; IDs are often
used in the process industry to show the process flow, other installed
equipment, and instrumentation.
• The piping and instrumentation diagram (P&ID) is mostly used in the
engineering field. It also plays a crucial role in the design,
maintenance, and change of the manufacturing process that it
represents. The P & amp; IDs are usually made by engineers who
need to design, plan and construct a physical process for a plant.
Draw a typical PID of a main engine cooling system and viscosity control system

• Differences Between PFD and P&ID

• Instrumentation details vary with the degrees of design complexity.
For example, simplified or conceptual designs, often called process
flow diagrams (PFDs), which provide fewer details than fully
developed piping and instrumentation diagrams (P&IDs). Therefore, a
PFD is used only to understand how the process works.
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system

• Knowledge About P&ID Symbols

• To better understand the process and instrumentation diagram, you need to get familiar with the
P&ID symbols used in the piping and instrumentation diagram.
• The combinations of letter and number appear inside each graphical element and letter
combinations are defined by the ISA standard. Numbers are assigned by users so that the schemes
vary in different situations. Some companies use sequential numbering, some will tie the
instrument numbers to the process line numbers, and others adopt unique and sometimes
unusual numbering systems.
• The first letter defines the measured or initiating variables such as Analysis (A), Flow (F),
Temperature (T), etc. with succeeding letters defining readout, passive, or output functions such
as Indicator (I), Recorder (R), Transmitter (T), etc.
• Below are some piping and instrumentation symbols with letters. All the standard P&ID symbols
can be found in Edraw Max, which is a powerful and easy-to-use P&ID maker for professionals and
beginners.
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity control system

• The P&ID is a very common term used in the world of process

industries. A process engineer in a manufacturing plant needs to create
new and/or modify the already existing P&ID to the as-is plant
modifications. All the chemical engineering and related engineering
students have also learned about it or at least heard. A P&ID is a
detailed graphical representation of a process including the hardware
and software (e.g., piping, equipment, instrumentation) necessary to
design, construct, and operate the facility. As defined in the PIC001:
Piping and Instrumentation Diagram Documentation Criteria by Process
Industry Practice (PIP) - a consortium of process industry owners and
engineering construction contractors who serve the industry.
Draw a typical PID of a main engine cooling system and viscosity control system

• A P&ID Should Include:

• Instrumentation and designations;
• Mechanical equipment with names and numbers;
• All valves and their identifications;
• Process piping, sizes and identification;
• Miscellaneous - vents, drains, special fittings, sampling lines, reducers,
increasers and swagers;
• Permanent start-up and flush lines;
• Flow directions;
Draw a typical PID of a main engine cooling system and viscosity
control system

• A P&ID Should Include:

• Interconnections references;
• Control inputs and outputs, interlocks;
• Seismic category;
• Interfaces for class changes;
• Quality level;
• Annunciation inputs;
• Computer control system input;
• Vendor and contractor interfaces;
• Identification of components and subsystems delivered by others;
• Intended physical sequence of the equipment;
• Equipment rating or capacity.
Draw a typical PID of a main engine cooling system and viscosity
control system

• P&ID Examples
• Here is a P&ID template for
showing the water boiling
process.
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling
system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity
control system
Draw a typical PID of a main engine cooling system and viscosity control system
