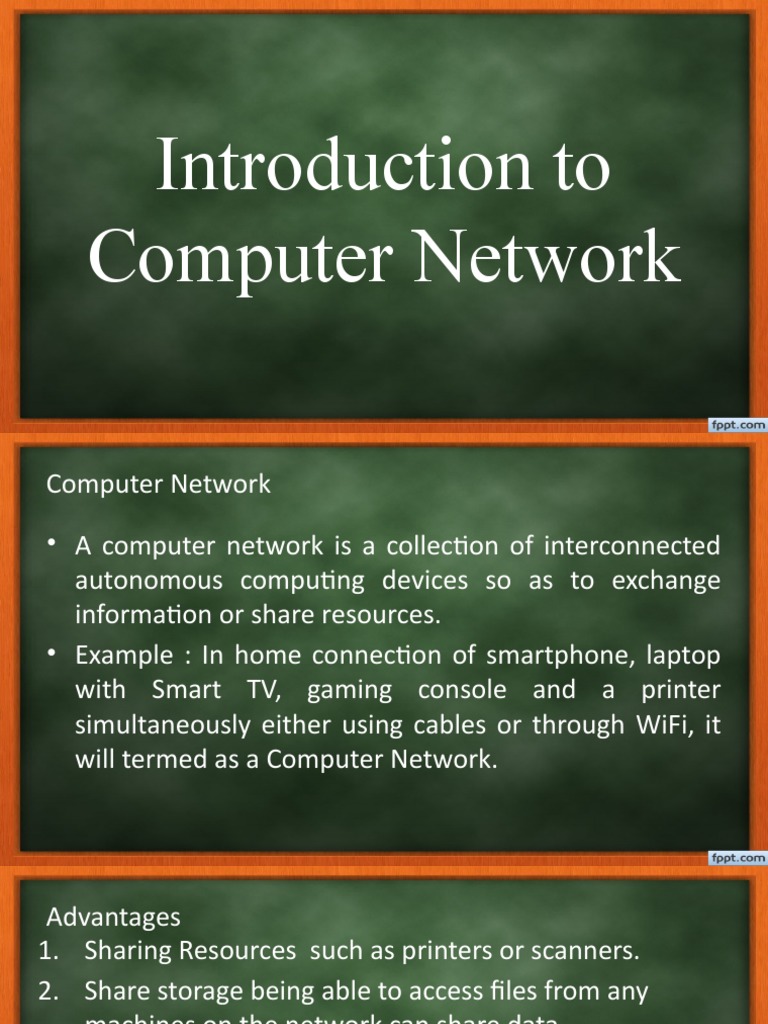

Computer Network
Computer Network
Guided/
Wired Unguided/
Wireless
Co axial Optical
Twisted Fibers Radio
Pair Cable Cable Micro Satellite
Cable Wave Wave
Twisted Pair Cable
• It consists of two identical wires wrapped together in a
double helix. The twisting of wires reduces crosstalk
( the bleeding of a signal from one wire to anther and
which can corrupt signal and cause network).
• Types
– Unshielded Twisted Pair (UTP) cable
– Shielded Twisted Pair (STP) cable
• Advantage
• It is simple
• It is easy to install and maintain
• It is physically flexible
• It has a low weight
• It can be easily connected
• It is very inexpensive
Disadvantages
• Because of high attenuation it is incapable carrying a
signal over long distance without the use of repeaters.
• Its low bandwidth capabilities make it unsuitable for
broadband applications.
• It supports maximum data rates 1 Mbps without
conditioning and 10 Mbps with conditioning
Co axial Cable
• It consists of solid wire core surrounded by one or more
foil or wire shields, each separated by some kind of
plastic insulator. The inner core carries the signal and the
shield provides the ground. It is suitable for high speed
communication. It is widely used in TV signals.
• Type :-
– Thicknet :- It segment can be upto 500 mtr long
– Thinnet :- It is thinner and can have maximum segment 185
mtrs.
Advantages
• The data transmission characteristics of coaxial cable are
considerably better than those of twisted pair cables.
• The coaxial cable can be used as the basis for a shared
cable network.
• The coaxial cables can be used for broadband
transmission
• Offer higher bandwidth upto 400 Mbps
Disadvantages
Receive Transmit
Star Topology
• This topology consists of a central node to which all other
nodes are connected by a single path. It is the topology
used in most existing information networks involving data
processing or voice communications.
Advantages
1. Ease of service:- The star topology has a number of concentration points (where
connection are joined). These provide easy access for service or reconfiguration of
the network.
2. One device per connection:- In star topology failure of one connection typically
involves disconnecting one node from an otherwise fully functional network.
3. Centralized control / problem diagnosis:- The fact that the central node is
connected directly to every other node in the network means that faults are easily
detected and isolated. It is simple matter to disconnect failing nodes from the
system.
4. Simple Access Protocols:- Any given connection in a star network involves only the
central node. In this situation contention for who has control of the medium for
the transmission purpose is easily solved. Thus in star topology access protocols
are very simple.
Disadvantages
1. Long Cable Length:- Because each node is directly connected to
the centre, the star topology necessitates a large quantity of
cable. Congestion in the cables ducts and maintenance and
installation problems can increase cost considerably.
2. Difficult to Expand:- The addition of new node to a star network
involves a connection all the way to the central node.
3. Central Node Dependency:- If the central node in a star network
fails, the entire network is rendered inoperable. This introduces
heavy reliability and redundancy constraints on this node.
Bus or Linear Topology
• Cost
• Length of cable needed
• Future growth
• Cruciality of work
• Communication Media
Types of Network based on Geographical Spread
• Gateway
• A gateway is a device that connects dissimilar networks. It establishes
an intelligent connection between a local network and external
networks with completely different structures. In homes gateway is the
ISP that connects the user to the Internet. In enterprises, the gateway
node often acts as a proxy server( a machine that is not actually a
server but appears as a server) and firewall (a system designed to
prevent unauthorized access to or from a private network.)
RJ 45 Connector
1993 On April 30, CERN releases the WWW source code adn
announces it will be available free of charages.
Prepared by: Balwan Singh, PGT(C.S.)
Difference between WWW and Internet
Static Web
Page Dynamic
Web Page
Static Web Page
• A static web page is the one which contains
only the static content i.e fixed content. The
content which once written and published
through a webpage, remain the same every time a user
view it. It is written HTML code
Advantages
Server
•
Side
It supports execution at server end i.e. it enables the
completion or carrying out a task at the server end and then
sending the result to the client end. ASP(Active Server page),
JSP(Java Server Page), Perl, PHP(Hypertext Preprocessor)
Client Side Vs Server Side
Client Side Scripting Server Side Scripting
Script code is downloaded The script is downloaded at
and executed at client end. the server end and the result
is sent to the client end
Response to interaction is Complex processes are more
more immediate once the efficient as the program and
program code has been associated resources are not
downloaded downloaded to the browser
Client Side Scripting Server Side Scripting
Services are secure as they Have access to files and data
do not have access to files bases but have security
and databases. consideration when sending
sensitive information.
