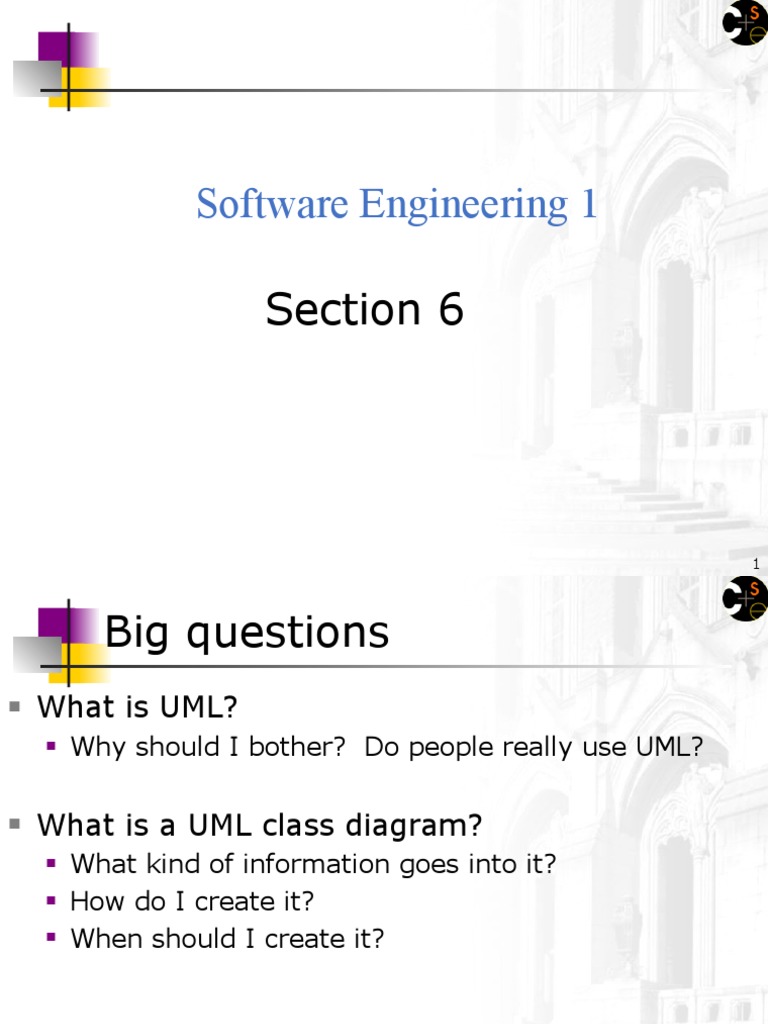

Software Engineering 1

Section 6

1
 Big questions
 What is UML?
 Why should I bother? Do people really use UML?

 What is a UML class diagram?

 What kind of information goes into it?
 How do I create it?
 When should I create it?

2
 Design phase
 design: specifying the structure of how a
software system will be written and function,
without actually writing the complete
implementation

 a transition from "what" the system must do, to

"how" the system will do it
 What classes will we need to implement a system
that meets our requirements?
 What fields and methods will each class have?
 How will the classes interact with each other?

3
 How do we design classes?
 class identification from project spec / requirements
 nouns are potential classes, objects, fields
 verbs are potential methods or responsibilities of a class

 CRC card exercises

 write down classes' names on index cards
 next to each class, list the following:
 responsibilities: problems to be solved; short verb phrases
 collaborators: other classes that are sent messages by this class
(asymmetric)

 UML diagrams
 class diagrams (today)
 sequence diagrams
 ...

4
 Introduction to UML
 UML: pictures of an OO system
 programming languages are not abstract enough for OO design
 UML is an open standard; lots of companies use it

 What is legal UML?

 a descriptive language: rigid formal syntax (like programming)
 a prescriptive language: shaped by usage and convention
 it's okay to omit things from UML diagrams if they aren't
needed by team/supervisor/instructor

5
 Uses for UML
 as a sketch: to communicate aspects of system
 forward design: doing UML before coding
 backward design: doing UML after coding as documentation
 often done on whiteboard or paper
 used to get rough selective ideas

 as a blueprint: a complete design to be implemented

 sometimes done with CASE (Computer-Aided Software
Engineering) tools

 as a programming language: with the right tools, code

can be auto-generated and executed from UML
 only good if this is faster than coding in a "real" language
6
 UML class diagrams
 What is a UML class diagram?
 UML class diagram: a picture of the classes in an
OO system, their fields and methods, and
connections between the classes that interact or
inherit from each other

 What are some things that are not represented in a

UML class diagram?
 details of how the classes interact with each other
 algorithmic details; how a particular behavior is
implemented

7
 Diagram of one class
 class name in top of box
 write <<interface>> on top of interfaces' names
 use italics for an abstract class name

 attributes (optional)
 should include all fields of the object

 operations / methods (optional)

 may omit trivial (get/set) methods
 but don't omit any methods from an interface!
 should not include inherited methods

8
 Class attributes
 attributes (fields, instance variables)
 visibility name : type [count] = default_value

 visibility: + public
# protected
- private
~ package (default)
/ derived
 underline static attributes

 derived attribute: not stored, but can

be computed from other attribute values

 attribute example:
- balance : double = 0.00

9
 Class operations / methods
 operations / methods
 visibility name (parameters) : return_type

 visibility: + public
# protected
- private
~ package (default)
 underline static methods
 parameter types listed as (name: type)
 omit return_type on constructors and
when return type is void

 method example:
+ distance(p1: Point, p2: Point): double

10
 Comments
 represented as a folded note, attached to the
appropriate class/method/etc by a dashed line

11
 Relationships btwn. classes
 generalization: an inheritance relationship
 inheritance between classes
 interface implementation

 association: a usage relationship

 dependency
 aggregation
 composition

12
 Generalization relationships
 generalization (inheritance) relationships
 hierarchies drawn top-down with arrows
pointing upward to parent
 line/arrow styles differ, based on whether
parent is a(n):
 class:

solid line, black arrow

 abstract class:

solid line, white arrow

 interface:

dashed line, white arrow

 we often don't draw trivial / obvious

generalization relationships, such as
drawing the Object class as a parent

13
 Associational relationships
 associational (usage) relationships
1. multiplicity (how many are used)
 *  0, 1, or more
 1  1 exactly
 2..4  between 2 and 4, inclusive
 3..*  3 or more
2. name (what relationship the objects have)
3. navigability (direction)

14
 Multiplicity of associations
 one-to-one
 each student must carry exactly one ID card

 one-to-many
 one rectangle list can contain many rectangles

15
 Car

Association types
1
aggregation
 aggregation: "is part of" 1
Engine
 symbolized by a clear white diamond

 composition: "is entirely made of" Book

 stronger version of aggregation composition
 the parts live and die with the whole
1
 symbolized by a black diamond
*
Page
 dependency: "uses temporarily"
 symbolized by dotted line
 often is an implementation
detail, not an intrinsic part of dependency
that object's state
Lottery Random
Ticket
16
 Class diagram example 1
Multiplicity

Customer
1 Simple
Class Aggregation

Abstract Rental Invoice

Class

Rental Item 1..*

1 0..1

Composition Simple
Generalization
Association

Checkout Screen
DVD Movie VHS Movie Video Game

17
 Class diagram example 2

StudentBody Student
1 100
- firstName : String
+ main (args : String[]) - lastName : String
- homeAddress : Address
- schoolAddress : Address

+ toString() : String
Address
- streetAddress : String
- city : String
- state : String
- zipCode : long

+ toString() : String

18
Class diagram ATM Example

19
Class diagram ATM Example

20
 Class design exercise
 Consider this Texas Hold 'em poker game system:
 2 to 8 human or computer players
 Each player has a name and stack of chips
 Computer players have a difficulty setting: easy, medium, hard
 Summary of each hand:
 Dealer collects ante from appropriate players, shuffles the deck, and
deals each player a hand of 2 cards from the deck.
 A betting round occurs, followed by dealing 3 shared cards from the
deck.
 As shared cards are dealt, more betting rounds occur, where each
player can fold, check, or raise.
 At the end of a round, if more than one player is remaining, players'
hands are compared, and the best hand wins the pot of all chips bet
so far.
 What classes are in this system? What are their responsibilities?
Which classes collaborate?
 Draw a class diagram for this system. Include relationships
between classes (generalization and associational). 21
