Running Fix - Step by Step

This document outlines the steps to plot a running fix from bearings taken of a navigational mark: 1. Take the first bearing at 0900 hours and mark your DR position along that bearing line. 2. Plot your DR position at 1000 hours based on course and speed. 3. Apply set and drift correction to the 1000 hours DR position and mark the estimated position. 4. Draw the line of position for the second bearing taken at 1000 hours and transfer the 0900 hours bearing line to intersect the estimated position. 5. The running fix is the intersection of the transferred 0900 hours bearing line and the 1000 hours bearing line.

Uploaded by

Frederick Moncada
Copyright
© © All Rights Reserved
We take content rights seriously. If you suspect this is your content, claim it here.
Available Formats
Download as PPTX, PDF, TXT or read online on Scribd
1K views1 page

Running Fix - Step by Step

This document outlines the steps to plot a running fix from bearings taken of a navigational mark: 1. Take the first bearing at 0900 hours and mark your DR position along that bearing line. 2. Plot your DR position at 1000 hours based on course and speed. 3. Apply set and drift correction to the 1000 hours DR position and mark the estimated position. 4. Draw the line of position for the second bearing taken at 1000 hours and transfer the 0900 hours bearing line to intersect the estimated position. 5. The running fix is the intersection of the transferred 0900 hours bearing line and the 1000 hours bearing line.

Uploaded by

Frederick Moncada
Copyright
© © All Rights Reserved
We take content rights seriously. If you suspect this is your content, claim it here.
Available Formats
Download as PPTX, PDF, TXT or read online on Scribd

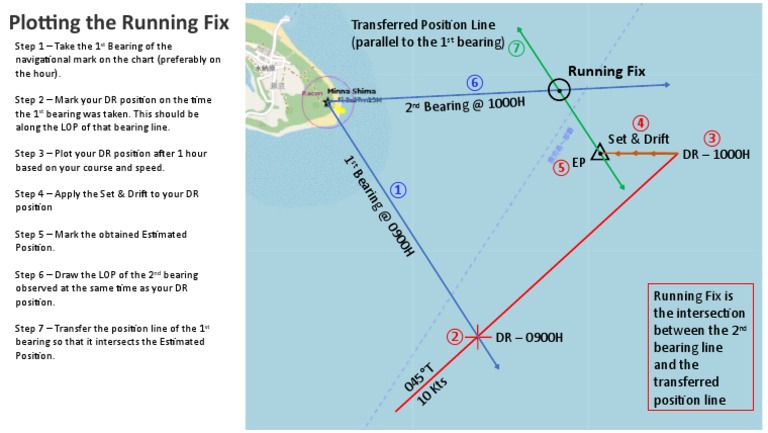

  • Plotting the Running Fix

Plotting the Running Fix Transferred Position Line

Step 1 – Take the 1st Bearing of the (parallel to the 1st bearing)
⑦
navigational mark on the chart (preferably on
the hour). Running Fix
⑥ ●
Step 2 – Mark your DR position on the time
the 1st bearing was taken. This should be 2nd Bearing @ 1000H
along the LOP of that bearing line. ④
Set & Drift ③
Step 3 – Plot your DR position after 1 hour ● DR – 1000H
⑤ EP

1
based on your course and speed.

st
Be
①

ari
Step 4 – Apply the Set & Drift to your DR

ng
position

@
09
Step 5 – Mark the obtained Estimated

0
Position.

0H
Step 6 – Draw the LOP of the 2nd bearing
observed at the same time as your DR
position. Running Fix is
the intersection
Step 7 – Transfer the position line of the 1st between the 2nd
bearing so that it intersects the Estimated ② DR – 0900H
Position.
bearing line
and the
5°T
04 Kts transferred
10 position line

Plotting the Running Fix 045°T 10 Kts DR – 0900H DR – 1000H EP Set & Drift 1st Bearing @ 0900H 2nd Bearing @ 1000H Transferre
