1

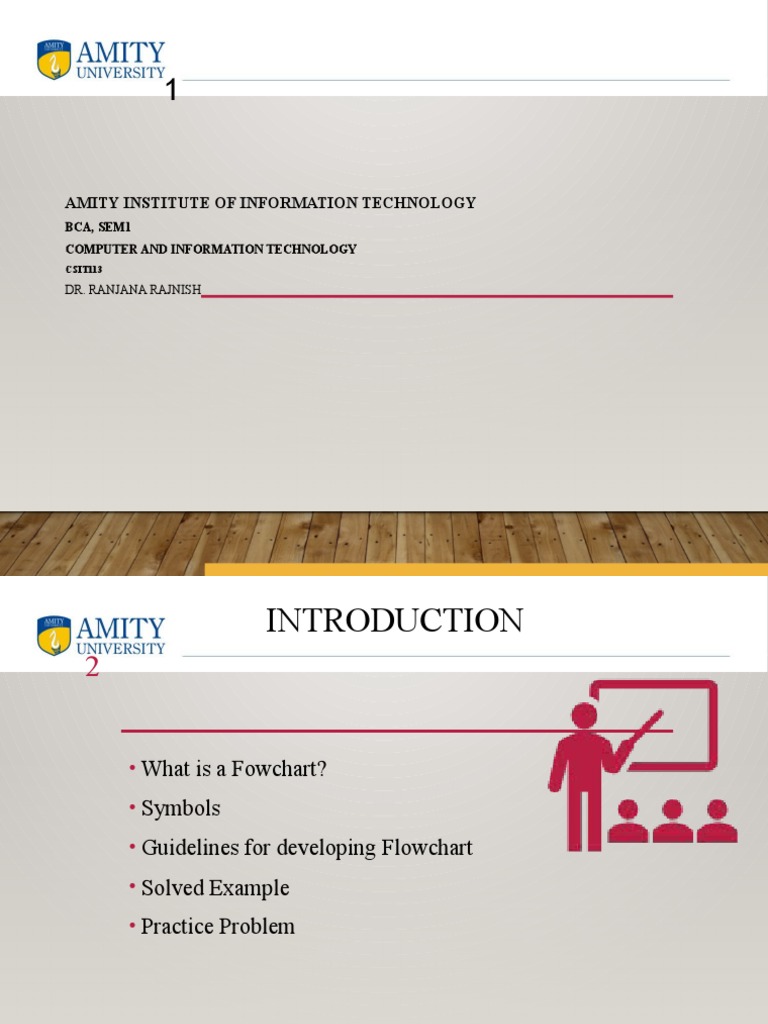

AMITY INSTITUTE OF INFORMATION TECHNOLOGY


BCA, SEM1
COMPUTER AND INFORMATION TECHNOLOGY
CSIT113

DR. RANJANA RAJNISH


INTRODUCTION
2

• What is a Fowchart?
• Symbols
• Guidelines for developing Flowchart
• Solved Example
• Practice Problem
3 WHAT IS A FLOWCHART?

• Flowchart is a diagrammatic representation of sequence of


logical steps of a program.
• Flowcharts use simple geometric shapes to depict processes
and arrows to show relationships and process/data flow
4
FLOWCHART SYMBOLS
• Some of the common symbols used in drawing
flowcharts are as below:

Symbol Symbol Name Purpose

Used at the beginning and


end of the algorithm to
Start/Stop show start and end of the
program.
5

Indicates processes like


Process mathematical operations.

Used for denoting program


Input/ Output inputs and outputs.
Stands for decision
statements in a program,
Decision
where answer is usually Yes
or No.
6

Shows relationships
Arrow between different
shapes.
On-page Connector Connects two or more
parts of a flowchart,
which are on the same
page.
Off-page Connector Connects two parts of a
flowchart which are
spread over different
pages.
7 GUIDELINES FOR DEVELOPING
FLOWCHARTS
• These are some points to keep in mind while developing a
flowchart −
• Flowchart can have only one start and one stop symbol
• On-page connectors are referenced using numbers
• Off-page connectors are referenced using alphabets
• General flow of processes is top to bottom or left to right
• Arrows should not cross each other
8 FLOWCHART FOR GOING TO THE
MARKET TO PURCHASE A PEN.
9 FLOWCHART TO CALCULATE THE
AVERAGE OF TWO NUMBERS
10
11 SOLVED EXAMPLE

• Step1: START
• Step2: Take input of values x, y, and z
• Step3: Find sum
• Step4: Compute Average
• Step5: Display Result
• Step6:STOP
12 PRACTICE PROBLEM

• Question: Write an algorithm to find area and perimeter of a


rectangle.
13

• Question: Find circumference of a circle.


14

Algorithm using decision making


• Step1:START
• Step2:Take a and b as input
• Step3: If a is greater than b
• Step4: Display a is greater
• Step5: Else, display b is greater
• Step6:STOP
15

• Question: Take shape as input. If shape is circle, calculate


and display it circumference, else display “Shape is not
circle, so no output to display”
16

• Question: Take cost of a product as input, if cost is less than


10000, give discount of 5% else give discount of 10%.
Display the final amount to be paid.
17 TOOLS USED TO DRAW
FLOWCHART
• Smartdraw

(https://cloud.smartdraw.com/)
• CanvaFlowchart

(https://www.canva.com/en_in/graphs/flowcharts/)
Google Drawings to make a flowchart in Google
Docs
18 REFERENCES

• www.tutorialpoint.com
