Octave

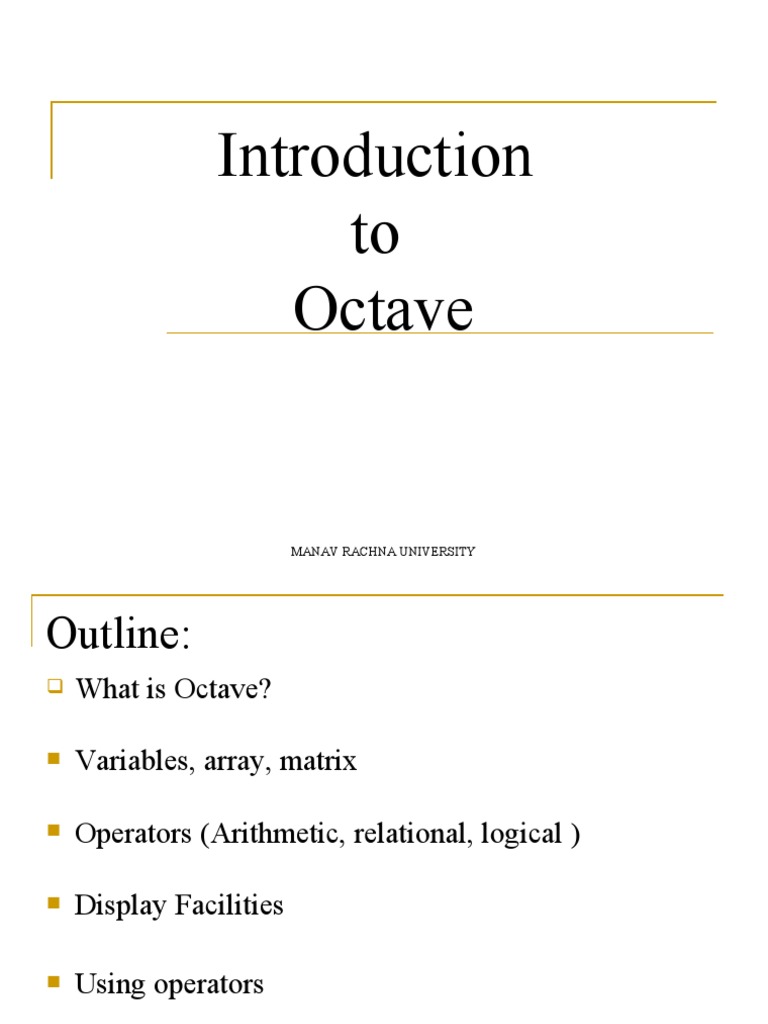

Introduction
to
Octave
MANAV RACHNA UNIVERSITY

Outline:
 What is Octave?
 Variables, array, matrix
 Operators (Arithmetic, relational, logical )
 Display Facilities
 Using operators
 Creating Plots
What is Octave?
 Octave is basically a high level language which has many
specialized toolboxes for making things easier for us.
 Octave is compatible with MATLAB.
 Octave is free software
 Octave provides a language and environment for
numerical computation, data analysis, visualisation and
algorithm development.

 Octave provides functions that operate on
 Integer, real and complex numbers
 Vectors and matrices
 Structures
MANAV RACHNA UNIVERSITY 4

What are we interested in?
 Octave is a high-level language, primarily intended for
numerical computations.
 During the session, we will cover the following topics

• Basic calculations and operation
• Plotting
• Differentiation & Integration(Applications)
• Matrices

Octave Screen
 File Browsing
 View files and m-files
 Workspace
 Stores the variable name , values
& their types
 View program variables
 Command Window
 type commands
 Command History
view past command
 Documentation Window
Read Document & seek help

Variables
 No need for types. i.e.,
int a;
double b;
float c;
 All variables are created with double precision unless
specified and they are matrices.
Example:
>>x=5;
>>x1=2;
 After these statements, the variables are 1x1 matrices

with double precision
The Octave Interface
 Pressing the up arrow in the command window will
bring up the last command entered.
 This saves you time when things go wrong.
 If you want to bring up a command from some time

in the past type the first letter and press the up
arrow.

Using Ocatve as a calculator
 Let’s start at the very beginning. For example,

suppose we want to calculate the expression, 1 + 2 ×
3. We type it at the prompt command (>>) as follows
 >> 1+2*3
 ans = 7

Using Octave as a calculator
 We will have noticed that if We do not specify an
output variable, Octave uses a default variable ans,
short for answer, to store the results of the current
calculation. Note that the variable ans is created (or
overwritten, if it is already existed). To avoid this, we
may assign a value to a variable or output argument
name. For example,
 >> x = 1+4*3
 x = 13

Using Octave as a calculator
 Will result in x being given the value 1 + 2 × 3 = 7.

This variable name can always be used to refer to the
results of the previous computations. Therefore,
computing 4x will result in
 >> 4*x
 ans = 28.0000

Creating Octave variables
 The syntax of variable assignment is
variable name = A value (or an expression)
 For example:
>> A=32
A=32
 To find out the value of a variable simply type the
name in
 >> A
A=32

 To make another variable equal to one already entered
 >> B = A
 The new variable is not updated as you change the
original value
 Example:
 >> B=A
B= 32
 >> A=15
A=15
>> B=32
 The value of two variables can be added together, and

the result displayed…
 >> A = 10
 >> A + A
 …or the result can be stored in another variable
 >> A = 10
 >> B = A + A

 For Example:
 >> A=10
 A=10
 >> A+A
 ans = 20
 >> B=A+A
 B=20

Basic arithmetic operators
 Symbol Operation Example

 + Addition 2+3
 ∗ Multiplication 2∗3
 − Subtraction 2–3
 / Division 2/3

Variables
 Variables needs to be declared.
 Variable names can contain up to 63 characters.
 Variable names must start with a letter followed by
letters, digits, and underscores.
 Variable names are case sensitive.

Octave Special Variables
 ans Default variable name for results
 pi Value of π
 eps Smallest incremental number
 inf Infinity
 NaN Not a number e.g. 0/0

Overwriting variable
 Once a variable has been created, it can be

reassigned. In addition, if you do not wish to see the
intermediate results, you can suppress the numerical
output by putting a semicolon (;) at the end of the
line. Then the sequence of commands looks like this:
 >> t = 5;
 >> t = t+1
 t=6

Error messages
 If we enter an expression incorrectly, Octave will

return an error message. For example, in the
following, we left out the multiplication sign, *, in
the following expression
 >> x = 10;
 >> 5x
 ??? 5x |
 Parse Error: Syntax error.

Making corrections
 A previously typed command can be recalled with the

up-arrow key ↑. When the command is displayed at
the command prompt, it can be modified if needed
and executed.

Controlling the hierarchy of
operations
 Let’s consider the arithmetic operation, but now we
will include parentheses. For example, 1 + 2 × 3 will

become (1 + 2) × 3
 >> (1+2)*3
 ans =9
 And, from previous example
 >> 1+2*3
 ans = 7
 By adding parentheses, these two expressions give
different results: 9 and 7.
 The order in which Octave performs arithmetic
operations is exactly that taught in high school
algebra courses.

Hierarchy of arithmetic operations
Precedence Mathematical operations
First The contents of all parentheses are evaluated
first, starting from the innermost parentheses

and working outward.
Second All exponentials are evaluated, working from
left to right.
Third All multiplications and divisions are
evaluated, working from left to right
Fourth All additions and subtractions are evaluated,
starting from left to right
Controlling the appearance of floating
point number
 MATLAB by default displays only 4 decimals in the
result of the calculations, for example −163.6667, as
shown in above examples. However, Octave does
numerical calculations in double precision, which is 15
digits.
 >> format short
 >> x=-163.6667

 If we want to see all 15 digits, we use the command
format long
 >> format long
 >> x= -1.636666666666667e+002
 To return to the standard format, enter format short,
or simply format. There are several other formats. For
more details, see the octave documentation, or type
help format.

Managing the workspace
 It is a good idea to issue a clear command at the start
of each new independent calculation.
 >> clc
 The command clc removes all variables from the
workspace. This frees up system memory. In order to
display a list of the variables currently in the memory,
type
 >> who
 While, who will give more details which include size,
space allocation, and class of the variables.

Entering multiple statements per line
 It is possible to enter multiple statements per line.
 Use commas (,) or semicolons (;) to enter more than
one statement at once.
 Commas (,) allow multiple statements per line without
suppressing output.
 Example
 >> a=7; b=cos (a), c=cosh (a)
 b = 0.6570
 c=
 548.3170
Miscellaneous commands
Here are few additional useful commands:

To clear the Command Window, type clc
To abort a Octave computation, type ctrl-c
To continue a line, type . . .
Getting help Information about any command is
available by typing
>> help Command
Another way to get help is to use the look for command.
 Use on-line help to request info on a specific function
>> help sqrt
 Tab completion
After typing few alphabet press tab to auto complete
it.
 In the current version , the doc function opens the on-
line version of the help manual. This is very helpful
for more complex commands.
>> doc plot

Mathematical functions
cos(x) Cosine abs(x) Absolute value
sin(x) Sine sign(x) Signum function
tan(x) Tangent max(x) Maximum value
acos(x) Arc cosine min(x) Minimum value
asin(x) Arc sine ceil(x) Round towards +∞
atan(x) Arc tangent floor(x) Round towards −∞
exp(x) Exponential round(x) Round to nearest integer
sqrt(x) Square root rem(x) Remainder after division
log (x) Natural logarithm angle(x) Phase angle
log10(x) Common logarithm conj(x) Complex conjugate
pi π = 3.14159 . . . Inf The infinity, ∞
i,j The imaginary unit i, √ −1
NaN Not a number

Example 1:

Example 2:
 >> log (142)

ans =
4.9558
 >> log10 (142)
ans =
2.1523
 Note the difference between the natural logarithm
log(x) and the decimal logarithm (base 10) log10(x).

 we enter the following commands in Octave,
>> sin (pi/4)
ans =
0.7071
 >> exp (10)
 ans =
2 .2026e+004

Plotting

Note:
 The plot functions have different forms depending on
the input arguments.
 If y is a vector plot(y) produces a piecewise linear
graph of the elements of y versus the index of the
elements of y.
 If we specify two vectors, as mentioned above,
plot(x, y) produces a graph of y versus x.
 For example, to plot the function sin (x) on the
interval [0, 4π], we first create a vector of x values
ranging from 0 to 2π, then compute the sine of these
values, and finally plot the result:

Plotting: Plot the function sin(x)
between 0≤x≤4π
 Create an x-array of 100 samples between 0 and 4π.
>>x=linspace(0,4*pi,100);
 Calculate sin(.) of the x-array

>>y=sin(x);
1
0.8
0.6
 Plot the y-array 0.4
0.2
>>plot(y) -0.2
-0.4
-0.6
-0.8
-1
0 10 20 30 40 50 60 70 80 90 100

Adding titles and axis labels
For x label:
>> xlabel(‘x = 0:4*pi’)
For y label
>> ylabel(‘Sine of x’)

For Title
>> title(‘Sine function’)

Remark: The color of a single curve is, by default, blue,
but other colors are possible.
Sine Function
1
0.8
0.6
0.4
0.2
Sin of x
-0.2
-0.4
-0.6
-0.8
-1
0 10 20 30 40 50 60 70 80 90 100
x = 0:4*pi

 The plot function can be used in different ways:
>> plot(data)
>> plot(x, y)
>> plot(data, ‘r.-’)
 In the last example the line style is defined

Colour: r, b, g, c, k, y etc.
Point style: . + * x o > etc.
Line style: - -- : .-
 Type ‘help plot’ for a full list of the options

Symbol Color Symbol Line Style Symbol Marker
k Black − Solid + Plus sign
r Red −− Dashed o Circle
b Blue : Dotted ∗ Asterisk
g Green −. Dash-dot . Point
c Cyan none No line × Cross
m Magenta s Square
y Yellow d Diamond

 A basic plot
1
>> x = [0:0.1:2*pi] 0.8
>> y = sin(x)
0.6
0.4
>> plot(x, y, ‘r.-’) 0.2
-0.2
-0.4
-0.6
-0.8
-1
0 1 2 3 4 5 6 7

Plot the function e-x/3sin(x) between 0≤x≤4π.
 Create an x-array of 100 samples between 0 and 4π.
>>x=linspace(0,4*pi,100);
 Calculate sin(.) of the x-array

>>y=sin(x);
 Calculate e-x/3 of the x-array
>>y1=exp(-x/3);
 Multiply the arrays y and y1

>>y2=y.*y1;

Plot the function e-x/3sin(x) between 0≤x≤4π
 Multiply the arrays y and y1 correctly
>>y2=y.*y1;
0.7
 Plot the y2-array 0.6
0.5
>>plot(y2) 0.4
0.3
0.2
0.1
-0.1
-0.2
-0.3
0 10 20 30 40 50 60 70 80 90 100

 Some other functions that are helpful to create plots:
 hold on and hold off

 title
 legend
 axis
 xlabel
 ylabel

Plot the functions Sin(x) & 2Sin(x):
>> x = [0:0.1:2*pi]; Sin Plots
>> y = sin(x); 2
sin(x)
>> plot(x, y, 'b*-') 1.5 2*sin(x)
>> hold on 1
>> plot(x, y*2, ‘r.-') 0.5
>> title('Sin Plots'); 0

y
>> legend('sin(x)', '2*sin(x)'); -0.5
>> axis([0 6.2 -2 2])

-1
>> xlabel(‘x’);
-1.5
>> ylabel(‘y’);
-2
0 1 2 3 4 5 6
>> hold off x

 >> x=-1:.1:10;
 >> y=sqrt(8*x);
>> plot(x,y)
9

8
 Warning: Imaginary 7
parts of complex X 5
and/or Y arguments
4
ignored 2
0
-2 0 2 4 6 8 10

 >> hold on
 >> y=-sqrt(8*x);
 >> plot(x,y) 10
Warning: Imaginary
8
 6
parts of complex X 4
and/or Y arguments 0
ignored
-2
-4
-6
 >> hold off -8
-10
-2 0 2 4 6 8 10

 fplot(“[sqrt(8*x), -sqrt(8*x)]”, [0, 10])
 You will get the following graph
10
-2
-4
-6
-8
-10
-1 0 1 2 3 4 5 6 7 8 9 10

Clearing Variables
 You can use the command “clear all” to delete all the
variables present in the workspace
 You can also clear specific variables using:

>> clear Variable_Name

Differentiation
&
Integration

Differentiation

Integration
 Integration is a mathematical technique which
is use to determine the rate at which function
change
 Limit of a sum
 In octave, command for integration is int(y,x)
where y is the function of x
 >>syms x y
 >>y=cos(x);
 >>int(y,x)
 >>ans = sin(x)
Matrix

Array, Matrix
 Entering a vector: An array of dimension 1 ×n is
called a row vector, whereas an array of
dimension m × 1 is called a column vector. The
elements of vectors in octave are enclosed by
square brackets and are separated by spaces or by
commas. For example, to enter a row vector, x,
type
x = [1 2 5 1]
x =
1 2 5 1

 Column vectors are created in a similar way, however,
semicolon (;) must separate the components of a column
vector,
y = [1; 5; 3]
y =
1
5
3
 Entering a matrix: A matrix can be created in octave as
follows (note the commas AND semicolons):
>> matrix = [1, 2, 3 ; 4 , 5 ,6 ; 7 , 8 , 9]
matrix =
1 2 3
4 5 6
7 8 9

Transpose of a Matrix
On the other hand, a row vector is converted to a
column vector using the transpose operator. The
transpose operation is denoted by an apostrophe or a
single quote (’).
>> z = x’
z=
1
2
5
1

 Thus, x(1) is the first element of vector x, x(2) its
second element, and so forth.
 >>x(1)
ans= 1
>>x(2)
ans=2
 To access blocks of elements, we use octave’s colon
notation (:). For example, to access the first three
elements of x, we write,
 >> x(1:3)
 ans =
 1 2 5
 Or, all elements from the third through the last
elements,
 >> v(3,end)
 ans = 5 1
 where end signifies the last element in the vector. If v
is a vector, writing
 >> v(:)
 produces a column vector, whereas writing
 >> v(1:end)
 produces a row vector.

Matrix Index
 The matrix indices begin from 1 (not 0 (as in C))
 The matrix indices must be positive integer
Given:
A(-2), A(0)
Error: ??? Subscript indices must either be real positive integers or logicals.
A(4,2)
Error: ??? Index exceeds matrix dimensions.

Long Array, Matrix
 Creating a vector with constant spacing by specifying
the first term, the spacing, and the last name.
Variable_name=[m:q:n] or Variable_name = m:q:n
>> t =1:10
t=
1 2 3 4 5 6 7 8 9 10
>>k =2:-0.5:-1
k=
2 1.5 1 0.5 0 -0.5 -1

 B = [1:4; 5:8]
B=
1 2 3 4
5 6 7 8
 Creating a vector with constant spacing by specifying
the first term, and last terms, and the number of terms.
 Variable_name = linspace (xi,xe,n)
>> va = linspace(0,8,6)
Va = 0 16 3.2 4.8 6.4 8

Generating Vectors from functions
 zeros(M,N) MxN matrix of zeros
x = zeros(1,3)
x =
0 0 0
 Eye(M) MxM identity matrix X= eye(3)

1 0 0
0 1 0
 ones(M,N) MxN matrix of ones 0 0 1
x = ones(1,3)
x =
1 1 1

Concatenation of Matrices
 x = [1 2], y = [4 5], z=[ 0 0]
A = [ x y]
1 2 4 5
B = [x ; y]
1 2
4 5
C = [x y ;z]
Error:
??? Error using ==> vertcat CAT arguments dimensions are not consistent.

Operators (arithmetic)
+ addition
- subtraction
* multiplication
/ division
^ power
‘ complex conjugate transpose

Matrices Operations
Given A and B:
Addition Subtraction Product Transpose

Operators (Element by Element)
.* element-by-element multiplication
./ element-by-element division
.^ element-by-element power

The use of “.” – “Element” Operation
A = [1 2 3; 5 1 4; 3 2 1]
A=
1 2 3
5 1 4
3 2 -1
b = x .* y c=x./y d = x .^2
x = A(1,:) y = A(3 ,:)
b= c= d=
x= y= 3 8 -3 0.33 0.5 -3 1 4 9
1 2 3 3 4 -1
K= x^2
Erorr:
??? Error using ==> mpower Matrix must be square.
B=x*y
Erorr:
??? Error using ==> mtimes Inner matrix dimensions must agree.

Some matrix functions in Octave
X = ones(r,c) % Creates matrix full with ones
X = zeros(r,c) % Creates matrix full with zeros
A = diag(x) % Creates squared matrix with
vector x in diagonal
[r,c] = size(A) % Return dimensions of matrix A
+-*/ % Standard operations
.+ .- .* ./ % Wise addition, substraction,…
v = sum(A) % Vector with sum of columns

Some powerful matrix functions in
Octave
X = A’ % Transposed matrix
X = inv(A) % Inverse matrix squared matrix
X = pinv(A) % Pseudo inverse
X = chol(A) % Cholesky decomp.
d = det(A) % Determinant
[X,D] = eig(A) % Eigenvalues and eigenvectors
[Q,R] = qr(X) % QR decomposition
[U,D,V] = svd(A) % singular value decomp.

Thank You…

Octave

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Octave

Uploaded by

Copyright:

Available Formats

Introduction

MANAV RACHNA UNIVERSITY

 Variables, array, matrix

 Operators (Arithmetic, relational, logical )

MANAV RACHNA UNIVERSITY

 Vectors and matrices

MANAV RACHNA UNIVERSITY 4

 During the session, we will cover the following topics

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

 After these statements, the variables are 1x1 matrices

 If you want to bring up a command from some time

MANAV RACHNA UNIVERSITY 8

 Let’s start at the very beginning. For example,

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

 Will result in x being given the value 1 + 2 × 3 = 7.

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

 The new variable is not updated as you change the

 The value of two variables can be added together, and

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

 Symbol Operation Example

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

 Once a variable has been created, it can be

MANAV RACHNA UNIVERSITY

 If we enter an expression incorrectly, Octave will

MANAV RACHNA UNIVERSITY

 A previously typed command can be recalled with the

MANAV RACHNA UNIVERSITY

will include parentheses. For example, 1 + 2 × 3 will

MANAV RACHNA UNIVERSITY

first, starting from the innermost parentheses

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

Here are few additional useful commands:

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

 >> log (142)

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

MANAV RACHNA UNIVERSITY

 Calculate sin(.) of the x-array

 Plot the y-array 0.4

MANAV RACHNA UNIVERSITY

>> ylabel(‘Sine of x’)

>> title(‘Sine function’)

MANAV RACHNA UNIVERSITY

 In the last example the line style is defined

MANAV RACHNA UNIVERSITY 41

k Black − Solid + Plus sign

r Red −− Dashed o Circle

b Blue : Dotted ∗ Asterisk

g Green −. Dash-dot . Point

c Cyan none No line × Cross

MANAV RACHNA UNIVERSITY

>> x = [0:0.1:2*pi] 0.8

>> plot(x, y, ‘r.-’) 0.2
