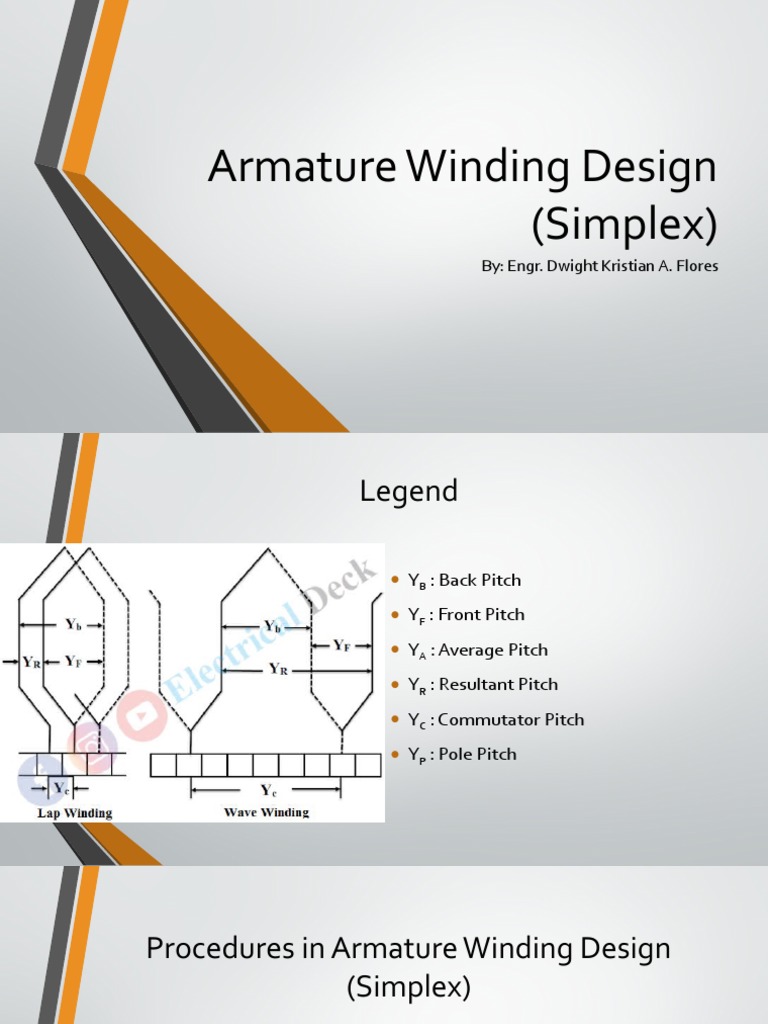

Armature Winding Design

(Simplex)
By: Engr. Dwight Kristian A. Flores
Legend

•Y B : Back Pitch
•Y F : Front Pitch
•Y A : Average Pitch
•Y R : Resultant Pitch
•Y C : Commutator Pitch

•Y P : Pole Pitch
 Procedures in Armature Winding Design
(Simplex)

Identify the required specifications.

Make the needed calculations.

Create the winding table.

Start drawing.
 Identify the Required Specifications
(For Lap Winding)
• Draw the developed diagram and design of a simplex lap wound progressive
armature winding for a 4-pole generator with 24 conductors.
SPECIFICATIONS:
# OF POLES: 4
# OF CONDUCTORS: 24
WINDING TYPE: LAP
MULTIPLICITY: SIMPLEX
ROTATION: PROGRESSIVE
 Make the Needed Calculations
YP = 24/4 = 6.
YB and YF must be nearly equal to pole pitch and should differ by 2.
For progressive or right-handed winding YB > YF .
YB = YP + 1 = 6 + 1 = 7 and
YF = YP - 1 = 6 - 1 = 5
YC = m = 1
Elements per slot = 2 (Simplex Lap Winding)
 Create the Winding Table
No. Back connection Front connection
1 1 to (1 + 7) = 8 8 to (8 - 5) = 3
2 3 to (3 + 7) = 10 10 to (10 - 5) = 5
3 5 to (5 + 7) = 12 12 to (12 - 5) = 7
4 7 to (7 + 7) = 14 14 to (14 - 5) = 9
5 9 to (9 + 7) = 16 16 to (16 - 5) = 11
6 11 to (11 + 7) = 18 18 to (18 - 5) = 13
7 13 to (13 + 7) = 20 20 to (20 - 5) = 15
8 15 to (15 + 7) = 22 22 to (22 - 5) = 17
9 17 to (17 + 7) = 24 24 to (24 - 5) = 19
10 19 to (19 + 7) = 26 = 26 - 24 = 2 26 to (26 - 5) = 21
11 21 to (21 + 7) = 28 = 28 - 24 = 4 28 to (28 - 5) = 23
12 23 to (23 + 7) = 30 = 30 - 24 = 6 30 to (30 - 5) = 25 = 25 - 24 = 1
Start Drawing
Start Drawing
Start Drawing
 Identify the Required Specifications
(For Wave Winding)
• Draw the developed diagram and design of a simplex 2-layer wave wound
progressive armature winding for a 4-pole generator with 26 armature
conductors.
SPECIFICATIONS:
# OF POLES: 4
# OF CONDUCTORS: 26
WINDING TYPE: WAVE
MULTIPLICITY: SIMPLEX
ROTATION: PROGRESSIVE
 Make the Needed Calculations

Here, YA = (26±2) / 4 = 6 or 7.
Taking YA = 7, we have YB = YF = 7.
YC = YA
Elements per slot = 2 (Simplex Wave Winding)
 Create the Winding Table
No. Back connection Front connection
1 1 to (1 + 7) = 8 8 to (8 + 7) = 15
2 15 to (15 + 7) = 22 22 to (22 + 7) = 29 = 29 - 26 = 3
3 3 to (3 + 7) = 10 10 to (10 + 7) = 17
4 17 to (17 + 7) = 24 24 to (24 + 7) = 31 = 31 - 26 = 5
5 5 to (5 + 7) = 12 12 to (12 + 7) = 19
6 19 to (19 + 7) = 26 26 to (26 + 7) = 33 = 33 - 26 = 7
7 7 to (7 + 7) = 14 14 to (14 + 7) = 21
8 21 to (21 + 7) = 28 = 28 - 26 = 2 2 to (2 + 7) = 9
9 9 to (9 + 7) = 16 16 to (16 + 7) = 23
10 23 to (23 + 7) = 30 = 30 - 26 = 4 4 to (4 + 7) = 11
11 11 to (11 + 7) = 18 18 to (18 + 7) = 25
12 25 to (25 + 7) = 32 = 32 - 26 = 6 6 to (6 + 7) = 13
13 13 to (13 + 7) = 20 20 to (20 + 7) = 27 = 27 - 26 = 1
Start Drawing
Start Drawing
Start Drawing
