Trans Ethiopia plc

Scania Business Unit

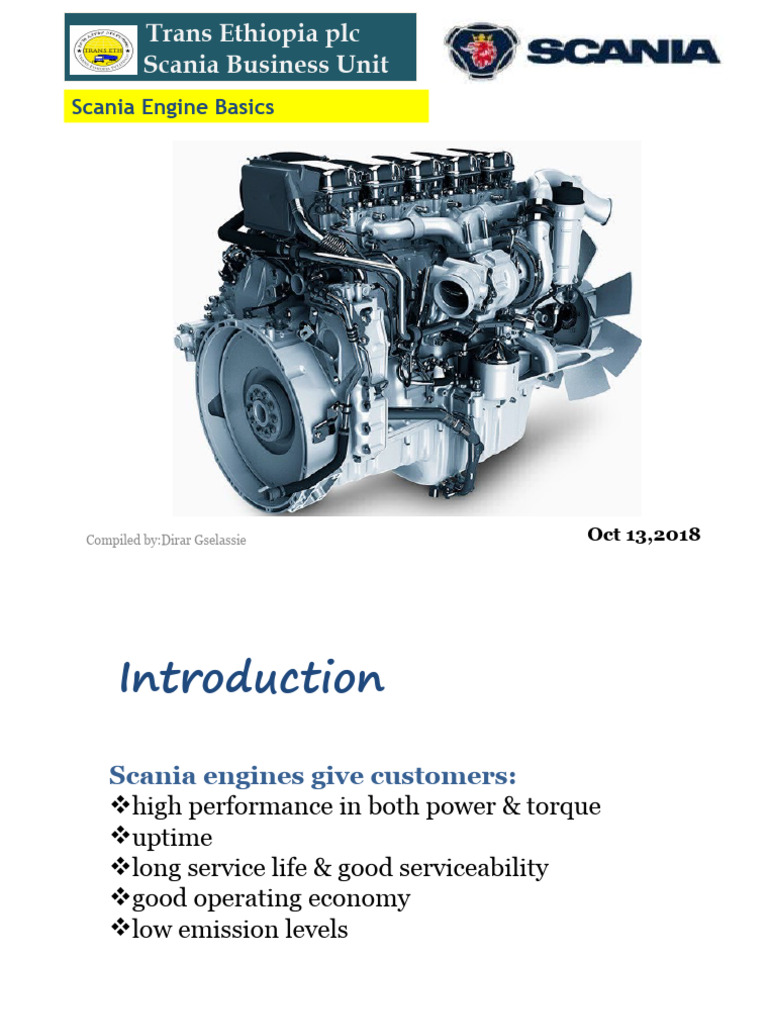

Scania Engine Basics

Compiled by:Dirar Gselassie Oct 13,2018

 Introduction

Scania engines give customers:

high performance in both power & torque
uptime
long service life & good serviceability
good operating economy
low emission levels

Compiled by:Dirar Gselassie

 Four stroke principle

oInduction phase
oCompression phase
oCombustion phase
oExhaust phase

Compiled by:Dirar Gselassie

 Engine designation

Full type designation: DC13 107 L01

Version
displacement

Performance & certification code

application

Variant number

Compiled by:Dirar Gselassie

Version
•DC=Diesel engine, turbocharged with air cooled charge-air cooler
•DI=Diesel engine, turbocharged with liquid cooled charge-air cooler
•OC=Otto engine, turbocharged with air cooled charge-air cooler
•OI=Otto engine, turbocharged with liquid cooled charge-aircooler
•U=Universal, not vehicles

Displacement
•Swept volume of engine in whole litters
•Designated with two digits
Example, 13=13 litter-engine
16=16 litter-engine

Performance & certification code

•Designated with three digits b/n 001-999
•The digits can be preceded with letters
Example, DC09 E02, / G,gas)/(E,ethanol)

Compiled by:Dirar Gselassie

 Application
•A=engine common, not vehicles
•D=engine for truck, low entry cab/Distribution/
•F=engine for bus, longitudinal front engine
•G=engine for hybrid, parallel hybrid
•H=engine for hybrid, series hybrid
•L=engine for truck, general application
•M=engine for marine application
•K=engine for bus, longitudinal rear engine
•N=engine for bus, horizontal rear engine
•W=engine for truck, all wheel drive

Variant number
•Designated with two digits b/n 01-99
•Shows differences in the equipment, not the basic design
•Only applies to vehicle engines

Compiled by:Dirar Gselassie

 Scania engine types/two types

Inline either 5 cyl or 6 cyl

V8

Compiled by:Dirar Gselassie

 Engine components

Compiled by:Dirar Gselassie

 Cylinder block

•The cyl-block is cast in one piece

& there is a separate cylinder head for each
cylinder

•The engine has wet cyl-liners

•The cyl-liner is replaceable

Compiled by:Dirar Gselassie

 Pistons
A piston is divided into:
•1 piston crown
•2 combustion chamber recess
•3 piston top land
•4 piston ring zone
•5 piston body
•6 piston-pin boss

Piston ring

Compiled by:Dirar Gselassie

 Connecting rod/Con rod

1.Con rod small end

2.Con rod shank
3.Slanting split con rod big end
4.Con rod bearing cover

Compiled by:Dirar Gselassie

 Crank shaft

Compiled by:Dirar Gselassie

 Camshaft & valve mechanism

Compiled by:Dirar Gselassie

 Cylinder head •Separate cyl-head
•Service ease
• has four valves per cyl

Compiled by:Dirar Gselassie

 Turbocharger
Increases power by approx 40%

Compiled by:Dirar Gselassie

…(contd.)…

Waste gate valve

Compiled by:Dirar Gselassie

 Timing gears

•located at the rear of the engine

•helps reduce noise

•contributes longer service life

•provides advantage for PTO

Compiled by:Dirar Gselassie

 Performance Curve

Compiled by:Dirar Gselassie

…(contd.)..

Description:
•Inline 6-cyl direct injection diesel engine
•Euro-3 emission rating
•PDE injection system
•4 valves per cyl
•Turbocharged & charge air cooler
•Piston bore 130mm
•Piston stroke 160mm
•Compression ratio18:1
•Firing sequence 1-5-3-6-2-4
•Displacement 12.7 dm3
•Max output@1900 rpm,410hp(302kW)
•Max torque@ 1000-1350 rpm,2000Nm
•Exhaust brake output@2400 rpm,263kW
•Max sulfur content of fuel is 2000 ppm(0.002)

Compiled by:Dirar Gselassie

 Fuel system

PDE

Compiled by:Dirar Gselassie

 HPI

Compiled by:Dirar Gselassie

 Common Rail/XPI
XPI is a new generation of common rail fuel injection system,
Developed by scania in cooperation with Cummins Inc. USA.

Compiled by:Dirar Gselassie

In general the fuel system with
PDE/HPI/XPI:
•right time
•optimal performance
•minimum fuel consumption
•correct emission level

Compiled by:Dirar Gselassie

Lubrication system

•Reduces friction & wear

Purpose •Cooling
•Cleans combustion residue
•Sealing
•Corrosion protection
•Sound reduction
Compiled by:Dirar Gselassie
 Components :
•Oil sump & strainer
•Oil pump & safety valve
•Oil cooler
•Centrifugal & relief valve
•Oil filter
•Piston cooling & oil galleries
•Dipstic

Oil pump

Oil cooler

Compiled by:Dirar Gselassie

 …(contd.)…
Centrifugal oil cleaner

Oil filter

Piston cooling nozzle

Compiled by:Dirar Gselassie

Oil flow

Compiled by:Dirar Gselassie

…(Contd.)…

Compiled by:Dirar Gselassie

….(Contd.)….

Compiled by:Dirar Gselassie

 ……(Contd.)….

Compiled by:Dirar Gselassie

 ….Contd…

Compiled by:Dirar Gselassie

Schematic diagram of the oil circulation in
the lubrication system

Compiled by:Dirar Gselassie

 Reasons for oil change
oOxidation
oContamination
oDepletion of additives
Time interval/Scania operation based program
o Type 0 …light long distance transport
oType 1…long distance transport
oType 2…heavy long distance transport
oType 3…off road/construction operations
oType 4..short haul distribution operations

Compiled by:Dirar Gselassie

 Oil volumes

For more information refer

Multi service manual…General
•00:16-15
•00:16-01

Compiled by:Dirar Gselassie

 Cooling system
Heat energy?

•Coolant pump
•Radiator
•Fan
•Thermostat
•Expansion tank
•Coolant galleries
•Hoses

Compiled by:Dirar Gselassie

Charge air cooler/intercooler

•Increases engine power

•Reduces fuel consumption emission

Compiled by:Dirar Gselassie

 When/Why Engine Overhaul (Recondition)?

Compiled by:Dirar Gselassie

 …..CONT’D…..

Driver complain :
Excessive oil consumption
Oil pressure high/low
Smoke
Power lose/fuel consumption
Overheating
Noise
others ime
l if e t
tory /
•H is s s io n
isc u
•D

Compiled by:Dirar Gselassie

Critical pointsWorkshop/Service Manual
•Make/Brand •preparations
•Safety issues
•Model
•Cleaning
•Engine# •Procedures
•Chassis# •Specifications/tightening torques
•Tools/equipments

Compiled by:Dirar Gselassie

Compiled by:Dirar Gselassie
 10 Q
