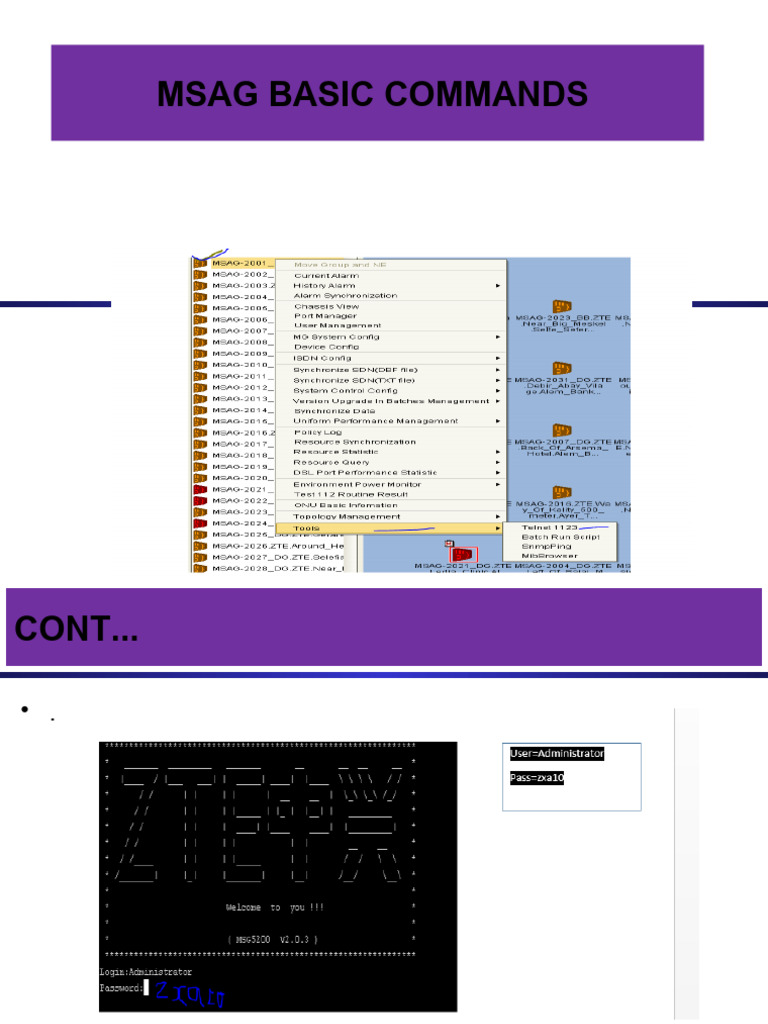

MSAG BASIC COMMANDS

CONT...

• .
CONT…

• .
CONT…

•. ……………………….1123
• MSAG1001$ ag
•MSAG1001$(ag)del-board-slc-rack 1 shelf 1 slot 7(to delete the card
•MSAG1001$(ag) add-board-slc rack 1 shelf 1 slot 7 type 26
•MSAG1001$(ag) exit
•MSAG1001$ save
•Are you sure to save configure data? [y/n]y
.
CONT…

•MSAG1001$(config) vlan add 1015


• MSAG1001$ (config) vlan del 1015
•MSAG1001$(config) vlan add-port 1015 port 0/9/2 taggedport
•MSAG1001$(config) vlan add-port 1015 port 0/5/14 unggedport
•MSAG1001$(config) vlan del-port 1015 port 0/5/14 unggedport
•MSAG1001$(config) show vlan 1015
•MSAG1001$(config) show adsl port 0/5/14
•MSAG1001$(config) show vlan port 0/5/14
For epon
MSAG01# show epon onu info 0/3/0 onu 1
•
ONSITE TELENET(BY ENTERNET PORT)

Config ur pc
1.Ip address 168.10.0.100
2.Subnet mask 255.255.255.0
3.Leave the other empty
The telnet 168.10.0.1 1123
#show port stastiscis 0/9/2
#show port stastiscis 0/9/2

If it reads output bytes


The GIS is working, if
not GIS problem
Re-configure the GIS
or change by other GIS

If it reads input bytes


On side of transmition
OK, if not transmition
problem .
CONT

• .
CONT

• .
CONT

• .
• .

PREPARED BY GETAHUN

THANK U
